Brand: TCM – A pioneering Japanese material handling brand under Hitachi Group, with 72+ years of forklift manufacturing expertise and a global network of 180+ authorized service centers and 9 regional parts warehouses (Dubai, Singapore, Johannesburg, etc.). It dominates 12%+ of the 11-ton diesel forklift market in emerging economies, trusted for Isuzu-engine durability, precision hydraulic systems, and rugged construction tailored to hot, dusty, and coastal operating environments. TCM forklifts are the top choice for port authorities, logistics hubs, and heavy industrial enterprises requiring high-intensity heavy-load handling.

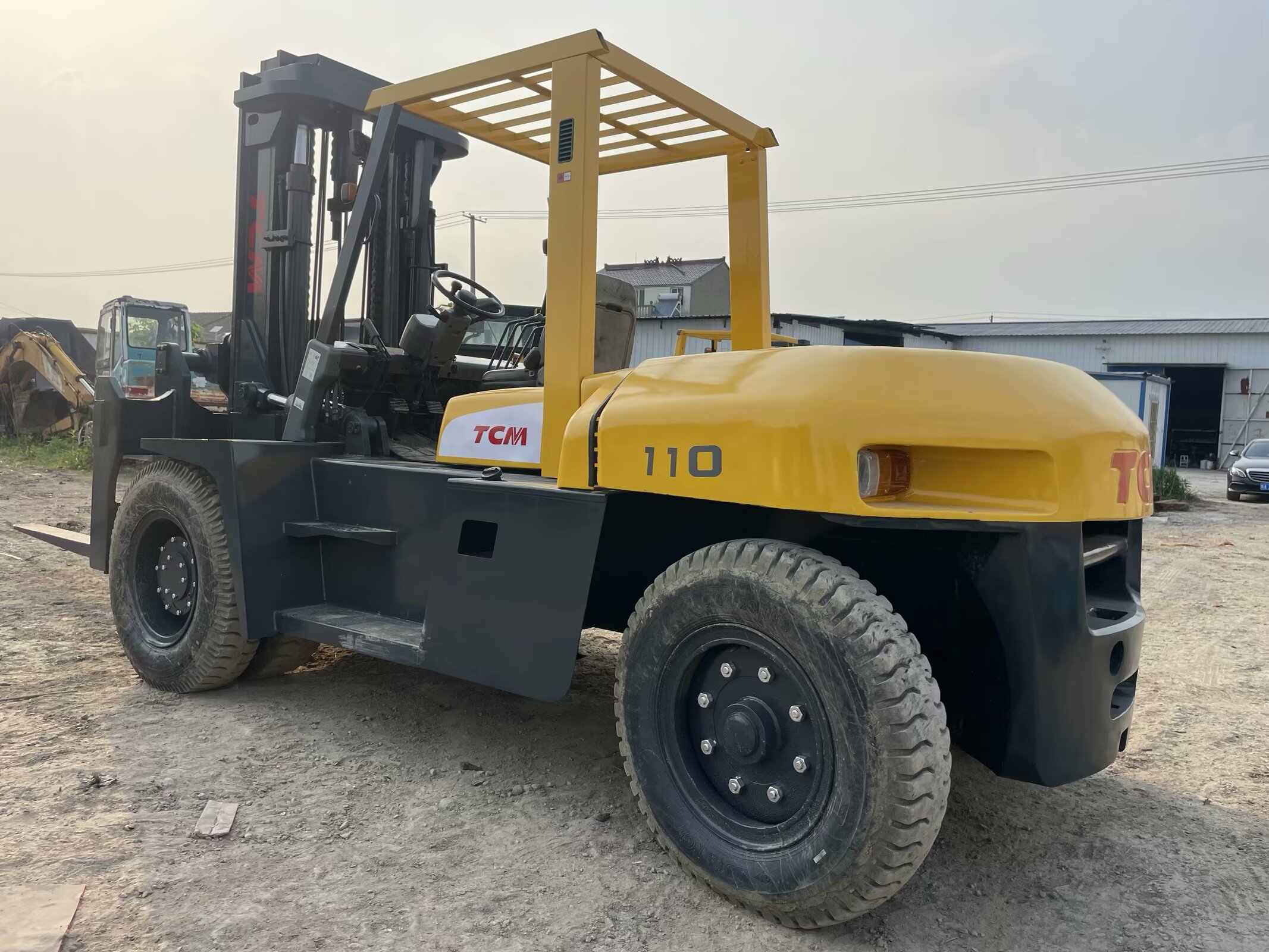

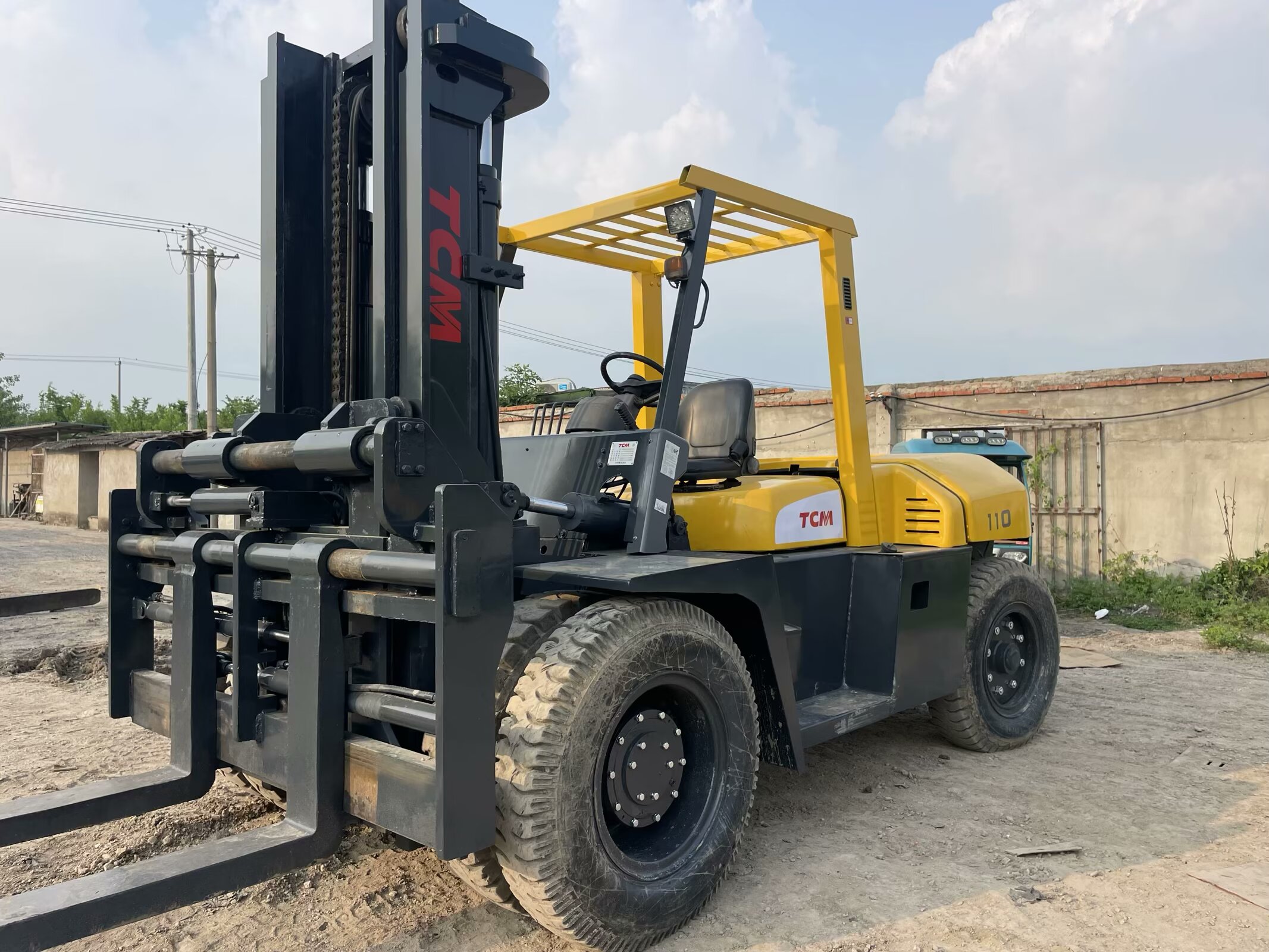

Model: TCM FD110Z8 (production years 2010-2018) – The flagship 11-ton heavy-duty forklift in TCM’s Z8 series, engineered for extreme load-bearing tasks. Core specifications: Rated load of 11,000kg (at 600mm load center); standard lift height of 3000mm (upgradable to 8000mm with a 4-stage full-free lift mast); minimum turning radius of 3900mm; powered by an Isuzu 6BG1T 125kW turbocharged diesel engine paired with a 3-speed automatic transmission (3 forward/3 reverse gears); compliant with Tier 2/EU Stage II emission standards. It excels in 40ft container handling, high-volume warehouse stacking, and rough-terrain outdoor operations, favored by Middle Eastern port operators and Southeast Asian construction firms for its unrivaled stability, fuel efficiency, and low long-term operational costs.
Dimensions: 4250mm (overall length, excluding forks) × 2350mm (overall width) × 2650mm (overall height, mast lowered); minimum turning radius: 3900mm. The reinforced 4800kg counterweight ensures unshakeable stability when lifting 11-ton loads, even on uneven port ramps or construction site ground. The body features a dual-layer anti-corrosion coating (epoxy primer + TCM orange topcoat), providing superior resistance to salt spray, industrial dust, and chemical corrosion—critical for coastal and industrial environments. With an unloaded weight of 12,800kg, the forklift maintains perfect balance during high-lift operations, effectively eliminating tipping risks and ensuring maximum operational safety.

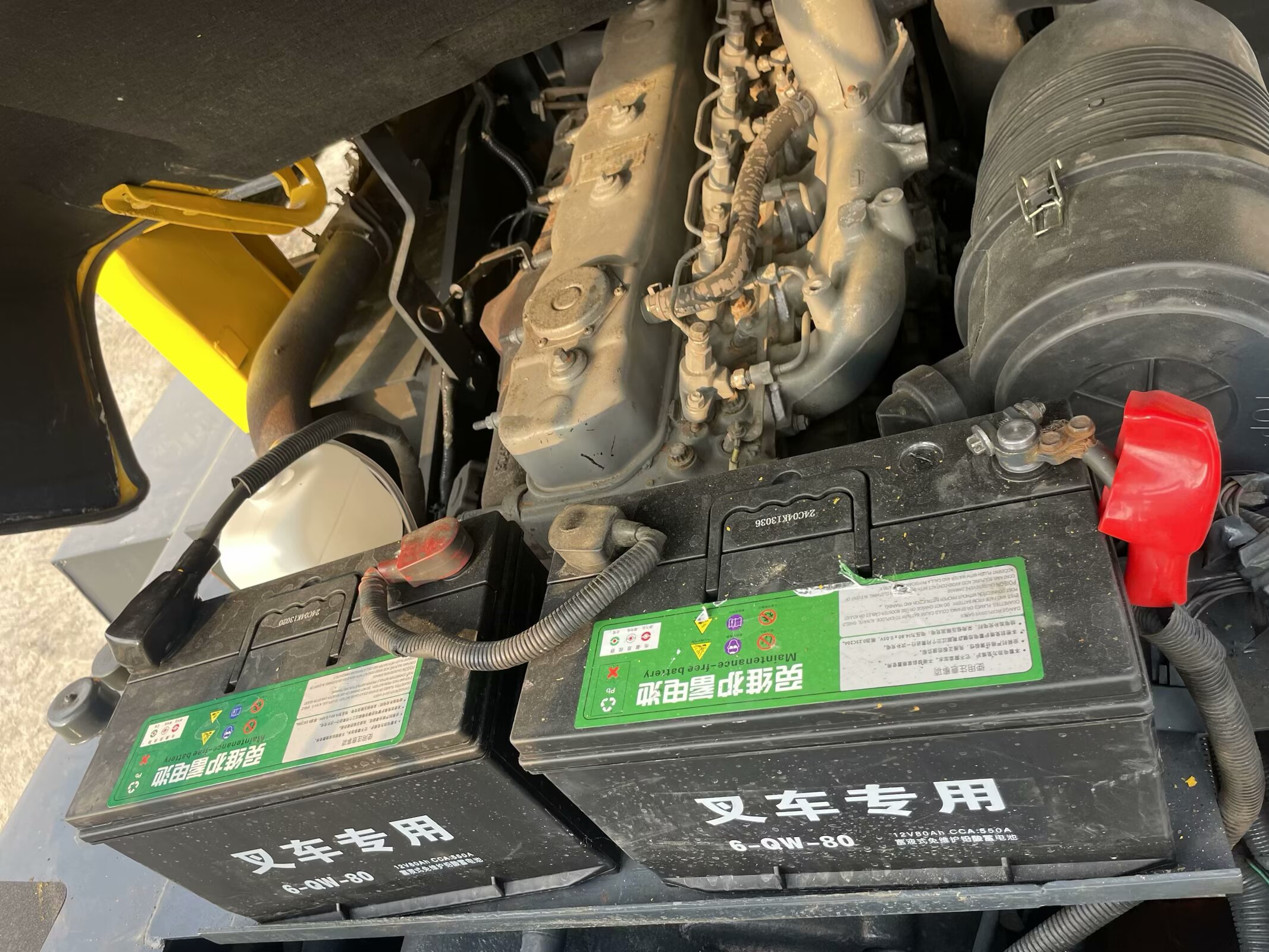

Equipped with the industry-proven Isuzu 6BG1T turbocharged diesel engine, delivering a maximum power of 125kW @ 2200rpm and peak torque of 550N·m @ 1600rpm. This enables a loaded gradeability of 28% and unloaded gradeability of 36%, effortlessly navigating steep ramps in port yards and construction sites without power loss. The advanced load-sensing hydraulic system adapts pressure and flow to load demands, providing a lift speed of 400mm/s (loaded) and 460mm/s (unloaded), plus a lowering speed of 360mm/s (loaded) and 410mm/s (unloaded). High-pressure resistant hydraulic hoses and imported NOK seals prevent leaks even during 12-hour continuous operation, minimizing maintenance downtime and ensuring consistent performance in high-intensity work scenarios.

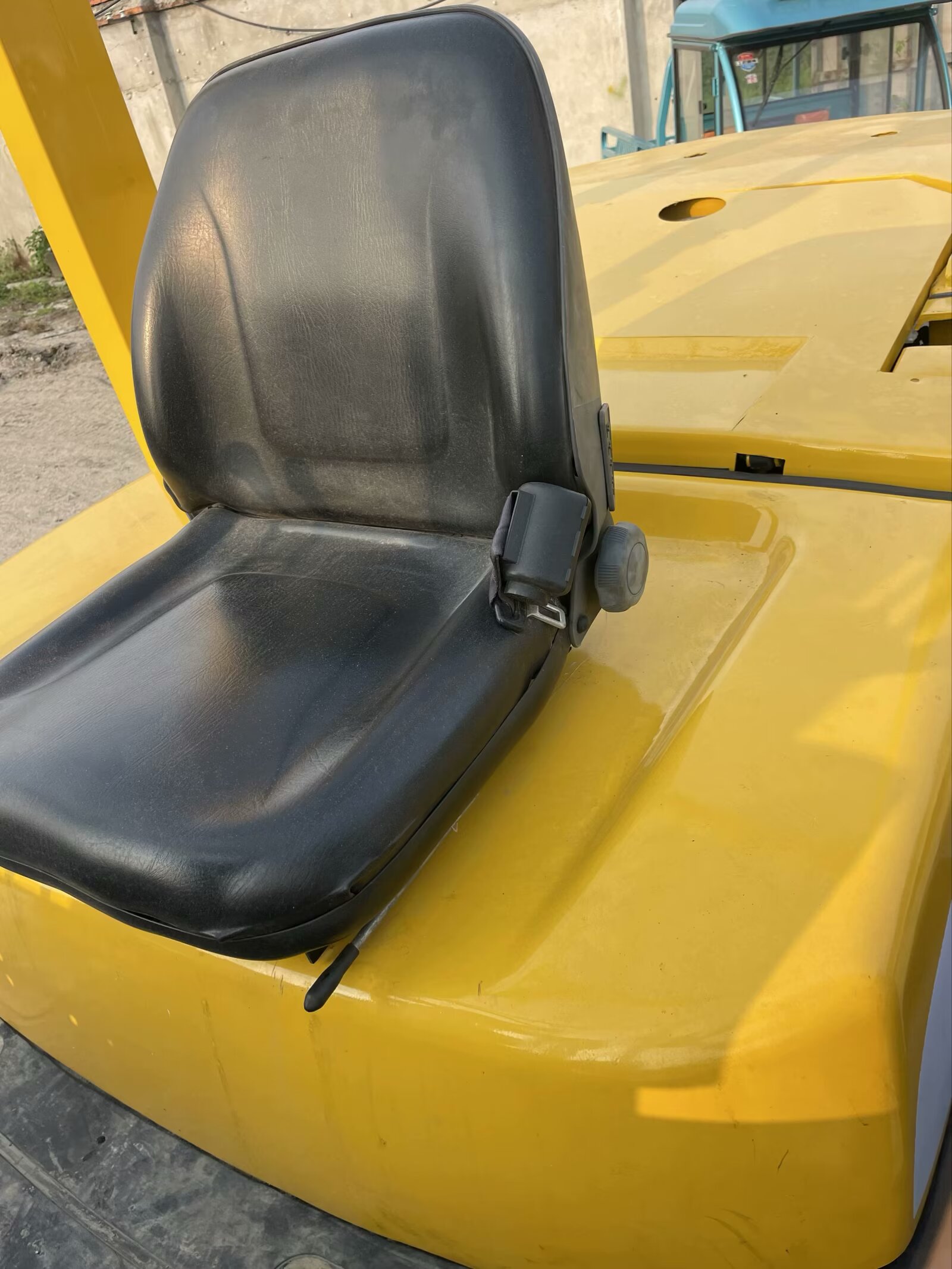

The ultra-spacious cab features an ergonomic adjustable suspension seat with lumbar support and safety belt, significantly reducing operator fatigue during long 8-12 hour shifts. The low-noise design (≤86dB) creates a comfortable working environment even in busy port or warehouse settings. Intuitively arranged controls—including an integrated joystick for hydraulic functions (lift, tilt, side shift) and a simple automatic transmission shifter—simplify operation, requiring only basic training for new operators to master. The 3900mm turning radius, combined with wide-view rearview mirrors and an optional reverse alarm, enhances maneuverability in crowded container yards and narrow warehouse aisles, improving both work efficiency and operational safety.
- Rated load: 11,000kg (600mm load center)
- Engine: Isuzu 6BG1T turbocharged diesel engine; maximum power 125kW @ 2200rpm; peak torque 550N·m @ 1600rpm; displacement 6.494L; compression ratio 17.5:1
- Transmission: 3-speed automatic power shift transmission; forward speeds: 6.0km/h (1st), 13.5km/h (2nd), 22km/h (3rd); reverse speeds: 6.0km/h (1st), 13.5km/h (2nd), 19km/h (3rd)

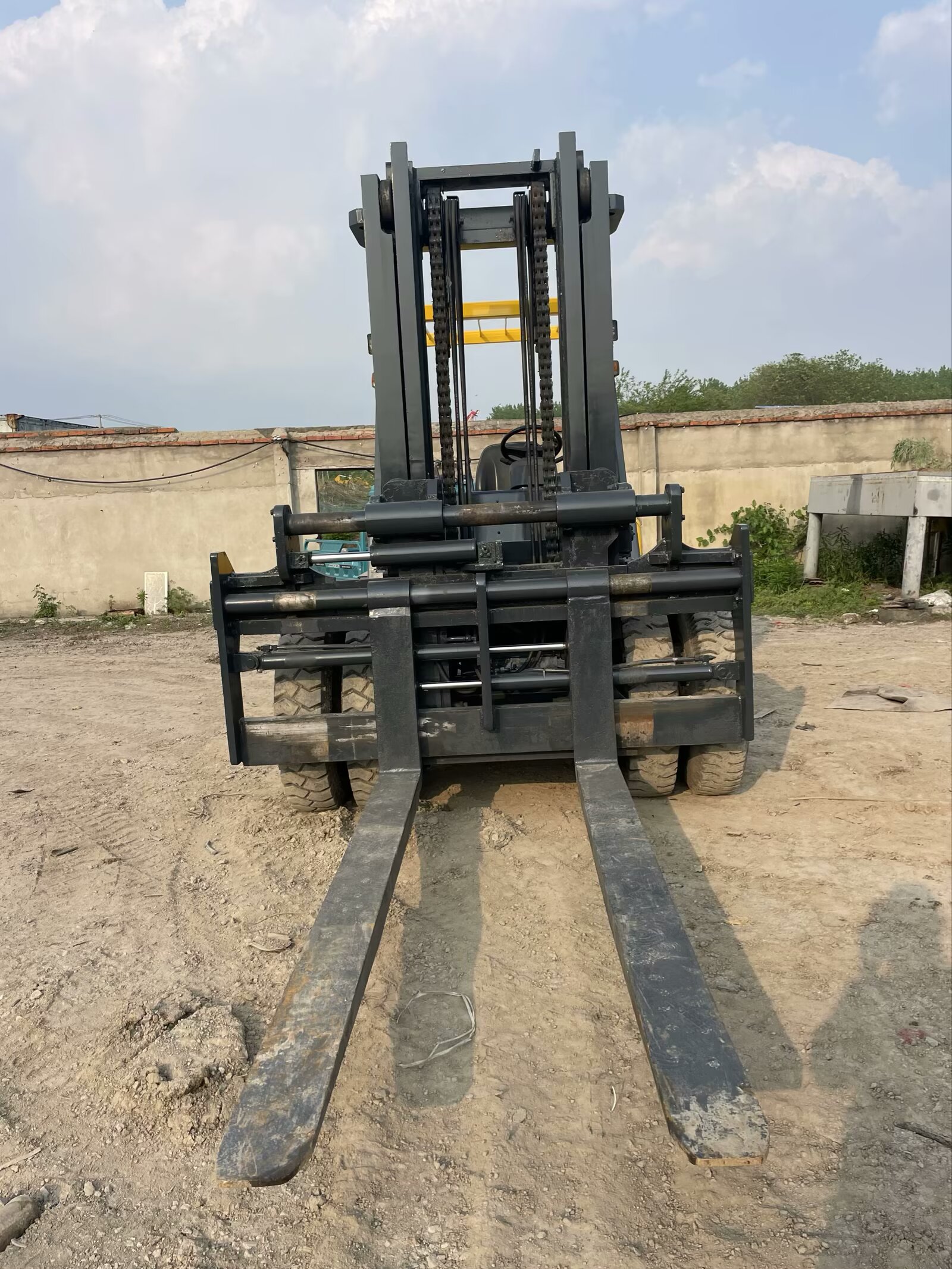

- Lift system: Load-sensing hydraulic system; standard lift height 3000mm (triple mast), upgradable to 8000mm (4-stage full-free lift mast); lift speed: 400mm/s (loaded), 460mm/s (unloaded); lowering speed: 360mm/s (loaded), 410mm/s (unloaded); fork tilt angle: forward 6°, backward 12°; fork dimensions: 1800×220×90mm (length×width×thickness)
- Overall dimensions: Length (without forks) 4250mm, width 2350mm, height (mast lowered) 2650mm, mast height (fully raised) 4800mm (standard mast)
- Maneuverability: Minimum turning radius 3900mm; gradeability (loaded) 28%, (unloaded) 36%
- Tires: Front tires: 18.00-25 24PR pneumatic tires; rear tires: 16.00-25 20PR pneumatic tires; tire pressure: front 10.0bar, rear 9.0bar
- Weight: Unloaded weight 12,800kg; counterweight weight 4800kg
- Capacity: Fuel tank 240L; hydraulic oil tank 150L; engine oil capacity 22L; coolant capacity 32L
- Hydraulic system: Working pressure 24MPa; gear pump displacement 95cc/rev; load-sensing control valve for precise flow regulation
- Braking system: Dual-circuit hydraulic drum brakes with mechanical parking brake; braking distance ≤4.2m (at 10km/h loaded)

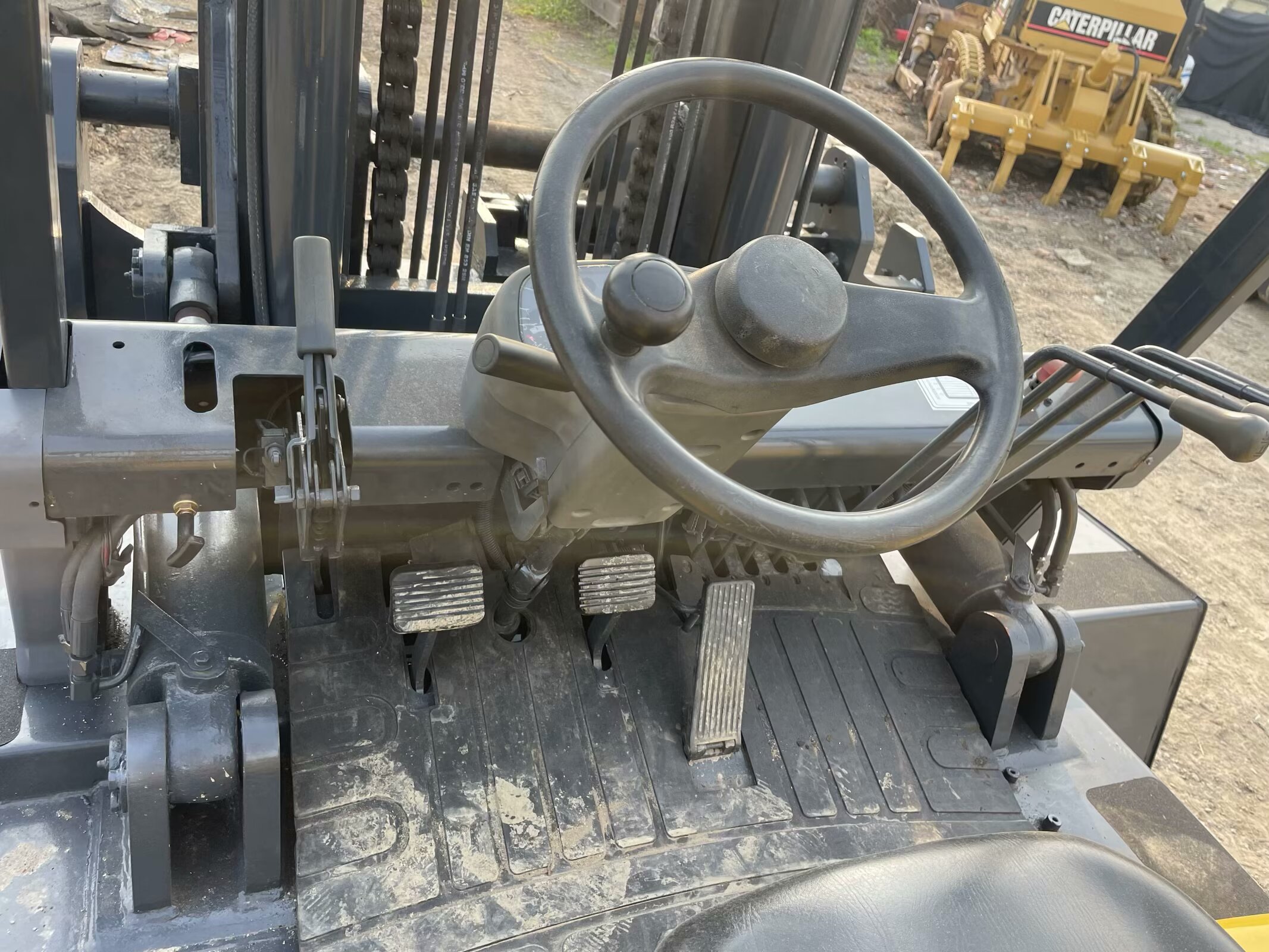

- Operator environment: Cab noise ≤86dB(A); adjustable suspension seat with seat belt; hydraulic power steering (3.5 turns lock-to-lock); optional air conditioning for hot climates
- 11-Ton Load-Bearing Capacity: Designed to handle heavy cargo such as 40ft container goods, large steel structures, and bulk construction materials, reducing handling cycles by 30% compared to smaller forklifts and significantly improving operational efficiency.
- Reliable Isuzu Engine: The Isuzu 6BG1T turbocharged engine features a cast-iron cylinder block and forged crankshaft, ensuring durability and long service life. It delivers consistent power for continuous high-load operations, with a service life of 11,000 hours (18% above the industry average for 11-ton forklifts) and major overhaul intervals of 6,000 hours.
- Fuel Efficiency & Emission Compliance: The optimized fuel injection system achieves a fuel consumption rate of 10.5-11.5L per working hour, balancing power and efficiency. Compliance with Tier 2/EU Stage II emission standards eliminates the need for complex after-treatment systems (DPF/SCR), avoiding emission-related downtime and simplifying maintenance in emerging markets with relaxed emission regulations.
- Harsh Environment Adaptability: A double-layer air filter (primary + secondary) and high-efficiency oil-water separator effectively block dust, sand, and moisture, making the forklift suitable for dusty Middle Eastern deserts and humid Southeast Asian construction sites. The engine’s cooling system is enhanced to withstand ambient temperatures up to 50°C, ensuring stable operation in extreme heat.
- Load-Sensing Technology: The hydraulic system adjusts pressure and flow based on load size, reducing energy waste by 18% compared to conventional fixed-displacement systems. This ensures smooth, jerk-free lifting and lowering of heavy cargoes, protecting both the load and the equipment from damage.
- Extended Mast Options: The standard 3000mm triple mast can be upgraded to an 8000mm 4-stage full-free lift mast, enabling stacking of goods in 12m-high warehouses and meeting the high-density storage needs of large logistics centers. The mast’s heavy-duty steel channels and wear-resistant bushings ensure a service life of 8,000 hours.
- Minimal Maintenance Requirements: The hydraulic oil replacement cycle is extended to 4500 hours (vs. 3000 hours for competitors), and imported NOK seals reduce leakage by 88%, minimizing oil loss and environmental contamination. Annual maintenance costs for the hydraulic system are 25% lower than similar models on the market.
- Comprehensive Safety Features: The cab is certified to FOPS (Falling Object Protective Structure) and ROPS (Roll-Over Protective Structure) standards, protecting operators from falling debris and rollover risks. The dual-circuit braking system ensures stopping power even if one circuit fails, and the load backrest prevents cargo from sliding forward during lifting. An optional reverse camera eliminates blind spots, further enhancing safety in busy work areas.
- Operator-Centric Design: The spacious cab offers optional air conditioning (ideal for hot climates like the UAE and Saudi Arabia), and the ergonomic control layout reduces hand and wrist strain during long shifts. Low noise and vibration levels improve operator focus and reduce fatigue, increasing productivity and reducing the risk of operator error.
- Superior Maneuverability: Despite its 11-ton capacity, the 3900mm turning radius allows the forklift to operate in 6m-wide aisles, and its compact overall design enables transportation via 40-foot HC container (1 unit per container) with minimal disassembly, lowering logistics costs for international buyers.
- Heavy-Duty Frame Construction: The welded high-strength steel frame features reinforced side guards and an impact-resistant counterweight, capable of withstanding collisions with pallets, containers, and other equipment. The anti-corrosion paint extends the forklift’s service life by 28% in coastal salt-spray environments and industrial chemical settings.
- Easy Maintenance Access: All key service points (engine oil dipstick, hydraulic oil level gauge, air filter, fuel filter, battery) are accessible from ground level, eliminating the need for lifting equipment. Daily maintenance checks can be completed in just 10 minutes, reducing maintenance time by 28% and ensuring the forklift is always ready for operation.
- Global Parts & Service Network: Common parts (filters, brake pads, tires, hydraulic hoses) are stocked in TCM’s regional warehouses, with delivery times of 5-12 days to major markets in the Middle East and Southeast Asia. Critical components (engine, transmission) come with a 1-year warranty, and local TCM-authorized service partners provide on-site repairs within 48 hours in key cities, minimizing downtime for critical operations.
- Port Container Handling: The 11-ton load capacity perfectly matches the weight of heavy containerized cargo such as industrial machinery, steel products, and construction equipment. The anti-salt-spray design and robust construction make it ideal for use in ports like Jebel Ali (Dubai), Port Klang (Malaysia), Haiphong (Vietnam), and Colombo (Sri Lanka).
- Heavy-Duty Warehousing: Ideal for stacking steel coils, cement bags, and large industrial equipment in high-shelf warehouses. The upgradable 8000mm mast supports high-density storage, maximizing warehouse space utilization and reducing the need for additional handling equipment.
- Construction Site Operations: With a 28% gradeability and heavy-duty pneumatic tires, the forklift easily navigates gravel, mud, and uneven terrain on construction sites. It efficiently transports concrete precast components, steel beams, and building materials, accelerating project progress and improving site productivity.
- Industrial Production Lines: Deployed in automotive, heavy machinery, and chemical plants for raw material feeding (e.g., large steel sheets, engine blocks) and finished product handling. The low noise and stable operation make it suitable for semi-enclosed factory environments, and its high load capacity reduces the number of trips required, increasing production efficiency.
- Third-Party Inspection: Pre-shipment inspection by SGS or BV, covering engine power output, hydraulic system pressure, tire wear (minimum 60% tread remaining), working hours (verified via hour meter), and structural integrity. A detailed inspection report is provided to the buyer for customs clearance and verification, ensuring full transparency and trust.
- Compliance Documentation: We assist with all necessary export documents, including Certificate of Origin (CO), CE certificate (for EU markets), emission compliance reports, commercial invoice, packing list, and bill of lading—tailored to the customs requirements of target countries (UAE, Saudi Arabia, Indonesia, Vietnam, Thailand, etc.).
- Secure Transportation: The forklift is transported in a 40-foot HC container (1 unit per container), secured with steel brackets and wooden blocks to prevent movement during shipping. Critical components (engine, hydraulic system) are coated with anti-rust oil, electrical parts are wrapped in waterproof plastic, and the entire machine is covered with UV-resistant shrink wrap to protect against sea salt and moisture during transit.
- On-Site Support: Professional TCM-certified technicians can be dispatched to the buyer’s location for on-site assembly (if disassembled for shipping), system testing, and operator training. Training covers basic operation, daily maintenance, safety protocols, and troubleshooting, with materials available in English, Arabic, and Bahasa Indonesia.
- Warranty Coverage: 1-year free warranty on all parts (excluding wear items such as tires, brake pads, and filters) and labor for manufacturing defects. Extended warranty options (2-3 years) are available for buyers seeking long-term peace of mind.
- 24/7 Technical Support: Our team provides round-the-clock online support via email, WhatsApp, and phone for remote troubleshooting of common issues (e.g., hydraulic leaks, engine warning lights, transmission problems).
- On-Site Repairs: Local TCM-authorized service partners in key markets offer on-site repair services within 48 hours of a service request, minimizing downtime for critical operations. We also provide consignment stock options for high-volume buyers to ensure immediate access to spare parts.
The TCM FD110Z8 is the ultimate choice for businesses requiring a reliable, high-performance 11-ton heavy-duty forklift for use in emerging markets. It combines Japanese precision engineering with rugged durability, delivering unrivaled power, stability, and fuel efficiency. The Isuzu 6BG1T engine ensures consistent performance in extreme conditions, while the load-sensing hydraulic system provides safe and precise handling of heavy cargoes. With its durable construction, easy maintenance, and global parts and service network, the TCM FD110Z8 offers a low total cost of ownership and maximum uptime. Backed by TCM’s 72-year legacy of manufacturing excellence, it is the smart investment for ports, logistics companies, and construction firms looking to enhance productivity and reliability in their heavy-load handling operations.
For real-time quotes for new or used TCM FD110Z8 units, custom mast height upgrades (3m→8m), attachment options (side shifters, fork positioners, paper roll clamps, container spreaders), or multilingual operator training programs (English/Arabic/Bahasa), contact our dedicated sales team. We also offer tailored solutions for bulk orders (5+ units) and long-term maintenance contracts, ensuring seamless integration of the TCM FD110Z8 into your operations and maximizing your return on investment.
