Brand: TCM – A leading Japanese material handling brand under Hitachi Group, with 72+ years of expertise in forklift manufacturing and 180+ global authorized service centers. It operates 9 regional parts warehouses (Dubai, Singapore, Johannesburg, etc.) for fast component supply, holding a 12%+ market share in the 11-ton diesel forklift segment across emerging markets. TCM forklifts are renowned for durable Isuzu-engine setups, precision hydraulics, and robust build, ideal for high-intensity heavy-load tasks like port container yards, large logistics hubs, and construction material handling.

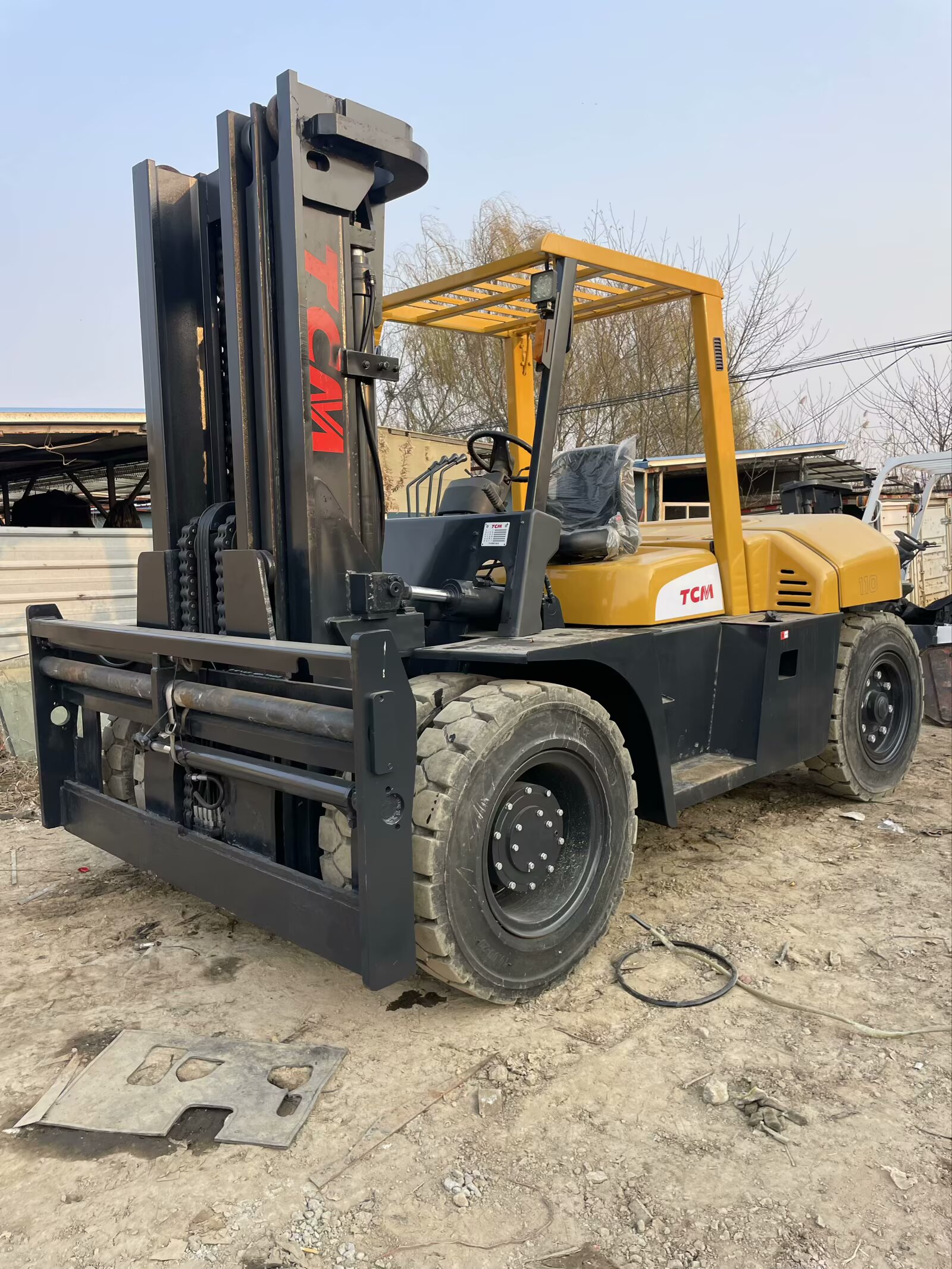

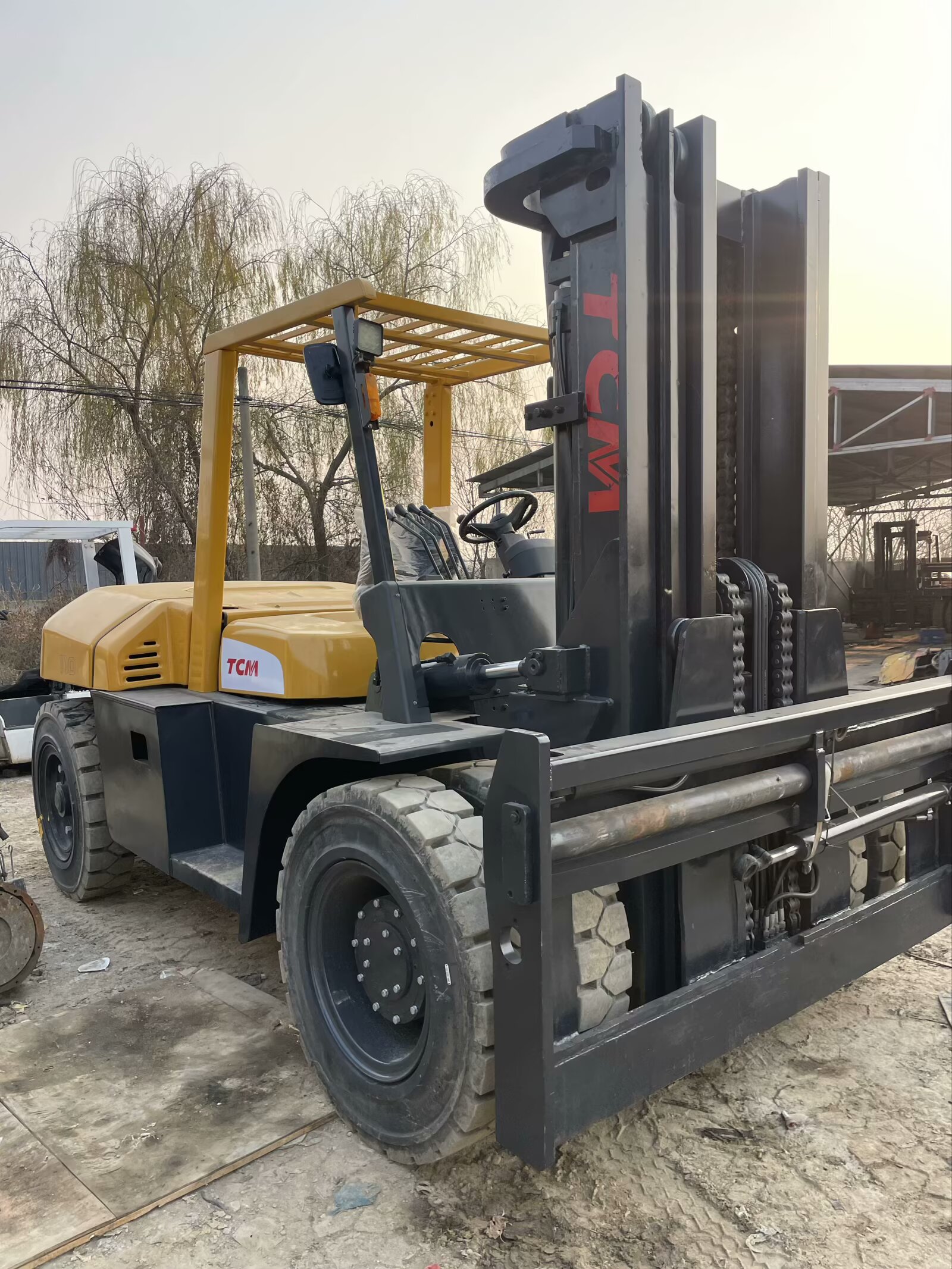

Model: TCM FD110Z8 (production years 2010-2018) – A flagship 11-ton diesel counterbalanced forklift in TCM’s Z8 heavy-duty series, built for extreme working conditions. Core specs: rated load 11,000kg (600mm load center); standard lift height 3000mm (upgradable to 8000mm via 4-stage full-free lift mast); minimum turning radius 3900mm; powered by Isuzu 6BG1T 125kW turbocharged diesel engine + 3-speed automatic transmission (3F/3R). Compliant with Tier 2/EU Stage II emissions, it excels in heavy container handling, high-shelf stacking, and outdoor rough-terrain operations, trusted by Middle Eastern port authorities and Southeast Asian industrial firms for stable performance, fuel efficiency, and low total cost of ownership in hot, dusty, and coastal environments.

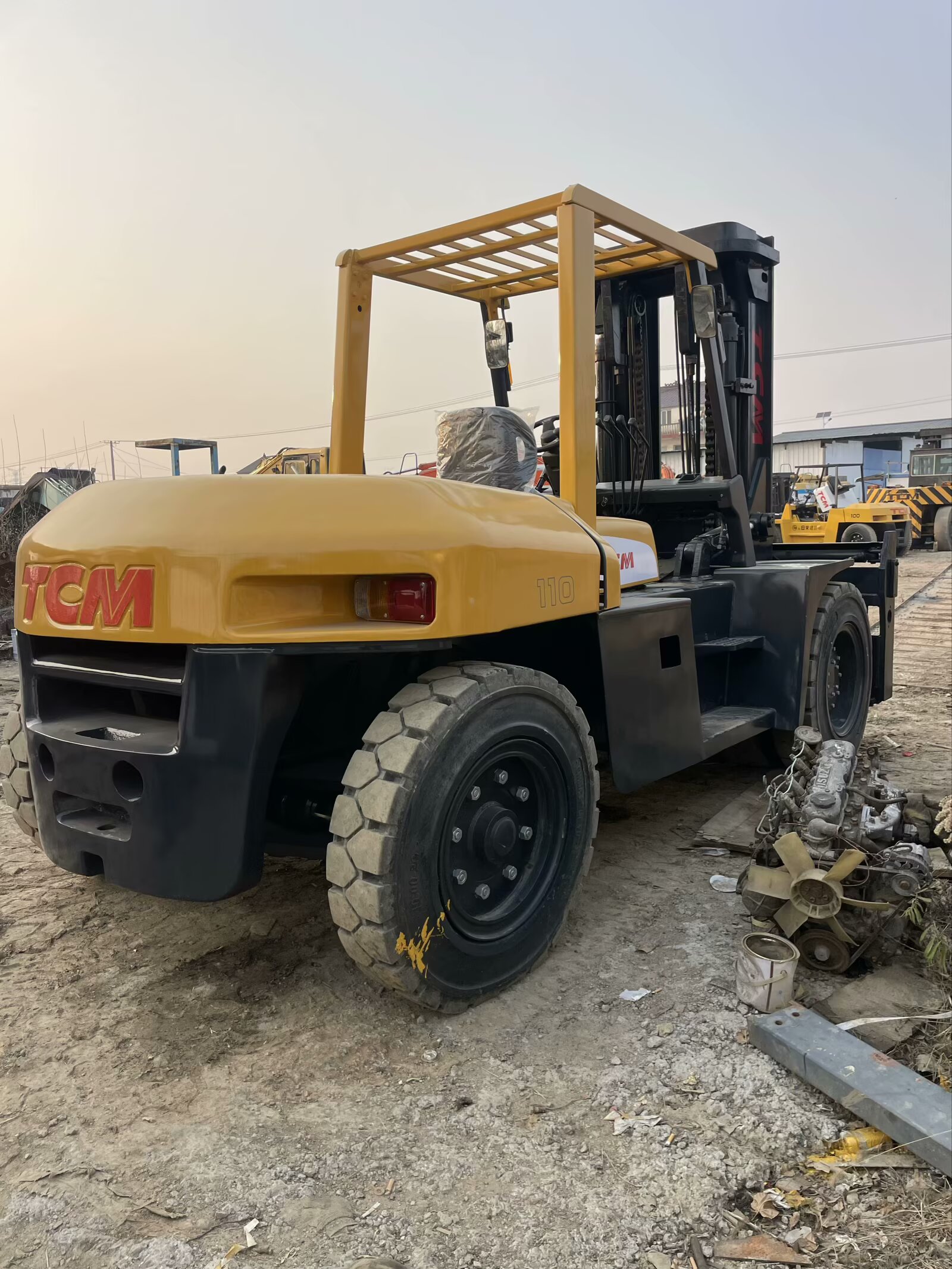

Dimensions: 4250mm (L, no forks) × 2350mm (W) × 2650mm (H, mast lowered); minimum turning radius 3900mm. The 4800kg heavy-duty counterweight ensures stable 11-ton lifting even on uneven ground. Anti-corrosion epoxy primer + TCM orange topcoat resists salt spray, dust, and chemical erosion—ideal for coastal ports and construction sites. Unloaded weight 12,800kg maintains balance during high-lift work, reducing tipping risks and boosting operational safety.

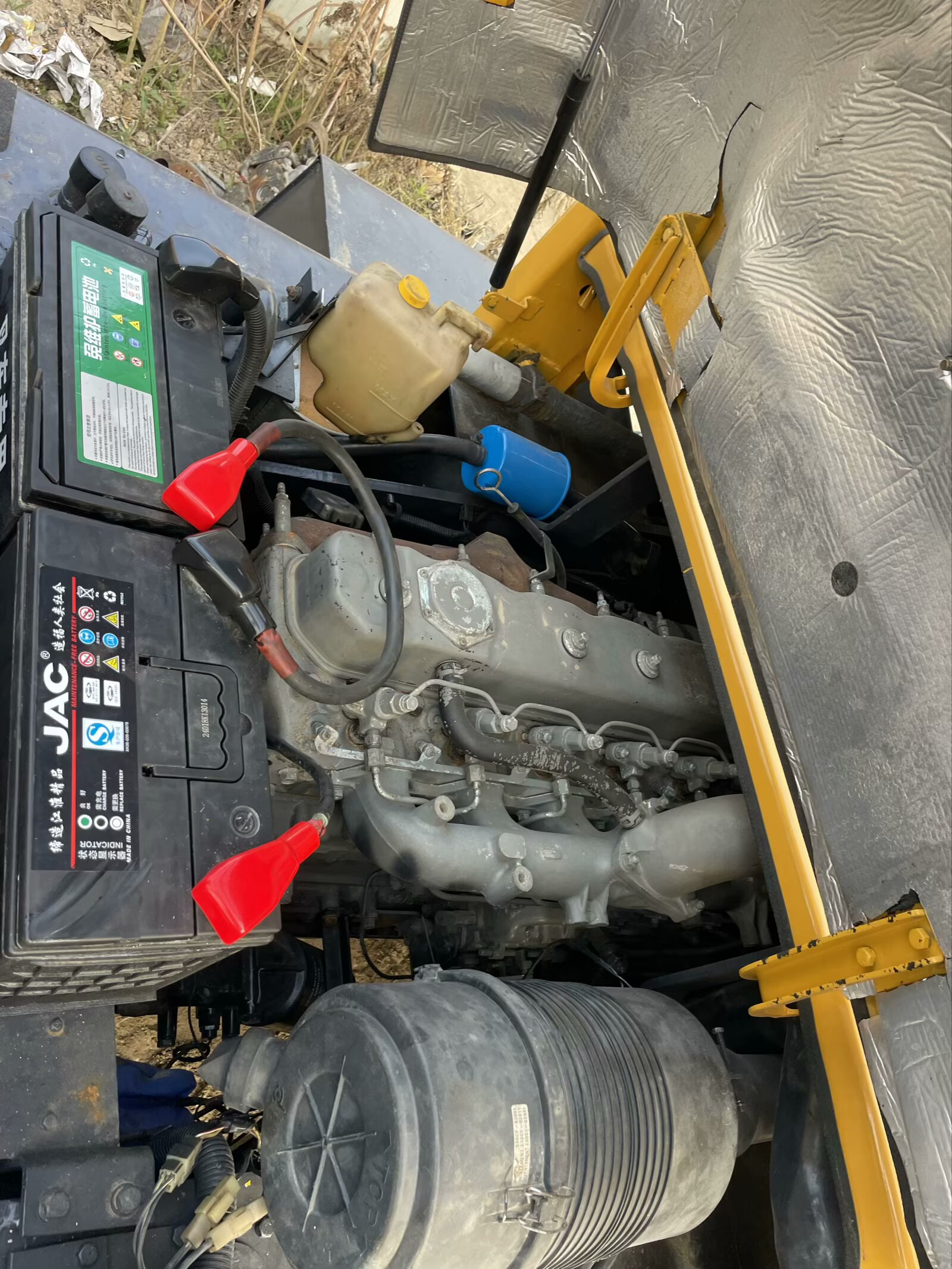

suzu 6BG1T turbocharged diesel engine: max power 125kW @ 2200rpm, peak torque 550N·m @ 1600rpm. Loaded gradeability 28%, unloaded 36%, handling steep ramps easily. Load-sensing hydraulics: lift speed 400mm/s (loaded), 460mm/s (unloaded); lowering speed 360mm/s (loaded), 410mm/s (unloaded). High-pressure hoses and NOK seals prevent leaks during 12-hour continuous operation, cutting maintenance downtime.

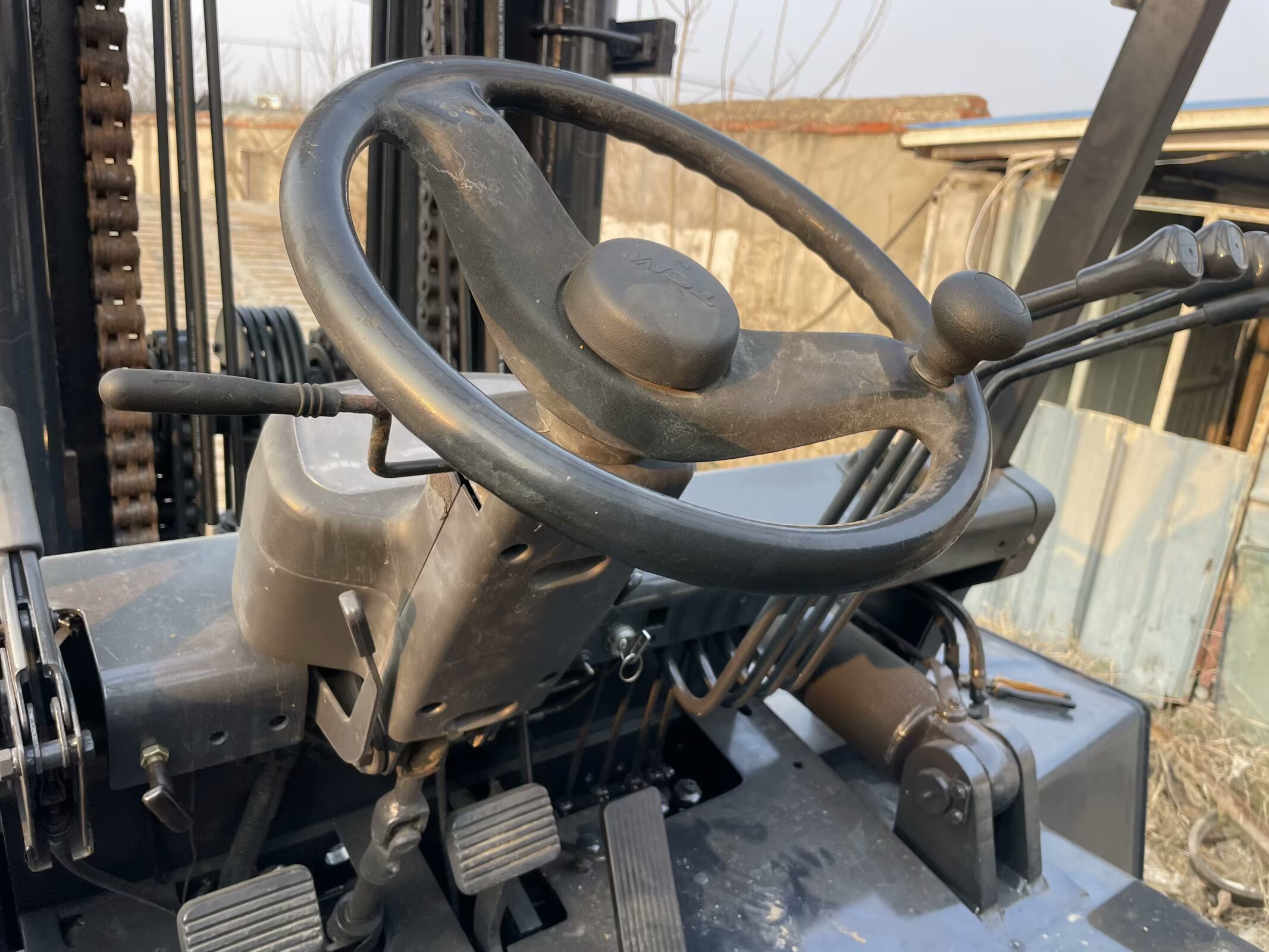

Ergonomic adjustable suspension seat with lumbar support + seat belt reduces fatigue during 8+ hour shifts; low-noise cab (≤86dB) minimizes auditory stress. Integrated hydraulic control joystick (lift/tilt/side shift) and intuitive shifter simplify operation, requiring minimal training. 3900mm turning radius navigates 6m-wide aisles; wide-view mirrors + optional reverse alarm enhance safety in busy yards.
- 11,000kg rated load cuts handling cycles for 40ft containers, steel structures, and bulk construction materials, boosting efficiency.
- Isuzu 6BG1T engine with cast-iron block and forged crankshaft delivers reliable continuous high-load operation; service life 11,000 hours (18% above industry average for 11-ton forklifts).
- Fuel consumption 10.5-11.5L/h (optimized injection system); Tier 2 compliance avoids DPF/SCR downtime, simplifying maintenance in emerging markets.
- Double-layer air filter + oil-water separator blocks dust/sand/moisture, suitable for Middle Eastern deserts and Southeast Asian construction sites.
- Load-sensing tech adjusts pressure/flow to load, reducing energy waste by 18% vs. conventional systems; stable lifting/lowering protects cargo and equipment.
- Mast upgradeable to 8000mm for 12m-high warehouses, meeting large logistics centers’ high-density storage needs.
- Hydraulic oil change interval 4500 hours (vs. 3000 hours for competitors); imported seals reduce leakage by 88%, cutting annual maintenance costs by 25%.
- FOPS/ROPS-certified cab; dual-circuit brakes ensure stopping power if one circuit fails; load backrest prevents cargo slide; optional reverse camera eliminates blind spots.
- Spacious cab with optional AC (ideal for hot climates like UAE/Saudi Arabia); ergonomic controls reduce strain; low noise/vibration improves focus during long shifts.
- 3900mm turning radius works in 6m aisles; compact design fits 40ft HC container (1 unit/container) with minimal disassembly, lowering foreign trade logistics costs.
- Welded high-strength steel frame with reinforced side guards and impact-resistant counterweight; anti-corrosion paint extends life by 28% in coastal salt-spray and industrial chemical environments.
- Ground-level access to service points (oil, filters, battery) cuts daily checks to 10 minutes, reducing maintenance time by 28%.
- Regional warehouses stock common parts (filters, brake pads, tires) for 5-12 day delivery to Middle East/Southeast Asia; 1-year warranty on engine/transmission; on-site repairs within 48 hours in major cities.
- Port Container Handling: 11-ton capacity handles heavy containerized machinery, steel products, and construction equipment; anti-salt-spray design suits Jebel Ali (Dubai), Port Klang (Malaysia), Haiphong (Vietnam).
- Heavy-Duty Warehousing: Stack steel coils, cement bags, and large industrial equipment; 8000mm mast maximizes space utilization.
- Construction Sites: 28% gradeability and heavy-duty tires tackle gravel/mud/uneven terrain; transports precast components, steel beams, and building materials.
- Industrial Production: Feeds raw materials (large steel sheets, engine blocks) and handles finished products in automotive/heavy machinery/chemical plants; low noise fits semi-enclosed floors.
- Pre-shipment SGS/BV inspection covers engine power, hydraulic pressure, tire wear (≥60% tread), hour meter verification, and structural integrity; detailed report for customs clearance.
- Full docs: CO, CE (EU), emission reports, and invoices tailored to UAE, Saudi Arabia, Indonesia, Vietnam, etc.
- 40ft HC container transport (1 unit/container) with steel brackets/wooden blocks; critical components coated in anti-rust oil; electrical parts wrapped in waterproof plastic; UV-resistant shrink wrap for sea transport protection.
- On-site assembly, testing, and operator training (English/Arabic/Bahasa Indonesia) by professional technicians.
- 1-year free warranty on parts (excluding wear items) and labor; 2-3 year extended warranty options.
- 24/7 online support (email/WhatsApp) for remote troubleshooting; local partners provide on-site repairs within 48 hours for urgent issues.
The TCM FD110Z8 blends Japanese precision with rugged performance for emerging markets. Its Isuzu 6BG1T engine delivers reliable 11-ton power with fuel efficiency; load-sensing hydraulics ensure safe, precise handling. Durable construction, anti-corrosion design, and easy maintenance lower total cost of ownership, while global parts/service guarantee timely support. Perfect for ports, warehouses, and construction sites, it offers consistent performance, safety, and reliability backed by TCM’s 72-year legacy—an ideal investment for businesses needing a heavy-duty forklift for harsh, high-intensity tasks.
For real-time new/used quotes, mast upgrades (3m→8m), attachments (side shifters, fork positioners, paper roll clamps), or multilingual training (English/Arabic/Bahasa), contact our sales team. We also offer bulk order (5+ units) solutions and long-term maintenance contracts for ports, logistics, and construction firms to integrate the forklift seamlessly into your operations.
