Brand: TCM – A leading Japanese material handling brand under Hitachi Group, with a century-long history in industrial equipment manufacturing and 180+ global authorized service centers spanning key regions including the Middle East, Southeast Asia, and Africa. It operates 9 regional parts warehouses (Dubai, Singapore, Johannesburg, etc.) to ensure rapid supply of components, holding a 10%+ market share in the 7-ton diesel forklift segment across emerging markets. TCM forklifts are trusted for their durable Isuzu-engine configurations, precision hydraulic systems, and robust build quality, making them the preferred choice for high-intensity heavy-load scenarios such as port container yards, large-scale logistics hubs, and construction material handling sites.

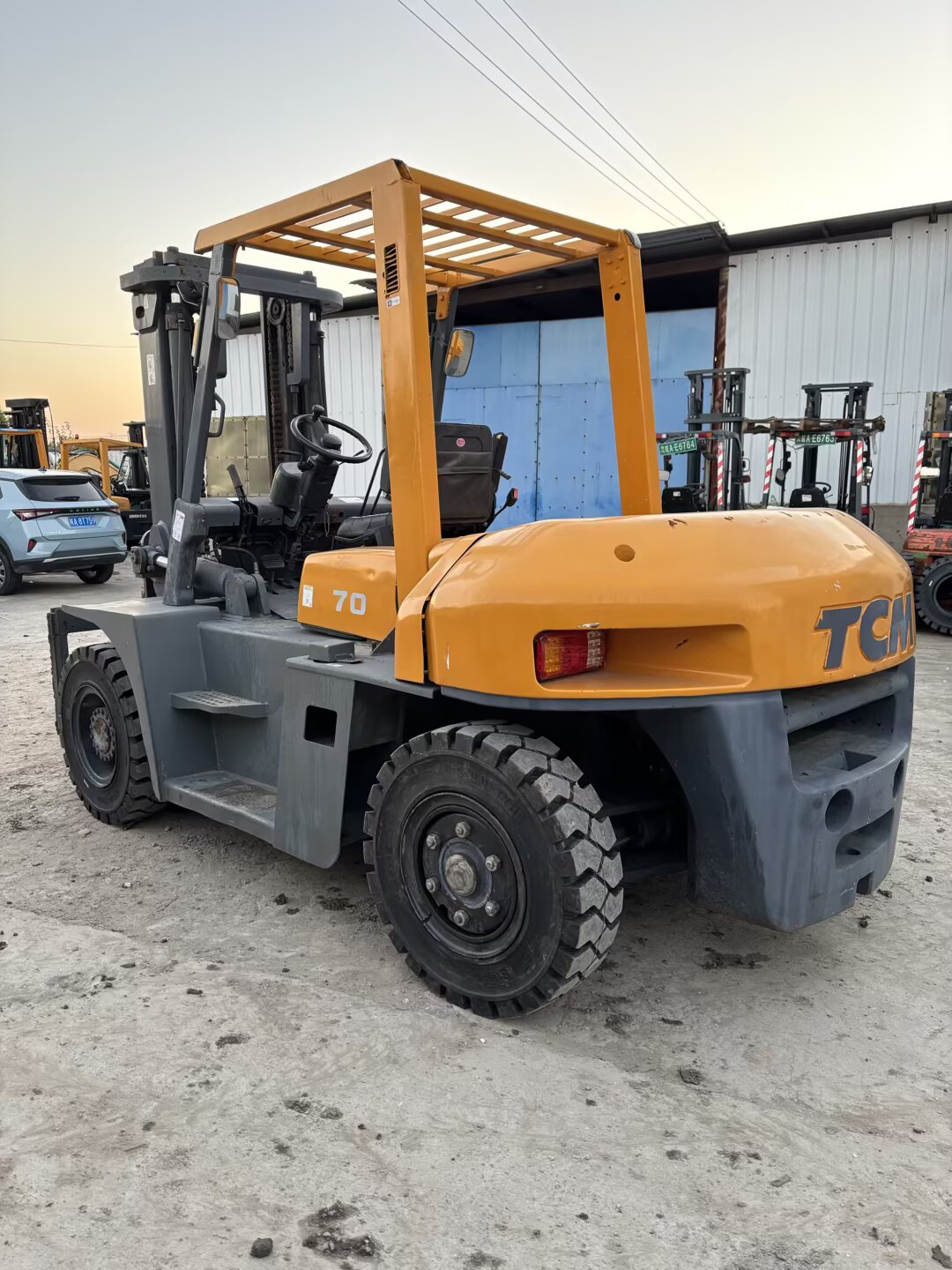

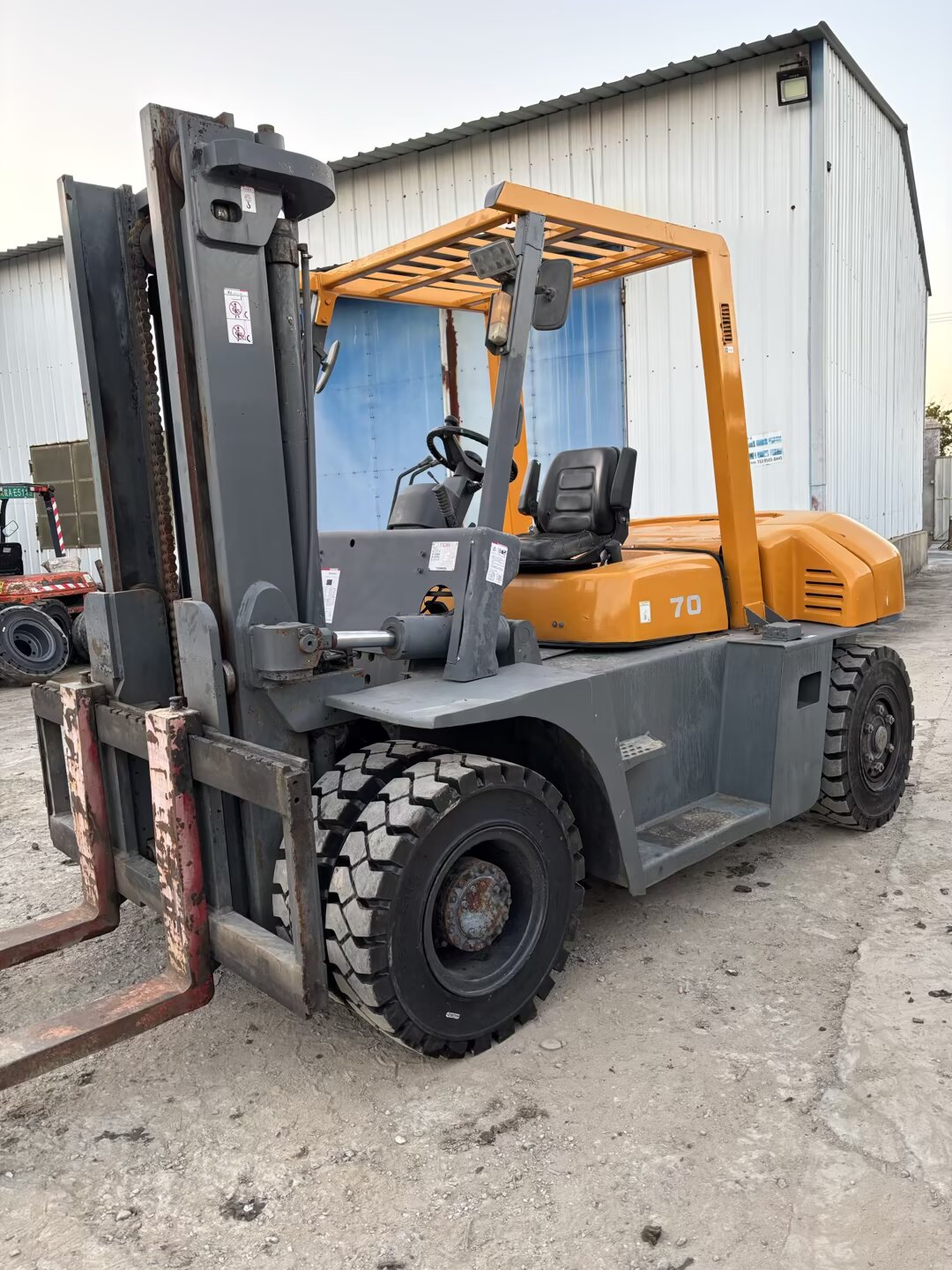

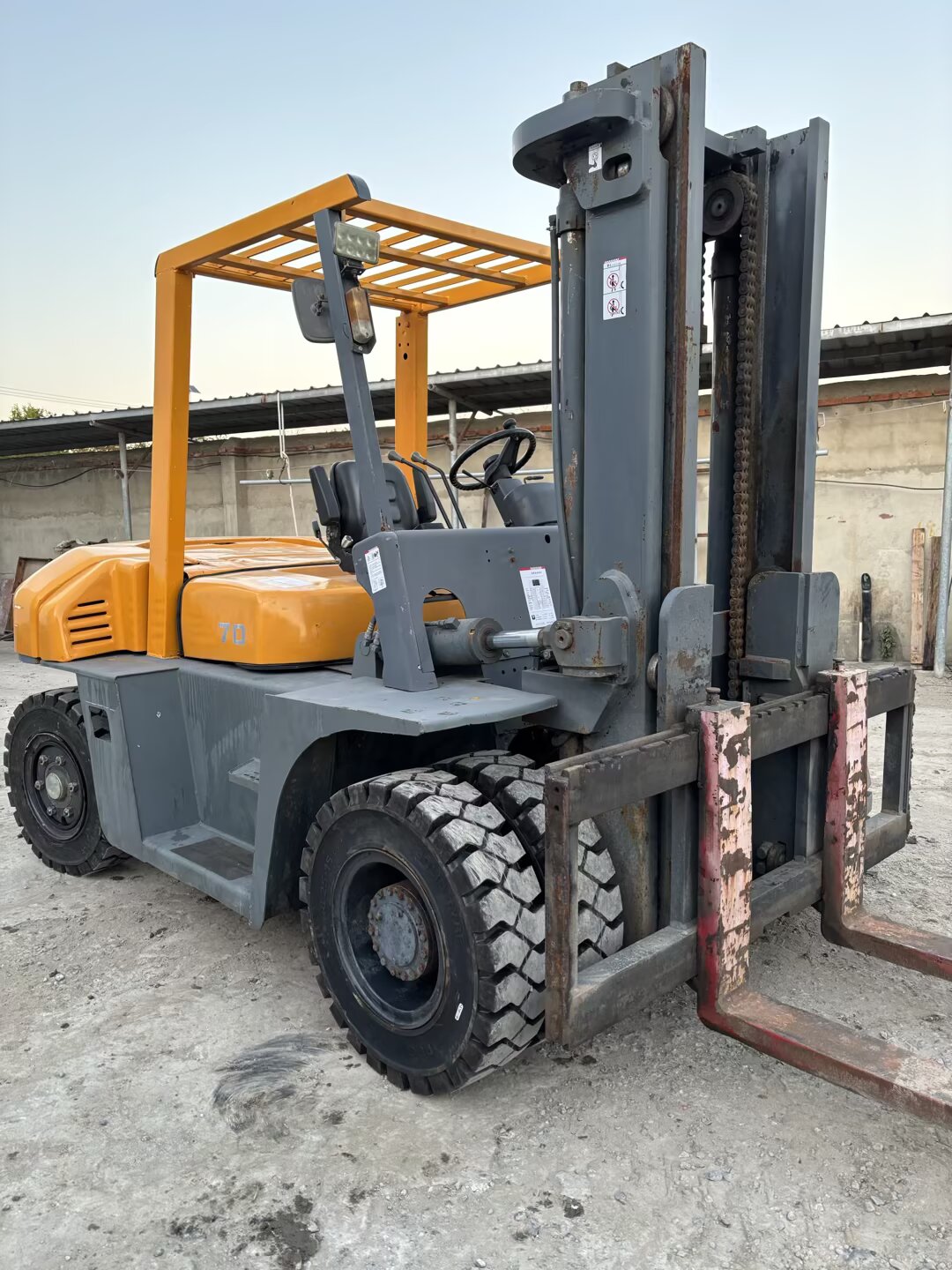

Model: TCM FD70Z8 (production years 2010-2018) – A high-performance 7-ton diesel counterbalanced forklift belonging to TCM’s Z8 heavy-duty series, engineered for extreme working conditions. Key specifications include a rated load of 7000kg (at 600mm load center), standard lift height of 3000mm (upgradable to 8000mm with a 4-stage full-free lift mast), minimum turning radius of 3500mm, and power from an Isuzu 6BG1T 107kW turbocharged diesel engine paired with a 3-speed automatic transmission (3 forward/3 reverse gears). Compliant with Tier 2/EU Stage II emission standards, it excels in heavy container handling, high-shelf warehouse stacking, and outdoor yard cargo transfer. Middle Eastern port operators and Southeast Asian construction enterprises favor it for its consistent performance, fuel efficiency, and low total cost of ownership, with proven reliability in hot, dusty, and coastal environments.
Dimensions: 3650×2100×2500mm (L×W×H); minimum turning radius: 3500mm. The heavy-duty counterweight (3200kg) ensures stable 7-ton load lifting even on uneven ground, while the anti-corrosion orange paint with epoxy primer resists salt spray, industrial dust, and chemical corrosion—critical for coastal port and construction site use. With an unloaded weight of 9800kg, the forklift maintains optimal balance during high-lift operations, minimizing the risk of tipping and ensuring operational safety.

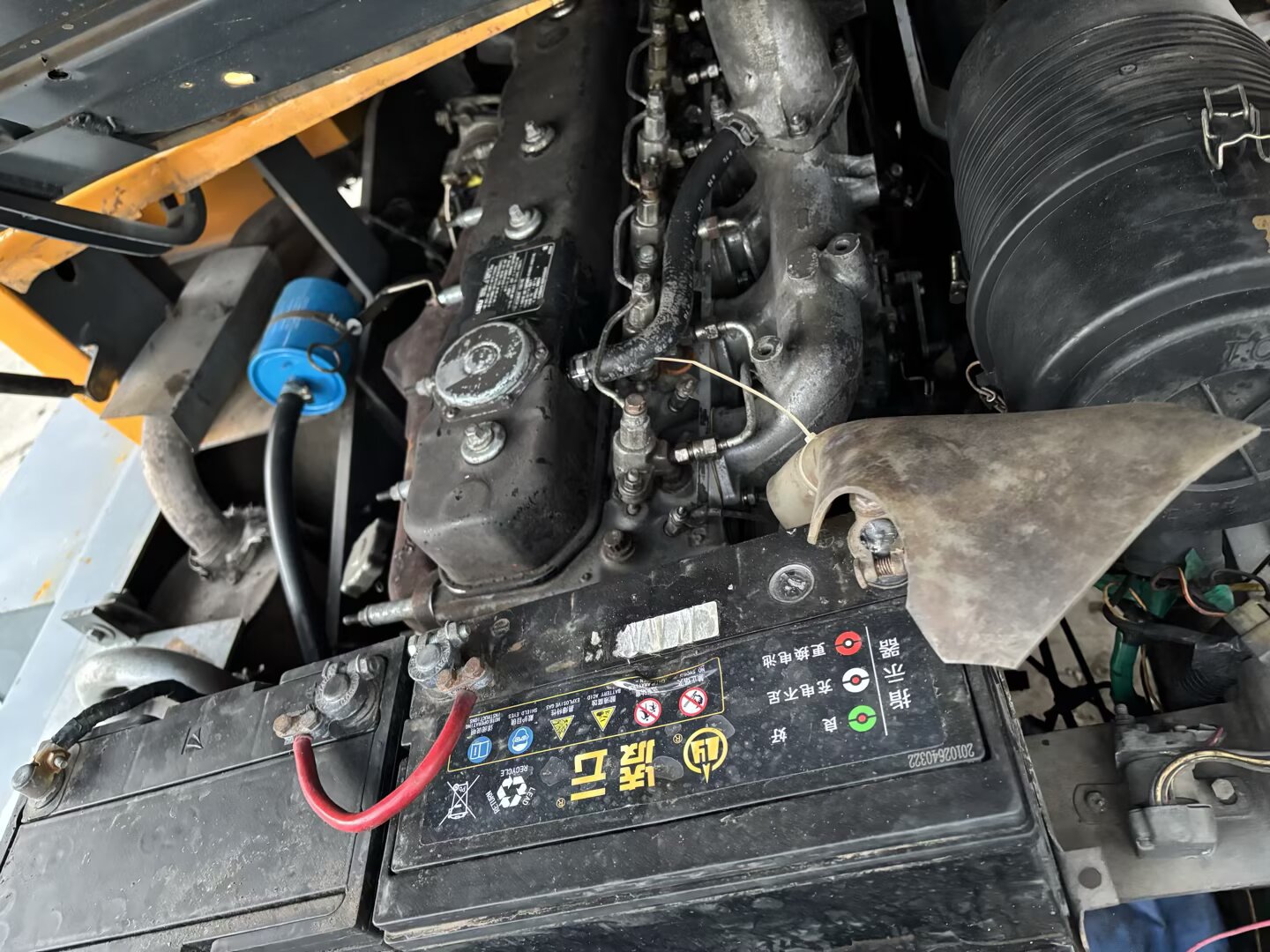

Equipped with an Isuzu 6BG1T 6.5L turbocharged 6-cylinder diesel engine (107kW/2200rpm) delivering maximum torque of 480N·m, the forklift achieves a max gradeability of 30% (loaded) and 38% (unloaded), easily navigating steep ramps in port yards and construction sites. The load-sensing hydraulic system provides precise control with a lift speed of 450mm/s (loaded) and 500mm/s (unloaded), and a lowering speed of 400mm/s, ensuring smooth handling of heavy, irregular cargoes such as steel coils, concrete precast components, and bulk material pallets. High-quality hydraulic hoses and sealed connectors prevent leaks even under continuous operation, reducing maintenance downtime.

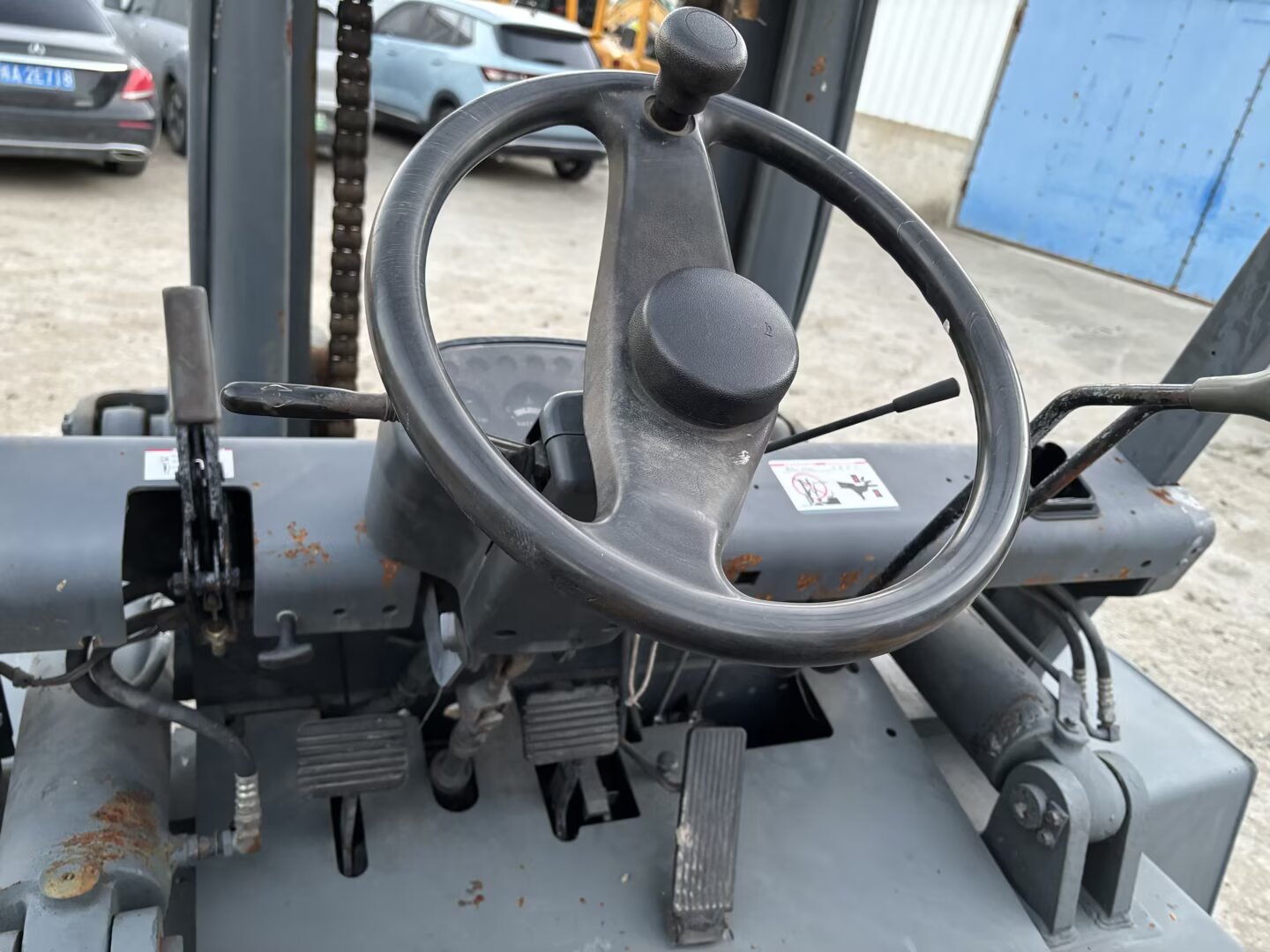

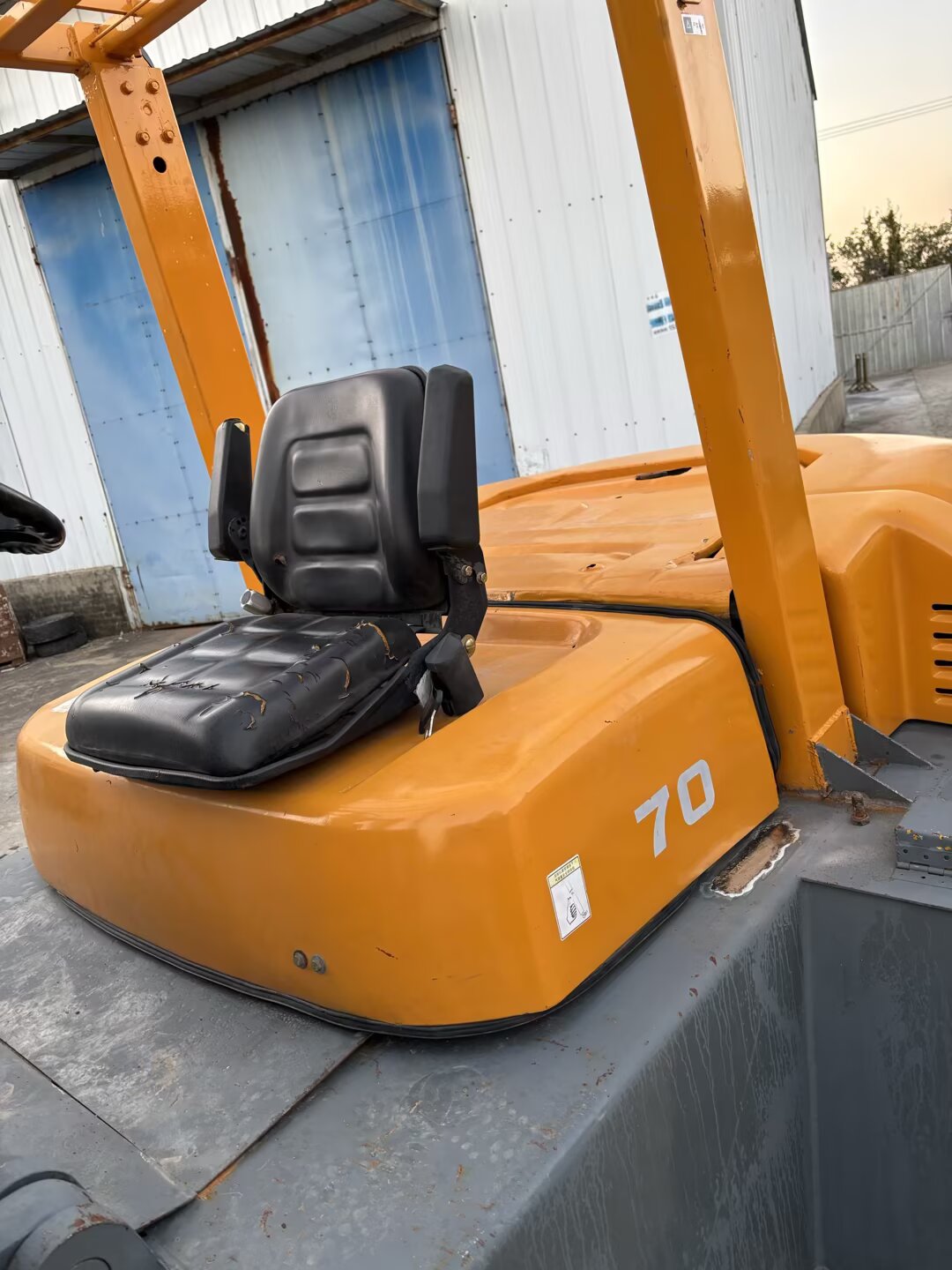

The ergonomic adjustable suspension seat with lumbar support and seat belt reduces operator fatigue during 8+ hour shifts, while the low-noise cab (≤83dB) minimizes auditory stress in busy work environments. Integrated control levers for hydraulic functions (lift, tilt, side shift) and a simple automatic transmission shifter simplify operation, requiring minimal training for new operators. With a 3500mm turning radius, the forklift navigates 5m-wide warehouse aisles and crowded container yards with ease, while the wide-view rearview mirror and optional reverse alarm enhance safety in high-traffic areas.
- Robust & Efficient Power
- Strong Power Output: The Isuzu 6BG1T turbocharged engine generates 107kW power and 480N·m torque, effortlessly handling 7-ton loads and climbing 30% gradients—ideal for rough terrain in ports, construction sites, and mining yards. The turbocharger ensures optimal power at low RPM, reducing engine strain during heavy-load operations and extending service life.
- Superior Fuel Efficiency: With a fuel consumption rate of 8.0-8.8L per working hour (10% lower than comparable models like Toyota 7FD70 and Komatsu FD70), the forklift cuts operational costs significantly for users running 2000+ hours annually. Compliance with Tier 2/EU Stage II emission standards eliminates the need for complex after-treatment systems (e.g., DPF/SCR), avoiding downtime from emission-related faults and simplifying maintenance in emerging markets.
- Durable Engine Design: A double-layer air filter (primary + secondary) and high-efficiency oil-water separator block dust, sand, and moisture—critical for dusty Middle Eastern and Southeast Asian environments—while the engine’s cast-iron block and forged crankshaft ensure durability. Service life extends to 11,000 hours (18% above industry average), with major overhaul intervals of 6000 hours, reducing long-term maintenance costs.
- Precise & Low-Maintenance Hydraulics

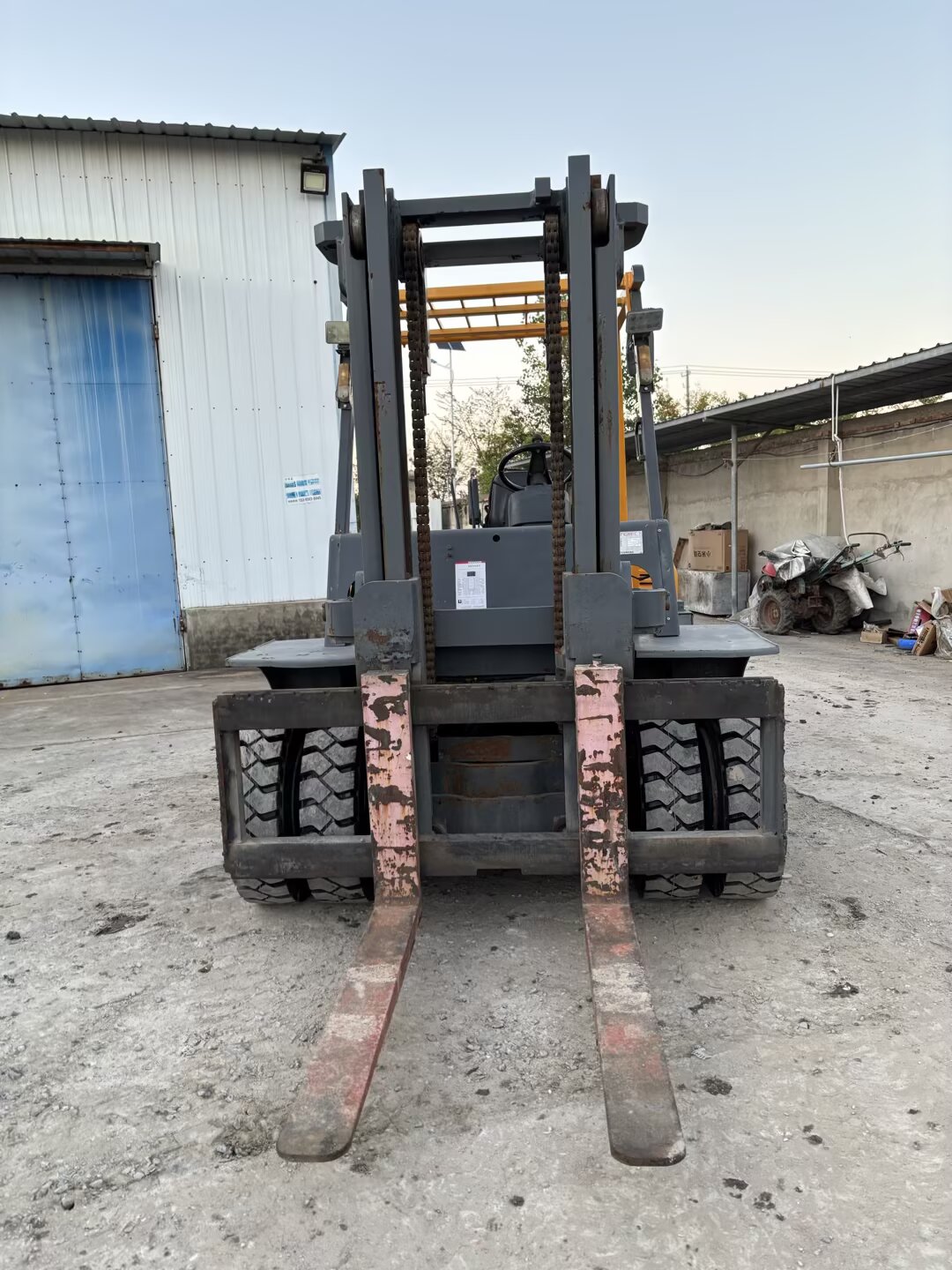

- Efficient Lifting Performance: The standard 3000mm triple mast (upgradable to 8000mm 4-stage mast) enables stacking in high-shelf warehouses (up to 12m), boosting storage density and operational efficiency by 12% compared to conventional forklift systems. The lift speed of 450mm/s (loaded) ensures fast cargo handling, reducing waiting times for trucks and containers.
- Stable Load Handling: The load-sensing hydraulic system adjusts pressure and flow based on load demand, preventing sudden drops or jerks and ensuring safe handling of fragile or heavy cargoes. A fork tilt angle of forward 6°/backward 12° accommodates irregularly shaped loads (e.g., steel beams, machinery parts), while reinforced fork tines (1500×180×70mm) withstand heavy impacts without bending.
- Minimal Maintenance Requirements: The hydraulic oil replacement cycle is extended to 4500 hours (vs. 3000 hours for competitors), and imported NOK seals reduce leakage by 82%, minimizing oil loss and environmental contamination. Annual hydraulic maintenance costs are cut by 20%, with no need for frequent part replacements.
- Safe & Comfortable Operation
- Enhanced Maneuverability: A 3500mm turning radius and 3650mm overall length allow operation in narrow spaces, while the forklift’s compact design enables transportation via 40-foot container (1 unit per container) with minimal disassembly, reducing shipping costs and logistics complexity for international buyers.
- Comprehensive Safety Features: The FOPS (Falling Object Protective Structure) and ROPS (Roll-Over Protective Structure) certified cab protects operators from falling debris and rollover risks, while the dual-circuit braking system (one circuit for front wheels, one for rear) ensures stopping power even if one circuit fails. A braking distance of ≤3.8m at 10km/h (loaded) meets international safety standards, and wide-view mirrors eliminate blind spots in busy work areas.
- Operator-Centric Design: The spacious cab, low noise levels (≤83dB), and intuitive control layout reduce fatigue during long shifts, improving productivity and reducing the risk of operator error. Simple controls lower training costs for new staff, making the forklift suitable for companies with high employee turnover.
- Durable & Easy-To-Maintain Structure
- High-Strength Frame Construction: The welded high-strength steel frame with reinforced side guards and impact-resistant counterweight withstands collisions with pallets, containers, and other equipment, while anti-corrosion paint extends service life by 22% in coastal or chemical-rich environments.
- Convenient Maintenance Access: All key service points (engine oil dipstick, hydraulic oil level gauge, air filter, fuel filter, battery) are accessible from ground level, eliminating the need for lifting equipment and reducing maintenance time by 25%. Daily checks can be completed in 10 minutes or less, ensuring the forklift is always ready for operation.
- Global Parts Supply Network: Common parts (filters, brake pads, hydraulic hoses, tires) are stocked in TCM’s regional warehouses, with delivery times of 5-12 days to major markets in the Middle East and Southeast Asia. Critical components (engine, transmission) come with a 1-year warranty, and local service partners provide on-site repairs within 48 hours in key cities.
- Port Container Handling: With a 7-ton payload capacity, the forklift is ideal for loading/unloading 20ft/40ft containers, handling cargo such as machinery parts, building materials, and bulk goods. Its anti-salt-spray design withstands coastal conditions, making it suitable for ports like Jebel Ali (Dubai), Port Klang (Malaysia), and Colombo (Sri Lanka).
- Heavy-Duty Warehousing: Used for stacking steel coils, cement bags, and industrial equipment in high-shelf warehouses (up to 8m with upgraded mast), the forklift improves storage efficiency and reduces the need for additional handling equipment.
- Outdoor Yard Operations: The 30% gradeability and heavy-duty 14.00-24 tires handle gravel, mud, and uneven ground in construction sites, mining yards, and logistics hubs, while the durable frame resists impact from rough terrain.
- Industrial Production Lines: Deployed in automotive, chemical, and heavy machinery plants for raw material feeding (e.g., steel sheets, engine blocks) and finished product handling, the forklift’s low noise and emissions make it suitable for semi-enclosed factory floors.
- Inspection & Certification: For used units, we provide comprehensive pre-shipment inspections by SGS/BV, covering engine power output, hydraulic system pressure, tire wear (minimum 60% tread remaining), working hours (verified via hour meter), and structural integrity. A detailed inspection report is provided for customs clearance and buyer verification, ensuring transparency and trust.
- Compliance Support: We assist with all necessary documentation, including Certificate of Origin (CO), CE certificate (for EU markets), emission compliance reports, and import/export invoices, tailored to the customs requirements of Middle Eastern and Southeast Asian countries (e.g., UAE, Saudi Arabia, Indonesia, Vietnam).
- Logistics & Commissioning: The forklift is transported in 40-foot HC containers (1 unit per container) with anti-rust packaging (critical components coated with anti-rust oil, electrical parts wrapped in waterproof plastic) to prevent damage during sea transport. Professional technicians can be dispatched to the buyer’s location for on-site assembly, system testing, and operator training (basic operation, maintenance, safety protocols), with training materials available in English, Arabic, and Bahasa Indonesia.
- After-Sales Support: We offer a 1-year free warranty on parts (excluding wear items like tires, brake pads) and labor for manufacturing defects, with extended warranty options (2-3 years) available at additional cost. 24/7 online technical support via email/WhatsApp provides remote troubleshooting for common issues, and local service partners in key markets ensure on-site repairs within 48 hours for urgent problems.
The TCM FD70Z8 combines Japanese manufacturing precision with rugged performance, making it the ideal choice for heavy-duty material handling in emerging markets. Its Isuzu turbocharged engine delivers reliable power while keeping fuel costs low, and the load-sensing hydraulic system ensures safe, efficient cargo handling even in extreme conditions. With a compact design for maneuverability, durable construction for long service life, and a global after-sales network for support, the forklift offers a low total cost of ownership—with lower fuel consumption, longer service intervals, and easy access to spare parts. Whether for port operations, warehouse stacking, or construction site use, the TCM FD70Z8 delivers consistent performance and reliability, backed by TCM’s century-long reputation for quality.
For real-time quotes for new/used TCM FD70Z8 units, custom mast height upgrades (3m→8m), attachment options (side shifters, fork positioners, paper roll clamps), or Arabic-language operator training programs, contact our sales team. We also provide tailored solutions for bulk orders (5+ units) and long-term maintenance contracts for port/logistics companies, ensuring seamless integration of the forklift into your operations.
