Brand: TCM – A leading Japanese material handling brand under Hitachi Group, with 70+ years of expertise in forklift R&D and manufacturing. It operates a global network of 180+ authorized service centers and 9 regional parts warehouses (Dubai, Singapore, Johannesburg, etc.), ensuring fast component supply and technical support for emerging markets in the Middle East, Southeast Asia, and Africa. TCM forklifts are renowned for reliable performance, fuel efficiency, and durable construction, trusted by small-to-medium enterprises (SMEs) in logistics, manufacturing, and warehousing sectors.

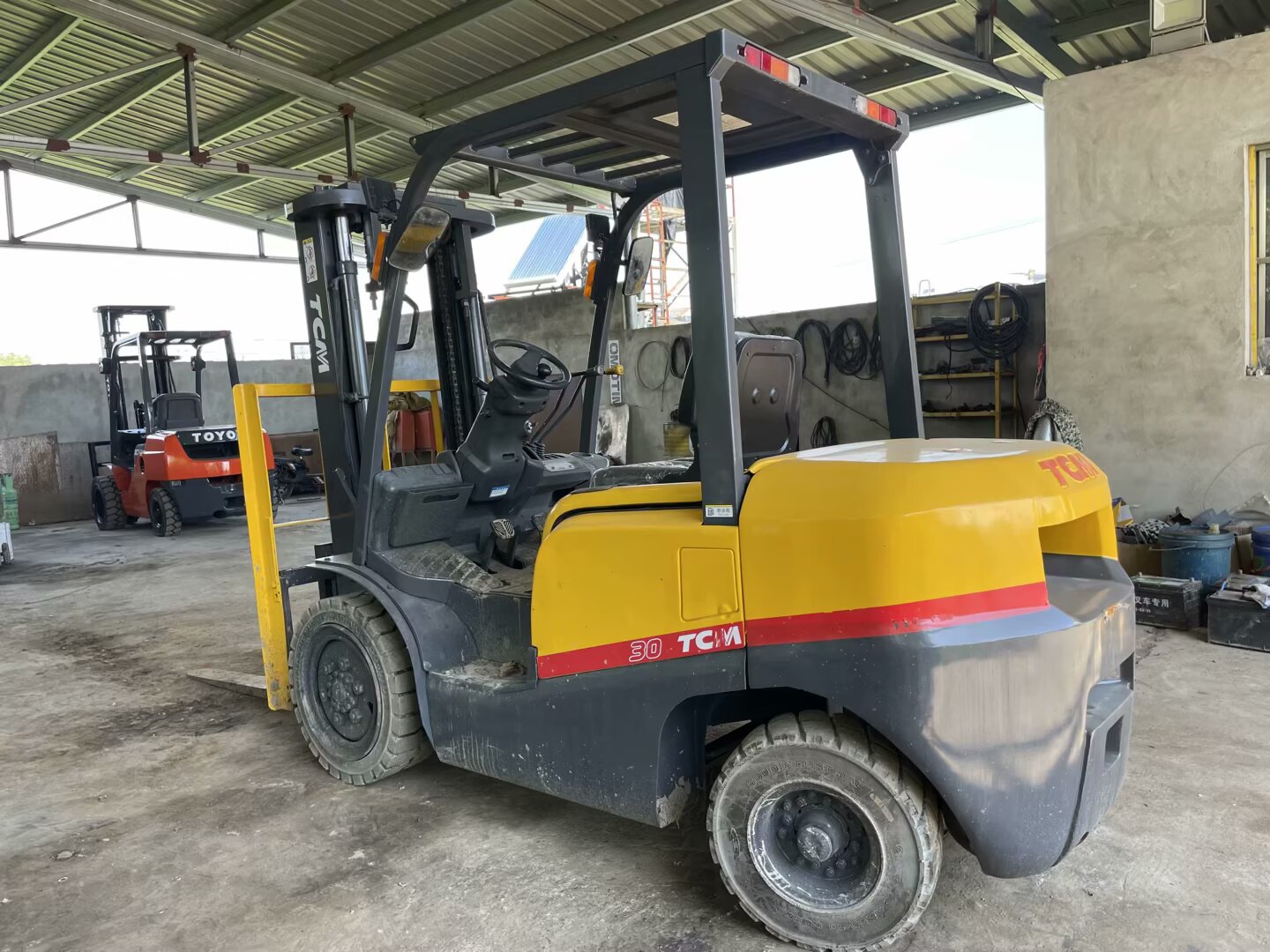

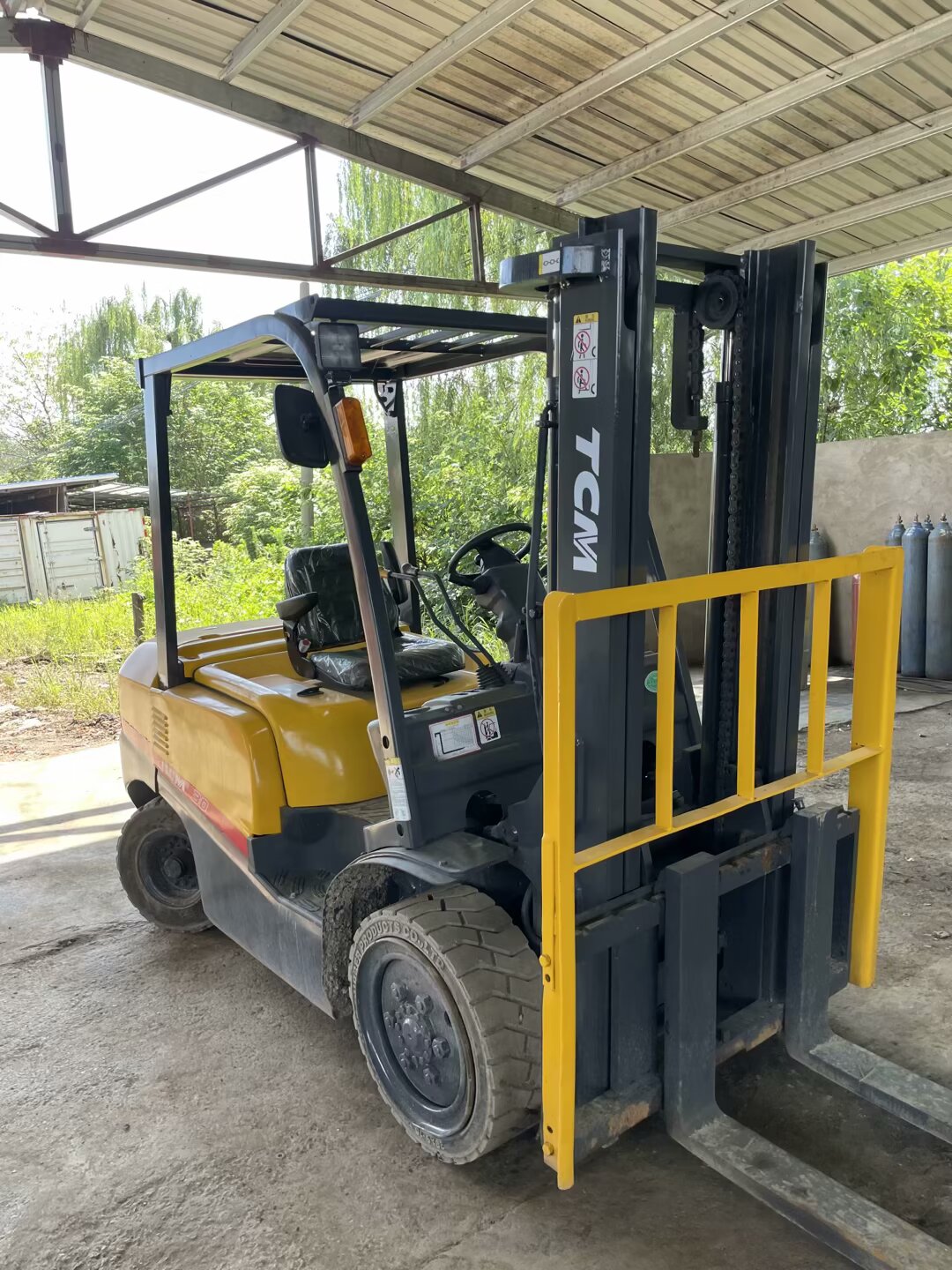

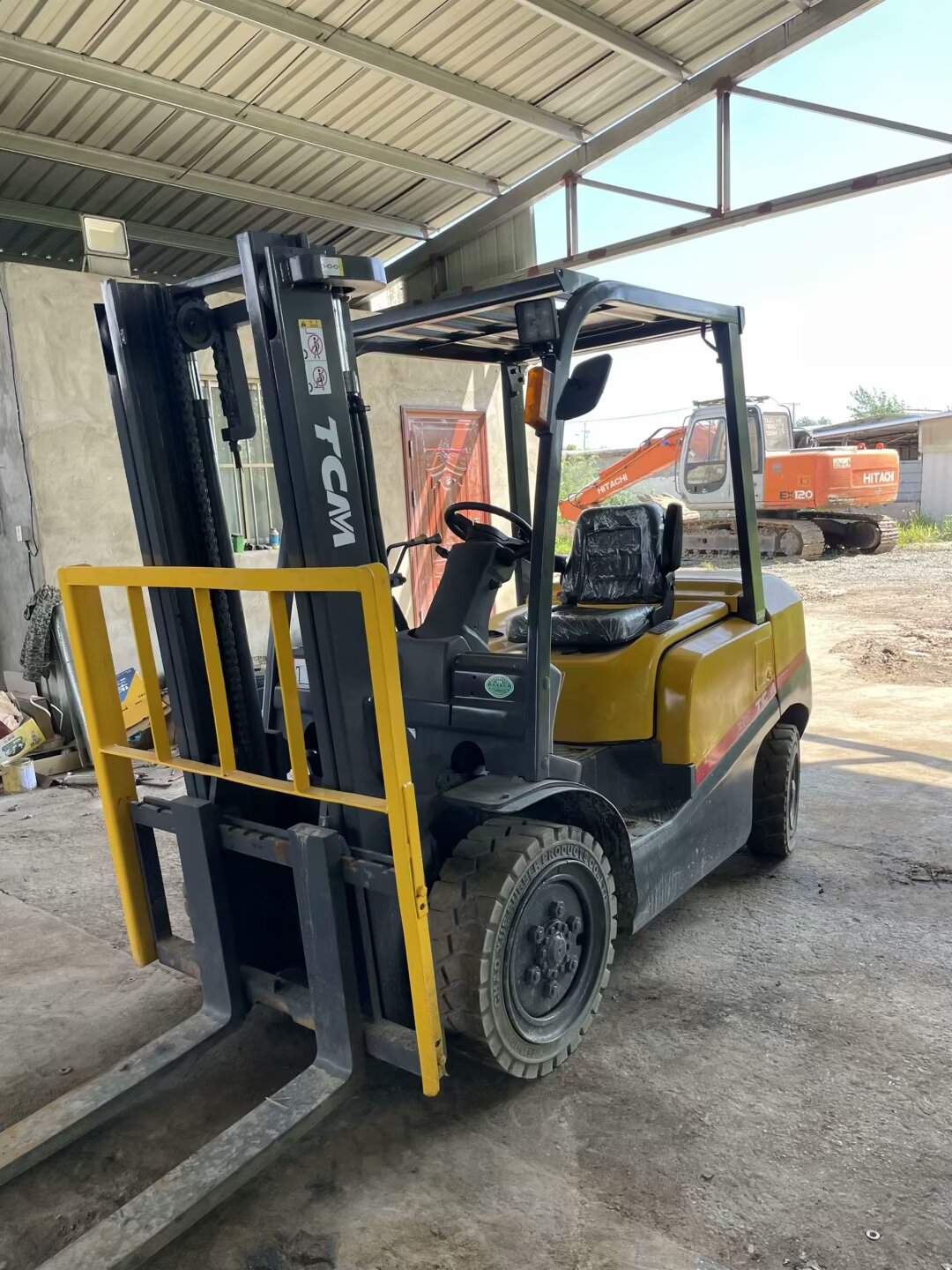

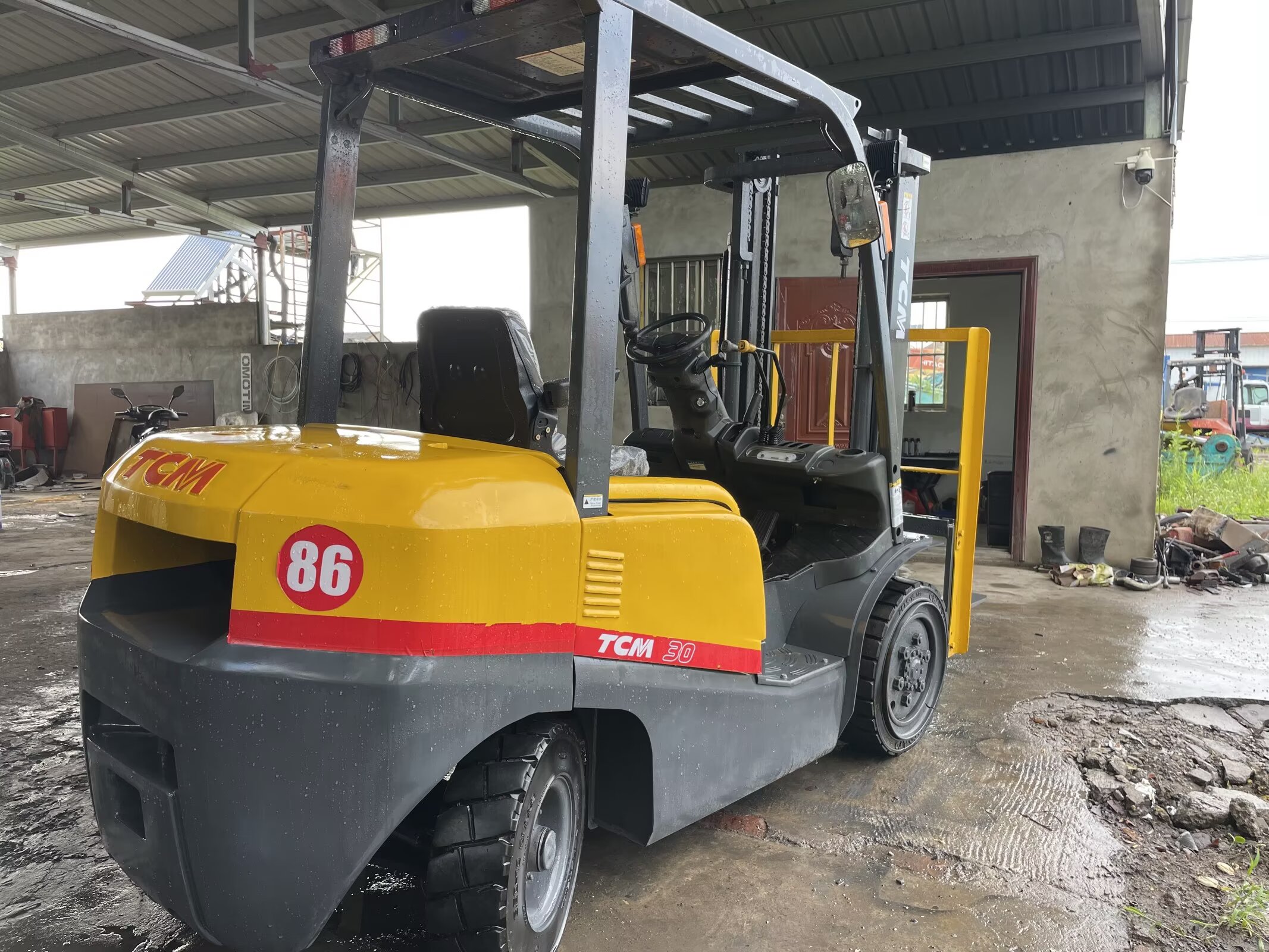

Model: TCM FD30T3 (production years 2015-2022) – A 3-ton diesel counterbalanced forklift, the flagship model of TCM’s T3 series for medium-load handling. Core specs: Rated load 3000kg (500mm load center); standard lift height 3000mm (upgradable to 4500mm with 2-stage mast); minimum turning radius 2400mm; powered by Isuzu C240 37kW diesel engine + 3-speed hydraulic torque converter transmission; compliant with Tier 2 emission standards. Ideal for warehouse stacking, factory production line feeding, and logistics yard cargo transfer, it balances maneuverability, cost-effectiveness, and reliability—making it a top choice for SMEs in emerging markets.
Dimensions: 2705mm (length, no forks) × 1225mm (width) × 2090mm (height, mast lowered); minimum turning radius 2400mm. The compact body design enables operation in 3.5m-wide warehouse aisles, maximizing space utilization. Anti-corrosion epoxy primer + TCM orange topcoat resists dust and mild chemical corrosion, suitable for indoor/outdoor use. The ROPS/FOPS-certified overhead guard (EXB type) protects operators from falling objects, while the 3450kg unloaded weight ensures stable full-load operation with minimal tipping risk.

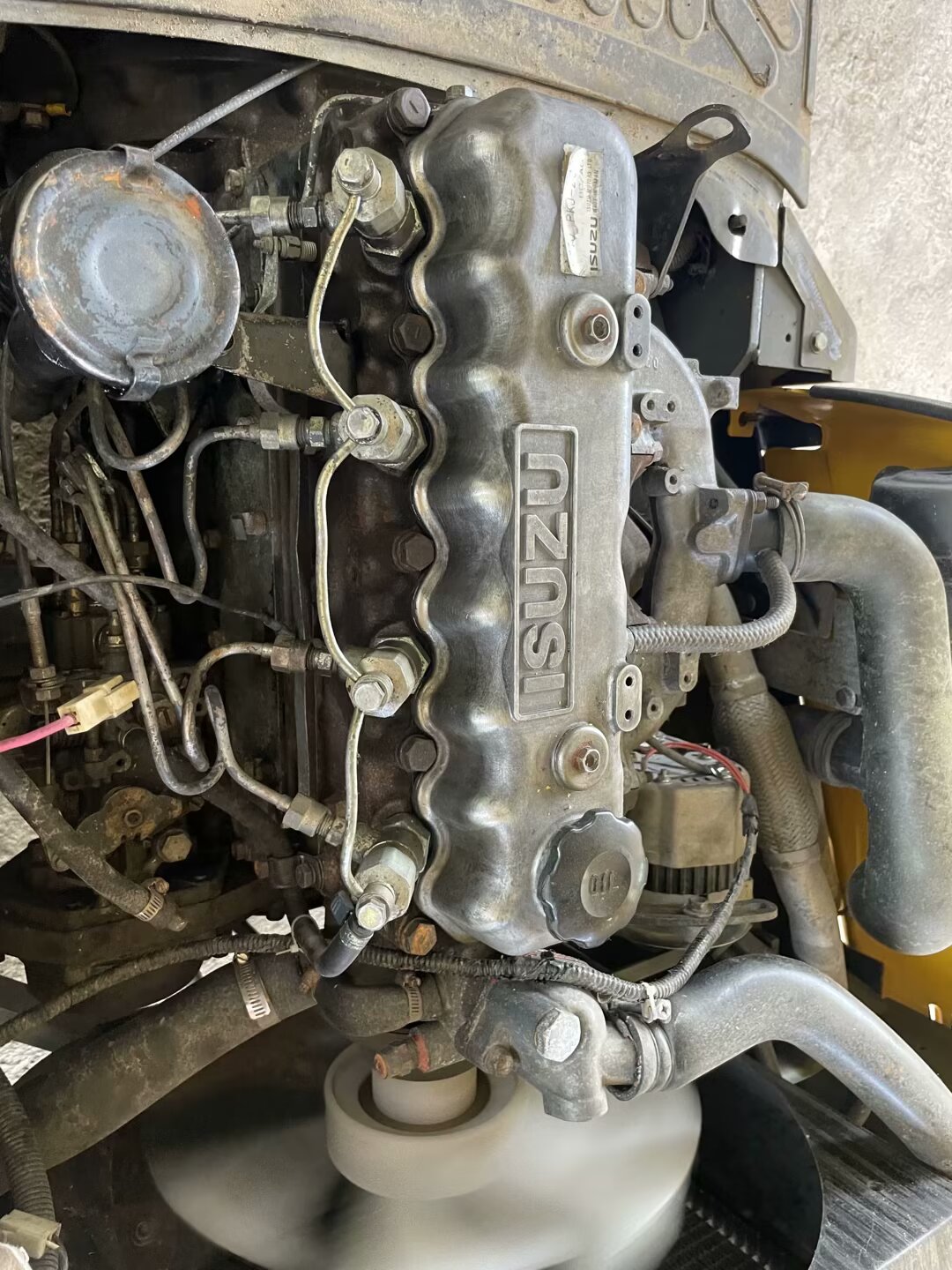

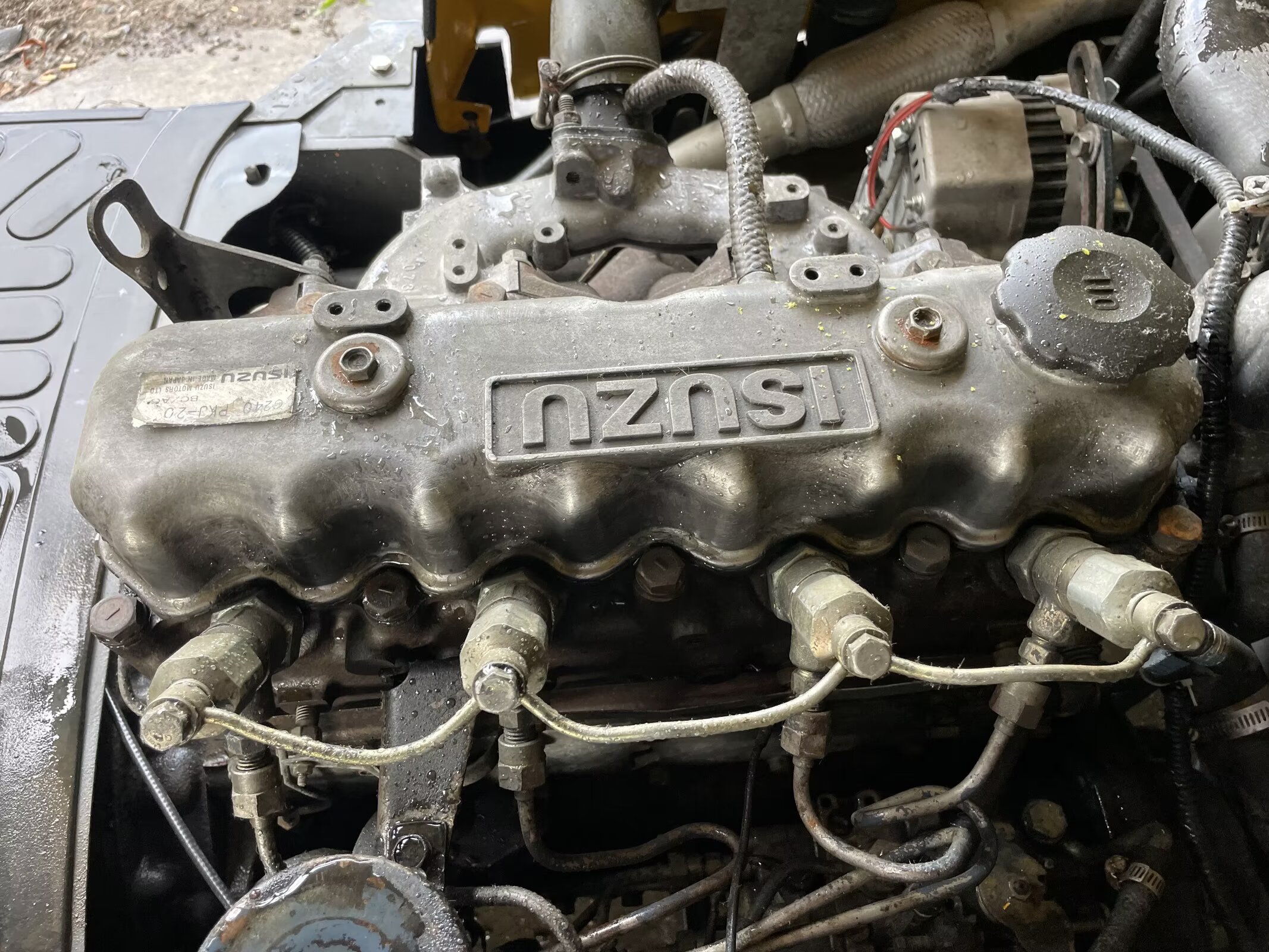

Equipped with the industry-proven Isuzu C240 2.4L 4-cylinder diesel engine (37kW @ 2800rpm, 135N·m @ 1800rpm), delivering fuel efficiency of 4.5-5.0L/h (15% lower than peers). The hydraulic torque converter transmission enables smooth gear shifts (3F/3R) and easy operation for frequent start-stops, reducing operator fatigue. Loaded gradeability of 20% and unloaded gradeability of 30% allow navigation of small slopes in factory yards and warehouse ramps without power loss.

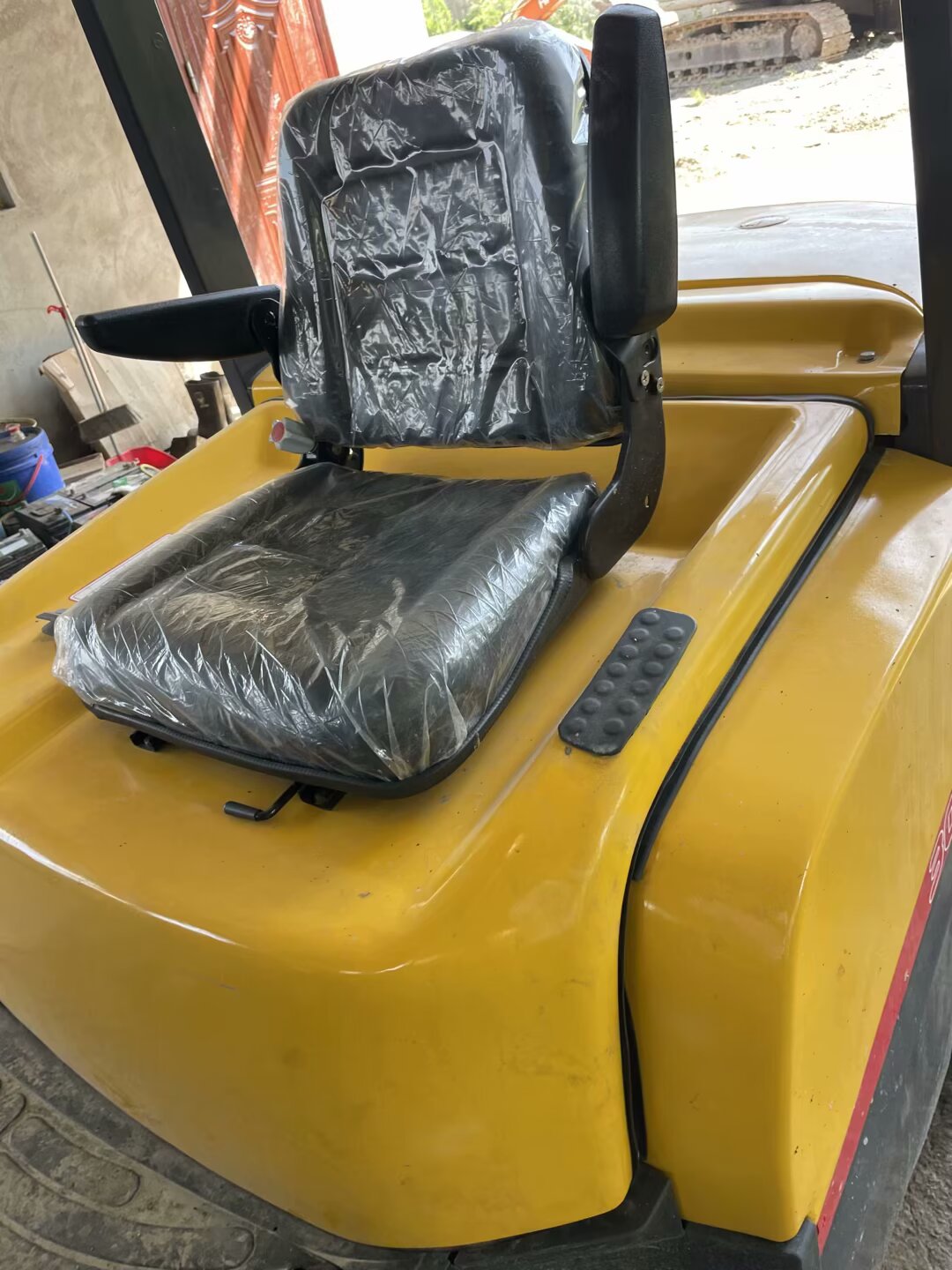

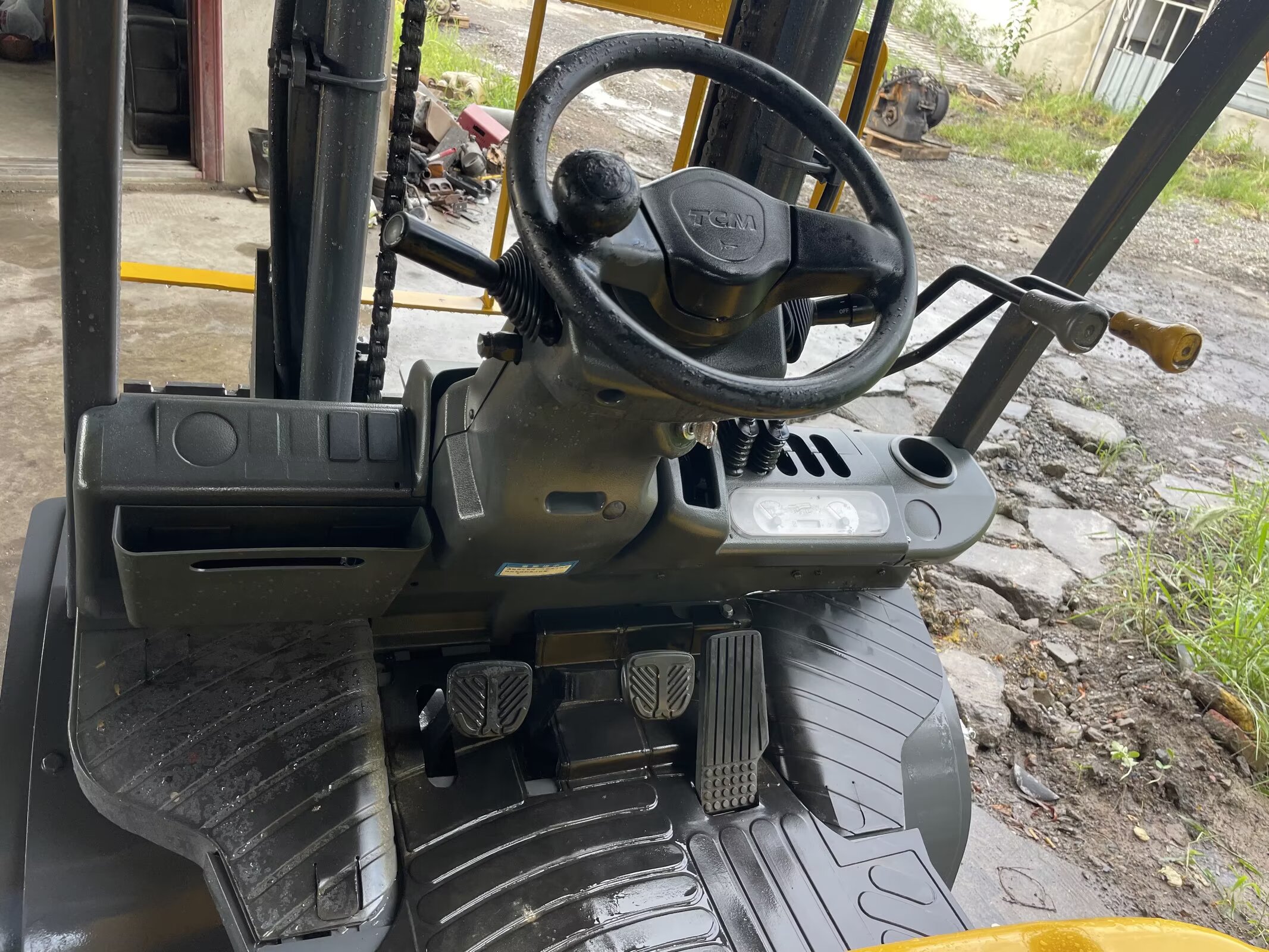

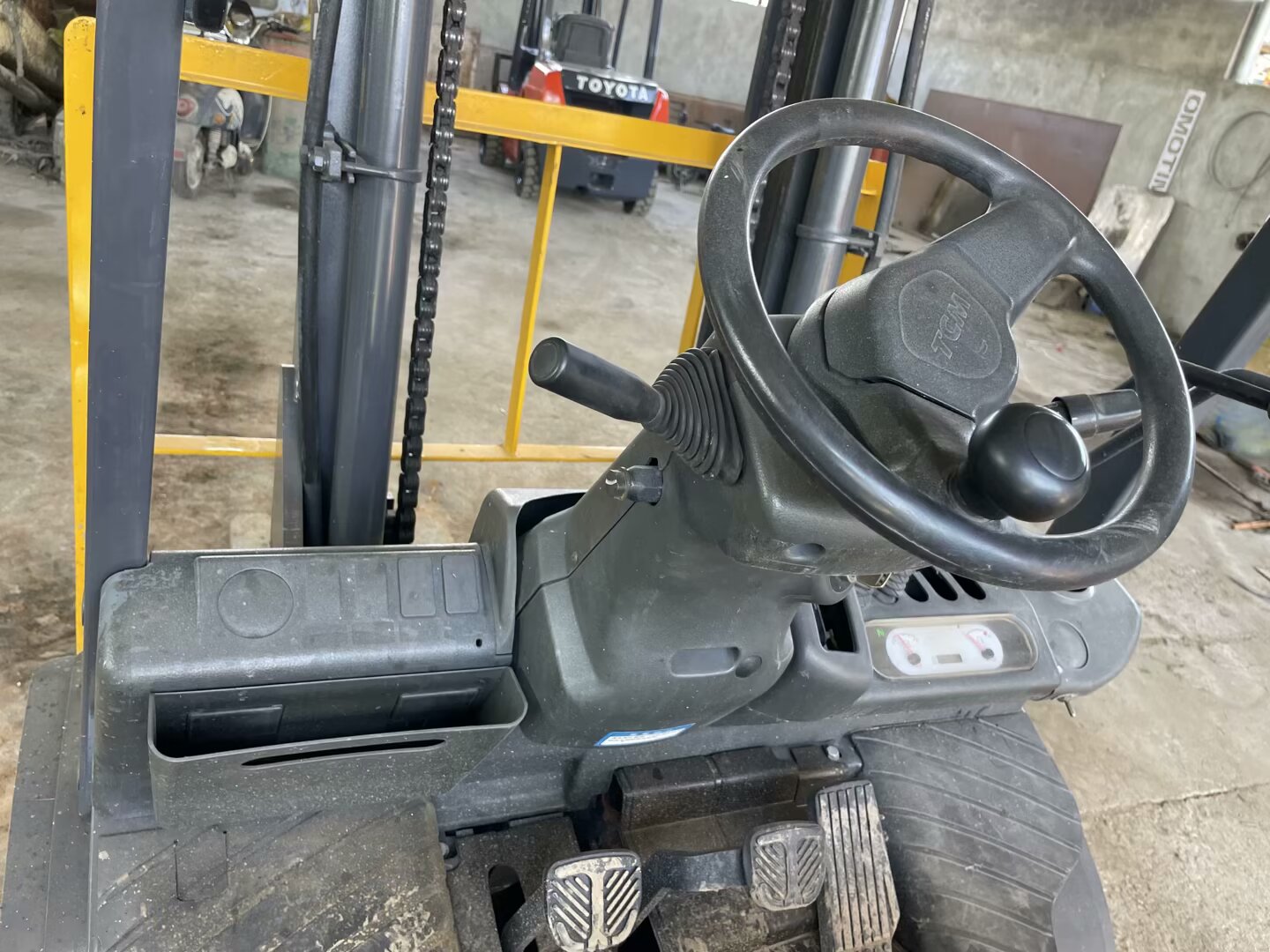

The adjustable suspension seat with lumbar support reduces fatigue during 8-hour shifts, while the low-noise cab (≤82dB) creates a comfortable working environment. Integrated hydraulic control levers (lift/tilt/side shift) are ergonomically positioned for one-hand operation, and the wide-view mast (visibility ≥85%) eliminates blind spots. Dual-circuit drum brakes ensure a stopping distance ≤3.0m (10km/h loaded), with a mechanical parking brake for secure stationary positioning on slopes.
- Rated load: 3000kg (500mm load center)
- Engine: Isuzu C240 diesel; 2.4L displacement; 37kW @ 2800rpm; 135N·m @ 1800rpm; compression ratio 18:1
- Transmission: 3-speed hydraulic torque converter; forward speeds: 6/12/20km/h; reverse speeds: 6/12km/h
- Lift system: Single-stage hydraulic system; standard lift height 3000mm (upgradable to 4500mm); lift speed: 500mm/s (loaded), 550mm/s (unloaded); fork tilt angle: forward 6°, backward 12°; fork dimensions: 1070×50×100mm
- Overall dimensions: Length (no forks) 2705mm, width 1225mm, height (mast down) 2090mm, mast height (full raise) 3950mm (standard)
- Maneuverability: Minimum turning radius 2400mm; gradeability (loaded) 20%, (unloaded) 30%
- Tires: Front: 6.50-10 8PR pneumatic; rear: 28×9-15 6PR pneumatic; tire pressure: front 6.0bar, rear 5.5bar
- Weight: Unloaded weight 3450kg; counterweight weight 850kg
- Capacity: Fuel tank 60L; hydraulic oil tank 45L; engine oil capacity 6.5L; coolant capacity 8.5L
- Hydraulic system: Working pressure 16MPa; gear pump displacement 25cc/rev
- Braking system: Dual-circuit drum brakes; parking brake (mechanical); braking distance ≤3.0m (10km/h loaded)
- Operator environment: Cab noise ≤82dB(A); adjustable suspension seat; manual power steering (2.8 turns lock-to-lock)
- 2400mm turning radius and 1225mm width enable operation in narrow aisles (3.5m), ideal for small warehouses and factories with limited space.
- Lightweight design (3450kg unloaded) reduces floor pressure, suitable for concrete and asphalt surfaces without damage.
- Isuzu C240 engine with 10,000-hour service life (major overhaul interval 5000 hours) ensures low maintenance downtime and long-term reliability.
- 4.5-5.0L/h fuel consumption cuts operational costs by $800-1000 annually (based on 2000 working hours/year, $1.0/L diesel).
- ROPS/FOPS overhead guard, dual-circuit brakes, and wide-view mast meet international safety standards (ISO 3120), reducing accident risks.
- Ergonomic controls and low noise levels minimize operator fatigue, improving productivity and reducing training costs for new staff.
- Common parts (filters, tires, brake pads) are widely available in emerging markets, with 5-10 day delivery via TCM regional warehouses.
- Ground-level service points (engine oil, filters) allow daily maintenance in 5 minutes, with no need for specialized tools.
- Warehouse Stacking: 3-ton pallet handling and high-shelf storage (up to 4.5m with upgraded mast) in retail and distribution centers.
- Factory Operations: Raw material feeding and finished product transfer in automotive, electronics, and food processing plants.
- Logistics Yards: Short-distance cargo movement between trucks and warehouses, suitable for small-scale logistics companies.
- Construction Sites: Light-load material handling (e.g., cement bags, steel bars) in small construction projects.
- Pre-shipment inspection by SGS/BV, covering engine power, hydraulic performance, tire condition (≥80% tread), and structural integrity.
- Compliance documentation: Certificate of Origin (CO), CE certificate (for EU markets), emission reports, and import/export invoices tailored to target countries (UAE, Saudi Arabia, Indonesia, Vietnam).
- Shipped via 20-foot container (2 units per container) with anti-rust packaging for critical components.
- On-site operator training (basic operation, maintenance, safety) available in English/Arabic/Bahasa Indonesia, with free training manuals.
- 1-year warranty on core components (engine, transmission); extended warranty (2 years) available at 10% of unit price.
- 24/7 online technical support via WhatsApp/email; local service partners in major cities provide on-site repairs within 72 hours.
The TCM FD30T3 is the ideal 3-ton forklift for SMEs in emerging markets, combining compact design, reliable performance, and cost-effectiveness. Its Isuzu engine ensures fuel efficiency and long service life, while the maneuverable body fits narrow workspaces. With global parts availability and easy maintenance, it minimizes total cost of ownership—backed by TCM’s 70-year manufacturing legacy. Whether for small warehouses, factories, or logistics yards, the FD30T3 delivers consistent performance and value for money.
For real-time quotes for new/used TCM FD30T3 units, mast upgrades (3m→4.5m), or attachment options (side shifters, fork extensions), contact our sales team. We offer bulk order discounts (5+ units) and customized after-sales packages for SMEs in the Middle East and Southeast Asia.
