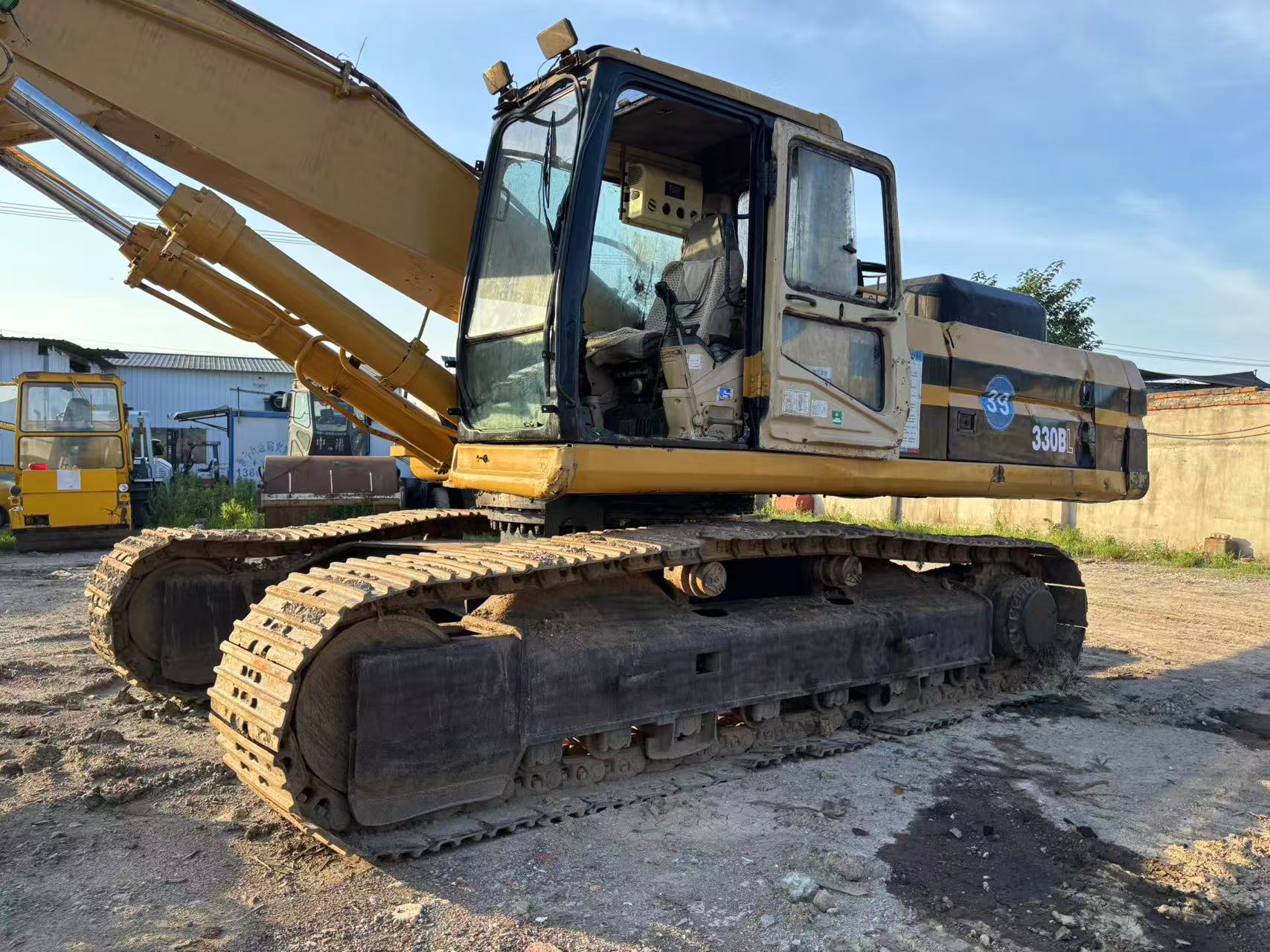

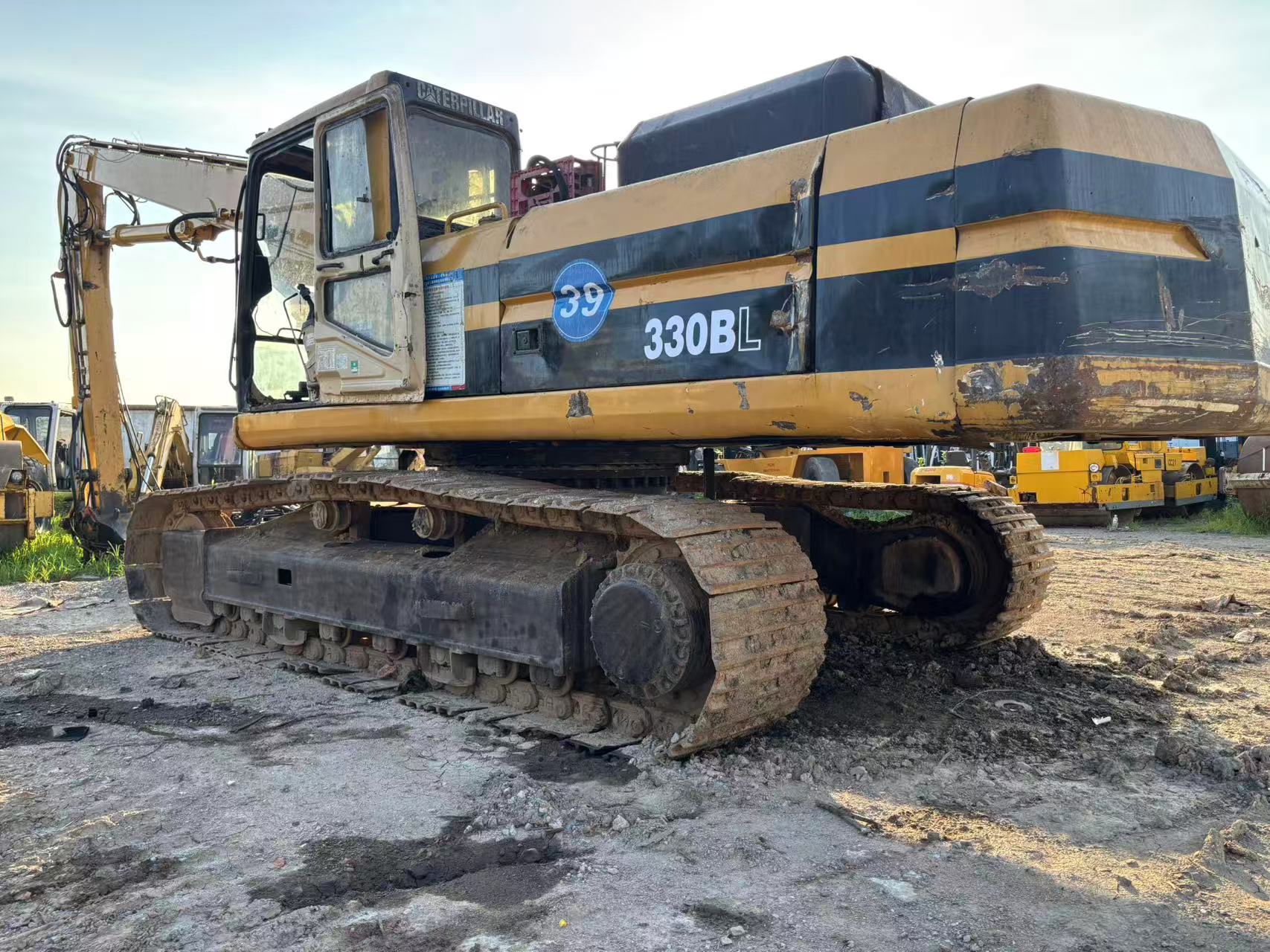

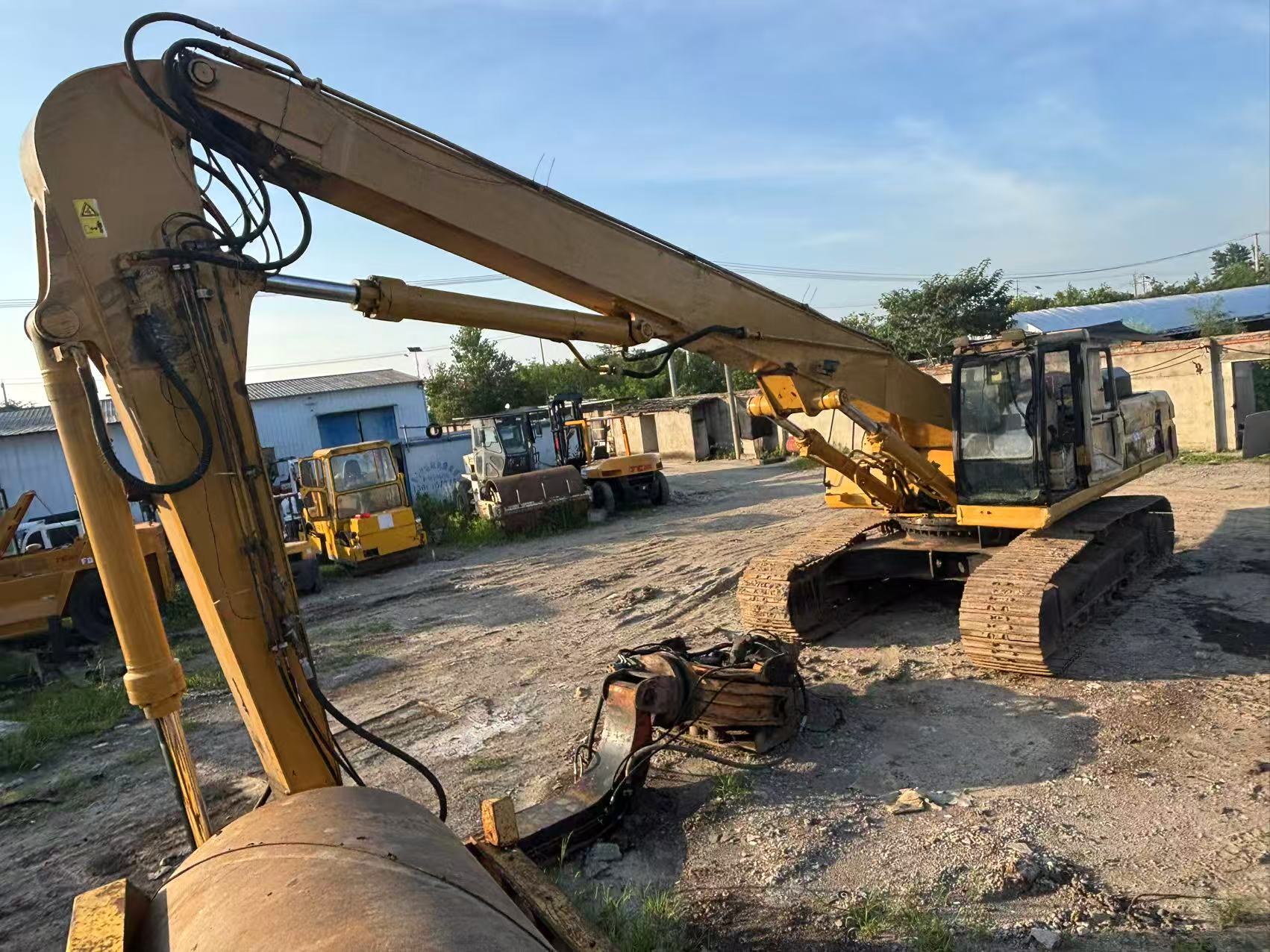

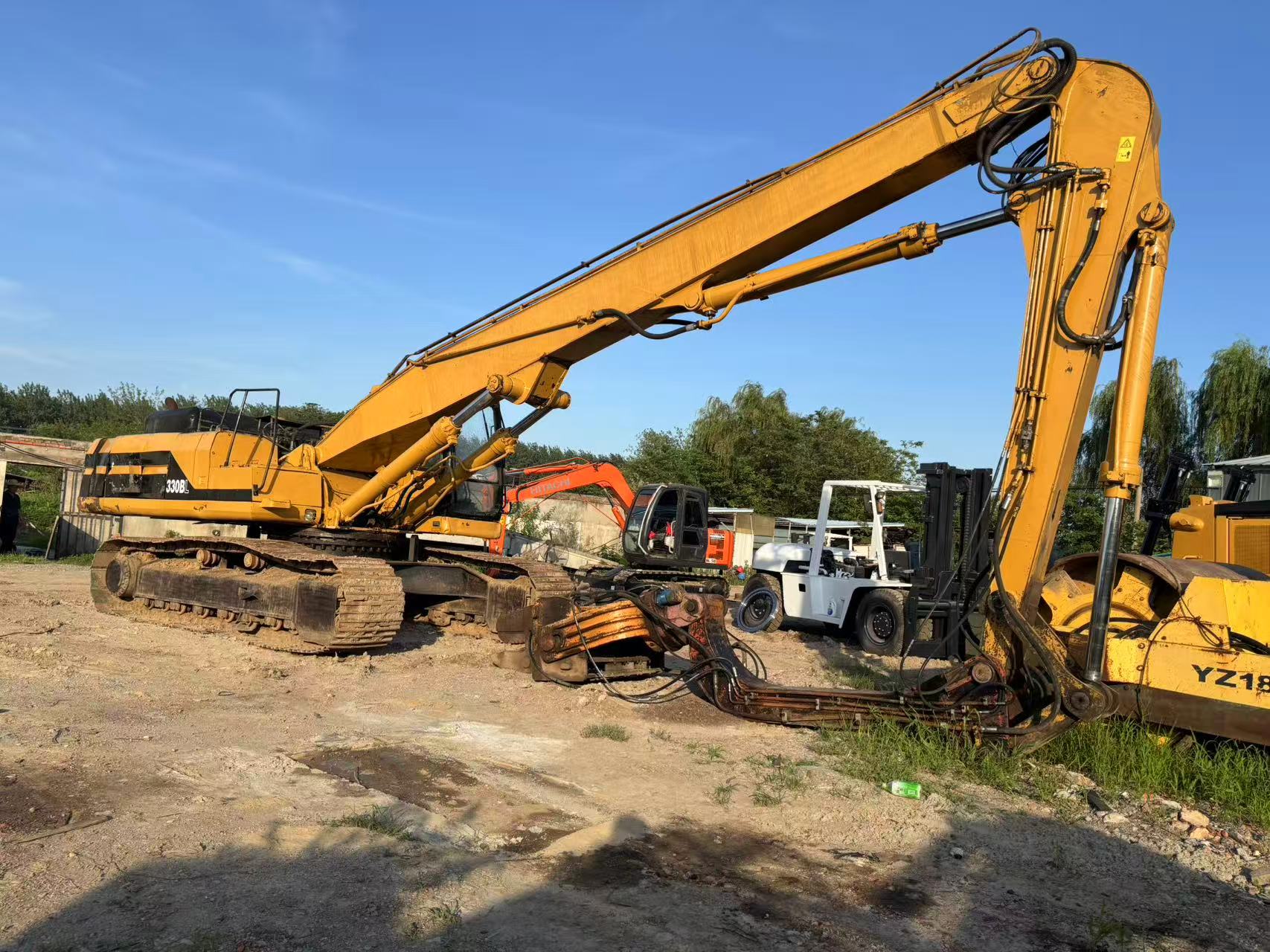

CAT 330BL Crawler Excavator

Brand & Model Positioning

Brand: CAT (Caterpillar)With over a century of engineering heritage, CAT is globally recognized for heavy‑duty construction machinery. Famous for rugged build quality, long service life and worldwide spare‑parts support, CAT machines remain highly popular in second‑hand heavy‑equipment markets across Africa, Middle East and Southeast Asia. Robust mechanical design enables stable performance under harsh site conditions, with easy‑to‑source spare parts to minimize downtime.

Model: CAT 330BL Crawler ExcavatorThe CAT 330BL is a classic 33‑ton class heavy‑duty crawler excavator from CAT B‑series. The letter “L” stands for long‑undercarriage configuration, delivering outstanding stability for heavy excavation, rock‑loading and mass earth‑moving work. Powered by the reliable CAT 3306TA mechanical diesel engine, this well‑proven model features strong breakout force, simple mechanical‑hydraulic structure and convenient field maintenance. Widely applied in quarry, mining auxiliary work, large infrastructure, river dredging and port material handling. It is a cost‑effective heavy‑duty option for contractors pursuing solid performance and low repair difficulty.

Core Advantages

1. Robust Mechanical Power & Reliable Output

Equipped with CAT 3306TA turbo‑aftercooled diesel engine, net power 165.5 kW (222 hp) @1800 rpm. Pure mechanical fuel‑supply structure brings high anti‑dust capacity and strong adaptability for poor‑quality fuel in remote regions. No complicated electronic after‑treatment parts, lowering failure risk. Operating weight reaches 33 700 kg, delivering powerful digging and lifting performance for rock and heavy earth‑moving conditions. Large 560 L fuel tank supports long continuous working shifts.

2. High‑Flow Hydraulic System & Excellent Working Parameters

Original load‑sensing hydraulic system, main pump maximum flow 480 L/min, main relief pressure 34.3 MPa. Fast cycle action, powerful digging force and stable lifting performance. Key working specifications (standard boom & stick):

• Maximum digging depth: 8 110 mm
• Maximum ground‑level reach: 11 640 mm
• Maximum dumping height: 7 620 mm
• Standard bucket capacity: 1.3‑2.1 m³
• Main hydraulic pressure: 34.3 MPa

Heavy‑duty long track chassis improves whole‑machine stability, adapting to muddy ground, slope and rocky job sites. Heavy‑duty track groups extend service life under abrasive working conditions.

3. Spacious Operator Cab & Practical Safety Layout

Spacious operator cabin with good all‑round visibility. Ergonomic control layout reduces operator fatigue during long‑hour heavy‑duty shifts. Instrument panel provides clear real‑time machine condition reading. Multiple safety protection structures meet general construction‑site requirements. Simple internal structure, low failure rate and easy on‑site repair.

4. Heavy‑Duty Reinforced Structure & Easy Field Maintenance

Boom, stick, frame and chassis adopt high‑strength thick steel plates, reinforced stress points for rock‑breaking and heavy‑load excavation. Centralized ground‑level service points for filters, oil filling ports and inspection openings. Mechanical‑dominated design without complex electronic components makes on‑site troubleshooting and parts replacement convenient, especially suitable for areas with limited technical service conditions. Easy‑access spare parts globally control total operation cost.

5. Rich Attachment Compatibility & Multi‑Condition Adaptability

Supports quick‑coupler for fast attachment switching, compatible with various working tools: ‑ Standard earth‑moving buckets, heavy‑duty rock buckets ‑ Large hydraulic breakers for rock crushing and demolition ‑ Hydraulic thumbs for bulk‑material sorting and stacking ‑ Rippers for hard soil and fractured rock loosening ‑ Long‑reach front for dredging and deep excavation

Different attachments allow flexible switching between mass earth‑moving, quarry loading, demolition and water‑conservancy dredging tasks to maximize machine utilization.

Typical Application Scenarios

1. Quarry & Open‑pit Auxiliary MiningRock loading, stockpile stacking, slag cleaning at quarry and open‑pit mine auxiliary sites. Strong breakout force copes with rock‑material heavy‑load operations.
2. Large‑Scale Infrastructure ConstructionHighway, railway, dam and large‑plant site development; mass earth excavation, embankment filling and foundation trenching.
3. Water Conservancy & Dredging WorksRiver dredging, reservoir excavation, dike reinforcement, flood‑control projects. Suitable for wetland and muddy terrain operation.
4. Port & Yard Material HandlingPort stockyard loading‑unloading, bulk‑material stacking and transfer. Stable lifting performance for heavy‑material handling.
5. Land Reclamation & Heavy Civil ProjectsLarge‑area land leveling, waste‑yard cleaning, heavy‑duty civil works; ideal for rental fleets in emerging‑market regions.

Foreign Trade Service Guarantee

1. Flexible Customization Options

Provide configuration adjustment according to local working‑condition demands: ‑ Multiple bucket options: standard, heavy‑duty rock buckets ‑ Undercarriage upgrade: reinforced track shoes for abrasive rock sites ‑ Cab optional upgrade: air‑conditioning system ‑ Auxiliary hydraulic pipeline installation for breaker and attachments Multilingual operation & maintenance manuals supplied.

2. Strict Pre‑shipment Inspection & Export Documents

Each unit undergoes full inspection, function test and cleaning before shipment. Provide complete export documents for customs clearance: ‑ Inspection report ‑ Full machine specification documents ‑ Shipping custom‑declaration files

3. Warranty & Technical Support

Offer limited warranty for core components. Provide remote online technical guidance for operators and maintenance staff, covering daily inspection, routine maintenance and common‑fault troubleshooting.

4. Global Spare‑Parts Support

Rely on CAT global spare‑parts system, offer sourcing service for original and high‑quality replacement parts, to shorten equipment downtime.

Why Choose CAT 330BL?

The CAT 330BL is a legendary classic heavy‑duty excavator. Mechanical engine‑hydraulic design brings high reliability, simple maintenance and wide spare‑parts availability. Delivers strong digging power and stable performance under harsh quarry, mining and large earth‑moving conditions. It is a preferred cost‑effective heavy‑used excavator choice for global contractors in emerging markets.

Contact Us

For personalized quotation, configuration confirmation and global shipping arrangement for CAT 330BL, please contact our foreign‑trade team. Flexible international payment terms are available. We provide one‑stop service including machine inspection, loading, export declaration and after‑sales technical support.
