CAT 307.5 Mini Crawler Excavator

Brand & Model Positioning

Brand: CAT (Caterpillar)With over a century of engineering excellence, CAT stands as a global benchmark in heavy‑duty machinery, well‑known for outstanding durability, mature technology and reliable performance across construction, municipal works, agriculture and industrial sectors. Its worldwide service network covers more than 190 countries, supporting quick supply of genuine spare parts, professional technical support and customized after‑sales services, maximizing equipment uptime for all projects. For municipal renovation, landscaping, farm improvement and small‑to‑medium infrastructure jobs, CAT is the trusted option for global contractors and private operators.

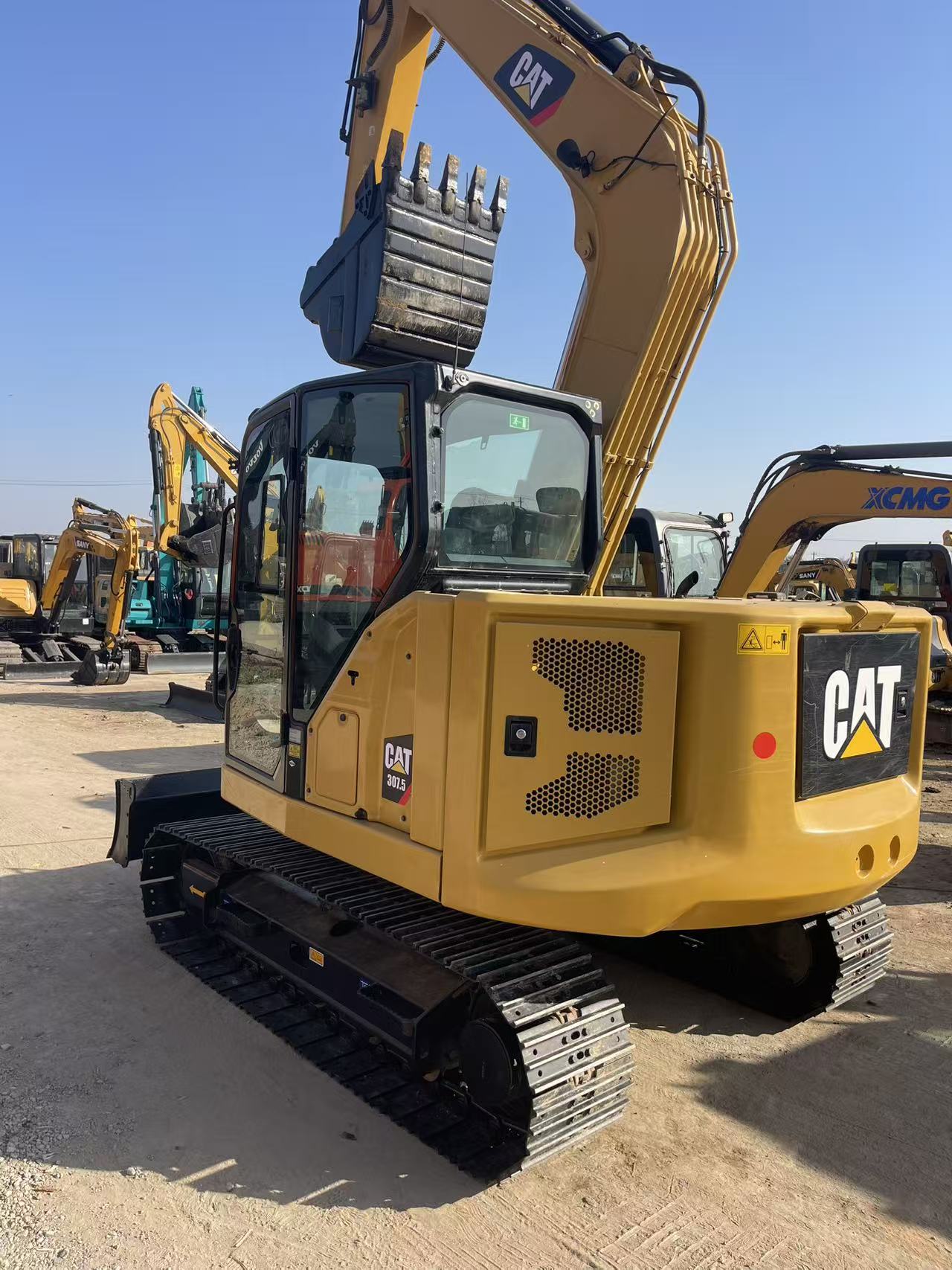

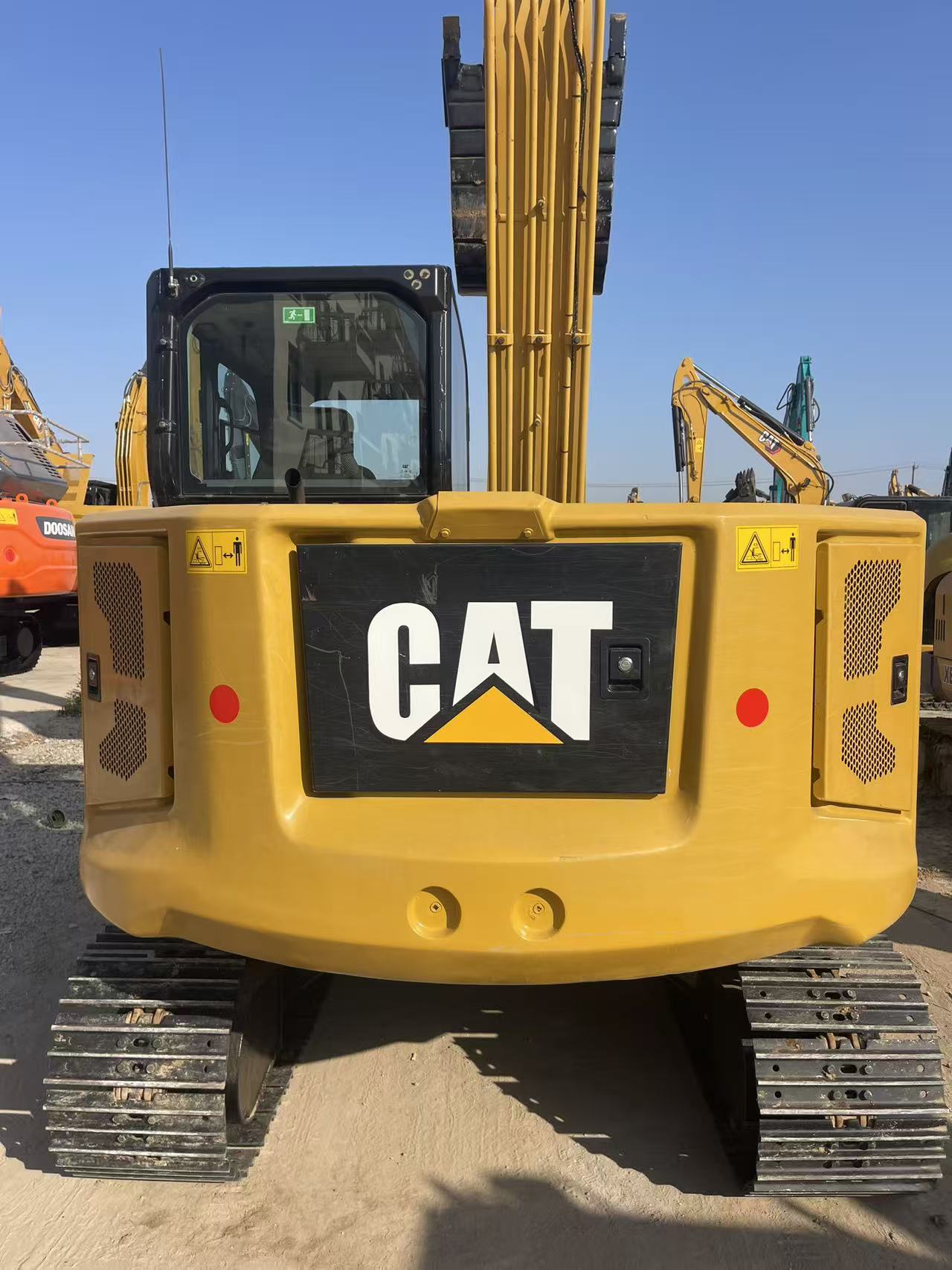

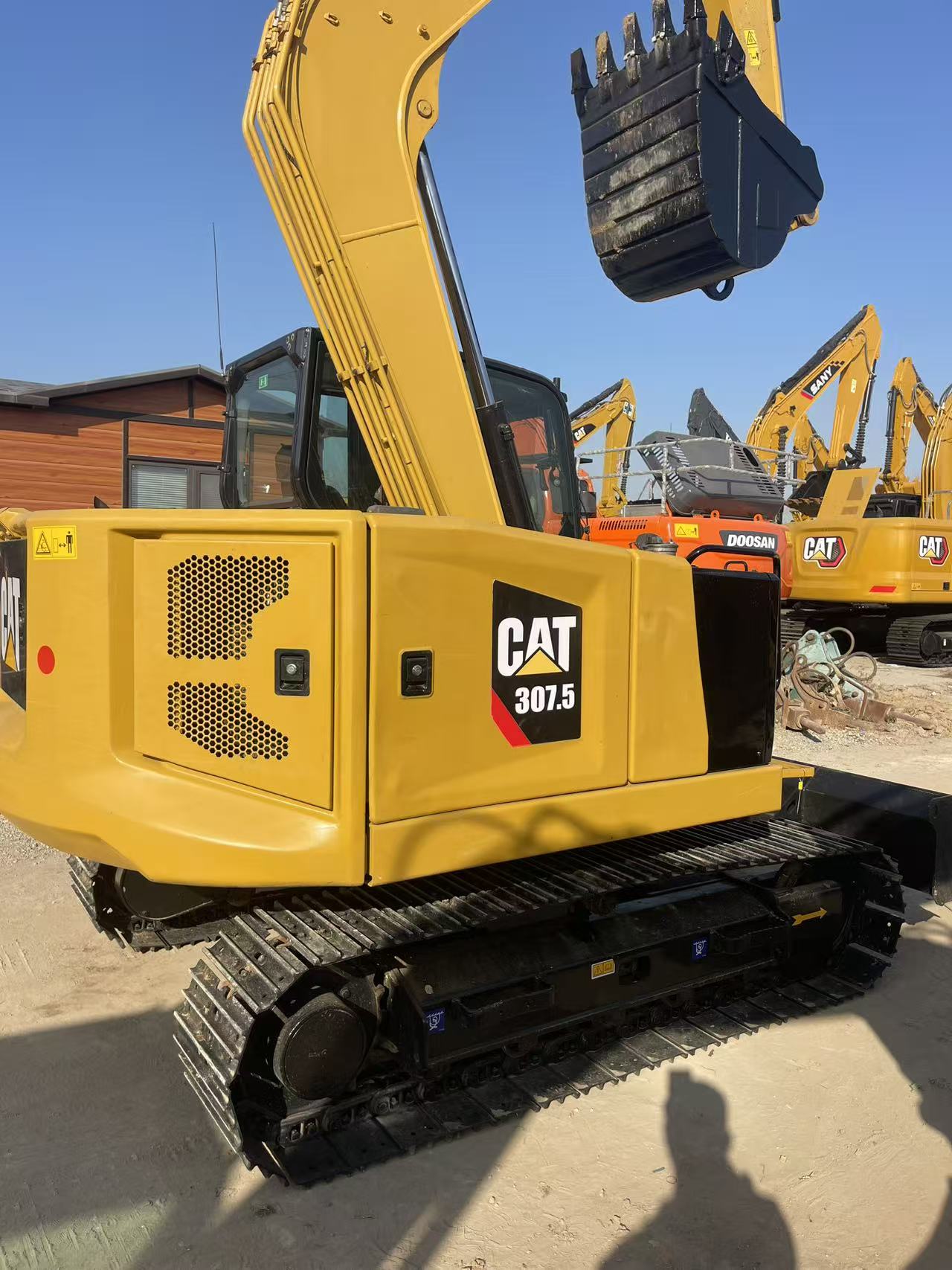

Model: CAT 307.5 Mini Crawler ExcavatorThe CAT 307.5 is a 7.5‑ton compact short‑radius crawler excavator. It perfectly combines compact body dimension with strong power output, optimized for high lifting performance, low fuel consumption and low total‑cost‑of‑ownership. Featuring short‑tail swing design, it can operate safely close to walls and obstacles in restricted job sites. This machine is widely applied in municipal engineering, urban renewal, landscaping, rural construction and small‑scale earth‑rock works. As a high‑end multi‑purpose compact model in CAT lineup, it delivers stable and efficient performance for medium‑light duty projects and brings solid return for small contractors and enterprise users.

Core Advantages

1. Reliable Power & Excellent Fuel‑Saving Performance

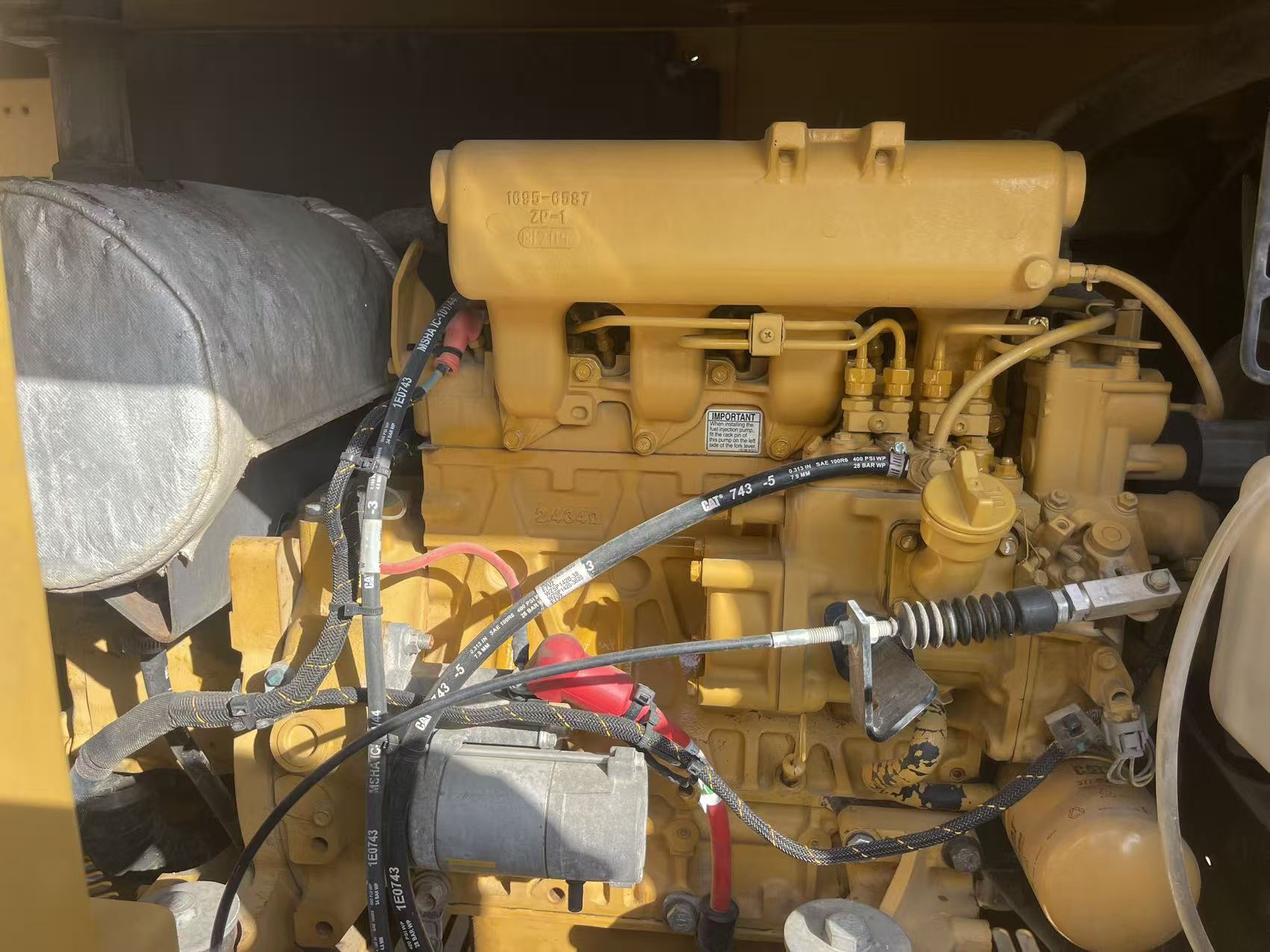

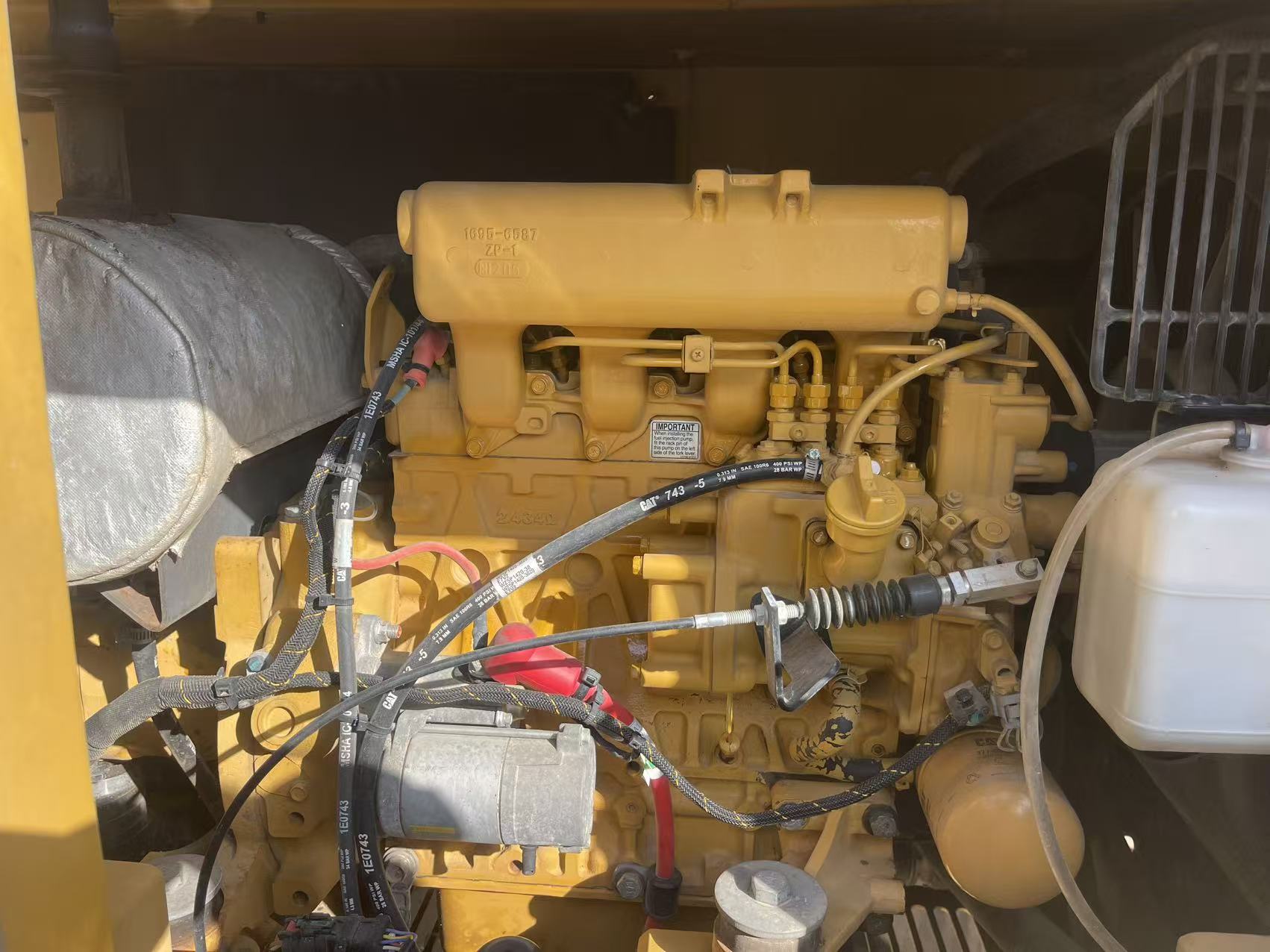

Powered by CAT C2.4 Turbo diesel engine, net power 40.9 kW (54.8 hp), compliant with EU Stage V / EPA Tier 4 Final emission standards. Equipped with auto‑idle and auto engine shutdown functions to cut idle fuel waste. Extended service intervals reduce total ownership cost by up to 10%.

• Operating weight: 7505‑8120 kg
• Fuel tank capacity: 112 L
• Maximum bucket digging force: 56.5 kN
• Gradeability: 70% Great low‑speed torque enables tough digging, heavy lifting and slope operation, suitable for long‑hour continuous medium‑intensity work.

2. Intelligent Hydraulic System & Superior Working Performance

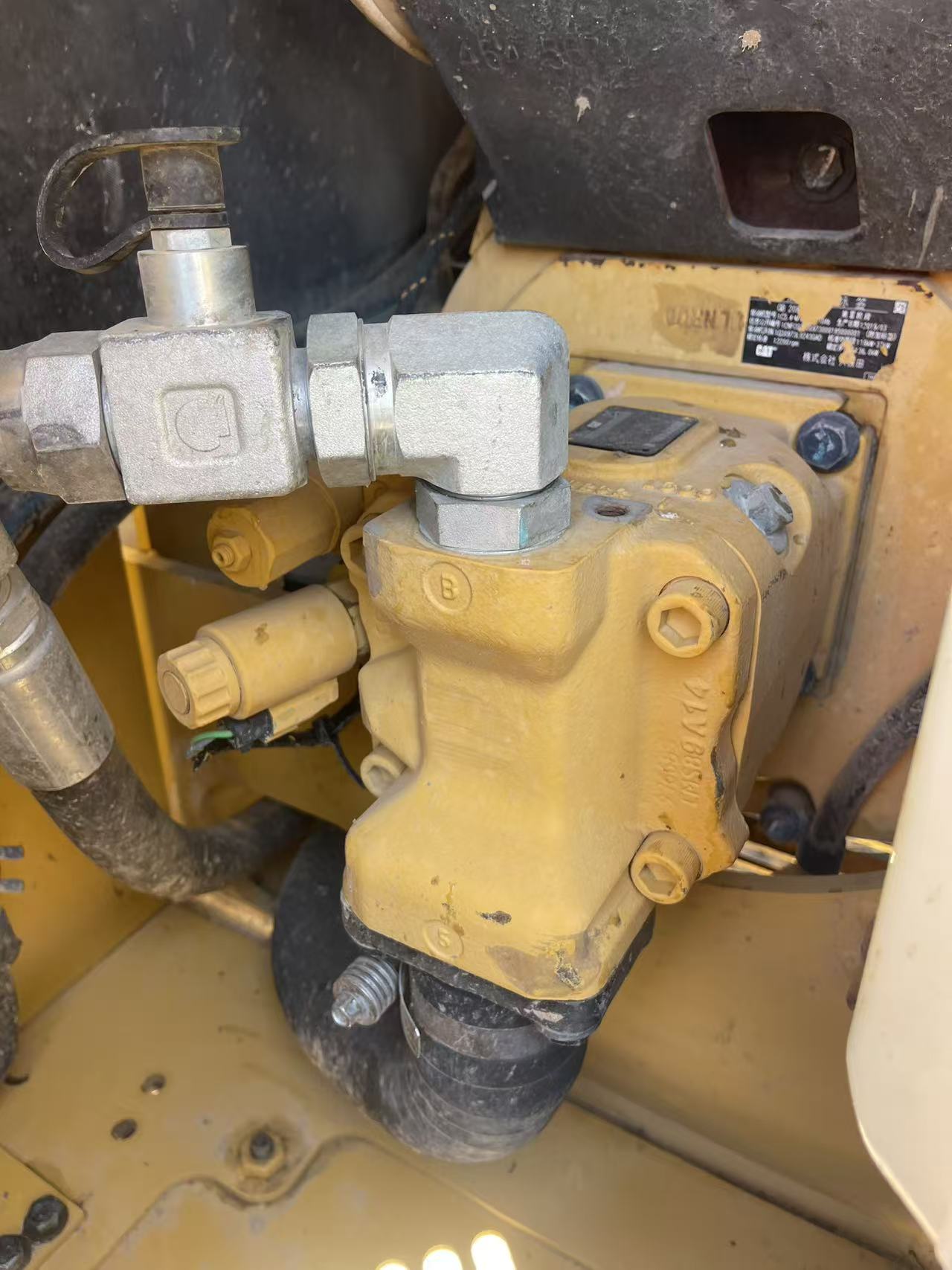

Adopts next‑generation variable‑displacement load‑sensing hydraulic system. Lifting, slewing and multi‑action efficiency improved by up to 20%. Standard Stick‑Steer joystick travel mode: one‑button switch between pedal‑lever control and joystick driving, reducing operator fatigue. Touch‑screen monitor supports adjustable hydraulic response to match different operators and working conditions.

Key working parameters:

• Maximum digging depth: 4642 mm
• Maximum ground‑level reach: 6830 mm
• Maximum dumping height: 4870 mm
• Standard bucket capacity: 0.28‑0.35 m³
• Main pump maximum flow: 167 L/min

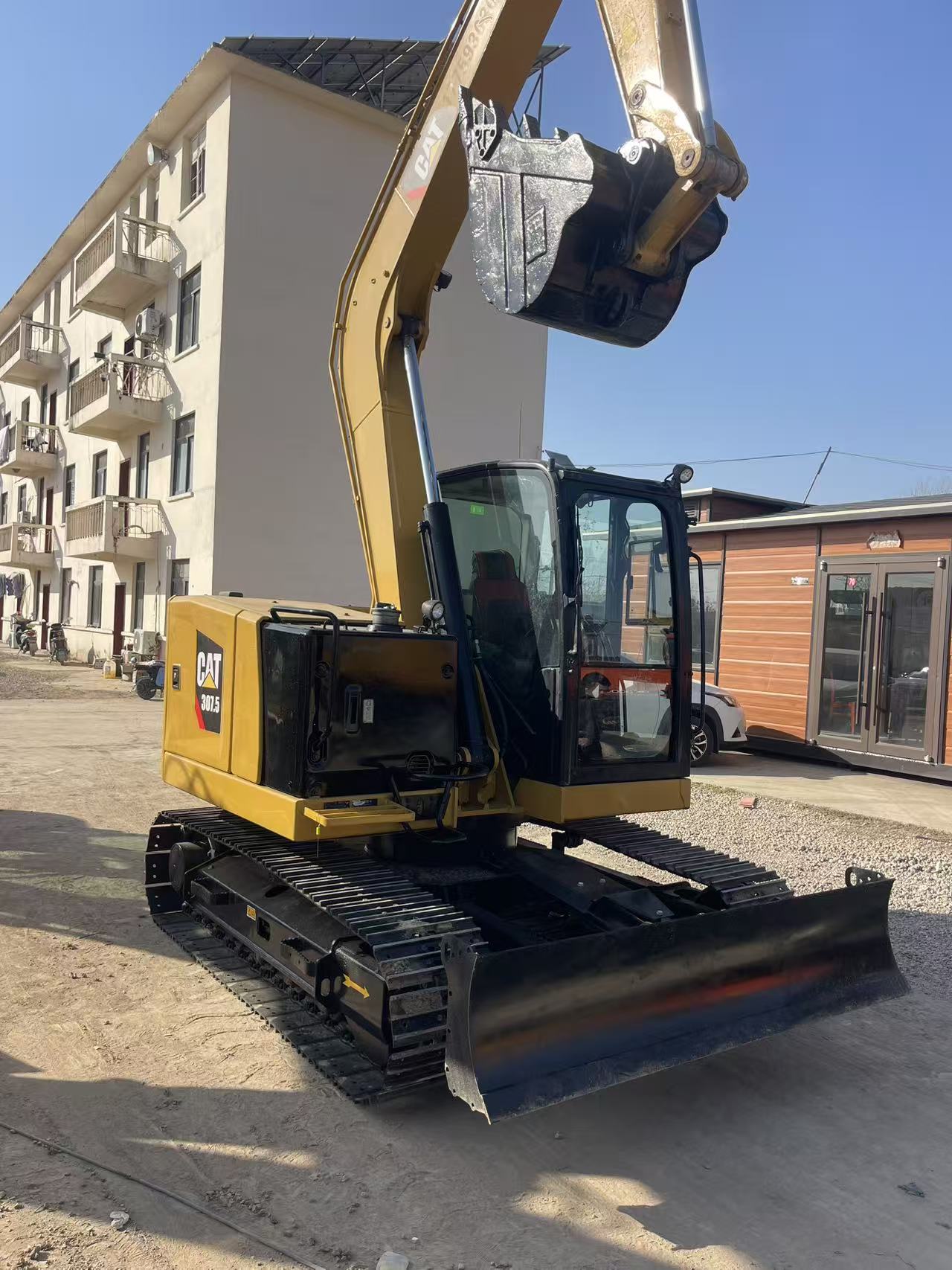

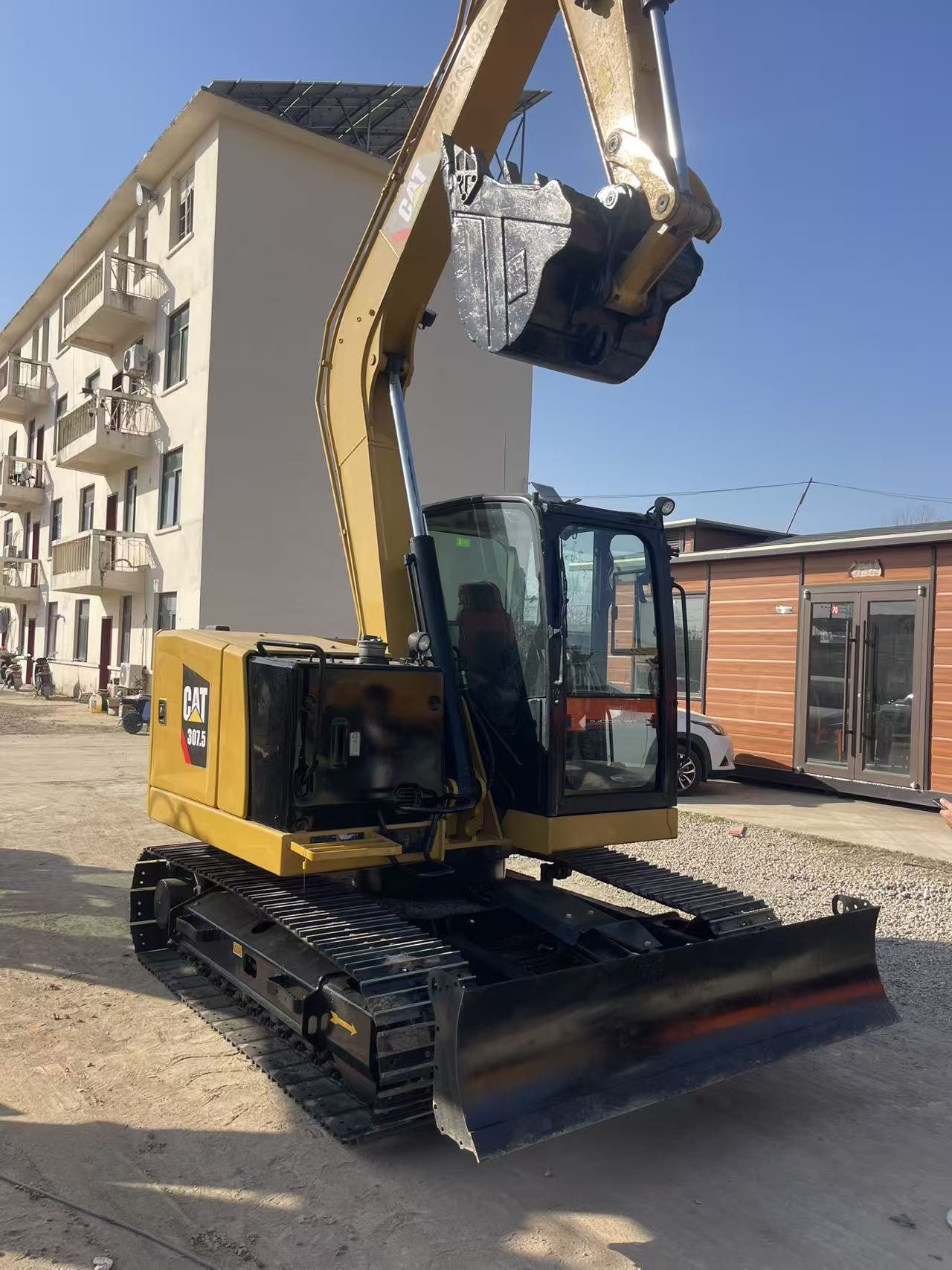

• Main hydraulic system pressure: 28.5 MPa Heavy‑duty dozer blade with float function assists back‑filling, site cleaning and enhances whole‑machine stability. Short‑tail structure minimizes overhang when working near barriers.

3. Premium Sealed Cab & Comprehensive Safety Design

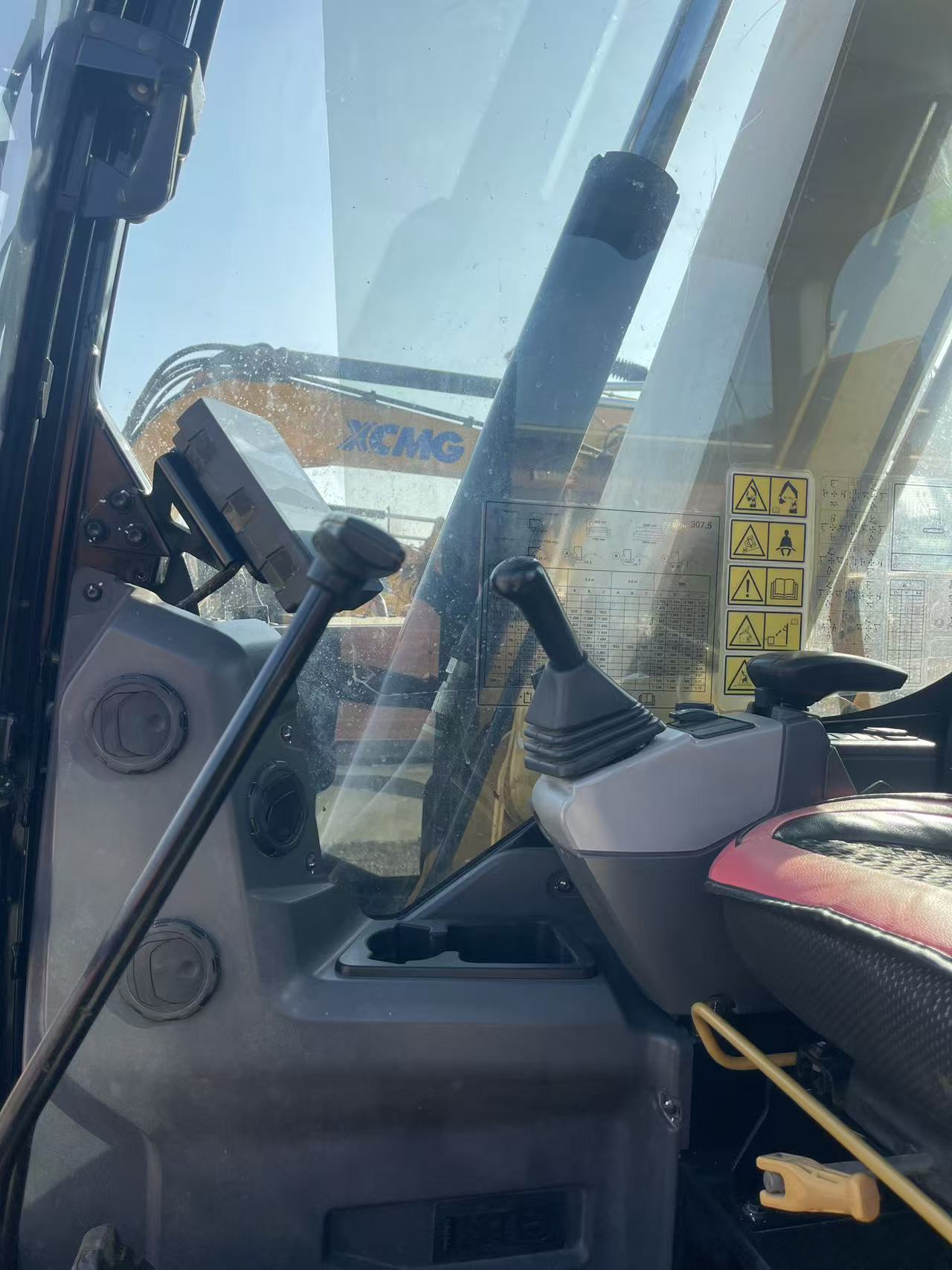

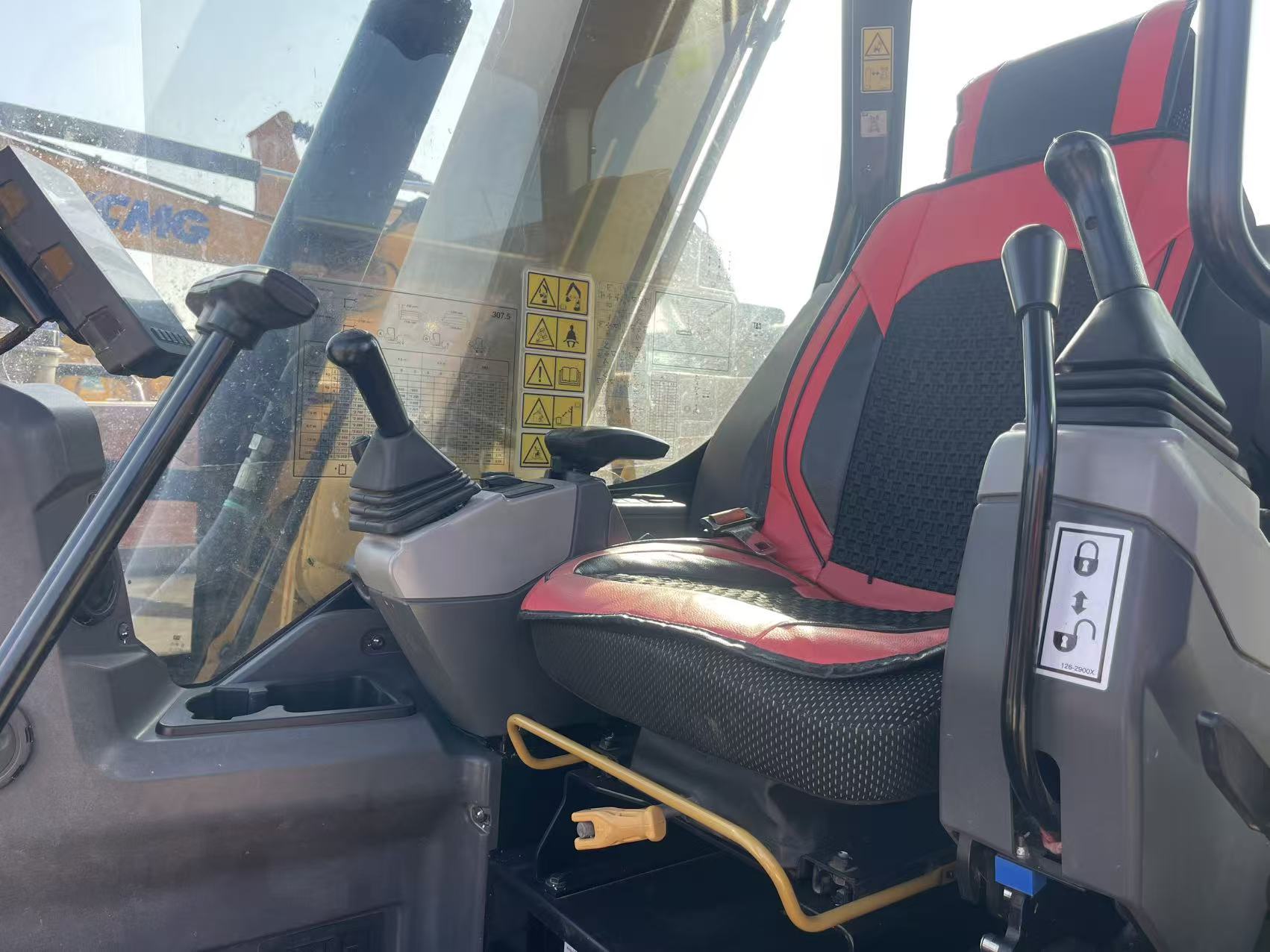

ROPS/TOPS certified sealed pressurized cab meets international safety standards for roll‑over protection. Ergonomic interior layout, adjustable wrist supports and heavy‑duty suspension seat deliver all‑day comfort. Optimized air‑conditioning system maintains pleasant environment under hot or cold weather. Large‑area glass plus rear‑view camera provides good all‑round visibility. Intelligent touch‑screen monitor displays real‑time machine data and fault alerts. Fluorescent retractable safety belt and work lamps are equipped as standard. Effective vibration & noise isolation lowers operator fatigue during long shifts.

4. Convenient Maintenance & Low Running Cost

All routine service check‑points are centrally arranged at ground‑level. Large opening service panels grant easy access to filters, oil filling ports and inspection points, saving maintenance time and labor cost. Upgraded hydraulic sealing reduces oil leakage and component wear. Remote fault diagnosis is supported. With mature industrial design, CAT 307.5 achieves low failure rate and high attendance rate, lowering comprehensive ownership cost.

5. Versatile Attachment Compatibility & Wide Adaptability

Quick coupler enables fast switching of various working tools to satisfy multi‑scenario demands:

• Standard digging bucket, heavy‑duty earth & rock bucket
• Hydraulic breaker for concrete demolition and rock breaking
• Hydraulic thumb / grapple for timber, scrap and bulk‑material handling
• Auger for foundation hole‑drilling and fence post installation
• Rake & grading bucket for landscaping and site finishing

Multiple attachments allow flexible switch among excavation, demolition, lifting and land‑shaping tasks, maximizing equipment utilization rate.

Typical Application Scenarios

1. Municipal Engineering & Urban RenewalRoad maintenance, pipeline trenching, sidewalk reconstruction, narrow‑street construction. Short‑tail design allows safe operation close to walls and buildings.
2. Landscaping & Garden ConstructionPark reshaping, tree‑planting pit digging, pond excavation, green‑belt earth‑moving. Precise hydraulic control supports fine finishing work.
3. Rural & Agricultural ProjectsFarmland consolidation, irrigation channel digging, house foundation construction, orchard improvement. Good travelling performance adapts to uneven field terrain.
4. Small‑Scale Infrastructure ConstructionSmall bridge foundation excavation, residential building projects, auxiliary earth‑rock jobs for small sites. Balanced power and compact size bring high flexibility.
5. Confined‑site Demolition & RenovationOld building partial demolition, factory reconstruction, basement renovation. Suitable for working in narrow urban yards and limited working zones.

Foreign Trade Service Guarantee

1. Flexible Customization Options

Personalized configurations based on local working conditions:

• Multiple bucket options: standard / heavy‑duty bucket
• Auxiliary hydraulic circuit for breaker and grapple attachments
• Cab upgrade: enhanced air‑conditioning, protective guards

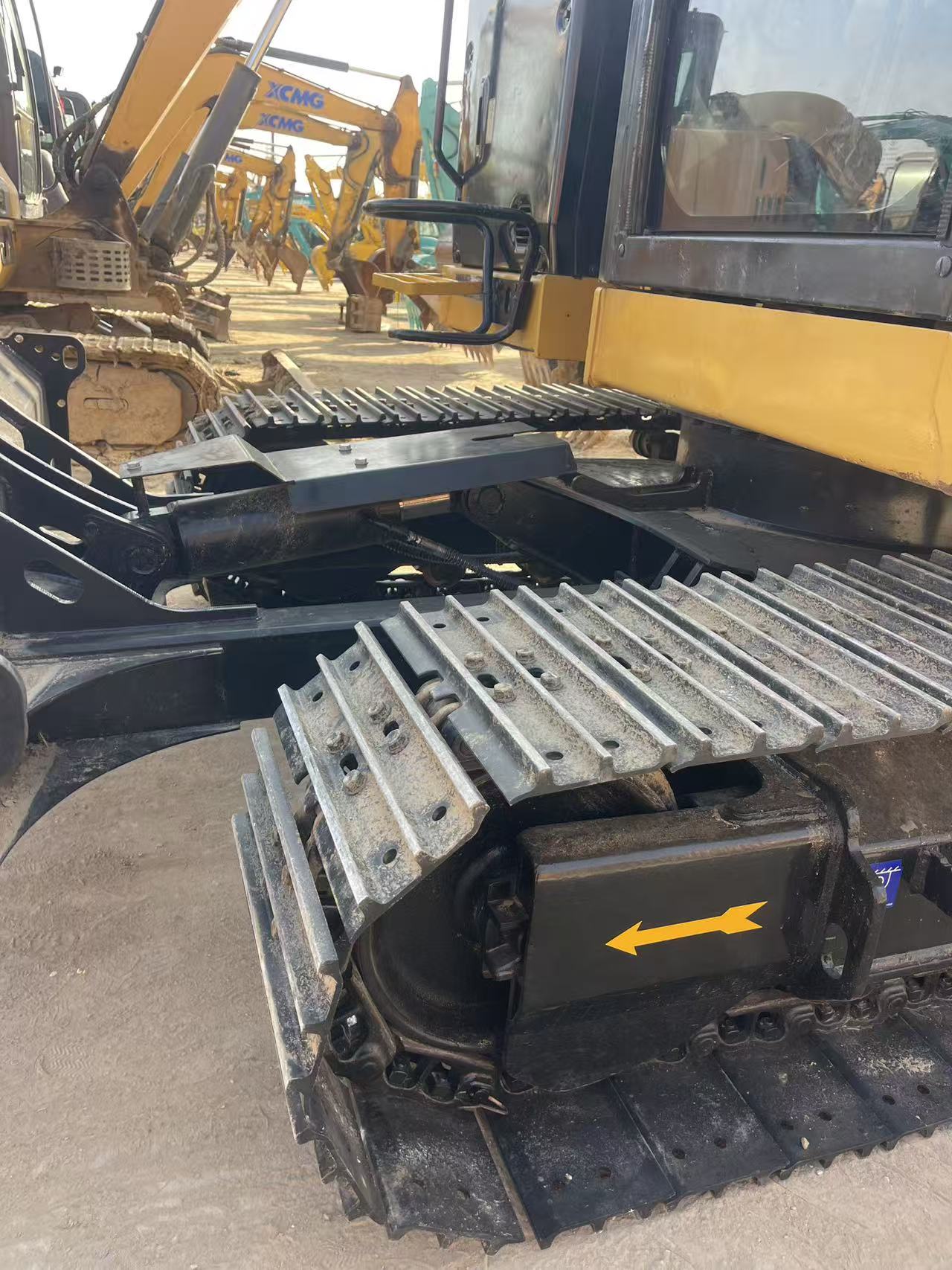

• Track selection: steel track or rubber track pads for paved ground protection Multilingual operation manuals and professional technical documents are provided for global markets.

2. Strict Quality Assurance & Complete Export Certifications

Each CAT 307.5 undergoes full pre‑shipment inspection and performance testing to meet international industrial standards. Full set of export documents for customs clearance:

• CE, ISO international quality certification
• Target‑region emission compliance certificates
• Authorized third‑party inspection reports (SGS, BV)
• Complete factory specification and qualification documents

3. Comprehensive Warranty & Professional Training Support

Core components of whole machine enjoy 12‑month / 2000‑hours comprehensive warranty. Global after‑sales team provides 24/7 rapid response. Free online & on‑site professional training includes safe operation specifications, daily inspection & maintenance, common fault troubleshooting and attachment installation & maintenance.

4. Global Spare Parts & Service Network

Relying on CAT global spare‑parts distribution system and our overseas service hubs, genuine original spare parts can be delivered rapidly worldwide. Authorized professional service teams offer on‑site repair, equipment commissioning, fault diagnosis and overhaul services to minimize machine downtime and guarantee long‑term stable operation.

Why Choose CAT 307.5?

CAT 307.5 integrates CAT century‑old manufacturing craft and mature hydraulic technology. Short‑tail compact layout, strong lifting capacity, low fuel consumption and easy‑maintenance features make it competitive among 7‑ton class compact excavators. It performs excellently in municipal, landscaping and rural projects with limited working space. Together with reliable structural quality and complete global after‑sales support, it delivers high attendance rate and good investment return. It is the preferred cost‑effective compact excavator for small‑and‑medium‑sized contractors worldwide.

Contact Us

Please contact our foreign‑trade team for personalized quotation, customized configuration scheme and global door‑to‑door shipping service. Flexible international payment terms such as LC, TT, DP are accepted. We provide one‑stop service covering equipment consultation, order customization, export declaration and after‑sales guarantee to help your projects operate efficiently and create greater value.
