VOLVO EC60D 6-Ton Compact Hydraulic Excavator – Professional Foreign Trade Sales Copy

Brand & Model Positioning

Brand: VOLVO

As a world-leading global supplier of commercial transportation solutions and the third-largest construction equipment manufacturer globally, VOLVO Group is rooted in the core values of "Quality, Safety, and Environmental Protection". With a profound engineering heritage spanning over a century, VOLVO Construction Equipment has established an unshakable reputation for producing high-reliability, fuel-efficient, and operator-centric machinery. Trusted by construction contractors, utility companies, landscaping professionals, and rental fleets in more than 130 countries and regions, VOLVO's global service network covering over 140 countries ensures 95%+ uptime even in remote construction sites, providing customers with seamless after-sales support and stable investment returns.

Model: VOLVO EC60D

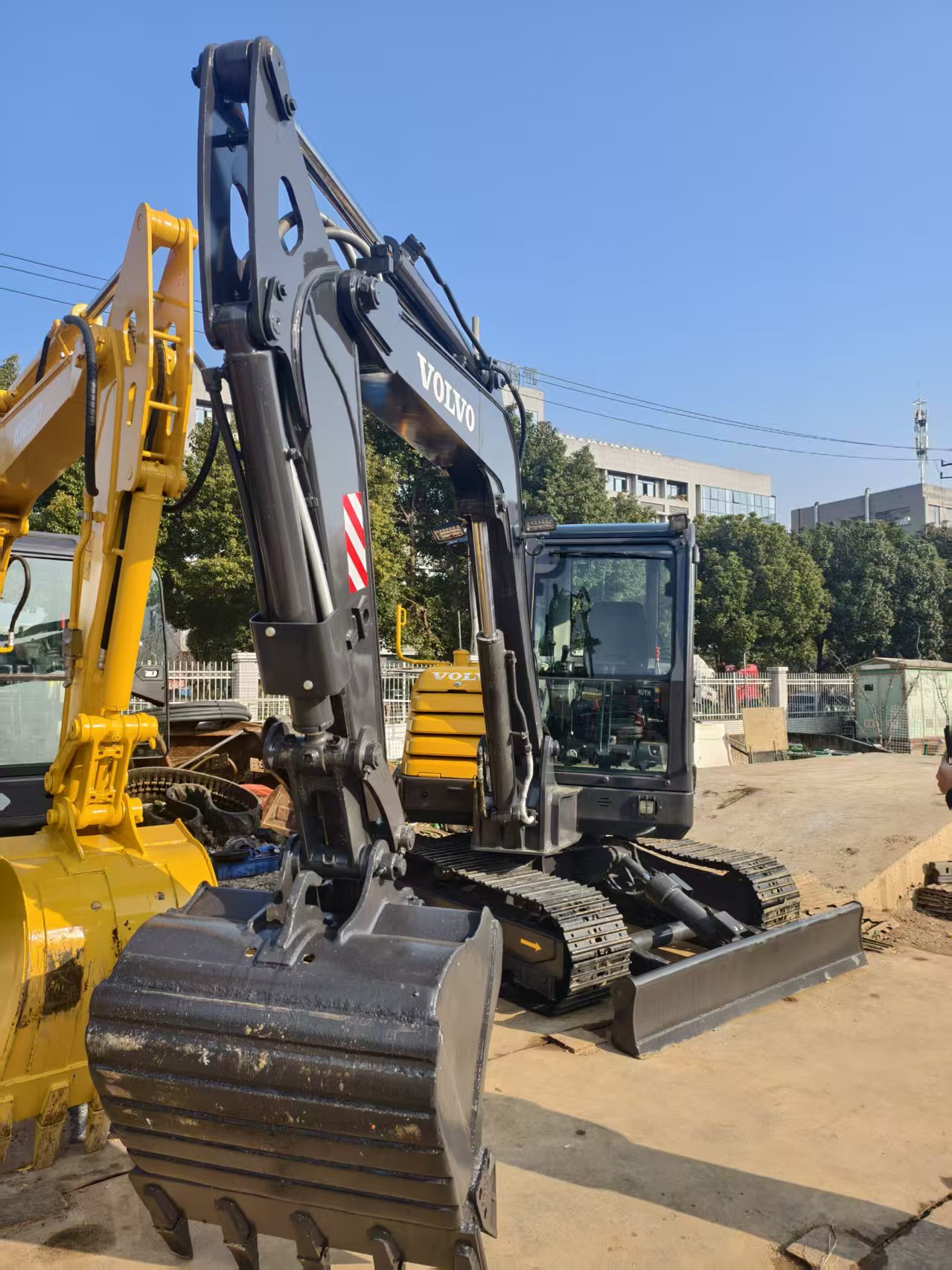

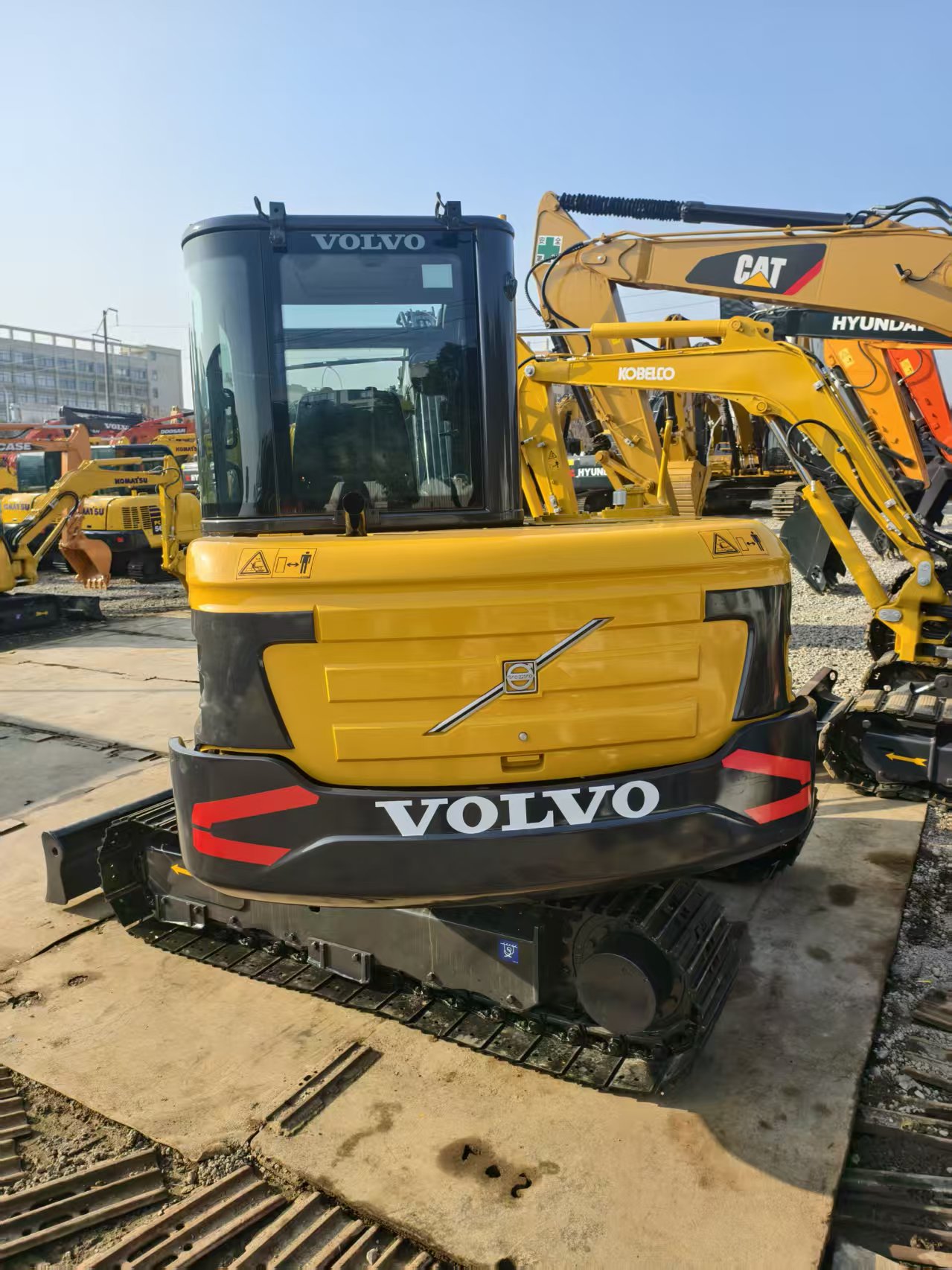

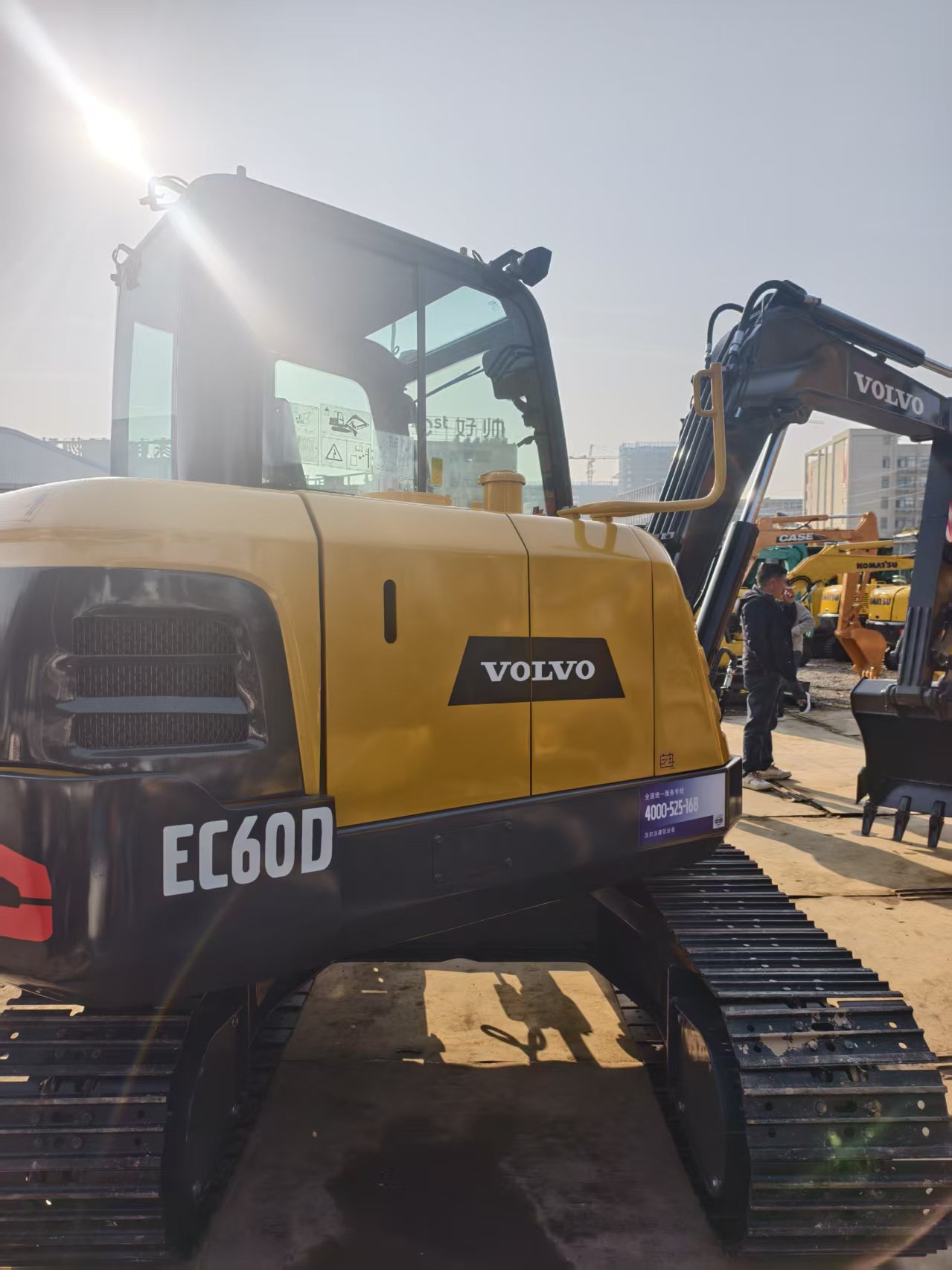

The VOLVO EC60D is a 6-ton class compact hydraulic excavator meticulously engineered for confined space operations. As a star product in VOLVO's small excavator lineup, it integrates a high-performance VOLVO D2.6A diesel engine with an optimized hydraulic system, delivering exceptional digging power, precise control, and outstanding fuel efficiency. With a compact overall design (total width of 1,940 mm and rear swing radius of only 1,680 mm), it excels in urban construction, residential renovations, and narrow job sites where large machinery is inaccessible. Its robust structural design and comprehensive safety protection make it the preferred choice for global customers seeking a balance of flexibility, reliability, and cost-effectiveness in small to medium-sized construction projects.

Core Technical Specifications (Comprehensive & Detailed)

1. Basic Parameters

• Operating Weight: 5,580 kg (12,302 lbs) – lightweight for easy transportation via standard trailers, while ensuring stable operation during heavy digging tasks
• Standard Bucket Capacity: 0.23 m³ (optional 0.18-0.3 m³ buckets for diverse applications)
• Overall Dimensions: Total length 5,885 mm × Total width 1,940 mm × Cab height 2,560 mm
• Minimum Ground Clearance: 380 mm – adaptable to uneven terrain in construction sites

2. Engine Performance

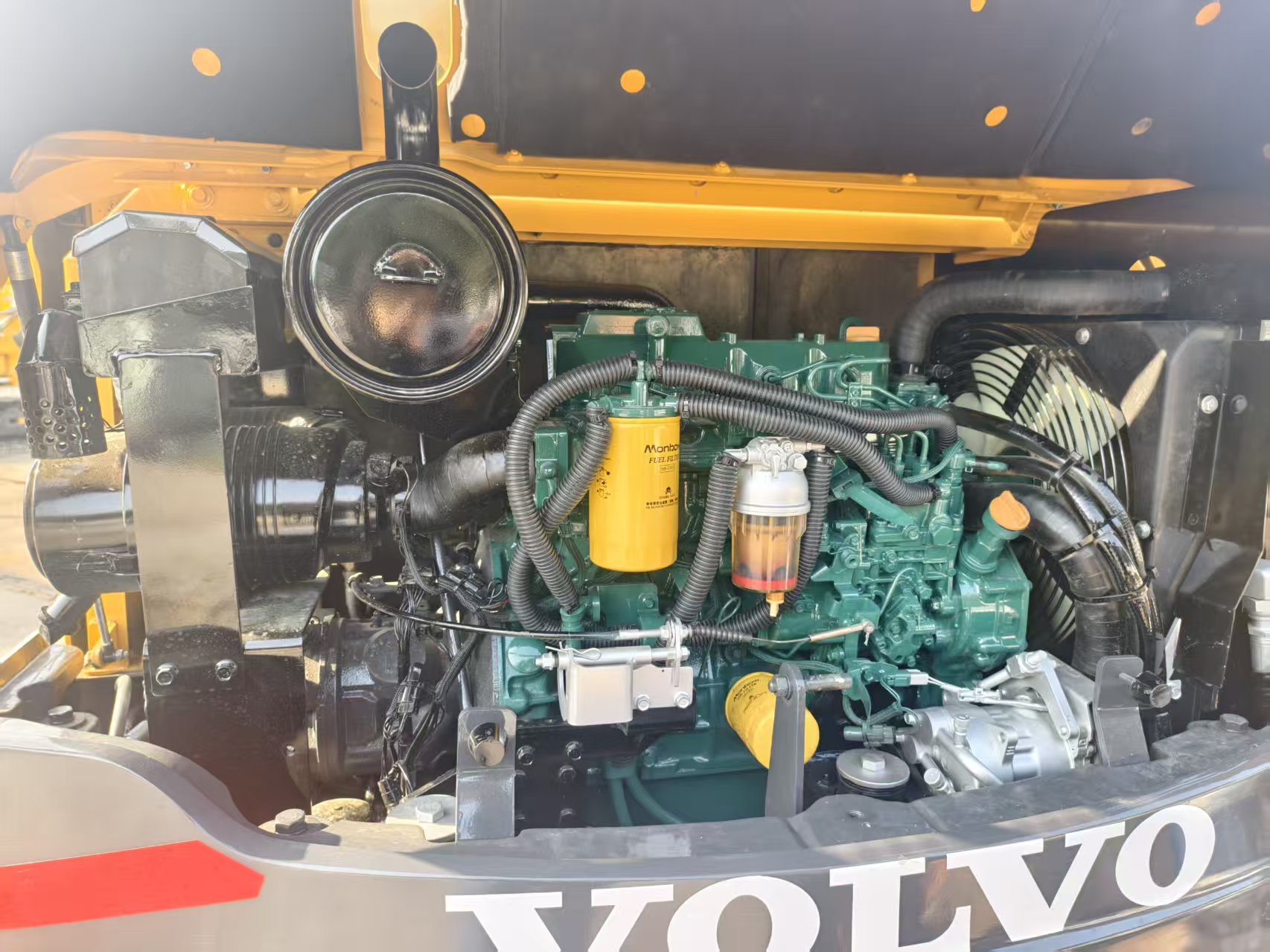

• Engine Model: VOLVO D2.6A 4-cylinder in-line water-cooled diesel engine
• Rated Power: 36.5 kW (50 HP) @ 2,000 rpm (gross); 34.5 kW (47 HP) net power (ISO 9249/SAE J1349)
• Displacement: 2.62 L – optimized combustion design for superior power-to-weight ratio
• Emission Compliance: Tier 3 / Stage IIIA – compliant with emission standards in most global markets, environmentally friendly operation
• Fuel Efficiency: 6-8 L/h under medium load – 10-15% lower fuel consumption than peer models, reducing annual fuel costs by $800-$1,200 based on 2,000 working hours/year
• Cold-Start Performance: Equipped with glow plugs for reliable starting at temperatures as low as -15°C; dual-stage air filtration system adapts to dusty working environments
• Maximum Torque: 210 Nm @ 1,000 rpm – strong low-end torque ensures efficient digging in compacted soil

3. Working Device & Excavation Performance

• Operating Range: Maximum digging radius 6,115 mm; maximum digging depth 3,800 mm; maximum dumping height 4,100 mm; maximum digging height 5,780 mm
• Digging Force: Bucket digging force up to 42.3 kN; arm digging force 28.5 kN – easily penetrates compacted soil, weathered rock, and concrete debris
• Boom & Arm: Standard 3.03 m boom + 1.54 m arm; optimized structural design with reinforced stress points for enhanced durability

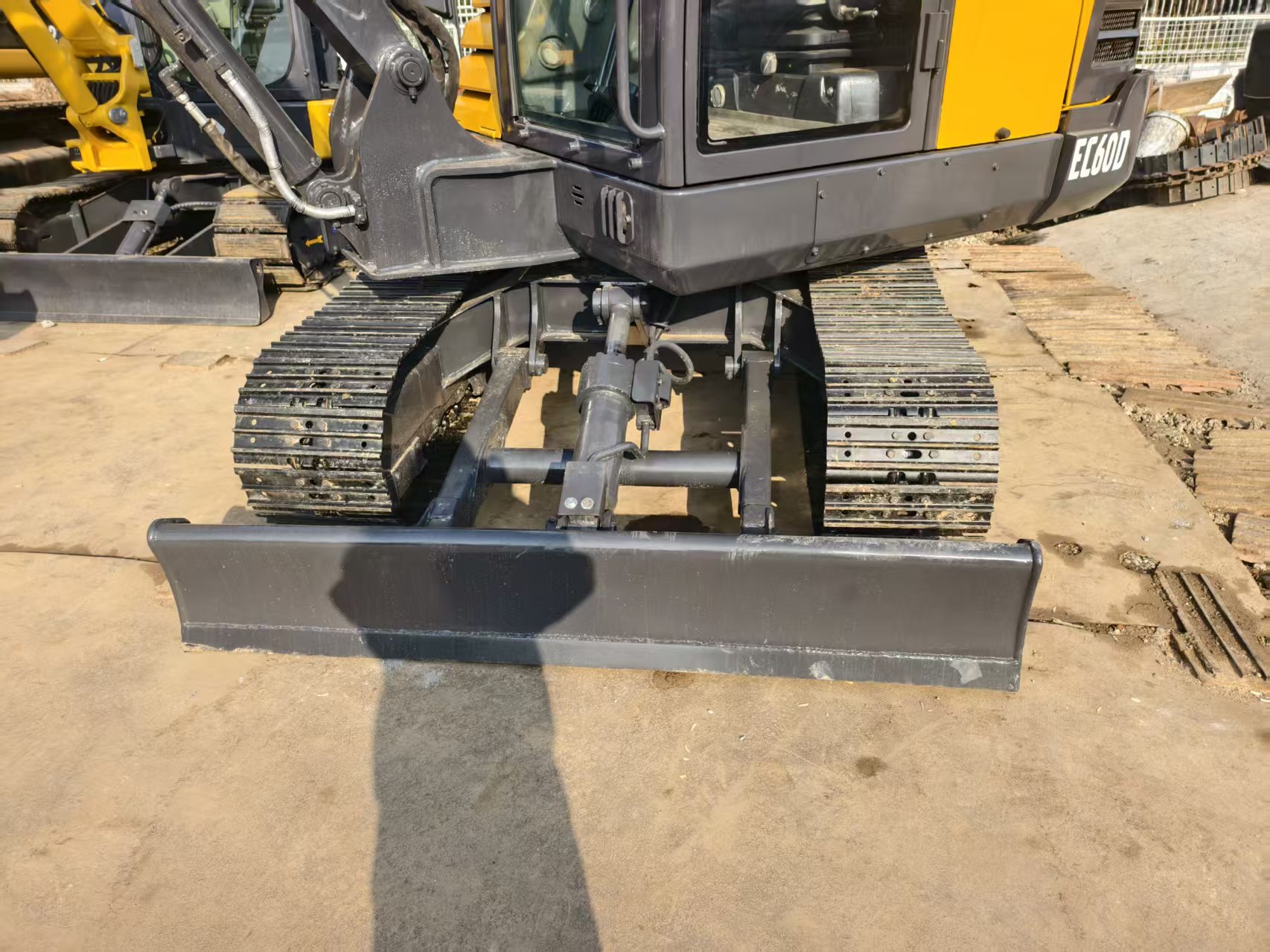

• Dozer Blade: 1,850 mm width standard dozer blade with float function – efficient for grading, backfilling, and stabilizing the machine during digging operations

4. Hydraulic System

• System Type: Open-center hydraulic system with load sensing control – perfectly matches the engine to deliver smooth and precise operation
• Maximum Flow Rate: Total main pump flow 142.4 L/min (2×55 L/min main pumps + 32.4 L/min auxiliary pump)
• Relief Valve Pressure: 21.6 MPa (working hydraulic circuit); 20.6 MPa (travel hydraulic circuit); 18.6 MPa (swing hydraulic circuit)
• Swing System: Radial piston motor with holding brake; swing speed 9 rpm; swing torque 11 kNm – smooth rotation for precise positioning
• Travel System: Dual-speed travel motors; low speed 2.6 km/h (high torque for rough terrain climbing); high speed 4.3 km/h (fast relocation between job sites); maximum traction 43 kN, capable of climbing slopes up to 35°

5. Undercarriage & Structural Design

• Undercarriage Type: Robust X-shaped chassis – provides excellent stability and load-bearing capacity, suitable for long-term operation in harsh working conditions
• Track Configuration: Track shoe width 400 mm (standard); optional rubber tracks available for operation on paved surfaces without damage
• Track Specifications: Track gauge 1,540 mm; track ground contact length 1,950 mm – ensures stable operation on uneven terrain with a ground pressure of 31.8 Kpa
• Protective Design: Surrounding counterweight protects the engine compartment; heavy-duty arm and reinforced boom structure enhance resistance to impact and wear

6. Operator Cab & Safety

• Cab Certification: ROPS/FOPS Level II certified – effectively protects operators against rollover and falling object hazards, complying with global safety standards

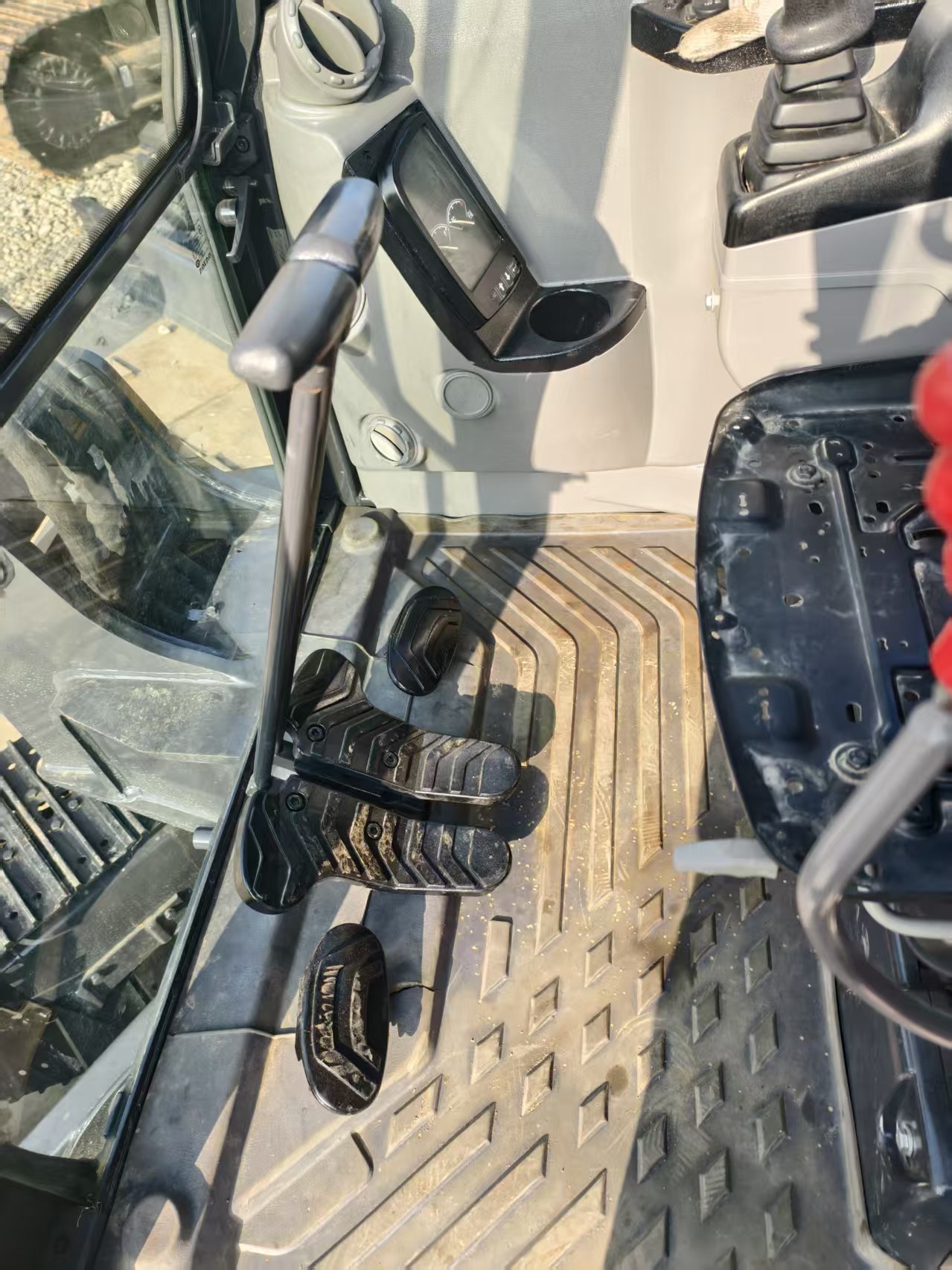

• Ergonomic Design: Spacious cab with flat floor design, providing ample legroom for operators of different statures; adjustable air-suspension seat with lumbar support reduces fatigue during long-hour operations

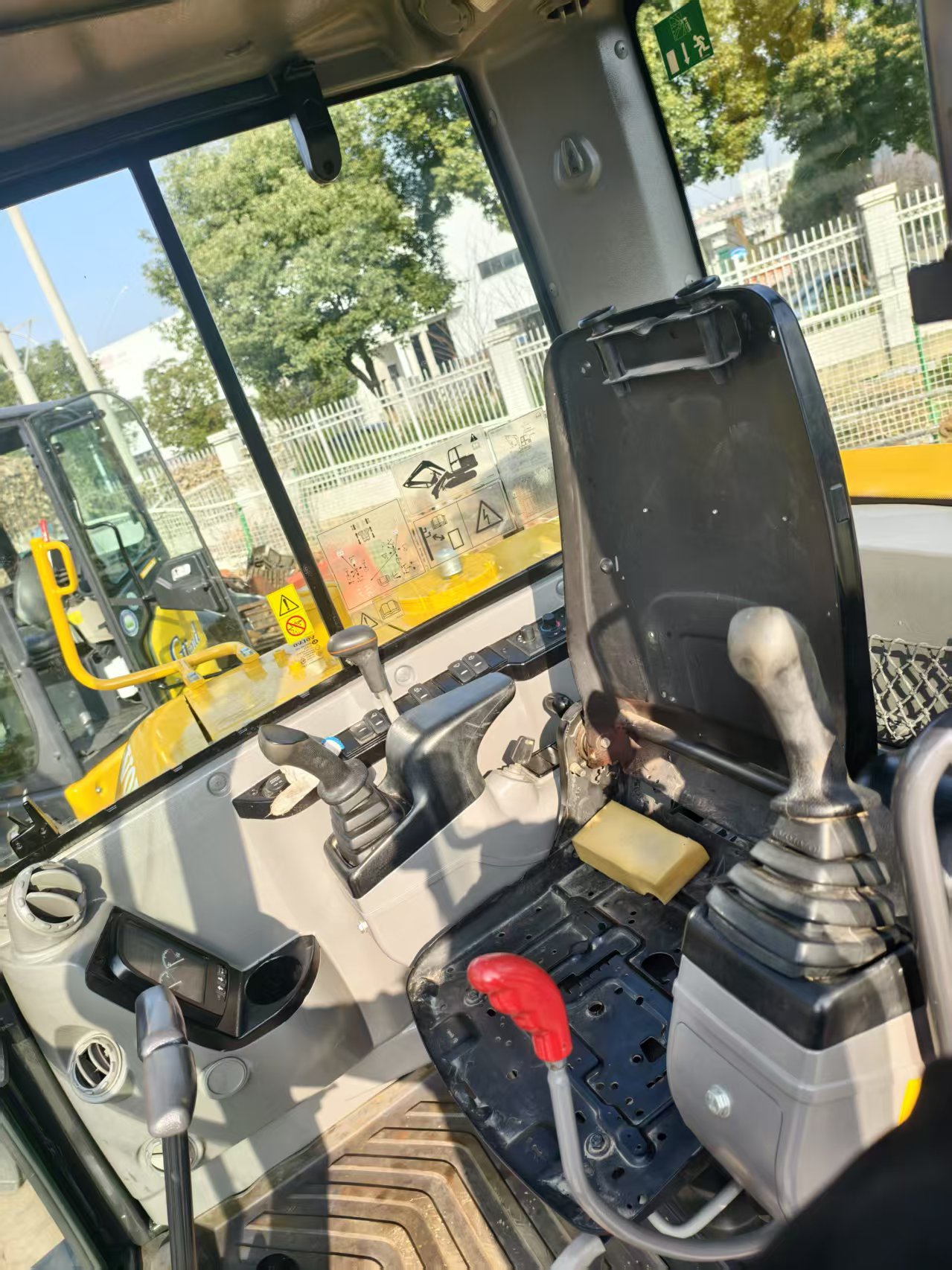

• Control System: Pilot hydraulic joysticks with low operating force, sensitive and precise control; centralized control panel with clear labels, easy to operate even for novice operators
• Comfort Configuration: Optional air conditioning and heating system, adapting to various climate conditions; high-quality sound insulation materials, internal noise ≤75 dB(A), creating a quiet working environment
• Visibility & Monitoring: Large front and side windows with narrow pillars, minimizing blind spots; rearview mirrors and optional reversing camera enhance 360° all-around visibility; digital instrument panel displays real-time data (engine speed, fuel level, hydraulic temperature, fault codes) for easy monitoring of machine status
• Safety Protection: Emergency stop button inside the cab; travel alarm that automatically activates during movement; anti-slip steps and handrails for safe entry and exit

7. Fuel & Fluid Capacities

• Fuel Tank Capacity: 120 L (31.7 US gal) – supports 15-20 hours of continuous operation, reducing refueling frequency
• Hydraulic Oil Tank Capacity: 65 L – equipped with efficient cooling system to maintain stable hydraulic oil temperature
• Engine Oil Capacity: 9.5 L; Coolant Capacity: 18 L

Core Advantages (Expanded for Global Clients)

1. Superior Maneuverability for Confined Spaces

The VOLVO EC60D features a compact design with a total width of only 1,940 mm and a rear swing radius of 1,680 mm, allowing it to flexibly navigate narrow alleys, residential courtyards, and urban construction sites where large excavators cannot enter. The optimized body layout ensures that the machine does not collide with surrounding obstacles during 360° rotation, significantly improving operation safety and efficiency in confined spaces. Additionally, its lightweight design (5,580 kg) enables transportation via standard light-duty trailers without the need for special permits, reducing logistics costs for global customers.

2. Exceptional Fuel Efficiency & Low Operating Costs

Powered by the VOLVO D2.6A diesel engine with optimized combustion technology, the EC60D achieves a fuel consumption of only 6-8 L/h under medium load, which is 10-15% lower than peer models. For customers operating 2,000 hours a year, this translates to annual fuel cost savings of $800-$1,200. The engine's long service intervals (500 hours for oil change) and the hydraulic system's 2,000-hour oil change cycle are 20% longer than the industry average, reducing maintenance frequency and downtime costs. Moreover, VOLVO's global parts supply chain ensures that replacement parts are cost-effective and readily available, further lowering the total cost of ownership.

3. Reliable Performance & Durable Construction

VOLVO adheres to strict quality control standards in the production of the EC60D. The boom and arm are made of high-strength steel with reinforced stress points, and the X-shaped chassis provides excellent load-bearing capacity and stability. The sealed and lubricated track chains and reinforced rollers/idlers ensure an undercarriage service life of over 10,000 hours under normal operation. The dual-stage air filtration system and heavy-duty counterweight protection effectively extend the machine's service life in harsh environments such as dusty construction sites and mountainous areas, making it a reliable partner for long-term construction projects.

4. Operator-Centric Comfort & Safety

The EC60D's cab is designed with operator comfort and safety as top priorities. The ROPS/FOPS Level II certified cab provides comprehensive protection against rollover and falling objects. The air-suspension seat with lumbar support, low-noise design (≤75 dB(A)), and optional air conditioning system significantly reduce operator fatigue during long-hour operations. The pilot hydraulic joysticks with low operating force and clear digital instrument panel ensure easy and precise control, even for novice operators. The 360° all-around visibility, combined with rearview mirrors and an optional reversing camera, minimizes blind spots and improves job site safety.

5. Versatile Attachment Compatibility & Wide Application Range

The EC60D supports a variety of optional attachments, including 0.18-0.3 m³ buckets (general-purpose, heavy-duty, narrow trench), hydraulic breakers, augers, grapples, and plate compactors. The optional hydraulic quick coupler allows for quick attachment changes within 2-3 minutes without leaving the cab, greatly improving work efficiency. This versatility enables the machine to be used in a wide range of applications, including urban construction, residential renovation, landscaping, utility trenching, and small-scale mining, meeting the diverse needs of global customers.

Typical Application Scenarios (Detailed & Market-Specific)

1. Urban Construction & Residential Renovation

• Foundation excavation for small and medium-sized buildings, garages, and sheds
• Trenching for underground pipelines (water, gas, electricity, communication) in urban areas
• Demolition of old residential buildings and small structures
• Excavation and backfilling for urban road maintenance and reconstruction

2. Landscaping & Garden Construction

• Creation of ponds, fountains, and other water features in parks and residential communities
• Grading and leveling for golf courses, lawns, and flower beds
• Digging irrigation ditches and planting holes for large trees
• Construction of retaining walls and rock gardens

3. Utility & Municipal Engineering

• Repair and maintenance of underground water supply, drainage, and gas pipelines
• Trenching for fiber optic cables and power lines in urban and rural areas
• Cleaning of storm drains and small rivers
• Construction of small-scale municipal facilities such as public toilets and bus shelters

4. Agricultural & Rural Infrastructure

• Land leveling and soil improvement for farmland
• Digging irrigation canals and drainage ditches
• Construction of farm roads and small reservoirs
• Clearing of farmland weeds and tree stumps

5. Rental Fleet Operations

Due to its compact size, easy operation, reliability, and versatility, the EC60D is an ideal choice for rental companies. It is widely rented by small contractors, homeowners, and municipal agencies for short-term construction projects, providing rental companies with stable returns and high resale value.

Foreign Trade Service Guarantee (Tailored for Global Buyers)

1. Customization Options for Target Markets

• Track Options: Standard steel tracks with rubber pads or full rubber tracks for operation on paved surfaces (such as urban roads, parking lots) without damage
• Climate Packages: Cold-climate package (engine block heater, battery warmer, cab insulation) for Nordic, Russian, and Canadian markets; hot-climate package (high-capacity air conditioning, enhanced cooling system, sunshade) for Middle Eastern, African, and Southeast Asian markets
• Cab Configurations: Open canopy for warm climates or enclosed cab with heating/air conditioning for year-round operation in temperate regions
• Documentation Customization: Multilingual operation manuals and parts catalogs (English, Spanish, Arabic, French, Russian, Portuguese, etc.) to meet local market requirements

2. Comprehensive Inspection & Certification

• Pre-Shipment Inspection: Rigorous inspection by VOLVO's official quality control team or third-party institutions (SGS, BV) to verify product specifications, quality, and compliance with export standards
• Export Certifications: Certificate of Origin (CO), CE certification for the European Union, EPA certification for North America, Tier 3 emission reports, and complete customs clearance documents (commercial invoice, packing list, bill of lading)
• Import Support: Professional team to assist customers in handling import permits, customs clearance procedures, and tax declaration in target countries, ensuring smooth delivery of goods

3. Warranty & Training Services

• Global Warranty: 1-year or 2,000-hour warranty (whichever comes first) covering core components (engine, hydraulic system, undercarriage) for manufacturing defects; 6-month warranty for non-core components
• Free Training: On-site or online operator and maintenance training in local languages, covering safe operation, daily inspection, basic fault diagnosis, and attachment use
• Technical Support: 24/7 online technical support by VOLVO's professional engineers via phone, email, and WhatsApp, providing timely troubleshooting guidance and solutions

4. Spare Parts & After-Sales Support

• Global Parts Network: VOLVO has over 2,000 authorized service centers and 80+ parts warehouses worldwide, ensuring that genuine parts are delivered to major markets within 3-7 days and to remote areas within 7-15 days
• Consignment Stock: For bulk buyers (rental fleets, large construction companies), consignment stock of common spare parts (filters, bucket teeth, hydraulic hoses) is available in target markets for immediate access
• On-Site Service: Optional on-site maintenance contracts, including regular inspection, preventive maintenance, and on-site repair services, to maximize equipment uptime and extend service life

Why Choose VOLVO EC60D?

The VOLVO EC60D 6-ton compact hydraulic excavator integrates VOLVO's century-old engineering heritage with advanced technology, offering superior maneuverability, fuel efficiency, reliability, and operator comfort. Its compact design makes it ideal for confined space operations, while its versatile attachment compatibility meets diverse application needs. Backed by VOLVO's global service network and comprehensive after-sales support, the EC60D provides global customers with stable performance, low operating costs, and high investment returns. Whether you are a small contractor, a rental company, or a municipal agency, the VOLVO EC60D is the perfect choice for your small to medium-sized construction projects.

Contact Us

For real-time quotes on new/used VOLVO EC60D excavators, attachment customization, bulk purchase discounts, or rental fleet solutions, please contact our dedicated foreign trade sales team. We offer competitive pricing, flexible payment terms (LC, TT, DP), and reliable door-to-door shipping services to global destinations. Our professional team will provide you with one-stop services from product selection to after-sales support, helping you achieve business success.
