Brand: KOMATSU – A leading Japanese construction machinery brand with a 104-year history, ranking top 2 in the global construction machinery market share. Komatsu excavators hold a 28% market share in the 20-ton segment across Africa, Southeast Asia and the Middle East, with a service network covering 190+ countries (including 380+ authorized service centers and 10 regional parts warehouses in emerging markets). The brand’s
CLSS closed-load sensing hydraulic system and
KOMTRAX remote monitoring system are renowned for high efficiency and intelligent management, making its equipment a preferred choice for large-scale infrastructure projects in high-temperature, high-dust and complex terrain conditions.
Model: KOMATSU PC200-8 – A 20-ton class medium hydraulic crawler excavator, a classic model of Komatsu’s 20-ton excavator series optimized for construction, mining and road construction scenarios. Powered by the Komatsu SAA6D107E-1 6-cylinder high-pressure common rail engine (110kW rated power) and equipped with Komatsu’s exclusive CLSS hydraulic system, it delivers a rated operating weight of 19900kg, a standard bucket capacity of 0.8m³, and a maximum digging force of 149kN. With a rear swing radius of only 2710mm and multi-mode operation, it has been proven to operate continuously for over 12,000 hours without major failures in African mining areas, and is widely used in Africa, Southeast Asia and the Middle East for its low fuel consumption and high reliability.
The PC200-8 is equipped with the
Komatsu SAA6D107E-1 6-cylinder diesel engine (110kW/2000rpm, 6.69L displacement), which adopts high-pressure common rail fuel injection technology and meets EPA Tier3/EUIIIA emission standards—perfectly adapted to emerging markets with relatively strict emission regulations. The engine delivers a maximum torque of 588N·m, ensuring strong power output in heavy-load scenarios such as rock excavation and foundation construction, while the fuel consumption is only 18-22L per working hour, 15% lower than that of peers in the same tonnage class.
The
air intake optimization design with a double-layer air filter effectively blocks dust and sand in desert and mining areas, extending the engine’s service life to 15,000 hours—30% longer than the industry average. The engine compartment adopts a side-by-side heat dissipation device, avoiding overheating in high-temperature environments above 45°C, and the fuel pre-filter with oil-water separation function adapts to low-quality fuel in emerging markets.
Paired with Komatsu’s exclusive
CLSS closed-load sensing hydraulic system, the PC200-8 realizes fast and smooth composite operations with a main pump maximum flow of 439L/min. The hydraulic system features load-sensing control, ensuring digging force is not affected by load changes, and the bucket digging force of 149kN and arm digging force of 108kN can easily handle hard soil and rock materials.
The
boom quick return oil circuit and optimized pump flow distribution control reduce hydraulic loss by 20%, while the independent circuits for the working device and steering system eliminate mutual interference during composite operations, improving work efficiency by 10% in earthmoving and loading scenarios. The hydraulic components adopt high-quality seals and wear-resistant materials, with a service life of up to 10,000 hours, and the modular design allows for quick replacement of parts in remote overseas sites.
The PC200-8 offers 6 customizable working modes to meet different operation needs:
- P Mode (Fast Mode): For high-efficiency construction scenarios such as large-scale earthmoving, with maximum power output.
- E Mode (Economic Mode): Divided into E0/E1/E2/E3 four gears, prioritizing fuel saving for light-load operations such as grading and loading, reducing fuel consumption by up to 20%.
- B Mode (Breaker Mode): Optimized for hydraulic breaker operations, with stable oil flow control to protect the hydraulic system.
- L Mode (Micro-Operation Mode): For precise operations such as pipeline laying and building demolition, with sensitive and controllable actions.
- ATT Mode: Adapted to various attachments such as grapples and compactors, expanding the machine’s application scope.The standard KOMTRAX (Komatsu ConSite) remote monitoring system allows real-time tracking of the excavator’s working hours, fuel consumption, location and fault information via mobile phones or computers, facilitating fleet management for overseas customers and reducing maintenance costs by 25%.
The ROPS/FOPS certified tubular frame cab prioritizes operator comfort and safety for long-hour overseas operations:
- Ergonomic Design: The cab features a spacious space (internal noise ≤72dB), a suspended adjustable luxury seat, and an optimized control lever layout, reducing operator fatigue during 8-hour+ continuous shifts. The 7-inch color LCD monitor supports 12 languages (including English, Arabic and Spanish), displaying real-time data such as fuel consumption, engine speed and hydraulic pressure, and alerts the operator of maintenance and fault information.
- Safety Protection: The cab adopts a high-rigidity tubular structure, withstanding impact from falling objects and rollover accidents. The large front and side windows provide 360° wide vision, ensuring safe operation in crowded construction sites such as urban infrastructure projects. The anti-slip floor mat and safety belt reminder function further enhance operational safety.
- Easy Maintenance: Daily maintenance points such as oil level, coolant and air filter are accessible at ground level, cutting maintenance time by 30%. The centralized lubrication system reduces the frequency of manual lubrication, and common spare parts (filters, hydraulic hoses, bucket teeth) are available in Komatsu’s regional warehouses in Dubai, Singapore and Johannesburg, with a delivery time of 7-15 days.

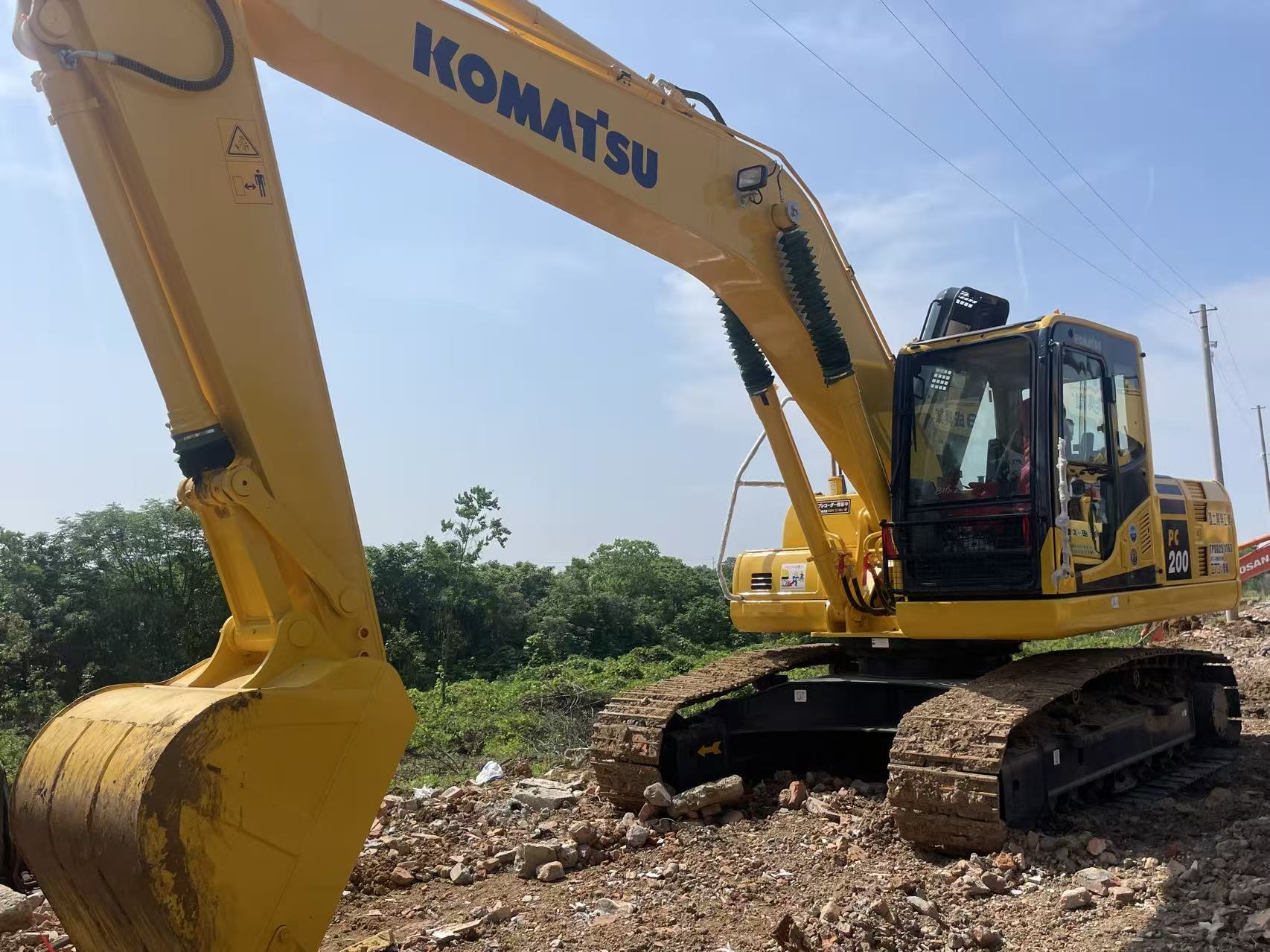

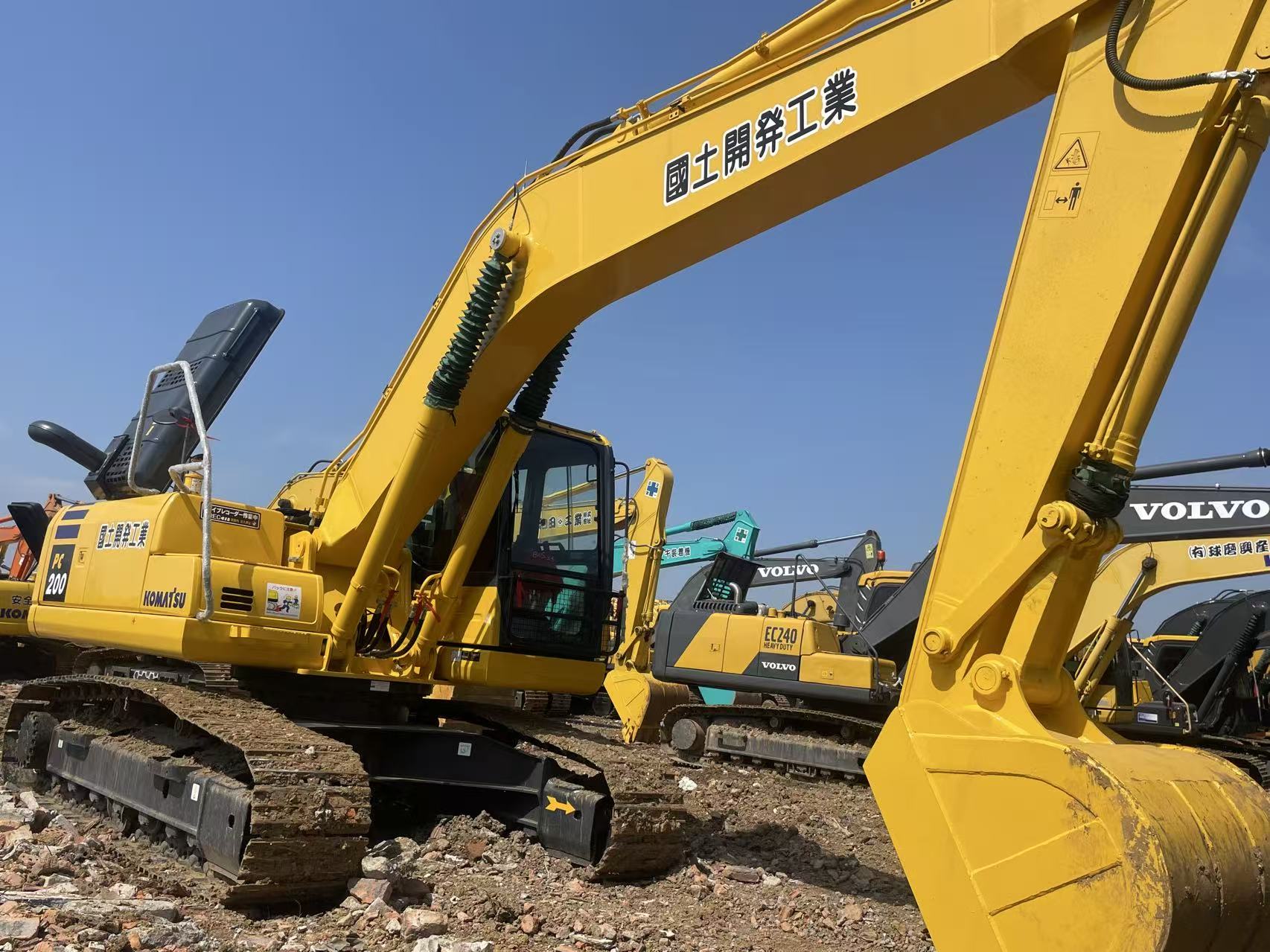

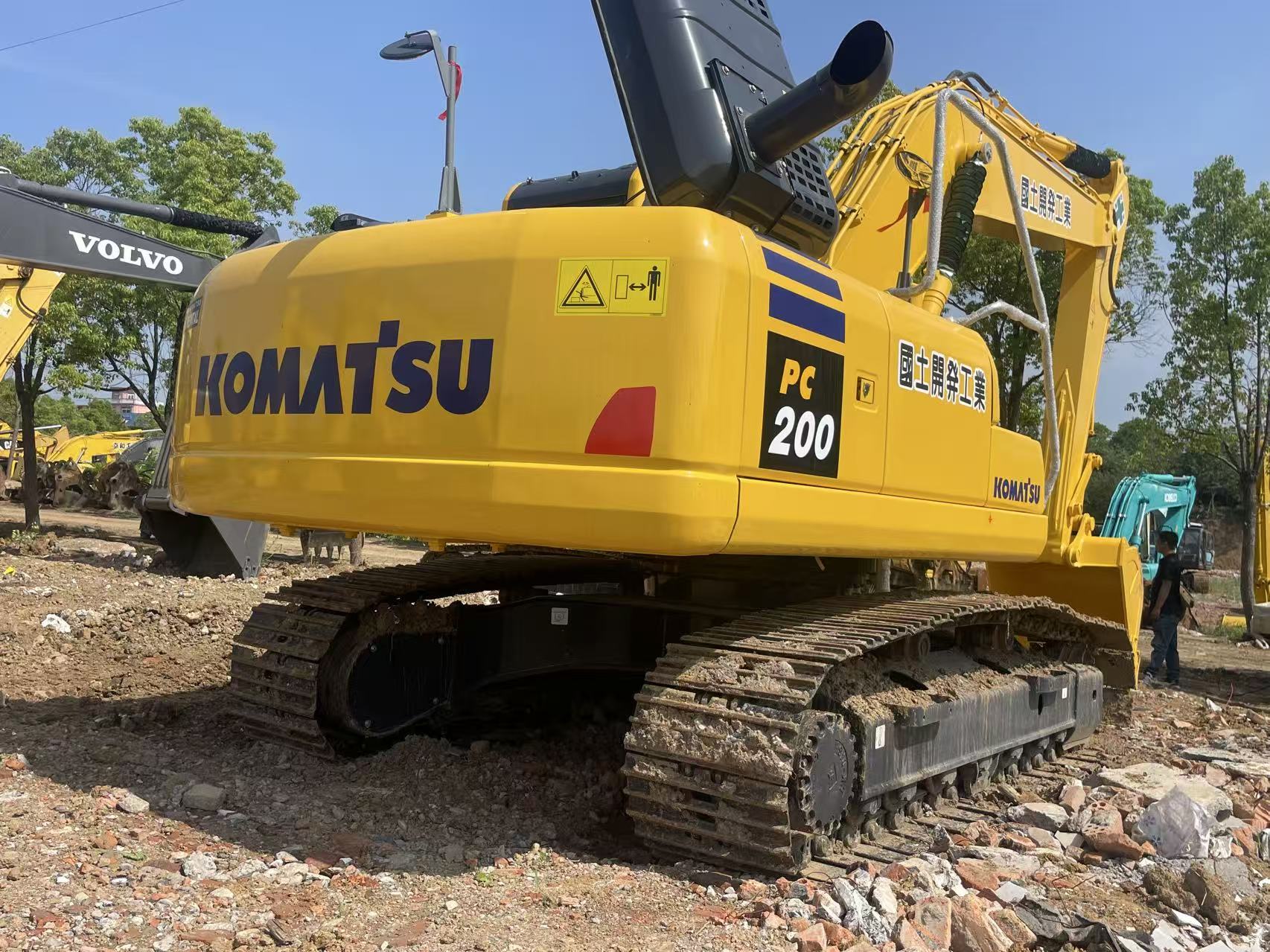

With overall dimensions of 9480×2800×3040mm and a rear swing radius of 2710mm, the PC200-8 has a compact and sturdy body. The anti-corrosion Komatsu yellow paint resists salt spray in coastal construction areas and sand abrasion in desert mining areas, while the reinforced counterweight ensures stable operation during 20-ton heavy-load digging.

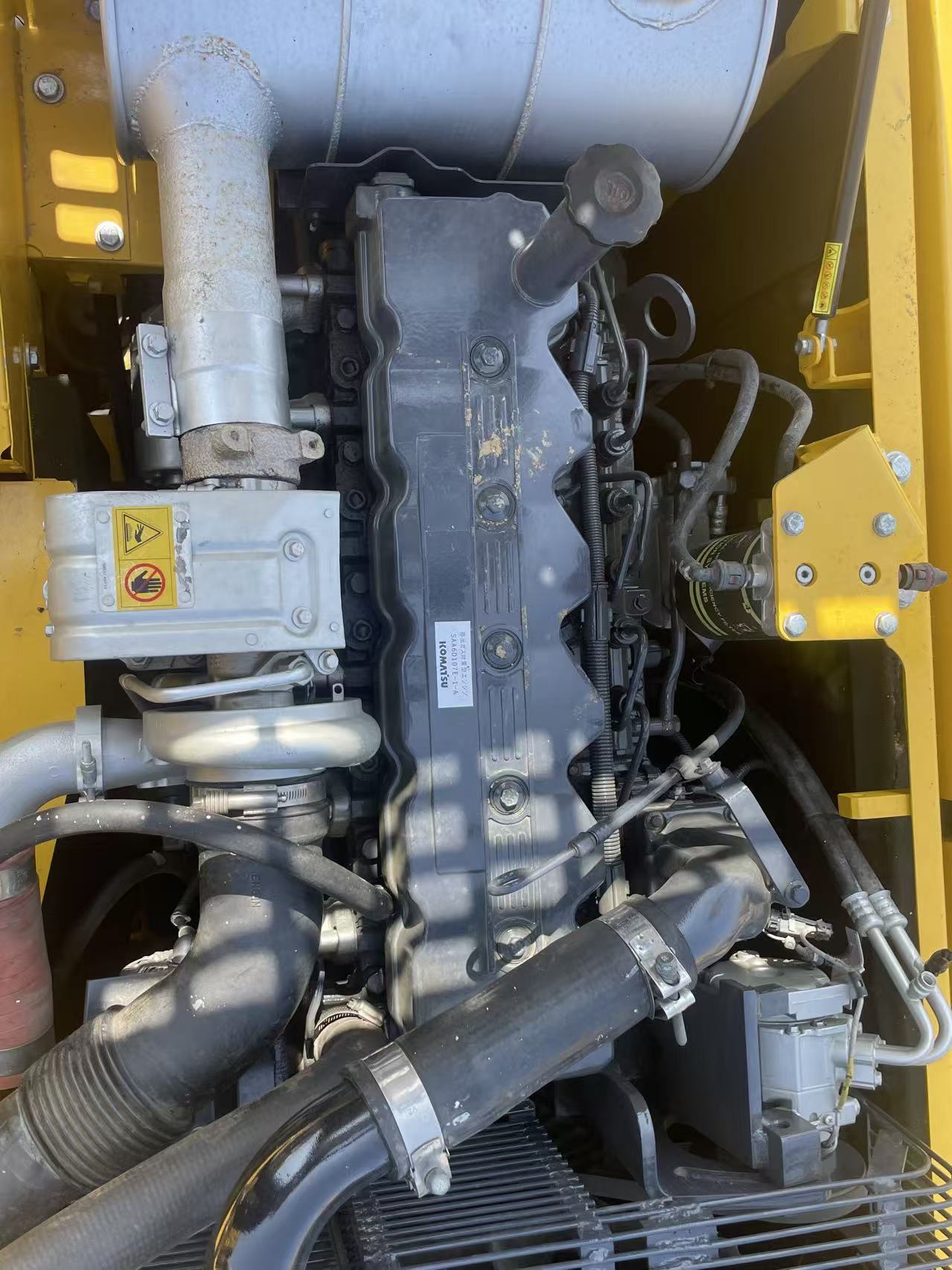

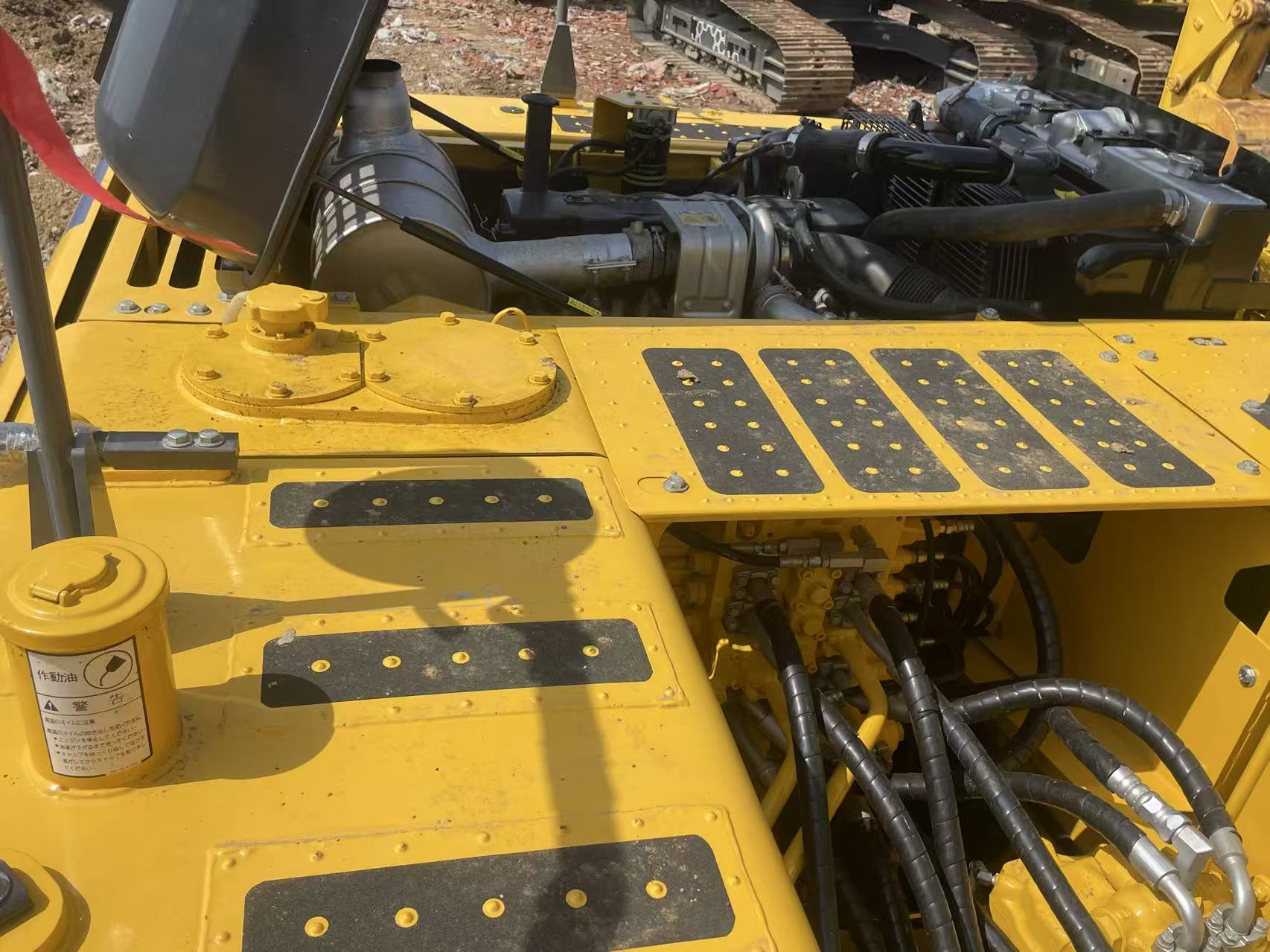

The Komatsu SAA6D107E-1 engine (110kW rated power, 6.69L displacement) is neatly arranged in a sealed engine compartment with a side-by-side heat dissipation device for efficient heat dissipation. The double-layer air filter and fuel pre-filter with oil-water separation function adapt to harsh working conditions in emerging markets, ensuring long-term stable operation.

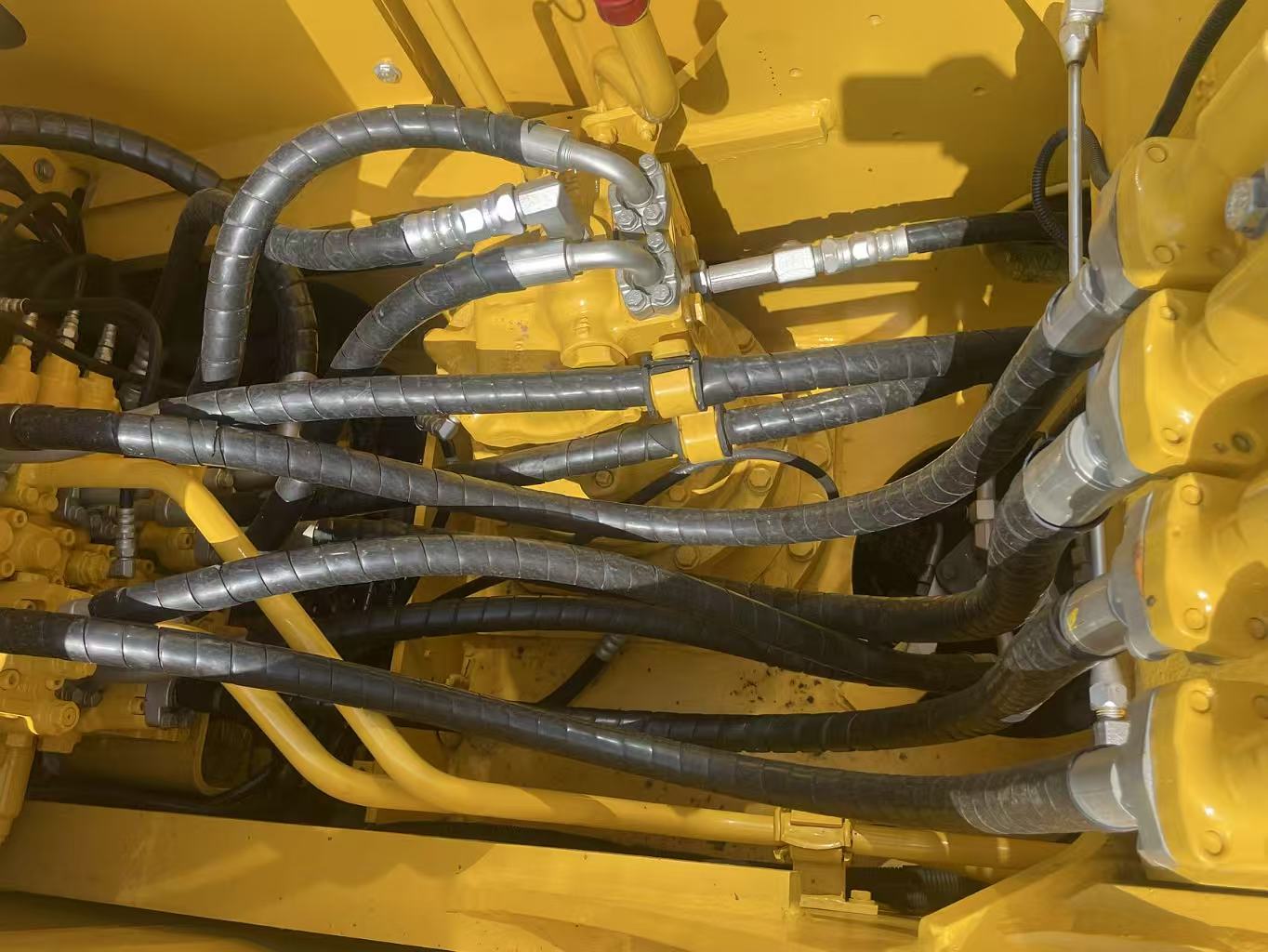

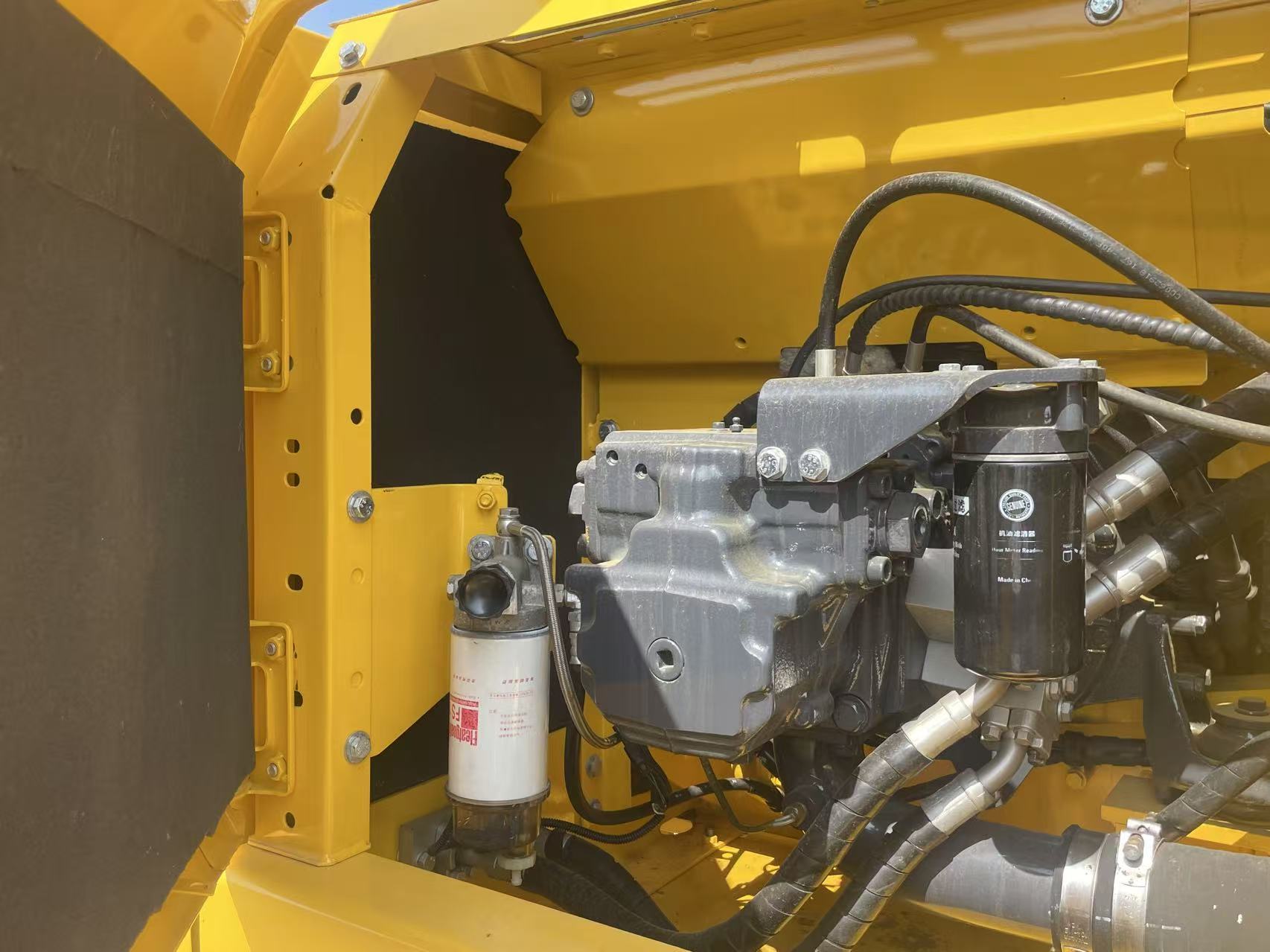

The CLSS hydraulic system with a main pump maximum flow of 439L/min drives the 0.8m³ standard bucket (optional 1.2m³ large bucket) to achieve a maximum digging radius of 9875mm and a maximum digging depth of 6620mm. The reinforced boom and arm are made of high-strength steel, withstanding heavy-load operations in rock excavation scenarios.

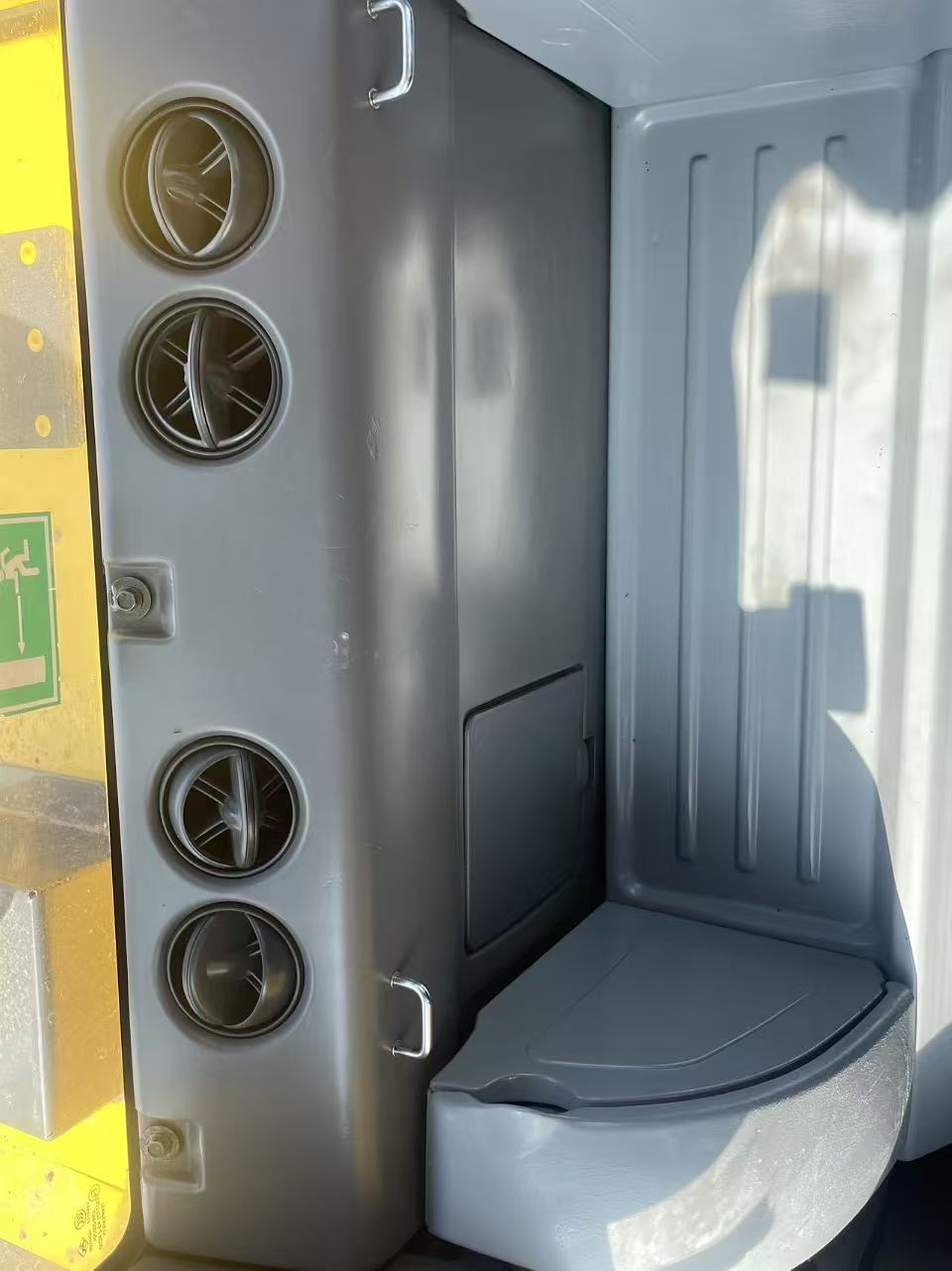

The spacious cab is equipped with a 7-inch multi-language LCD monitor, an ergonomic joystick and an optional air conditioning system (cooling capacity 5kW), adapting to temperatures from -10°C to 45°C. The KOMTRAX system monitor displays real-time machine status, and the waterproof switches and dust-proof seals suit rainy tropical regions in Southeast Asia and high-dust mining areas in Africa.
The KOMATSU PC200-8 is a versatile 20-ton excavator for various overseas construction projects:
- Mining & Quarrying: Ideal for ore loading, rock excavation and waste rock removal in African and Southeast Asian mines. Its 149kN bucket digging force and 108kN arm digging force can efficiently handle hard rock materials, and the dust-proof engine design adapts to high-dust working conditions.
- Infrastructure Construction: Suitable for urban road construction, bridge foundation excavation and building demolition in the Middle East and Latin America. The 2710mm rear swing radius enables flexible operation in narrow urban construction sites, and the multi-mode operation meets different construction needs.
- Water Conservancy & Farmland Improvement: Used for river dredging, reservoir construction and farmland leveling in South America and Southeast Asia. The E-mode fuel-saving function reduces operational costs for long-term water conservancy projects, and the CLSS hydraulic system ensures precise control in soft soil areas.
- Port & Logistics Construction: Perfect for port yard expansion, container yard foundation construction and coastal reclamation in the Middle East and Southeast Asia. The high-temperature resistant heat dissipation system adapts to coastal high-temperature and high-humidity environments, and the KOMTRAX system facilitates fleet management for large port projects.
We provide one-stop cross-border support for KOMATSU PC200-8 buyers:
- Comprehensive Equipment Inspection: For used units, we issue detailed test reports (engine power, hydraulic pressure, chassis wear, working hours) and real-time operation videos. Third-party inspection (SGS/BV) is available to verify equipment condition for international buyers, focusing on core components such as the SAA6D107E-1 engine, CLSS hydraulic system and KOMTRAX system.
- Customized Compliance Support: We assist in preparing import documents (CO, CE certificates, emission reports) tailored to local regulations in Africa, Southeast Asia and the Middle East. The PC200-8 meets EPA Tier3/EUIIIA emission standards, ensuring smooth customs clearance in most emerging markets without modifications.
- Logistics & On-Site Commissioning: We offer Ro-Ro shipping, container transport or bulk cargo solutions with anti-rust packaging for sea transport. Professional technicians can be dispatched to the job site for assembly, operation training and maintenance guidance, with multilingual manuals (English, Spanish, Arabic) provided for local operators.
- Global Spare Parts & After-Sales: Leveraging Komatsu’s overseas parts warehouses (Dubai, Singapore, Johannesburg), common spare parts (filters, bucket teeth, hydraulic hoses) are delivered within 7-15 days to overseas sites. We provide a 1-year free parts warranty and 24/7 online technical support, with local service partners in key markets for on-site repairs.
The KOMATSU PC200-8 integrates Japanese precision manufacturing with global construction demands, making it a star product in the 20-ton excavator segment for overseas projects. Its SAA6D107E-1 engine delivers 15% lower fuel consumption than competitors, and the CLSS hydraulic system ensures 10% higher work efficiency in composite operations. For construction companies in Africa, Southeast Asia and the Middle East, the PC200-8 offers a low total cost of ownership—with 12,000-hour continuous operation without major failures and easy access to spare parts—ideal for medium and large-scale construction projects requiring high reliability and efficiency.
If you need detailed fuel consumption data of the PC200-8, real-time quotes for new/used units, customized attachments (e.g., rock buckets, hydraulic breakers) or KOMTRAX system maintenance training, contact our team now. Let the KOMATSU PC200-8 power your overseas mining, infrastructure and water conservancy projects with unmatched durability and efficiency!
