Short Description:

...

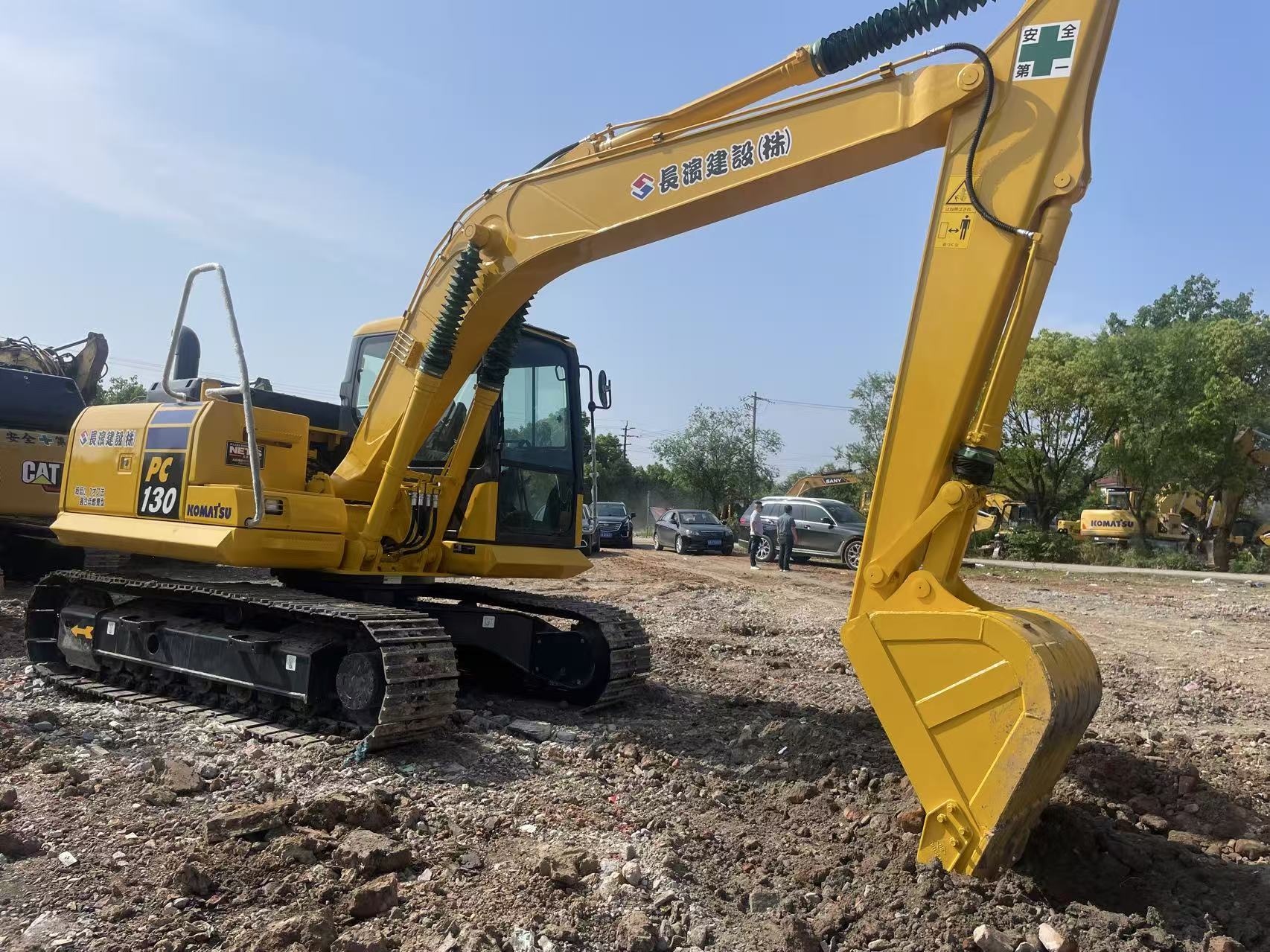

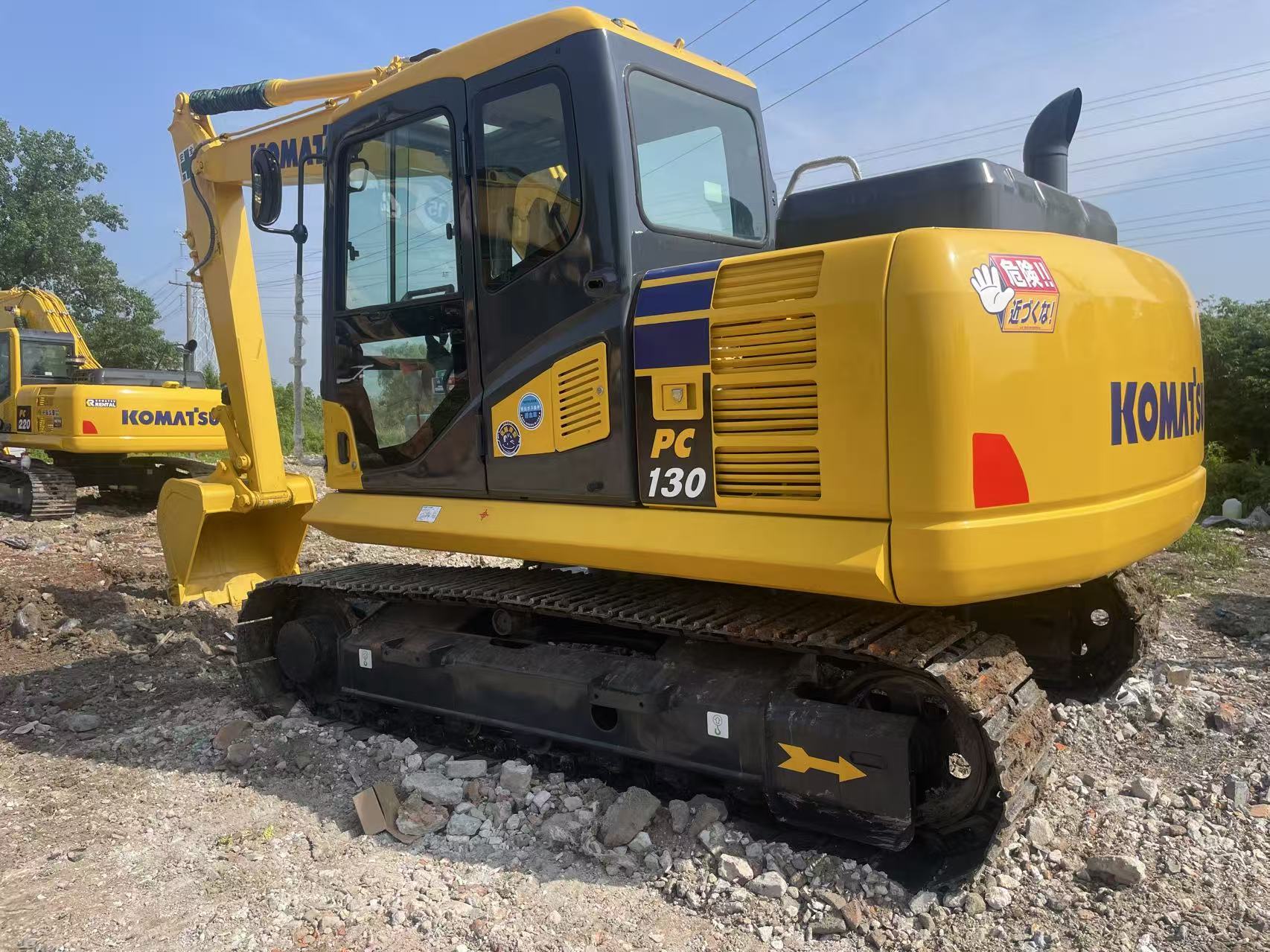

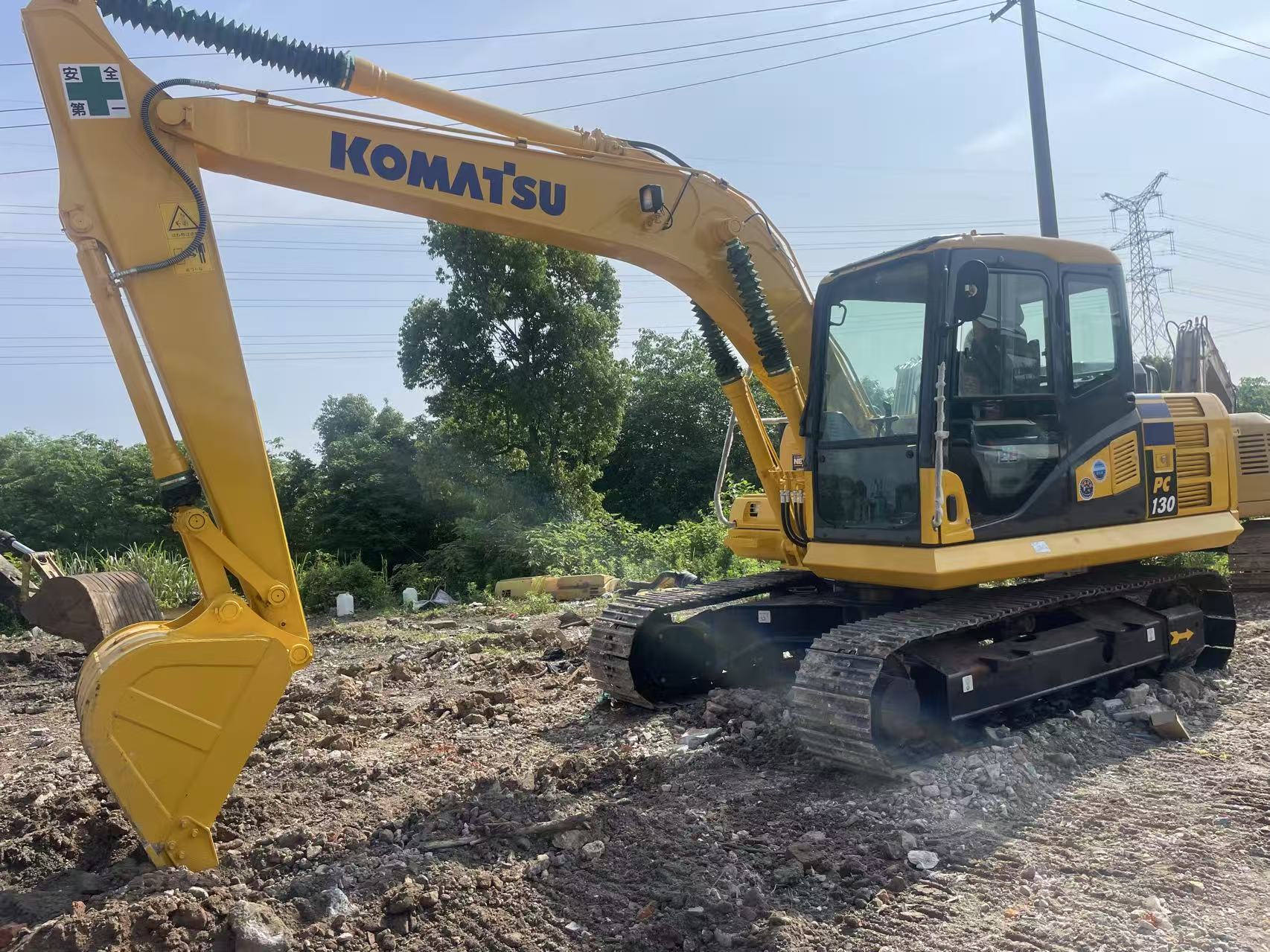

• Model: Komatsu PC130-8M0
• Operating Weight: 12,500 kg (27,558 lbs)
• Rated Bucket Capacity (Struck): 0.53-0.64 m³ (0.69-0.84 yd³)

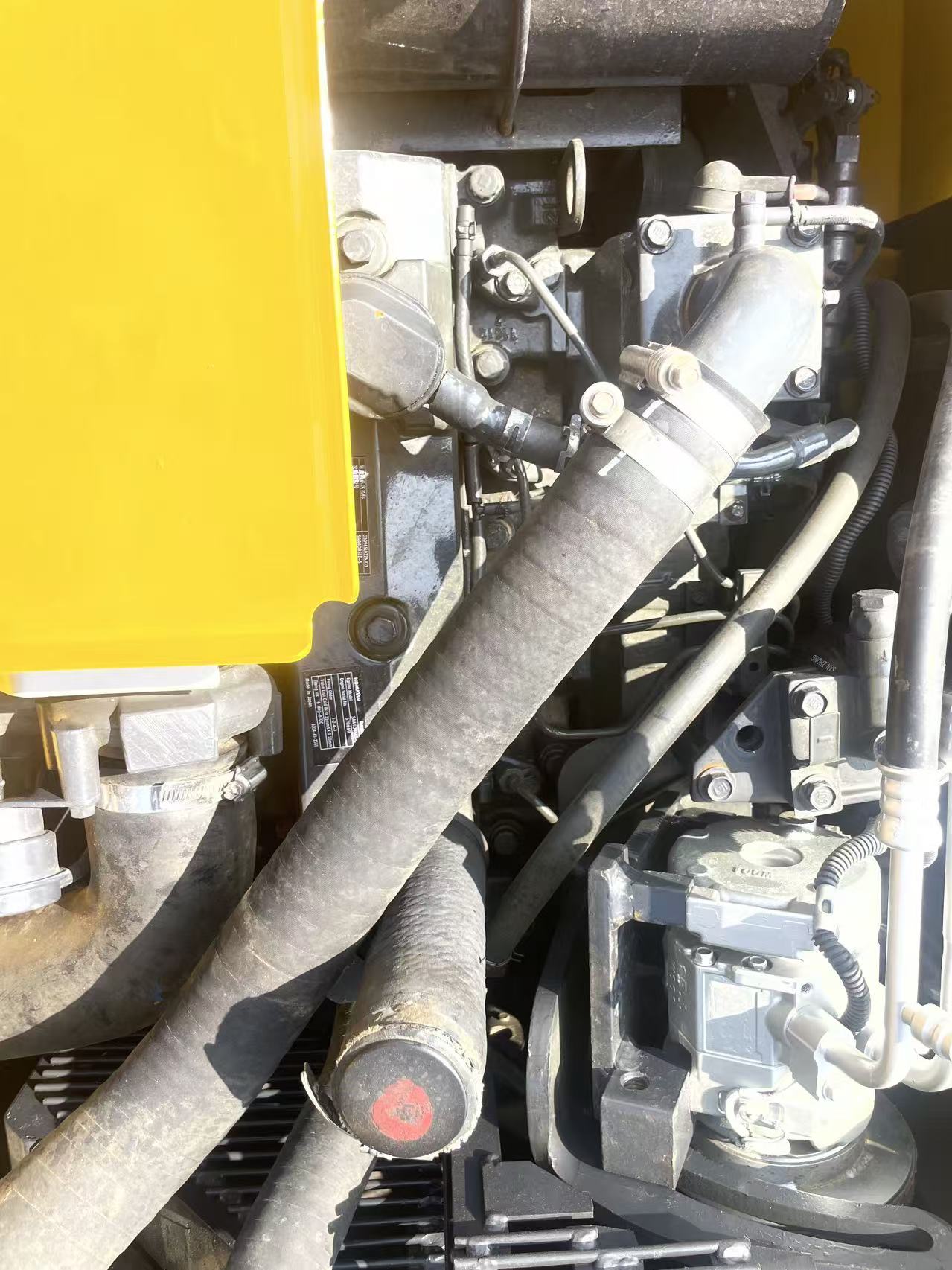

• Engine Model: Komatsu SAA4D95LE-5 (4-cyl turbo diesel, Tier 3/EU Stage IIIA)
• Net Power: 69.6 kW (94.7 hp) @ 2,200 rpm
• Max Torque: 358 N·m (264 lb·ft) @ 1,600 rpm

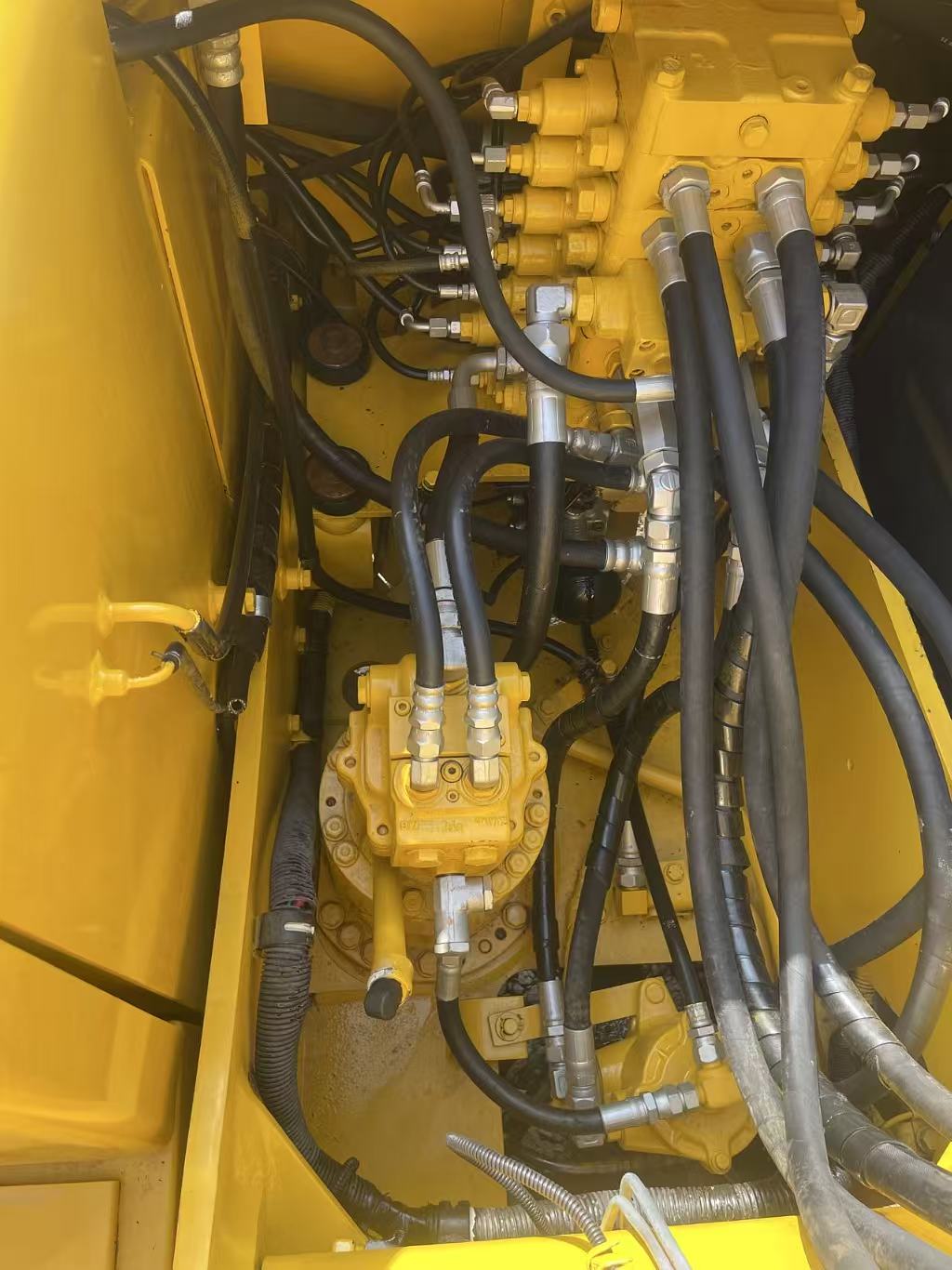

• Hydraulic System Type: CLSS closed-center load-sensing
• Hydraulic Pressure: 31.4 MPa (320 kgf/cm²)
• Max Hydraulic Flow: 121×2 = 242 L/min (63.9×2 = 127.8 gpm)
• Swing Speed: 12.4 rpm
• Travel Speed (High/Low): 5.5 km/h (3.4 mph) / 2.9 km/h (1.8 mph)
• Gradeability: 70% (35°)
• Max Digging Depth: 5,530 mm (18.1 ft)
• Max Horizontal Reach: 8,320 mm (27.3 ft)
• Max Dumping Height: 6,100 mm (20.0 ft)
• Max Digging Height: 8,650 mm (28.4 ft)
• Bucket Breakout Force: 86.3 kN (8,800 kgf)
• Arm Crowd Force: 72.9 kN (7,430 kgf)
• Track Shoe Width: 500 mm (19.7 in)
• Track Gauge: 2,040 mm (80.3 in)
• Ground Clearance: 440 mm (17.3 in)
• Rear Swing Radius: 2,140 mm (84.3 in)
• Overall Transport Dimensions (L×W×H): 7,740×2,490×2,885 mm (25.4×8.2×9.5 ft)
• Fuel Tank Capacity: 240 L (63.4 gal)
• Hydraulic Oil Tank Capacity: 95 L (25.1 gal)
• Engine Oil Capacity: 12 L (3.2 gal)

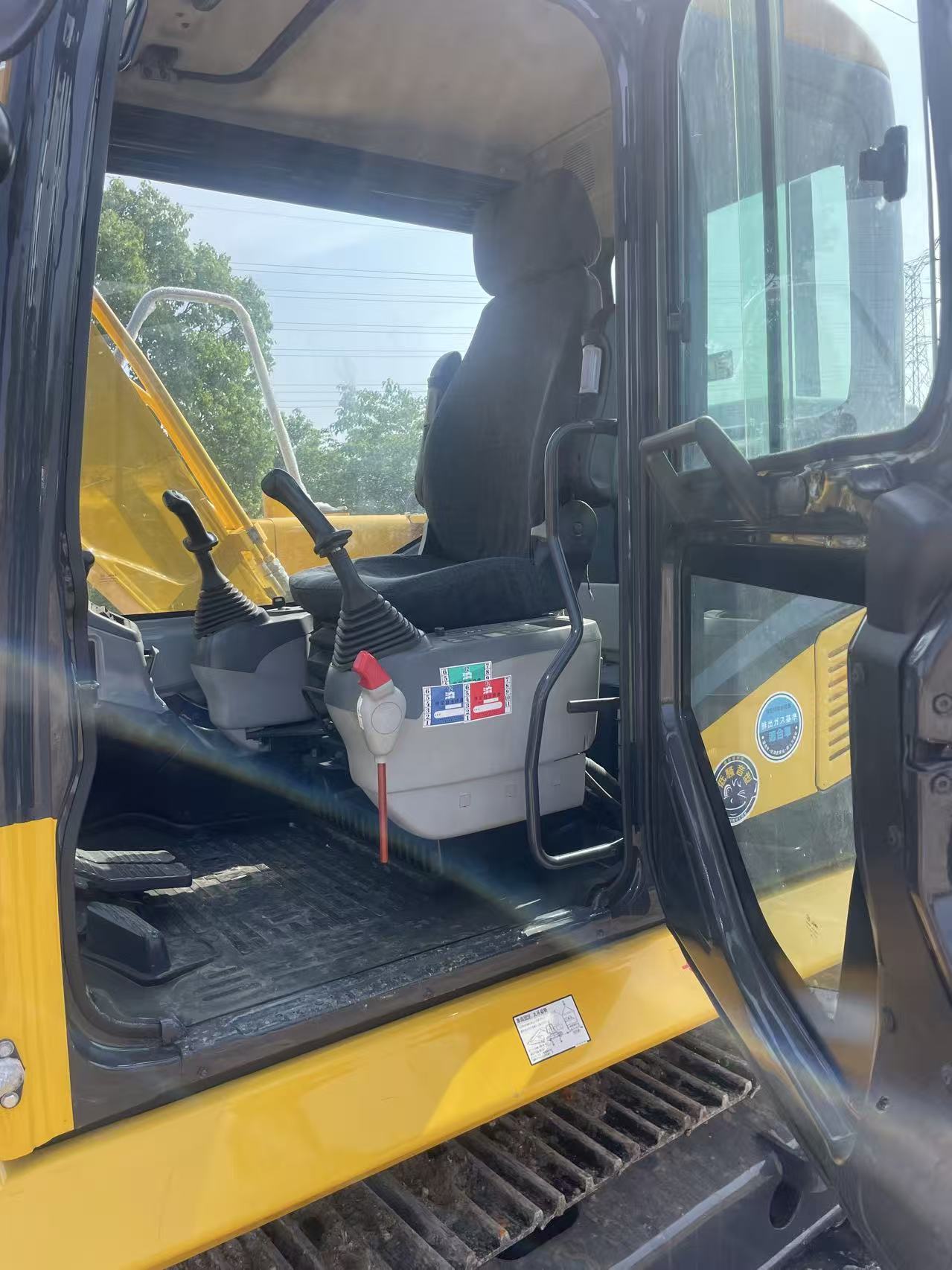

• Cab: ROPS/FOPS fully enclosed cab with AC, Komtrax remote monitoring
