Brand: KOMATSU (Komatsu) – A globally leading heavy machinery brand with a century-long legacy, renowned for precision engineering, unmatched reliability, and an extensive global service network. Trusted in over 190 countries, its equipment holds a dominant position in markets across Southeast Asia, Africa, and South America, providing timely spare parts supply and professional maintenance support for overseas users.

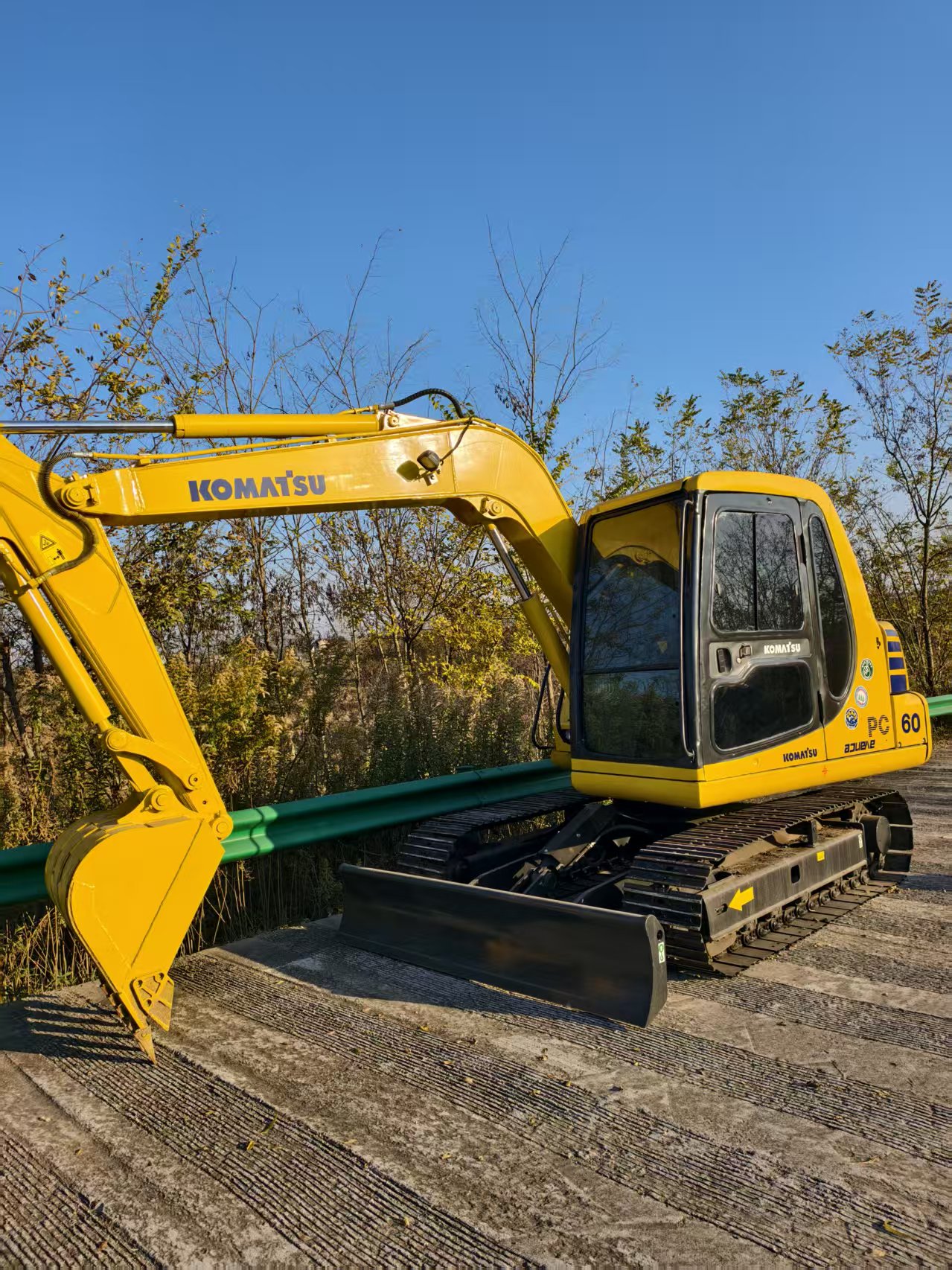

Model: KOMATSU PC60-7 – A classic 6-ton class crawler excavator and a benchmark product in small-to-medium construction projects. Praised for its responsive operation, stable performance, and excellent fuel economy, it has become the preferred choice for international small construction teams and individual operators, delivering exceptional cost-effectiveness for various overseas engineering needs.
Equipped with Komatsu’s proprietary 4D95LE 4-stroke water-cooled direct-injection engine, featuring a displacement of 3.26L and a rated power of 40kW/2100rpm. It generates a bucket digging force of 54.8kN and an arm digging force of 37.3kN, easily handling common construction materials such as soil, gravel, and weathered rock. Its most prominent advantage is the exceptional fuel efficiency, consuming only 6-7 liters per hour, which significantly reduces long-term operational costs for overseas users. With a maximum travel speed of 4.5km/h and a swing speed of 12rpm, it ensures efficient coordination between various operations, improving overall work productivity.
The excavator has an operating weight of 6300kg and transportation dimensions of 6080×2225×2590mm. Its compact body allows flexible access to narrow working spaces such as old urban communities, alleyways, and small construction sites. With a ground pressure of only 28.4Kpa and a minimum ground clearance of 350mm, it does not easily sink when working on soft terrain like farmland or newly filled soil, and can smoothly pass through areas with small obstacles. The rear swing radius is merely 1750mm, effectively avoiding collision accidents in crowded construction sites. The 450mm-wide tracks enhance the stability of the entire machine during operation on uneven terrain, enabling it to adapt to diverse overseas working conditions.

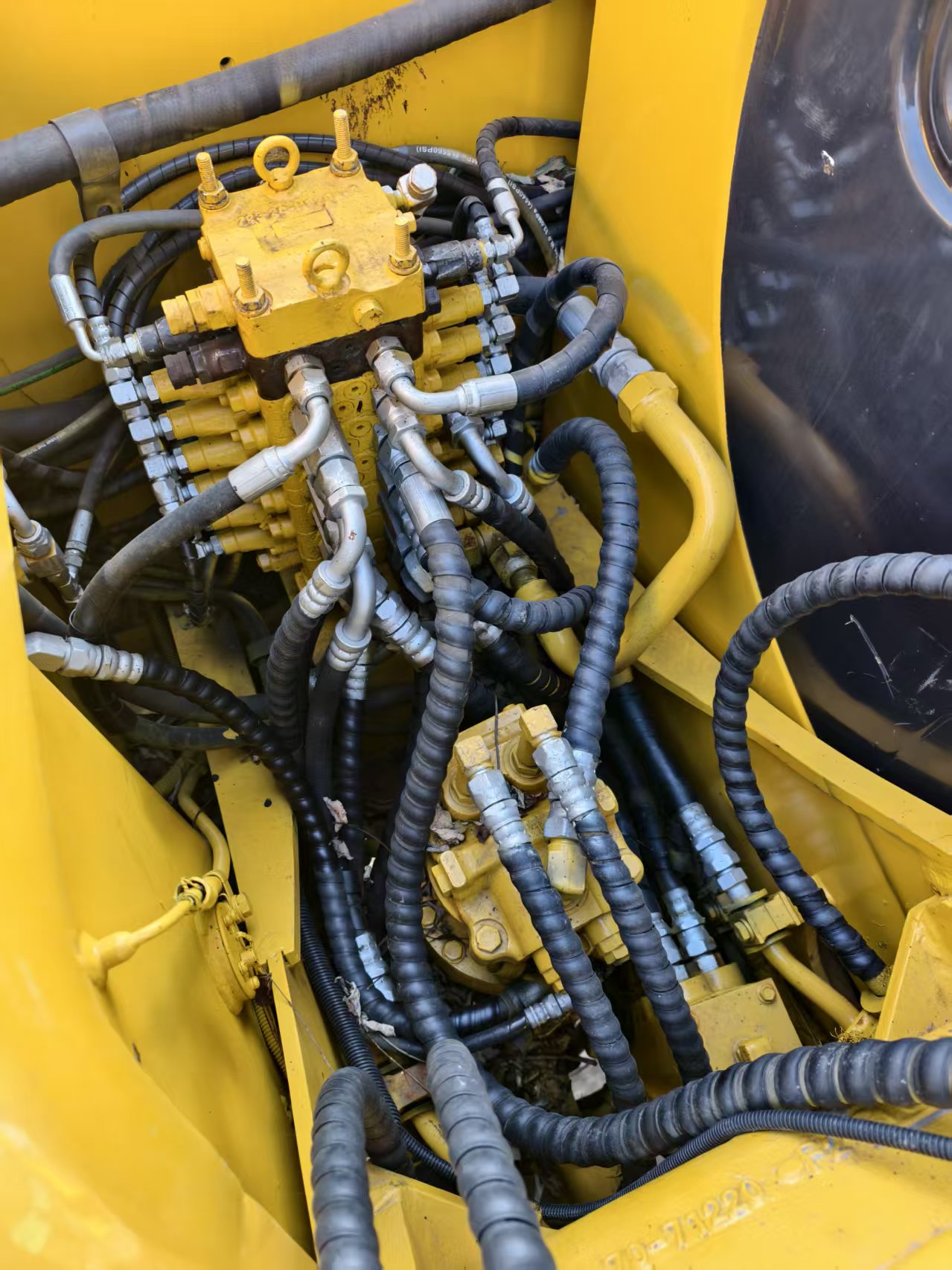

Adopting a mature and reliable hydraulic configuration, it is equipped with axial piston-type travel hydraulic motors (2 units) and swing hydraulic motor (1 unit). The main pump has a maximum flow rate of 155L/min, and the working hydraulic circuit pressure reaches 24.5MPa, ensuring smooth and coordinated movements of the boom, arm, and bucket during composite operations. The hydraulic pipelines are neatly arranged with excellent sealing performance, reducing the risk of oil leakage in harsh construction environments. This stable and reliable hydraulic system allows operators to control the equipment precisely, greatly reducing the failure rate during high-intensity operations.
The equipment adopts a user-friendly maintenance design. Key components such as the engine and hydraulic system are arranged reasonably, facilitating daily inspection and maintenance by maintenance personnel. With a 130L fuel tank, 90L hydraulic oil tank, and 11L engine oil capacity, it reduces the frequency of refueling and oil changes, saving valuable time for overseas operations. As a classic model, the PC60-7 has a large number of universal spare parts available globally. Common components such as bucket teeth and filters are not only easy to purchase but also reasonably priced. Komatsu’s global agent network can provide timely maintenance guidance for overseas users, minimizing equipment downtime and reducing overall operating costs.

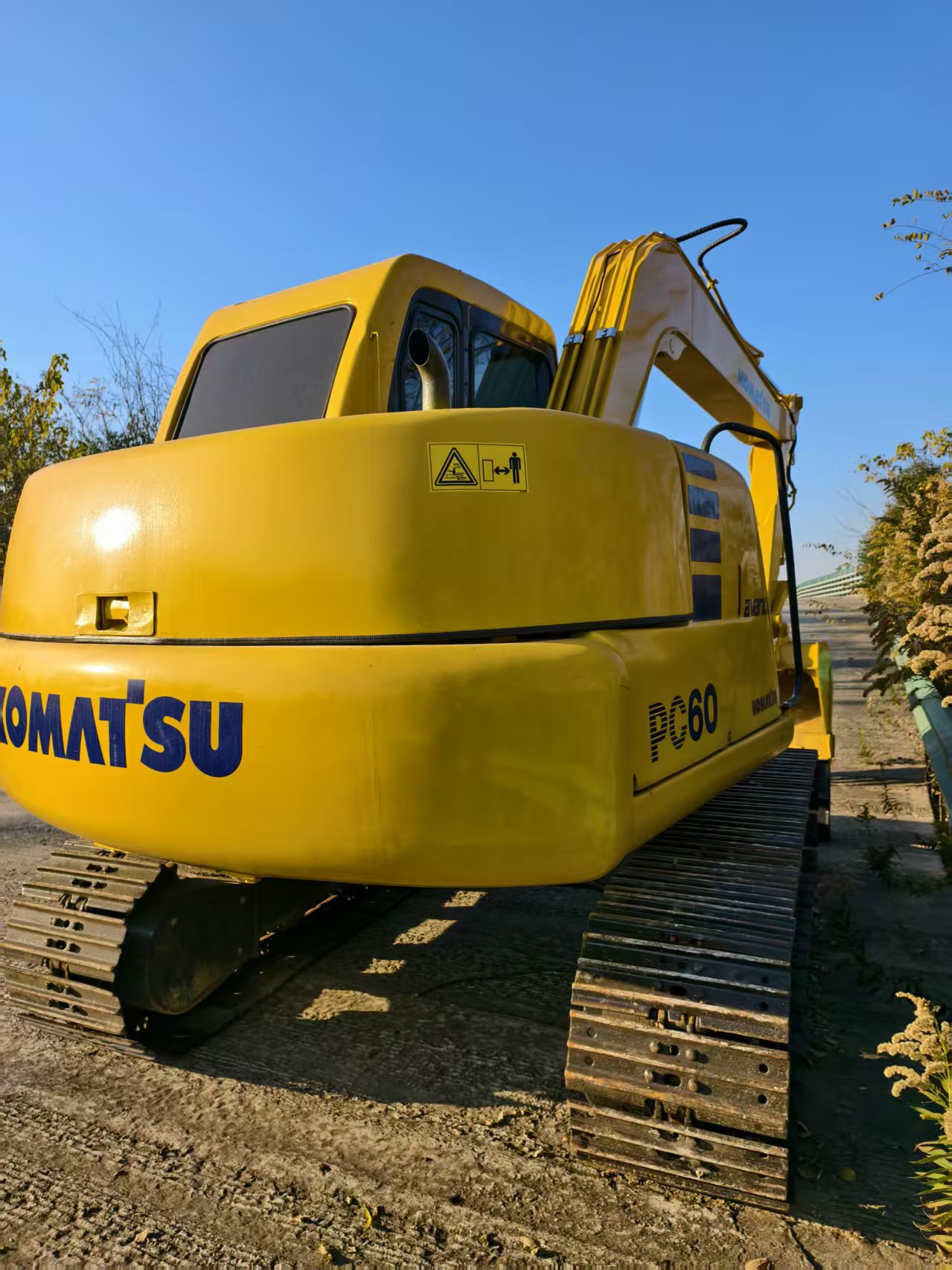

Featuring Komatsu’s iconic yellow exterior, the body is coated with high-quality anti-corrosion and anti-rust paint, which can effectively resist erosion from rain, dust, and other harsh outdoor environments. The compact crawler design ensures stable operation, while the reinforced structural frame and all-metal body guarantee durability and long service life even under long-term high-intensity work conditions.

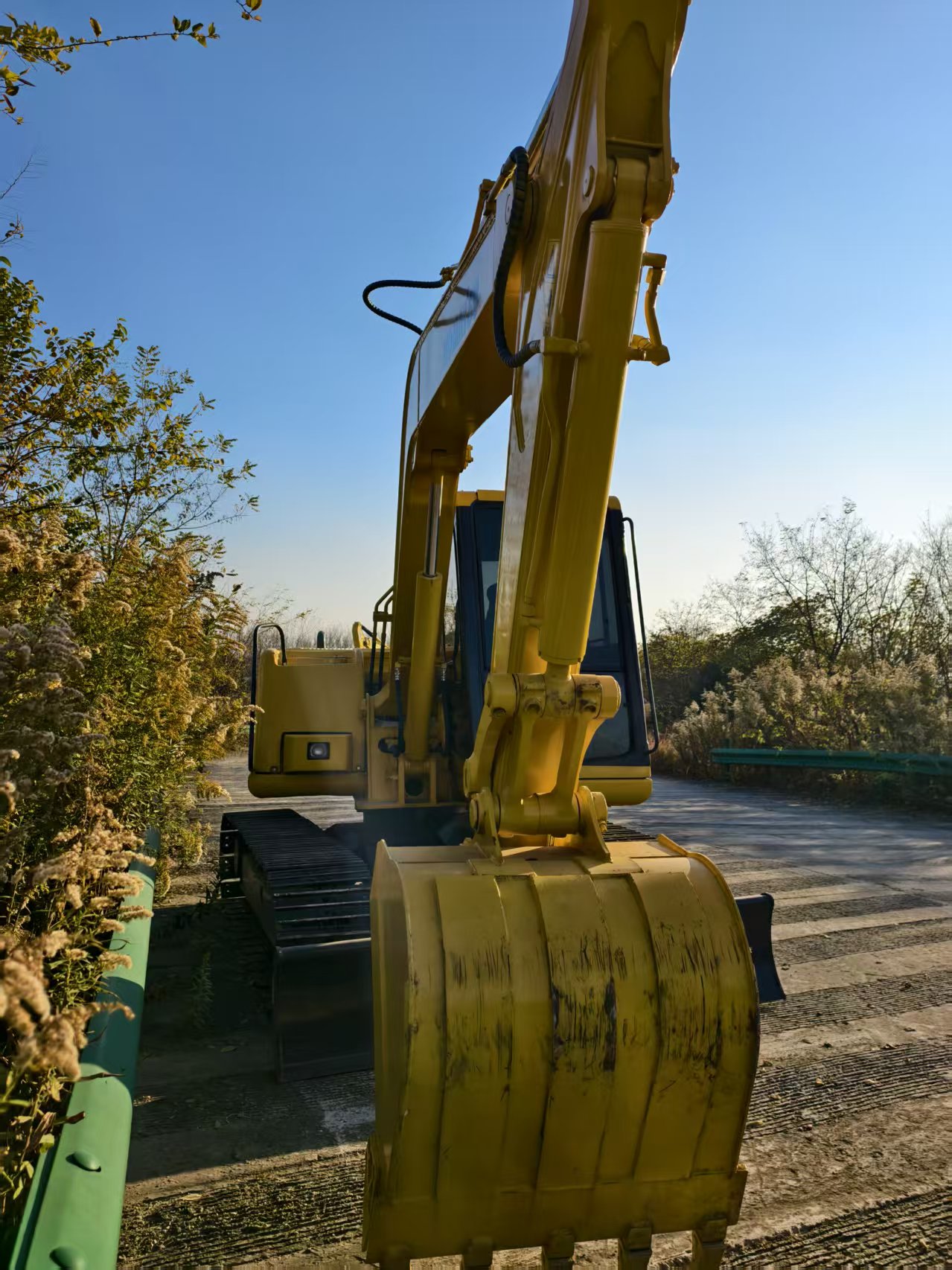

The standard bucket capacity ranges from 0.28-0.37m³, made of high-strength wear-resistant steel. The replaceable bucket teeth can extend the service life of the bucket, reducing replacement costs. The boom length is 3710mm and the arm length is 1650mm. Key welding parts are reinforced through special processes, effectively resisting torsion and impact forces during operation, and ensuring the reliability and durability of the working device.

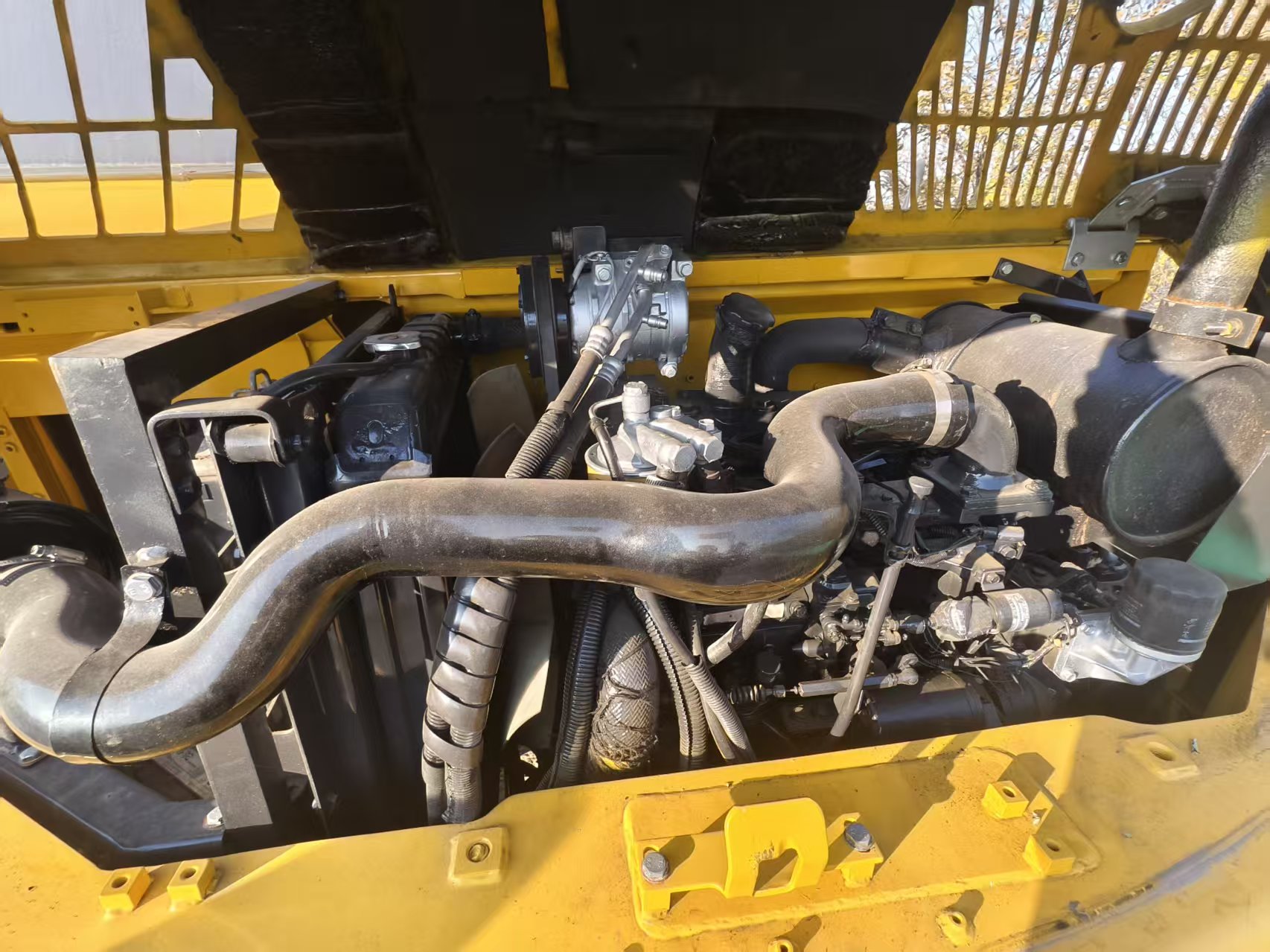

The 4D95LE engine runs smoothly with low noise and stable power output. The integrated cooling system can efficiently dissipate heat, preventing the engine and hydraulic system from overheating during long-term continuous operation. The travel hydraulic circuit pressure is 24.5MPa, and the swing hydraulic circuit pressure is 19.1MPa, ensuring stable and powerful operation of the travel and swing functions, even in complex working conditions.

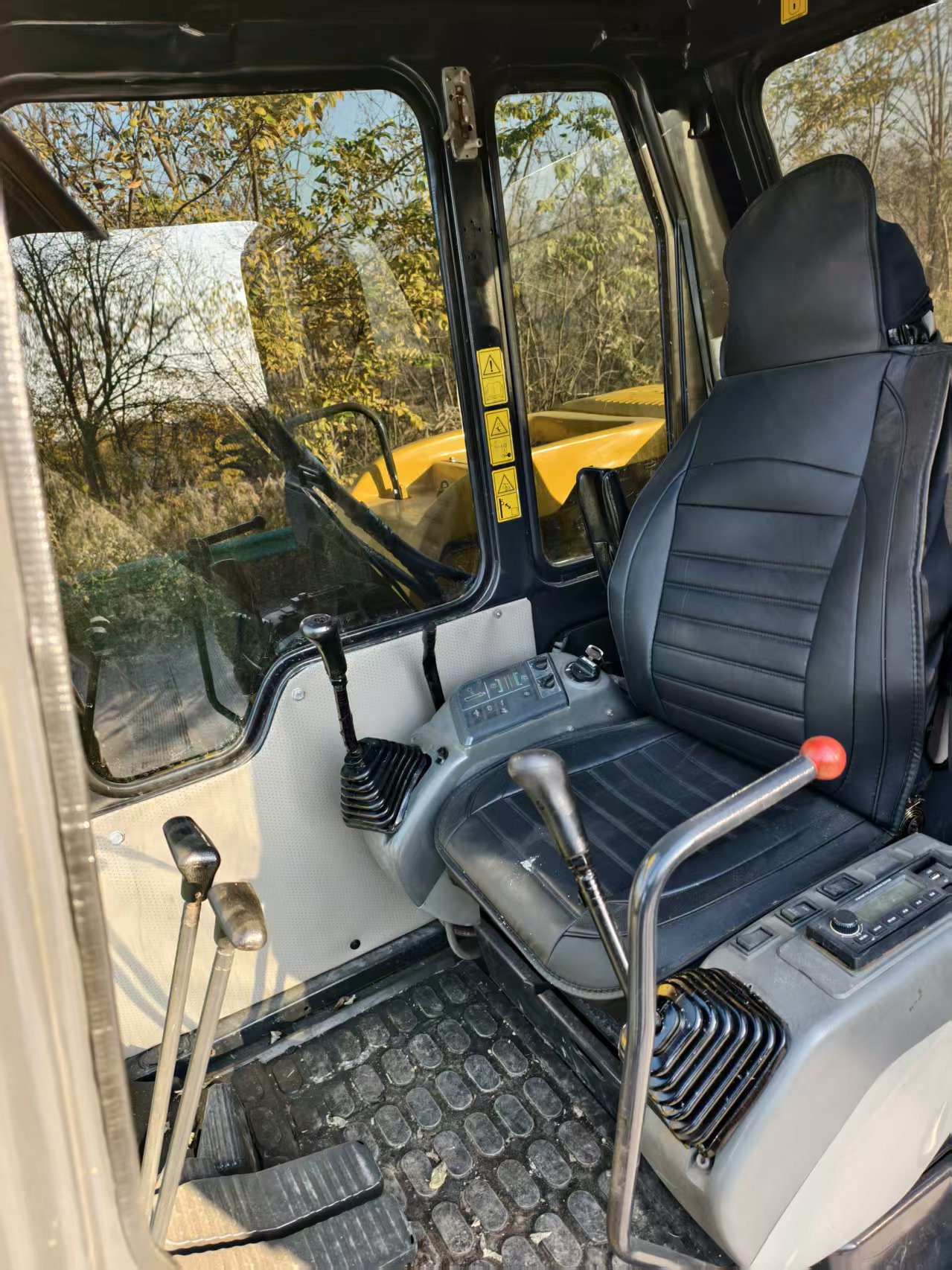

The cab is designed with ergonomics in mind, featuring a comfortable seat that reduces operator fatigue during long shifts. The operation levers and buttons are arranged scientifically, within easy reach for intuitive operation. The clear instrument panel displays real-time data such as engine status, fuel level, and hydraulic pressure, allowing operators to grasp the equipment’s working condition at a glance. Large-area glass windows provide a wide field of vision, minimizing blind spots, while the effective sound insulation design isolates most engine noise, creating a comfortable operating environment.
The KOMATSU PC60-7’s flexibility, reliability, and adaptability make it suitable for a wide range of international small-to-medium construction projects:
- Municipal Minor Maintenance: Ideal for digging and repairing small-diameter water supply and drainage pipelines in cities and towns, laying community cables, cleaning road construction waste, trimming urban green belts, and other tasks. Its compact size can avoid affecting the normal passage of pedestrians and vehicles, making it highly suitable for urban operation environments.
- Residential Construction: Perfect for small-scale earthwork operations such as foundation excavation, courtyard backfilling, and basement digging for rural self-built houses, town bungalows, and small commercial buildings overseas. It can meet the construction needs without causing excessive resource waste, achieving cost-effective construction.
- Agricultural & Landscape Transformation: Suitable for digging farmland irrigation canals, leveling small plots of land, shaping the terrain of small orchards and vegetable gardens, excavating small landscape pools in parks, transplanting large trees, and other projects. Its low ground pressure protects the soil and vegetation, making it friendly to agricultural and landscape environments.
- Small-Scale Quarry & Material Handling: Used for surface soil stripping in small quarries, loading gravel, sand, and other construction materials, as well as auxiliary operations in construction material yards. The wear-resistant bucket and strong digging force enable it to cope with the operation requirements of hard materials.
We provide end-to-end comprehensive support to simplify your international procurement process:
- Transparent Inspection Reports: Provide detailed and comprehensive equipment inspection reports, including key indicators such as engine power, digging force, hydraulic system pressure, track wear, and safety component performance. For used equipment, we also include maintenance records and component replacement history. At the same time, we will provide real-time operation videos to let you clearly understand the actual working status of the equipment.
- Professional Customs Clearance Assistance: Our professional team will assist you in preparing all necessary import documents, including certificates of origin, emission compliance reports, commercial invoices, and packing lists. We are familiar with the import regulations and tariff policies of various countries and regions (especially Southeast Asia, Africa, and South America), and can provide targeted guidance to ensure smooth customs clearance.
- Tailored Logistics Solutions: Offer flexible shipping options according to your needs, including container shipping (cost-saving) and consolidated shipping with other small machinery. The equipment will be packaged with professional anti-rust and anti-collision materials to avoid damage during transportation. We provide real-time cargo tracking services, allowing you to grasp the transportation progress at any time. After the equipment arrives at the destination, we can also arrange on-site assembly, commissioning, and operator training according to your requirements.
- Global Spare Parts & After-Sales Support: Relying on Komatsu’s global service network, we can quickly supply common spare parts such as bucket teeth, filters, and hydraulic hoses to overseas construction sites. Our after-sales team provides 24/7 online technical support, and can also coordinate local service providers to conduct on-site maintenance and troubleshooting when necessary, minimizing equipment downtime.
The KOMATSU PC60-7 is a time-tested classic that embodies Komatsu’s core design philosophy of “reliability, efficiency, and cost-effectiveness.” It perfectly solves the pain points of overseas small-to-medium construction projects, such as limited operation space, tight budgets, and diverse terrain conditions. With its excellent fuel economy, easy maintenance, and strong environmental adaptability, it can maintain stable and efficient operation in both urban and rural environments. Backed by Komatsu’s global brand influence and perfect after-sales service network, it is a low-risk and high-return investment choice for international users engaged in small-scale engineering operations.
If you want to obtain detailed technical parameters (such as maximum digging depth, lifting capacity, and minimum turning radius), real-time video inspections of key components, customized quotes for new/used equipment, or information on spare parts procurement, please contact our team immediately. Let the KOMATSU PC60-7 empower your international small-scale construction, municipal maintenance, agricultural transformation, and other projects!
