KOMATSU FD30

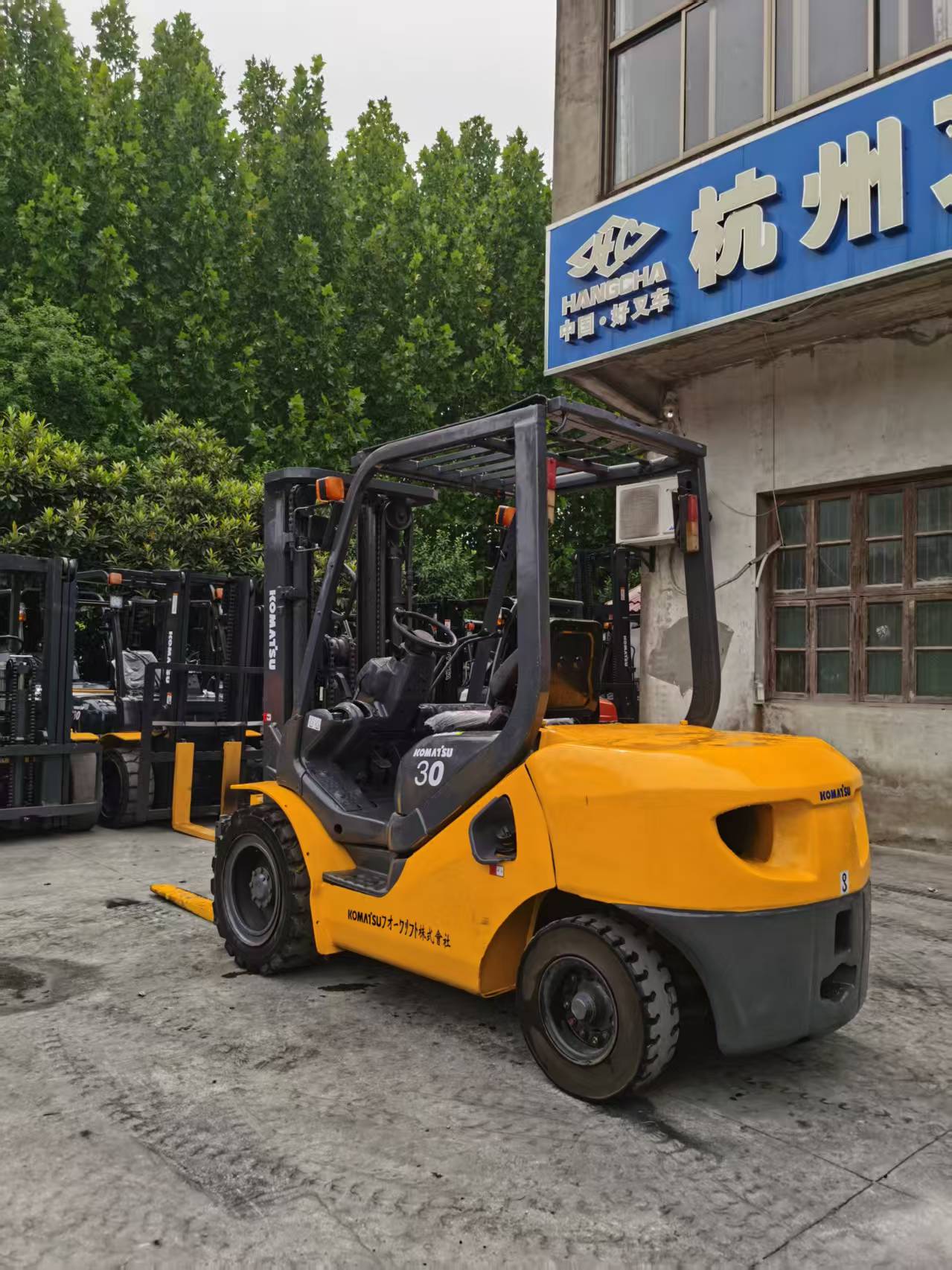

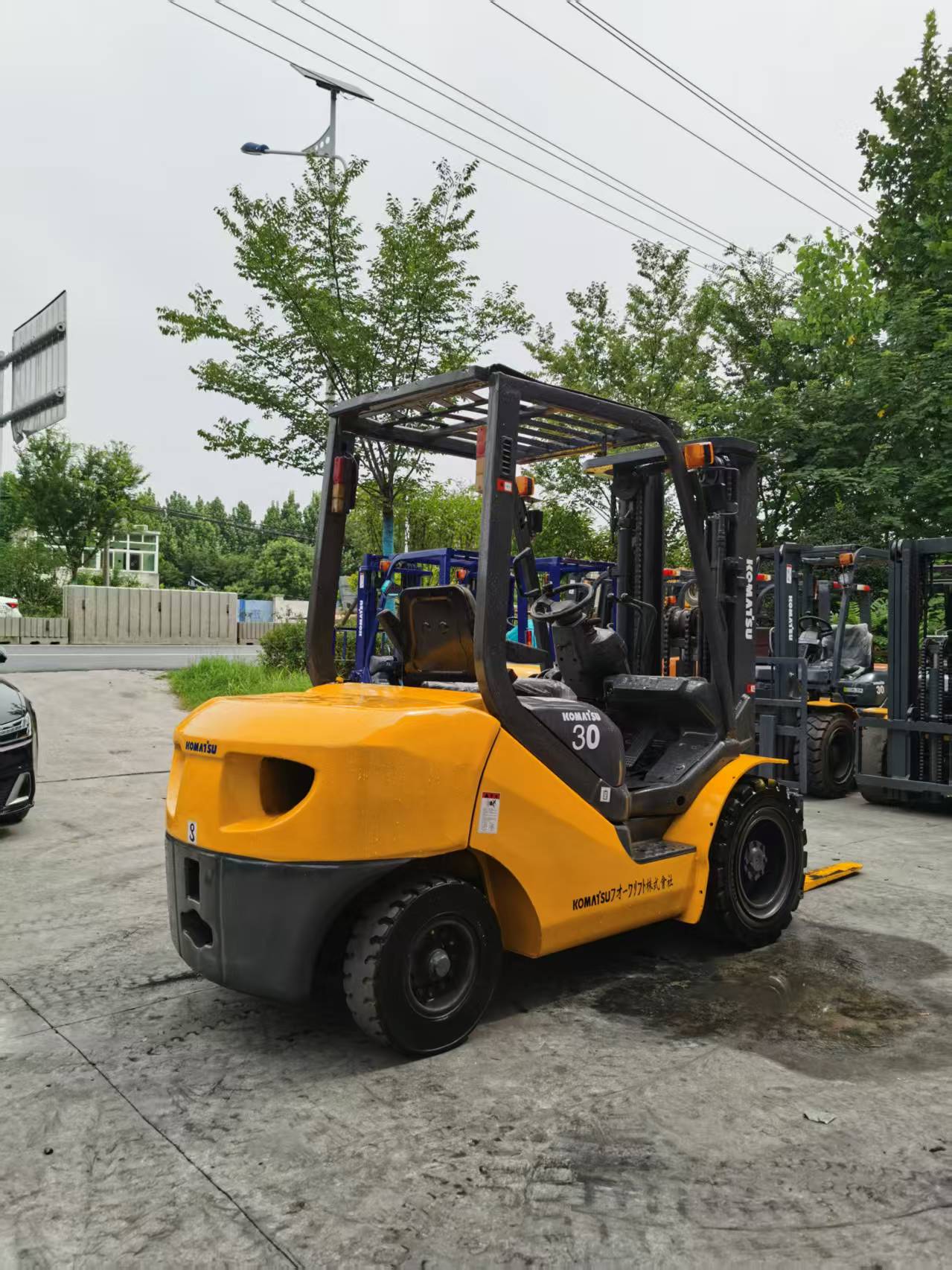

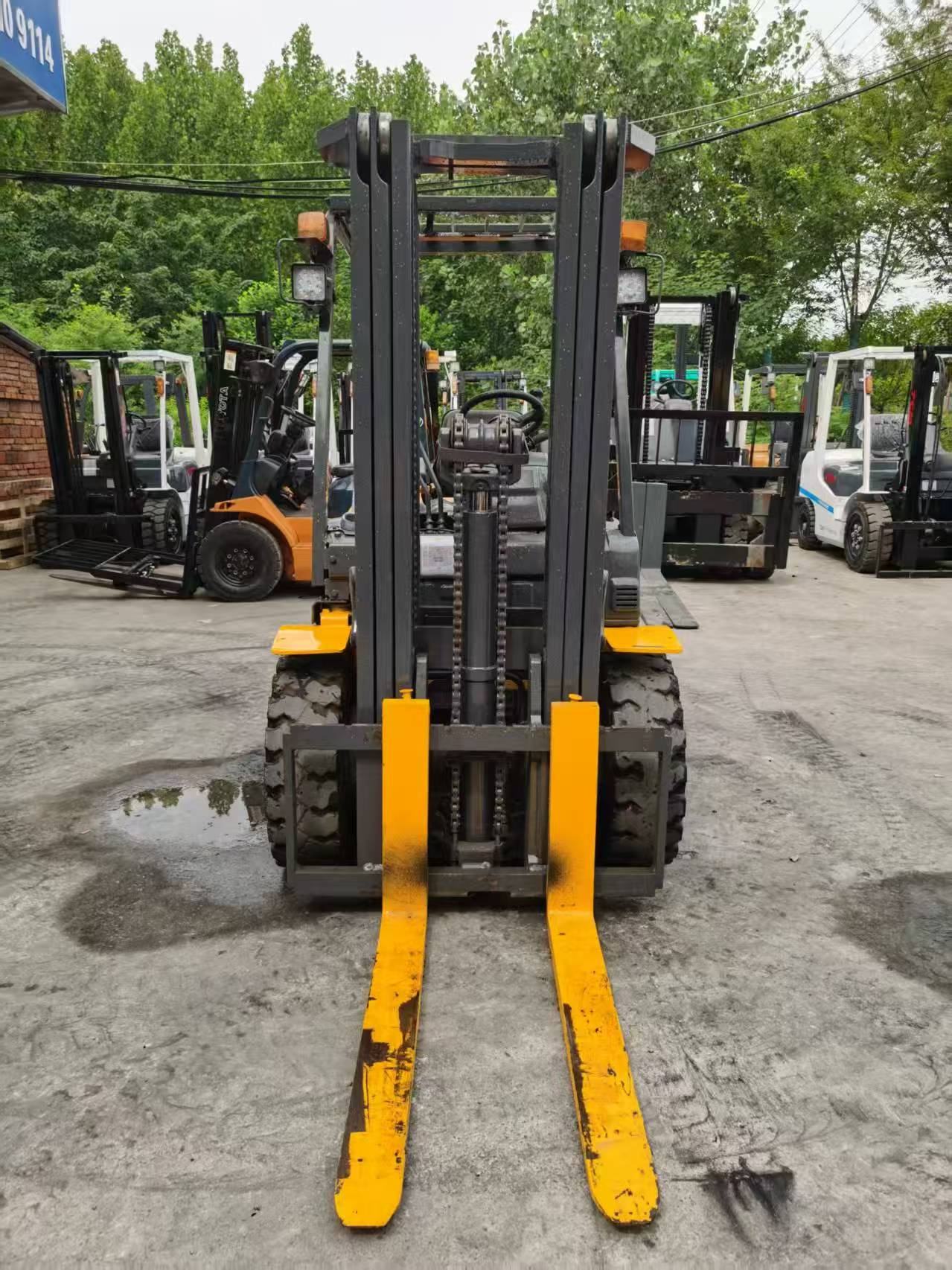

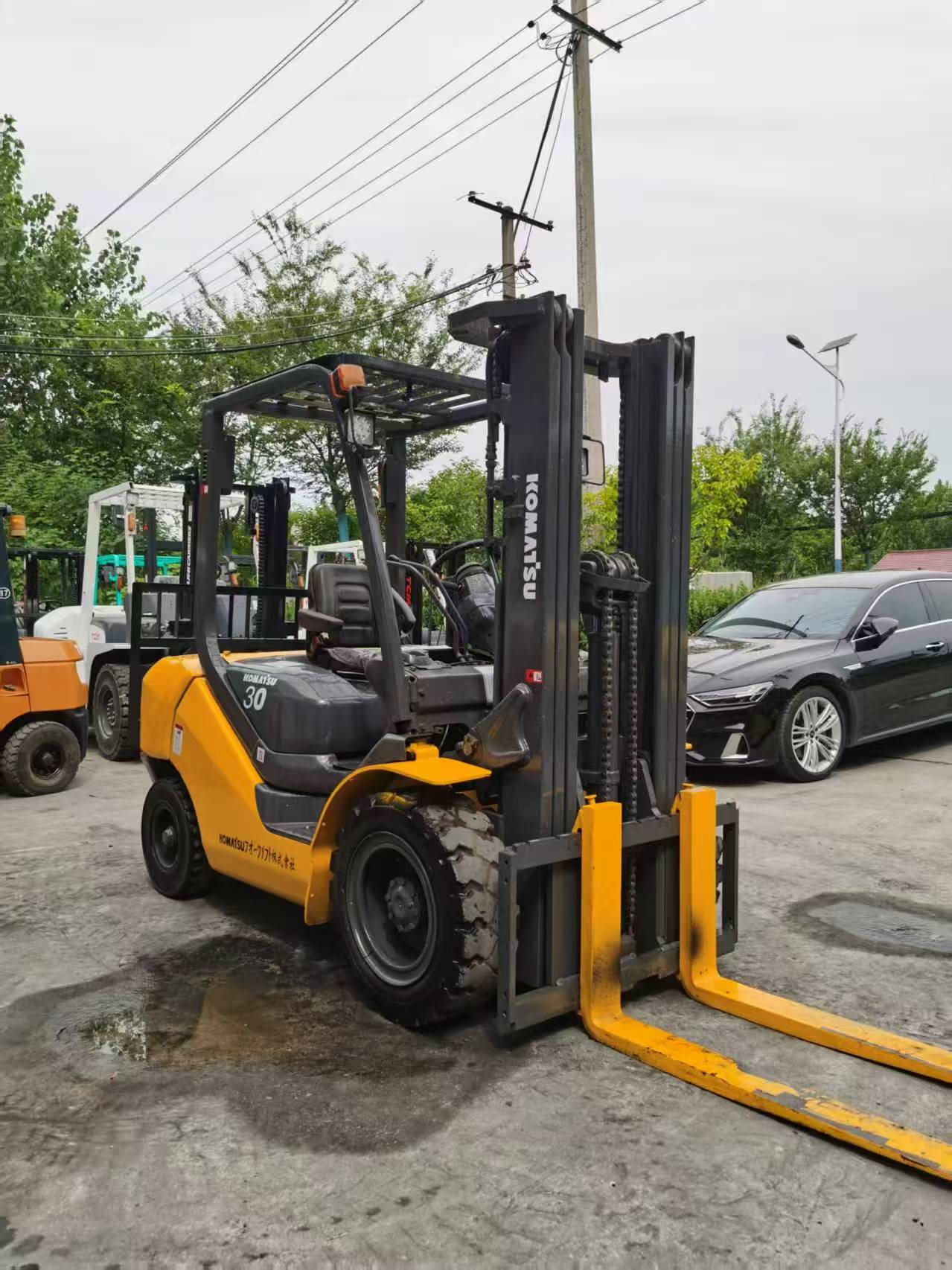

KOMATSU FD30 Counter‑Balance Diesel Forklift
Brand & Model Positioning
Brand: KOMATSUKomatsu is a world‑renowned Japanese material‑handling & construction machinery manufacturer, famous for reliable powertrain, robust chassis and stable hydraulic system. Komatsu forklifts are widely used for warehouse stacking, container loading‑unloading, factory logistics, port and yard operations all over the world. Simple structure, easy maintenance and abundant global spare‑parts supply help to cut customers’ running cost.
Model: KOMATSU FD30 Counter‑Balance Diesel ForkliftKomatsu FD30 is a classic 3‑ton Japanese counter‑balance diesel forklift. It adopts original Japanese diesel engine, stable hydraulic assembly and high‑strength mast frame. Balancing strong lifting capacity, flexible steering and low failure rate, it performs well for pallet handling, container work, goods stacking and heavy‑duty indoor & outdoor logistics. Popular for second‑hand export due to proven durability and cost‑effective performance.
Core Advantages
1. Reliable Diesel Power & Good Fuel Economy
Equipped with original Yanmar 4D94LE four‑cylinder diesel engine, rated power 48.5 kW /2450rpm, sufficient low‑speed torque, suitable for continuous heavy‑load logistics operations. ‑ Rated load capacity: 3000 kg‑ Load center: 500 mm‑ Standard lifting height: 3000 mm (2‑stage high‑visibility mast; 3‑stage mast optional) ‑ Fuel tank volume: 60 L‑ Travel speed: 18 km/h max
2. Stable Hydraulic System & Heavy‑Duty Mast Assembly
Original load‑sensing hydraulic system, smooth lifting & tilting action. ‑ Mast tilt angle: forward 6° / backward 12° ‑ Fork length: standard 1070 mm ‑ Outside turning radius: 2140 mm ‑ Gradeability: 18% (full‑load) ‑ Overall weight: 4380 kg‑ Overall dimension (L×W×H): 3775 × 1225 × 2130 mm
High‑strength welded mast and carriage; thick wear‑resistant bushing for hinge points, long service life. Solid chassis and pneumatic tires adapt to yards, factories and uneven ground conditions.
3. Human‑Friendly Operator Cabin & Safety Protection
Spacious overhead‑guard cabin with wide vision. Ergonomic layout, easy‑operate steering and control levers, reduce operator fatigue during long shifts. ‑ ROPS overhead guard for falling‑object protection ‑ Clear instrument panel showing running status ‑ Optional side shifter, fork positioner ‑ Comfortable adjustable seat
4. Easy Maintenance & Low Total‑Cost‑of‑Ownership
Easy‑open engine hood, convenient access for daily inspection and filter replacement. Mature mechanical‑hydraulic layout, spare‑parts widely available globally, low repair cost and downtime.
5. Rich Attachments & Wide Application Scope
Komatsu FD30 supports multiple attachments via quick coupler: ‑ Standard forks, lengthened forks ‑ Side shifter, fork positioner ‑ Paper roll clamp, bale clamp ‑ Rotator, bucket ‑ Container mast for container inner‑work
Typical Application Scenarios
- Warehouse & Distribution Center: Pallet goods stacking, loading‑unloading trucks.
- Factory Production Logistics: Raw‑material & finished‑goods transfer inside plant.
- Port & Yard: Container handling, outdoor heavy‑duty stacking.
- Freight Station & Logistics Park: Truck loading‑unloading, frequent shift work.
- Agriculture & Industrial Yard: Feed, fertilizer, equipment moving on uneven ground.
Foreign‑Trade Service Guarantee
1. Flexible Customization Options
‑ Multiple mast options: 2‑stage /3‑stage mast, different lifting height ‑ Various attachments: side shifter, fork positioner, clamps etc. ‑ Fork length optional ‑ Pneumatic / solid tires optional ‑ Multilingual operation & maintenance manuals
2. Strict Pre‑Shipment Inspection & Full Export Documents
Each unit goes through full function inspection before shipment. Complete set of export documents: ‑ CE certification, related inspection reports (SGS/BV optional) ‑ Complete machine specification sheets
3. Warranty & Technical‑Training Support
Core components warranty; overseas remote technical support. Free online training for operators & mechanics covering safe operation, daily maintenance and attachment replacement.
4. Global Spare‑Parts Supply
Full‑range equivalent spare‑parts available. Spare‑parts can be shipped together with main machine or delivered separately to minimize machine downtime.
Why Choose KOMATSU FD30?
Komatsu FD30 is a time‑tested classic Japanese 3‑ton diesel forklift. Original reliable engine, stable hydraulic circuit, solid mast and chassis. Compared with same‑class forklifts, it features flexible maneuvering, low failure rate, easy repair and readily‑available spare‑parts. Very cost‑effective choice for logistics companies, factories, yards and second‑hand machinery dealers worldwide.
Contact Us
Please contact our professional foreign‑trade team for customized quotation, configuration scheme and global shipping arrangement. Flexible payment terms (TT, LC, DP) are supported. We provide one‑stop service including machine inquiry, order confirmation, export declaration and after‑sales support to help your projects run efficiently.
