HELI 16-Ton Heavy-Duty Diesel Forklift (Model CPCD160)

Brand & Model Positioning

Brand: HELI

HELI is China’s leading industrial vehicle manufacturer and a top 8 global player in the forklift industry, boasting over 60 years of professional manufacturing experience. Renowned for its exceptional cost-performance ratio, stable quality, and comprehensive global service network, HELI serves customers in more than 130 countries through authorized dealers. Trusted in heavy industries such as ports, mining, steel, and construction, HELI combines localized manufacturing advantages with global service capabilities to deliver lower total cost of ownership and timely after-sales support, making it a preferred choice for overseas buyers seeking reliable heavy-duty material handling solutions.

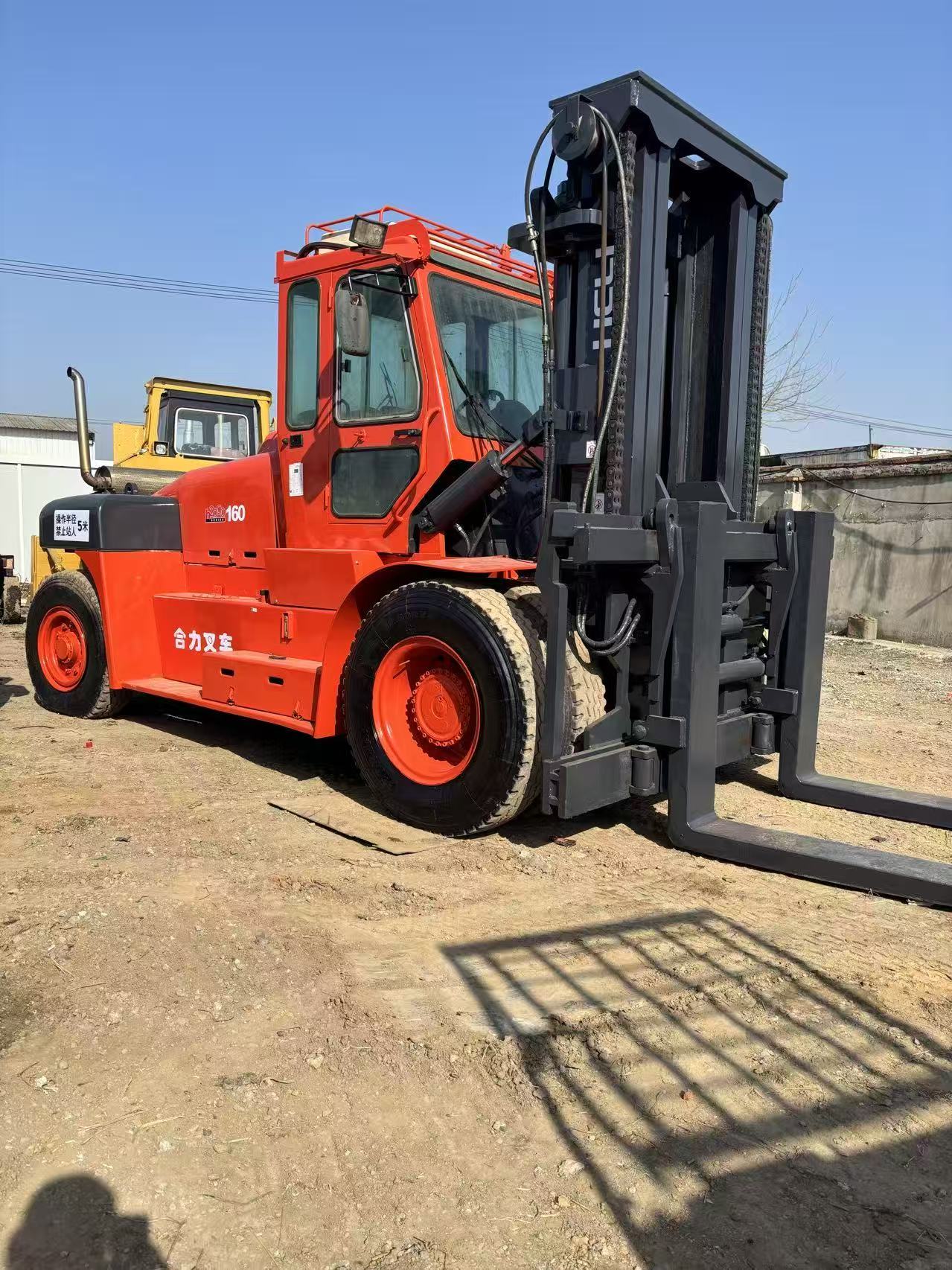

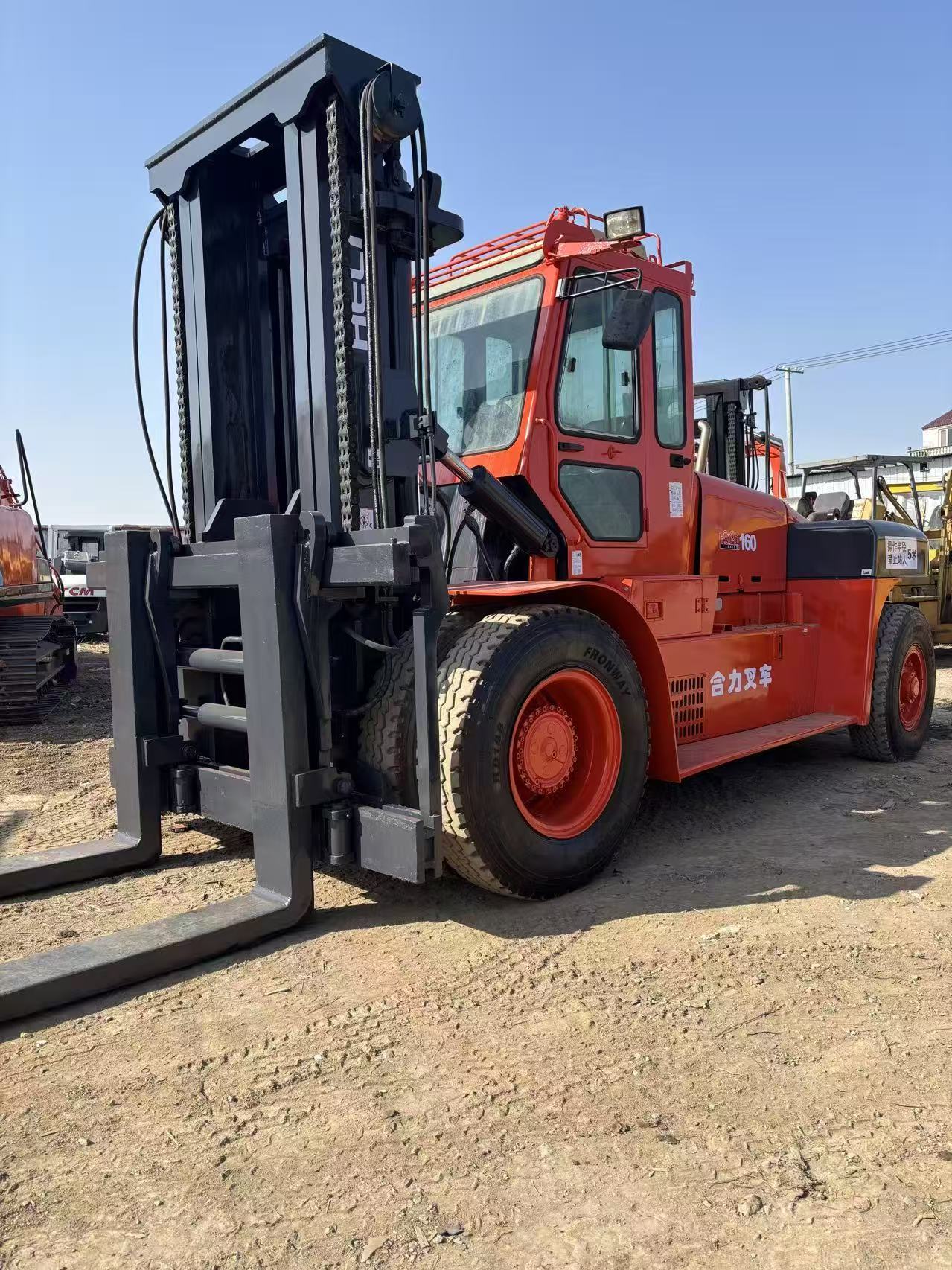

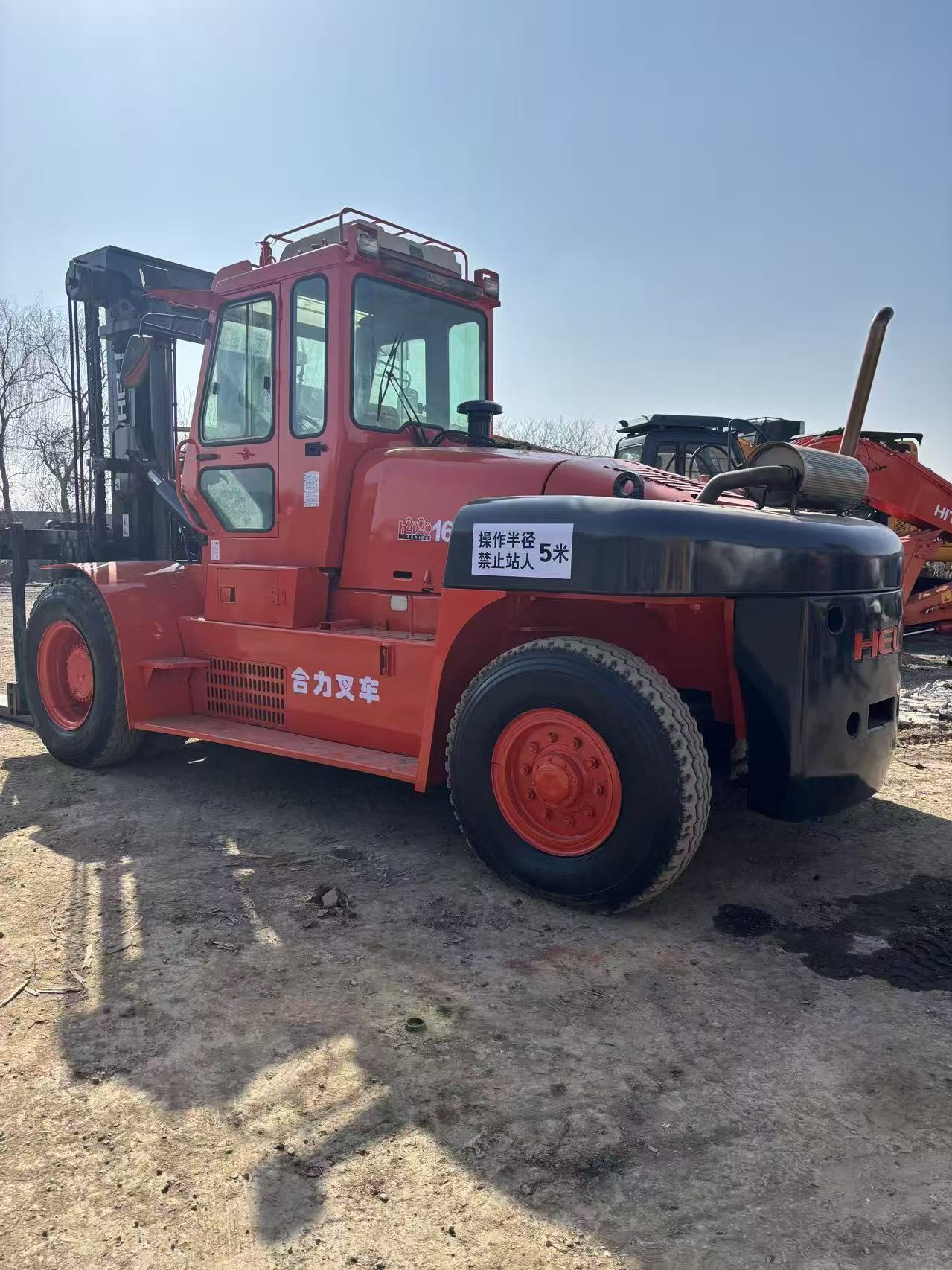

Model: HELI CPCD160 (16-Ton Heavy-Duty Diesel Forklift)

The HELI CPCD160 is a robust 16-ton internal combustion counterbalance forklift specifically engineered for high-intensity operations in ports, mining sites, steel mills, and large logistics centers. Powered by high-performance engines from brands like Cummins, Xichai, or Yuchai, paired with an efficient transmission system and load-sensing hydraulics, it delivers exceptional lifting power, smooth operation, and reliable fuel economy. Its reinforced mast, heavy-duty chassis, and ergonomic operator compartment ensure stability and durability even when handling 16-ton loads in harsh environments. It is the ideal workhorse for customers requiring a high-capacity, cost-effective forklift for heavy industrial applications.

Core Technical Specifications

1. Basic Parameters

• Rated Load Capacity: 16,000 kg (16 tons) at 1200 mm load center
• Operating Weight: Approx. 22,000 – 23,500 kg (depending on configuration)
• Mast Configuration: Standard 2-stage mast (Lifting height 3,000 mm); Optional 3-stage mast (up to 6,000 mm)
• Overall Dimensions (L×W×H): Approx. 7,500 mm × 2,550 mm × 3,300 mm (mast lowered)
• Wheelbase: 3,600 mm
• Minimum Turning Radius: Approx. 5,800 – 6,200 mm
• Fuel Tank Capacity: 300 L

2. Engine Performance

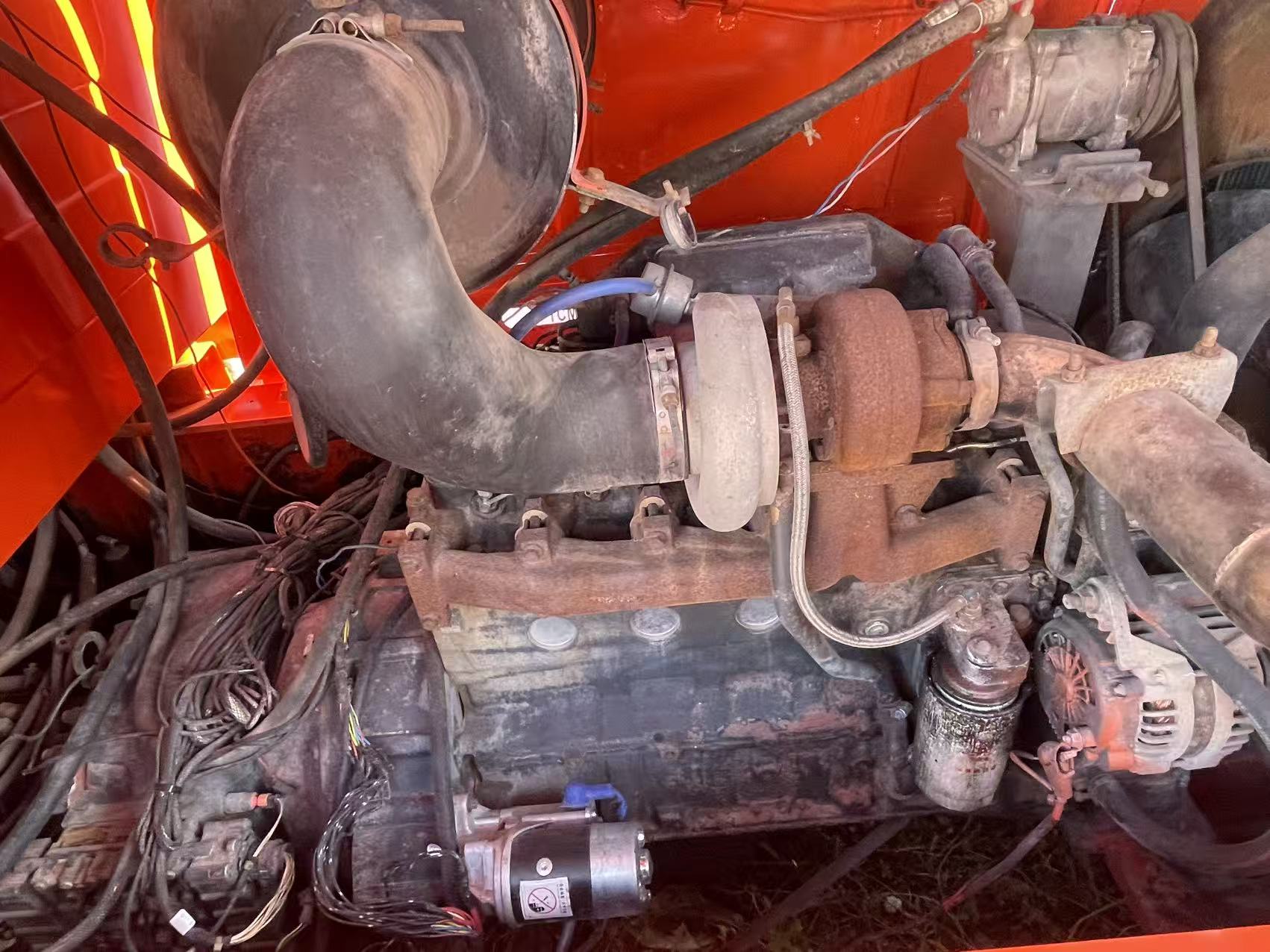

• Engine Options: Cummins QSB6.7 / Xichai 6DL2 / Yuchai YC6A (6-cylinder, turbocharged)
• Emission Compliance: China III / EU Stage II / EPA Tier 2 (optional higher emissions available)
• Rated Power: 129 kW (173 HP) – 154 kW (207 HP) @ 2200 rpm
• Maximum Torque: 600 Nm – 800 Nm @ 1400-1600 rpm
• Cold-Start Performance: Reliable starting in low temperatures; optional cold-start kit

3. Lifting & Traction Systems

• Lifting Speed (Full Load): Approx. 280 mm/s
• Travel Speed (Max): 30 km/h
• Gradeability: 20% (11.3°)
• Tire Configuration: Front 250-25 (24PR) / Rear 23.5-25 (24PR) heavy-duty pneumatic tires
• Braking System: Air-over-hydraulic drum brakes (standard); Optional wet disc brakes

4. Hydraulic & Control Systems

• Hydraulic System: Load-sensing hydraulic system for energy efficiency
• Steering System: Hydraulic power steering for easy maneuverability
• Attachment Compatibility: Side shifter (standard), fork positioner, paper roll clamps, container spreaders

5. Operator Comfort & Safety

• Operator Compartment: ROPS/FOPS certified safety canopy or enclosed cab

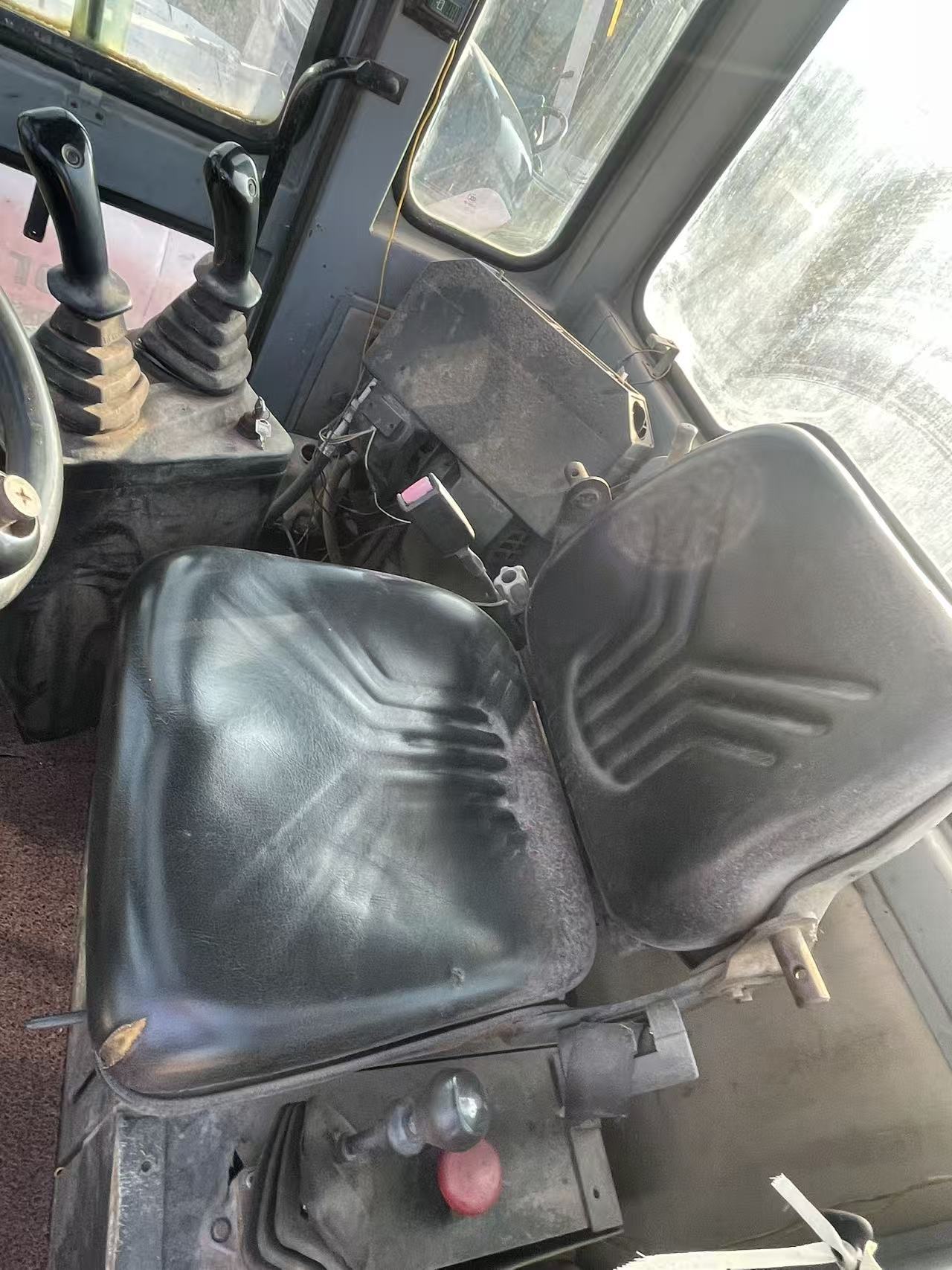

• Seat: Adjustable air-suspension seat with seat belt
• Controls: Ergonomic layout with hydraulic control levers
• Visibility: Wide-view mast design for excellent forward visibility
• Safety Features: Horn, rearview mirror, emergency stop button, parking brake

6. Structural Durability

• Reinforced Mast: High-strength steel construction with wear-resistant bushings
• Heavy-Duty Chassis: Robust frame designed to withstand heavy loads and rough terrain
• Counterweight: Optimized design for maximum stability
• Serviceability: Easy access to engine compartment and service points for quick maintenance

Core Advantages

1. Exceptional Value & Performance

• High Power Output: Equipped with reliable engines providing strong 动力 for heavy lifting and fast travel.
• Cost-Effective: Offers similar performance to premium brands at a more competitive price point, reducing initial investment.
• Customizable: Flexible configurations (mast height, engine type, attachments) to meet specific job requirements.

2. Robust Stability & Safety

• Heavy-Duty Design: Reinforced structure and optimized weight distribution ensure stability when handling 16-ton loads.
• Safety Standards: ROPS/FOPS protection ensures operator safety in case of rollover or falling objects.
• Reliable Braking: Efficient braking system provides secure stopping power even on slopes.

3. Durability for Harsh Environments

• Strong Components: High-quality hydraulic pumps, motors, and transmission components built to last.
• Rugged Tires: Heavy-duty pneumatic tires suitable for rough outdoor terrain in ports and construction sites.
• Low Maintenance: Easy access to service points reduces downtime and maintenance costs.

4. Global Service & Support

• Extensive Network: HELI’s global dealer network ensures parts availability and service support in over 130 countries.
• Genuine Parts: Access to genuine HELI spare parts for long-term reliability.
• Technical Support: Professional technical assistance and after-sales service available worldwide.

Typical Application Scenarios

1. Port & Intermodal Terminals

• Loading and unloading containers from trucks and ships.
• Stacking heavy cargo and containers in the yard.

2. Steel Mills & Manufacturing Plants

• Handling steel coils, beams, and heavy machinery components.
• Transporting raw materials and finished products within the facility.

3. Mining & Quarry Operations

• Transporting ore, rock, and aggregate.
• Loading heavy equipment parts and supplies.

4. Construction & Infrastructure

• Lifting and placing precast concrete sections and steel structures.
• Handling building materials at large construction sites.

5. Heavy Logistics & Warehousing

• Stacking heavy pallets and bulk materials in large warehouses.
• Loading and unloading heavy-duty trucks.

Foreign Trade Service Guarantee

1. Customization Options

• Mast Heights: 3m, 4.5m, 5m, 6m (2-stage or 3-stage).
• Attachments: Side shifter, fork positioner, bale clamp, paper roll clamp, container spreader.
• Special Configurations: Cabin with air conditioning, heater, work lights, beacon lights.
• Documentation: Multilingual operator manuals and service guides.

2. Inspection & Certification

• Pre-shipment Inspection: SGS, BV, or other third-party inspection available.
• Certifications: CE, ISO 9001, and export certificates (CO, Form E, Form F, etc.).
• Quality Control: Strict factory testing and quality assurance procedures.

3. Warranty & Training

• Warranty: 1-year or 2000-hour warranty for major components.
• Training: Free operator and maintenance training available at the factory or locally.
• Technical Support: 24/7 technical assistance via phone or email.

4. Spare Parts & After-Sales

• Fast Delivery: Efficient logistics for spare parts delivery to global destinations.
• Consignment Stock: Consignment stock available for key markets to ensure quick availability.
• Maintenance Contracts: Long-term maintenance service contracts tailored to customer needs.

Why Choose HELI 16-Ton Forklift?

The HELI CPCD160 16-ton forklift offers the perfect balance of power, durability, and affordability. With its reliable engine, robust construction, and flexible configuration options, it is capable of handling the toughest material handling tasks in ports, mines, and factories. Backed by HELI’s global service network and commitment to quality, this forklift provides a high return on investment and ensures maximum uptime for your operations. For customers seeking a heavy-duty forklift that delivers performance without breaking the bank, the HELI CPCD160 is the ideal choice.
