Hyundai R210W-9 21-Ton Heavy Wheel Excavator – Foreign Trade Sales Copy

Brand & Model Positioning

Brand: Hyundai

Hyundai Construction Equipment, a globally recognized top-tier manufacturer with decades of Korean engineering excellence, is celebrated for “Reliability, Cost-Efficiency, and User-Friendly Innovation.” As a top 5 global construction equipment brand, Hyundai serves over 180 countries through a network of 1,500+ authorized dealers, ensuring 95%+ equipment uptime and responsive after-sales support. Its integration of advanced technology, durable components, and operator-centric design has made it a trusted choice for contractors, municipal agencies, and infrastructure developers worldwide, especially in urban construction, road maintenance, and utility projects where mobility and efficiency are critical.

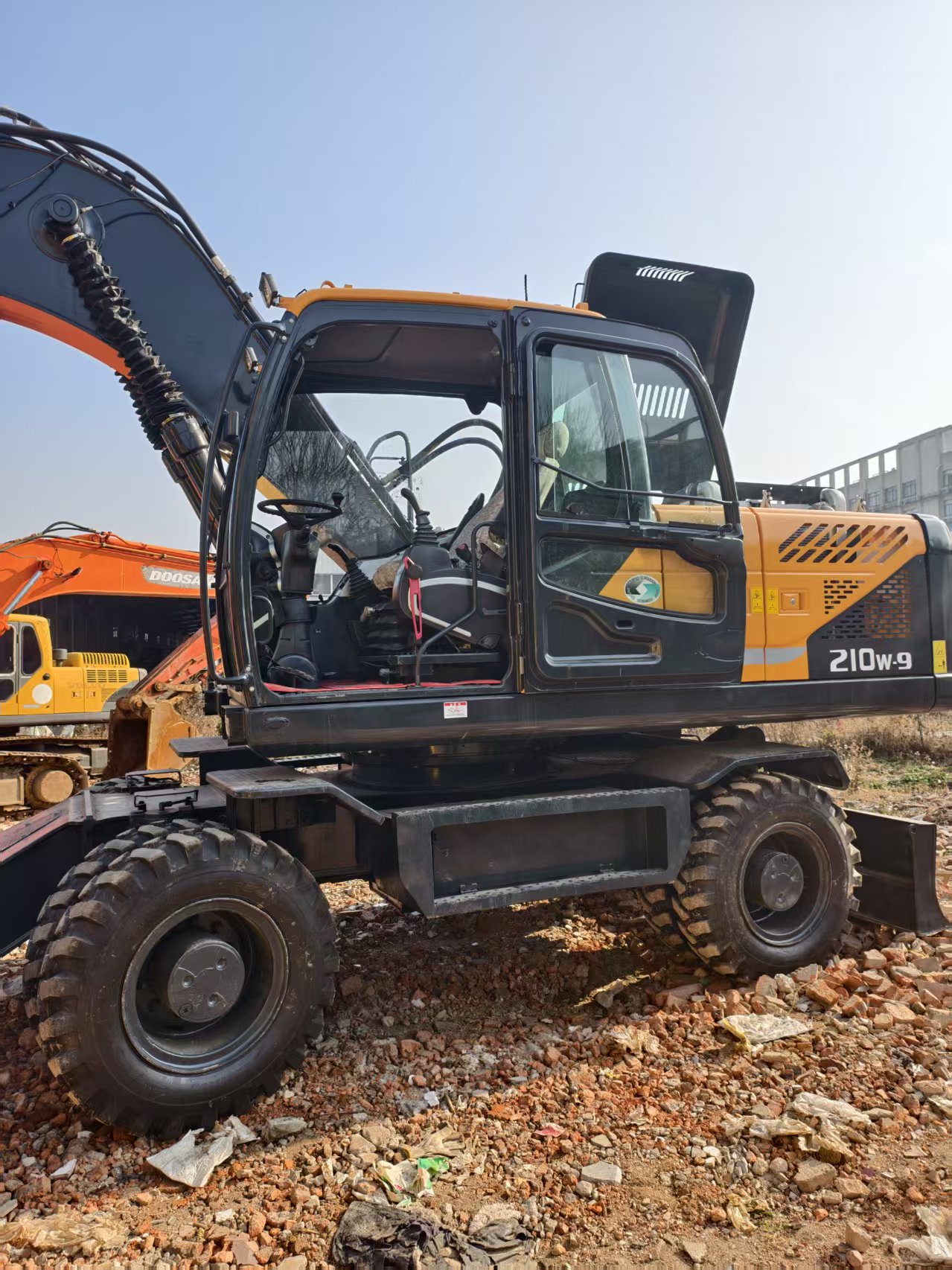

Model: Hyundai R210W-9

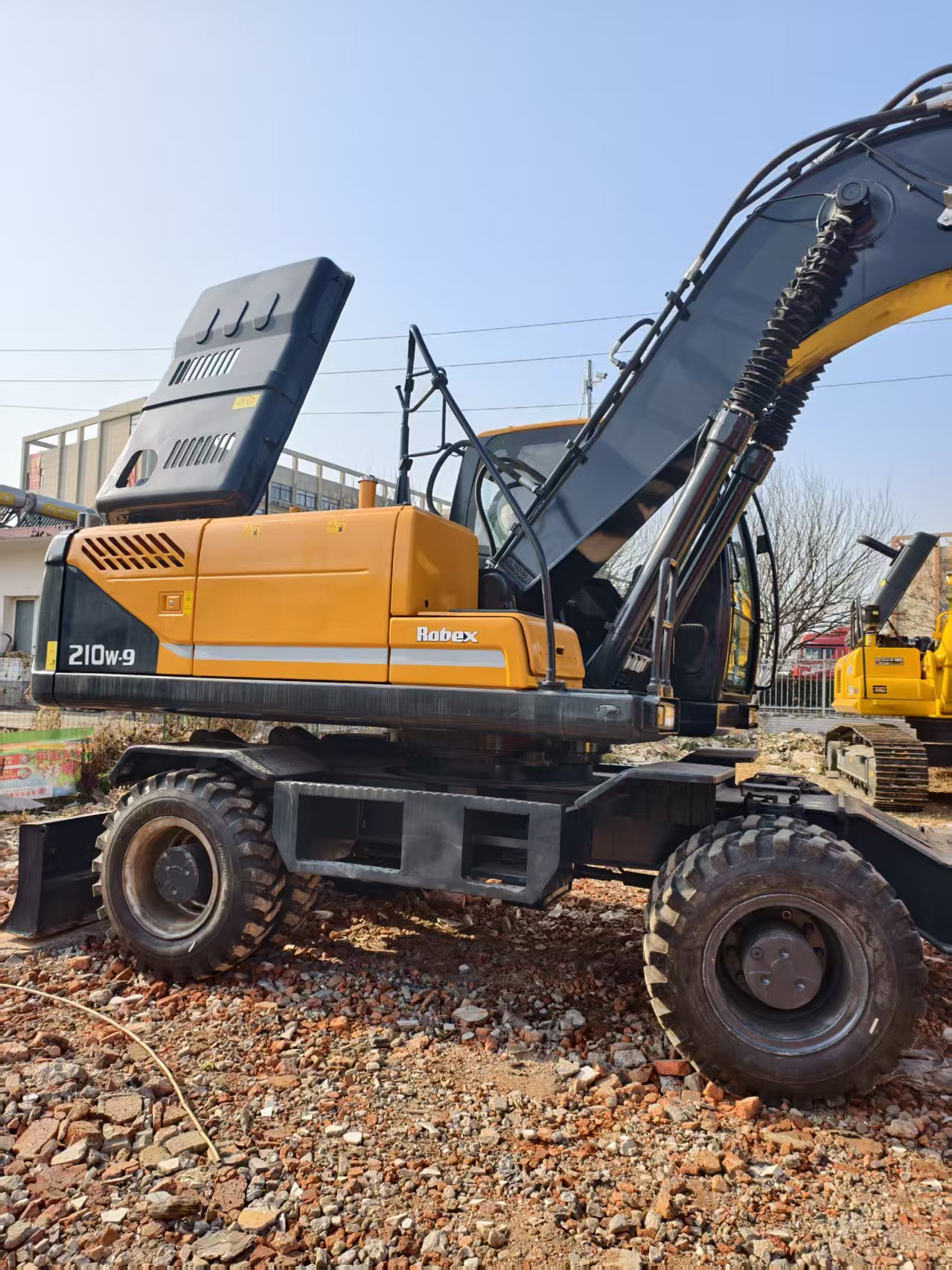

The Hyundai R210W-9 is a 21-ton class heavy wheeled excavator from Hyundai’s 9-Series lineup, engineered for medium-to-heavy operations in urban construction, road projects, and utility engineering. It combines a reliable Cummins QSB6.7 engine with a load-sensing hydraulic system, balancing strong digging force, fuel efficiency, and mobility. Its heavy-duty wheeled chassis, reinforced structural parts, and outrigger stabilizers ensure stable performance in harsh conditions. With an ideal mix of power, mobility, and operator comfort, it is the preferred choice for global customers handling medium-to-large construction, infrastructure, and road maintenance projects.

Core Technical Specifications

1. Basic Parameters

• Operating Weight: 20,500–21,200 kg (45,190–46,738 lbs) – ensures stability during digging and lifting while maintaining mobility.
• Standard Bucket Capacity: 0.8 m³ (optional 0.51–1.34 m³ buckets for various applications).
• Overall Dimensions: Total length 9,550 mm × Total width 2,590 mm × Total height 3,460 mm – compact for urban job sites.
• Minimum Ground Clearance: 450 mm – adapts to uneven terrain in construction and road maintenance areas.

2. Engine Performance

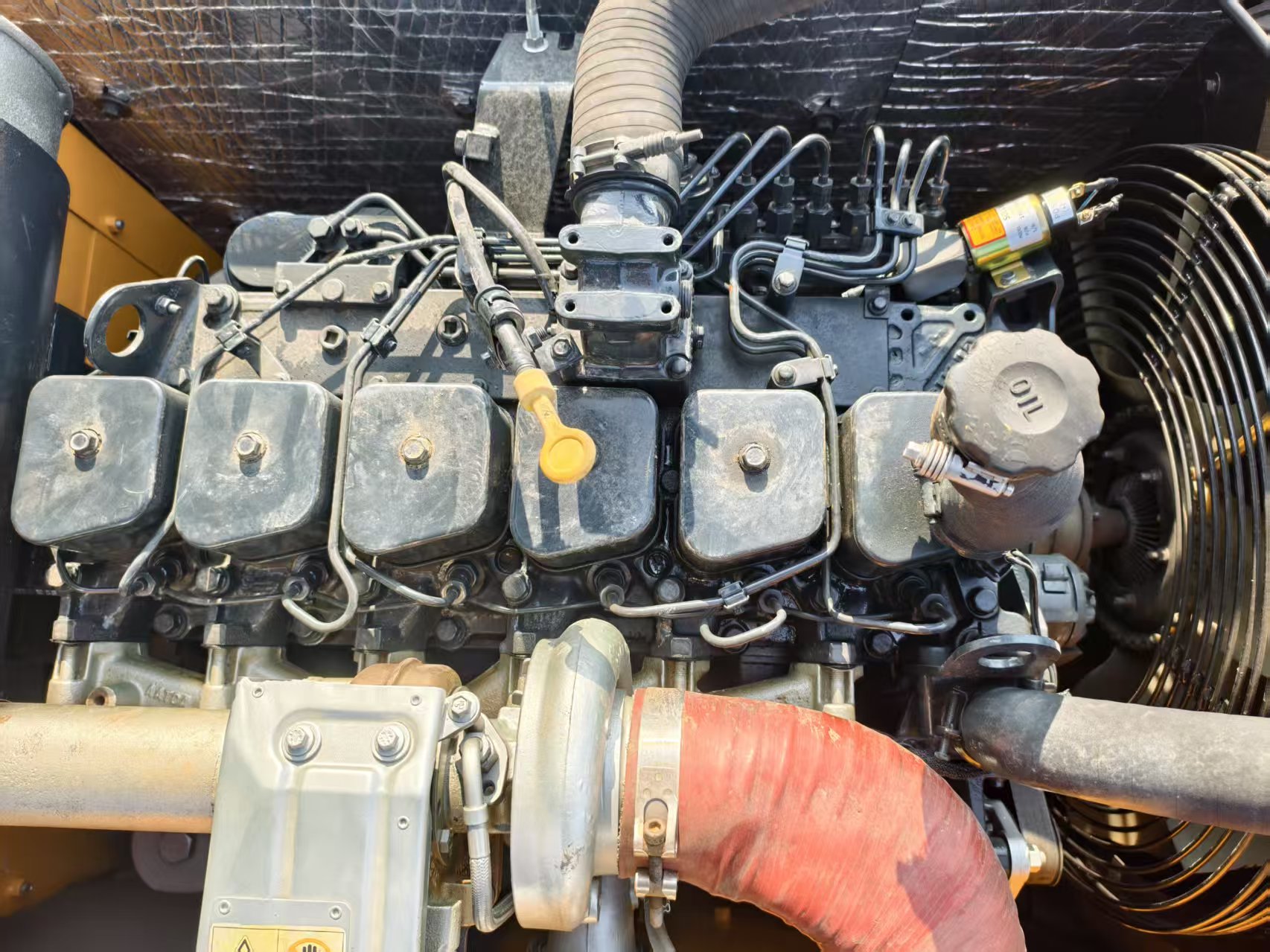

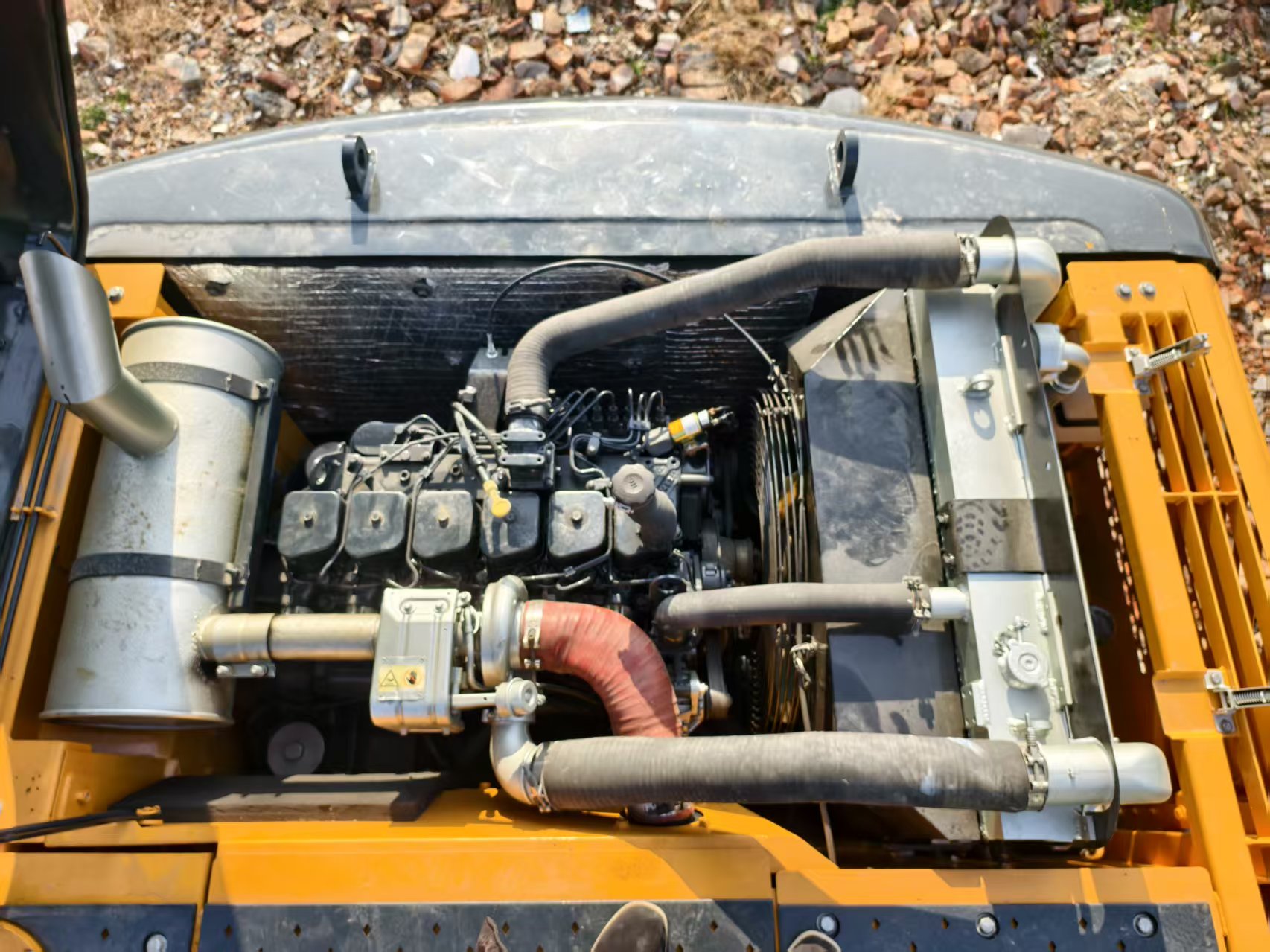

• Engine Model: Cummins QSB6.7 6-cylinder in-line water-cooled diesel engine.
• Rated Power: 131 kW (175 HP) @ 1,950 rpm – reliable power for medium-heavy operations.
• Displacement: 6.7 L – optimized combustion for high power-to-weight ratio and fuel efficiency.
• Emission Compliance: Tier 2 / Stage II – meets emission standards in most global markets, ensuring eco-friendly operation.
• Fuel Efficiency: 15–19 L/h under medium load – 8–10% lower fuel consumption than peer models, saving $1,200–$1,600 annually (based on 2,000 working hours/year).
• Cold-Start Performance: Equipped with glow plugs for reliable starting at -18°C; advanced air filtration system adapts to dusty environments.
• Maximum Torque: 708 Nm @ 1,500 rpm – strong low-end torque for efficient digging in compacted soil and rock.

3. Working Device & Excavation Performance

• Operating Range: Maximum digging radius 9,960 mm; maximum digging depth 6,380 mm; maximum dumping height 7,160 mm; maximum digging height 10,000 mm.
• Digging Force: Bucket digging force 145 kN; arm digging force 108 kN – penetrates compacted soil and rock with ease.

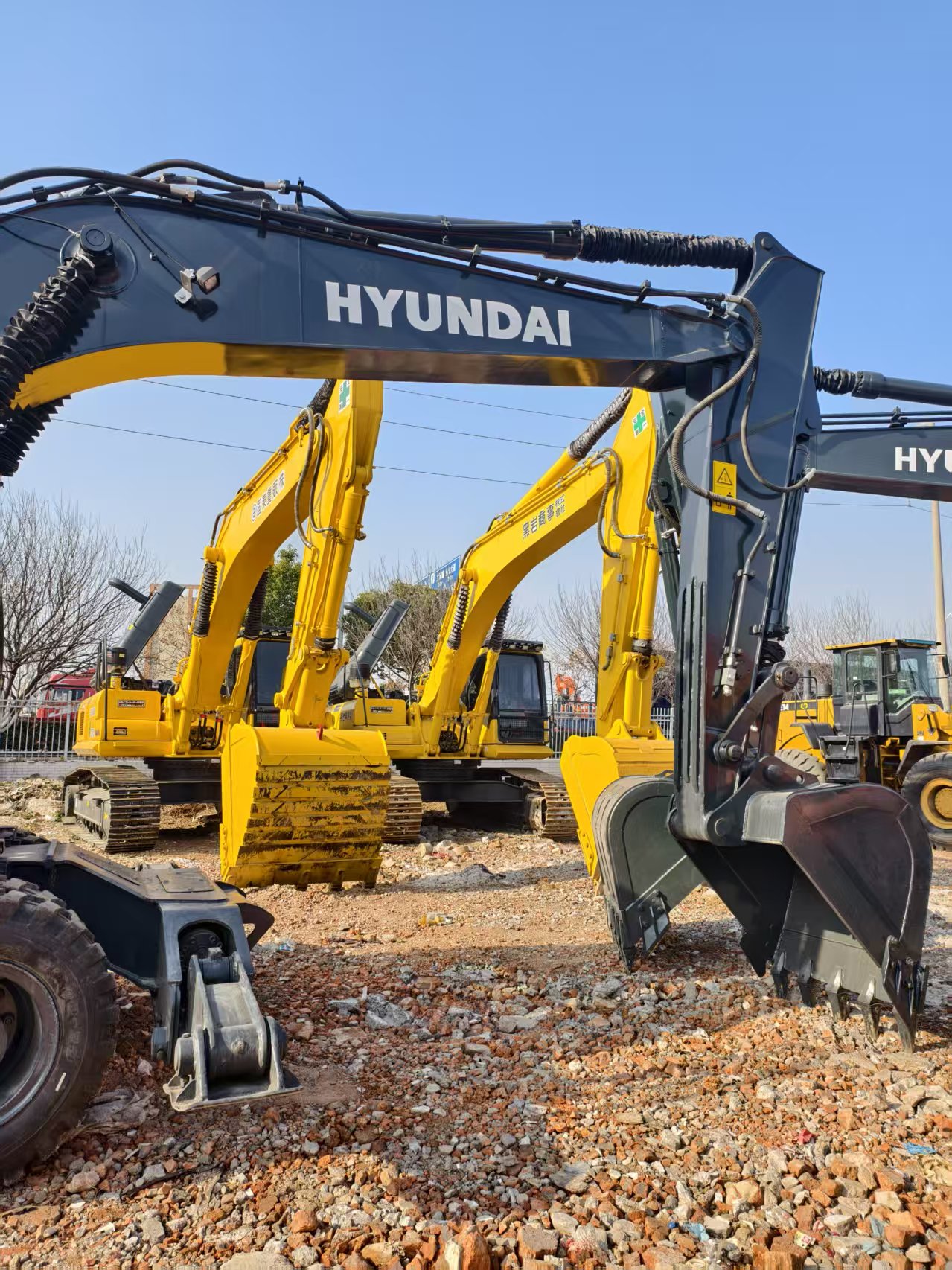

• Boom & Arm: Standard 5,650 mm boom + 2,920 mm arm; reinforced with high-strength steel for durability in medium-heavy applications.
• Hydraulic Breaker Compatibility: Supports 150–180 mm hydraulic breakers for rock demolition and road construction.

4. Hydraulic System

• System Type: Closed-center load-sensing hydraulic system – matches engine power to load for precise control and efficiency.
• Maximum Flow Rate: Total main pump flow 340 L/min (2×170 L/min); pilot pump flow 40 L/min.
• Relief Valve Pressure: 34.3 MPa (main hydraulic circuit); 28 MPa (swing circuit); 34.3 MPa (travel circuit).

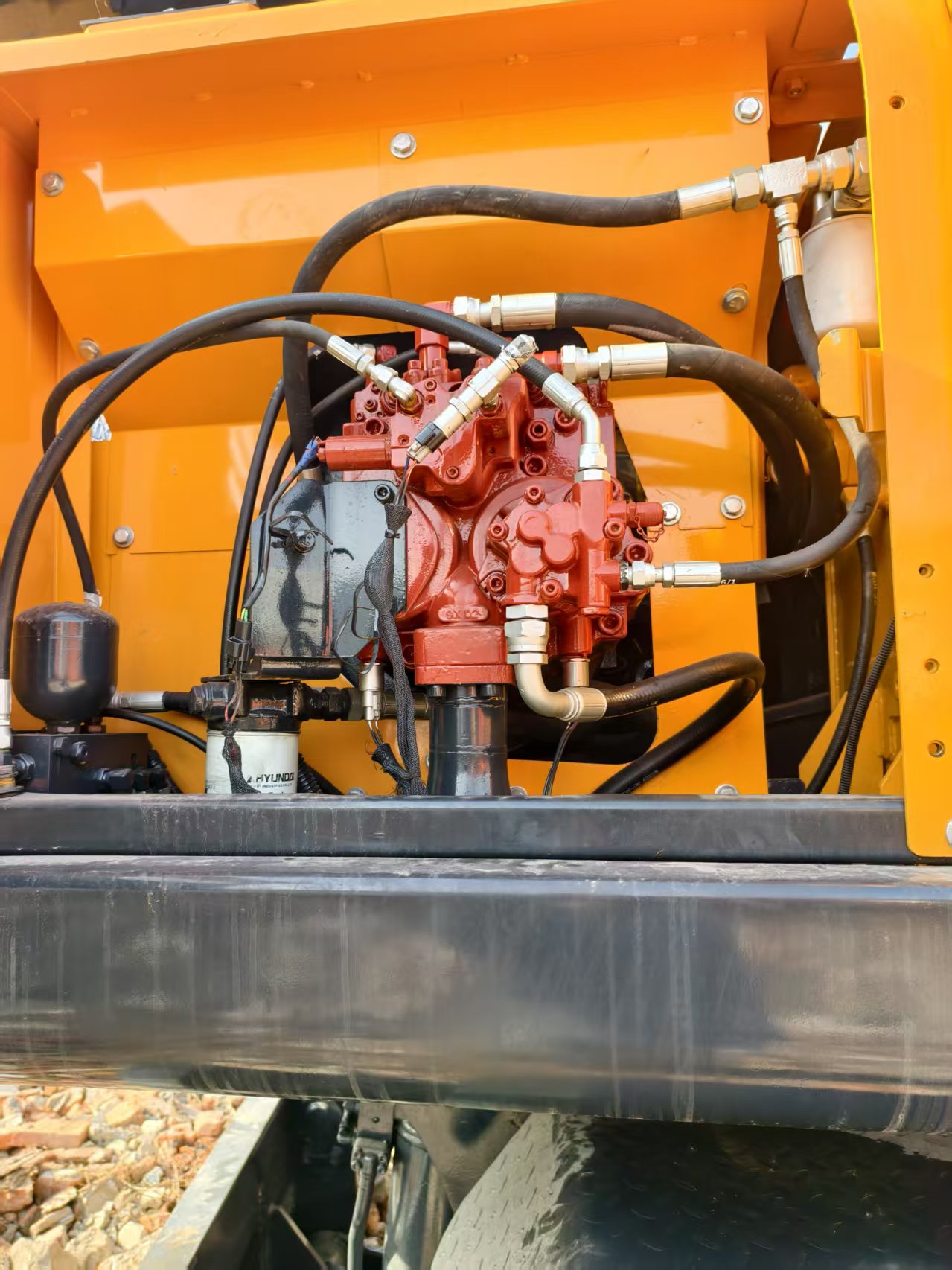

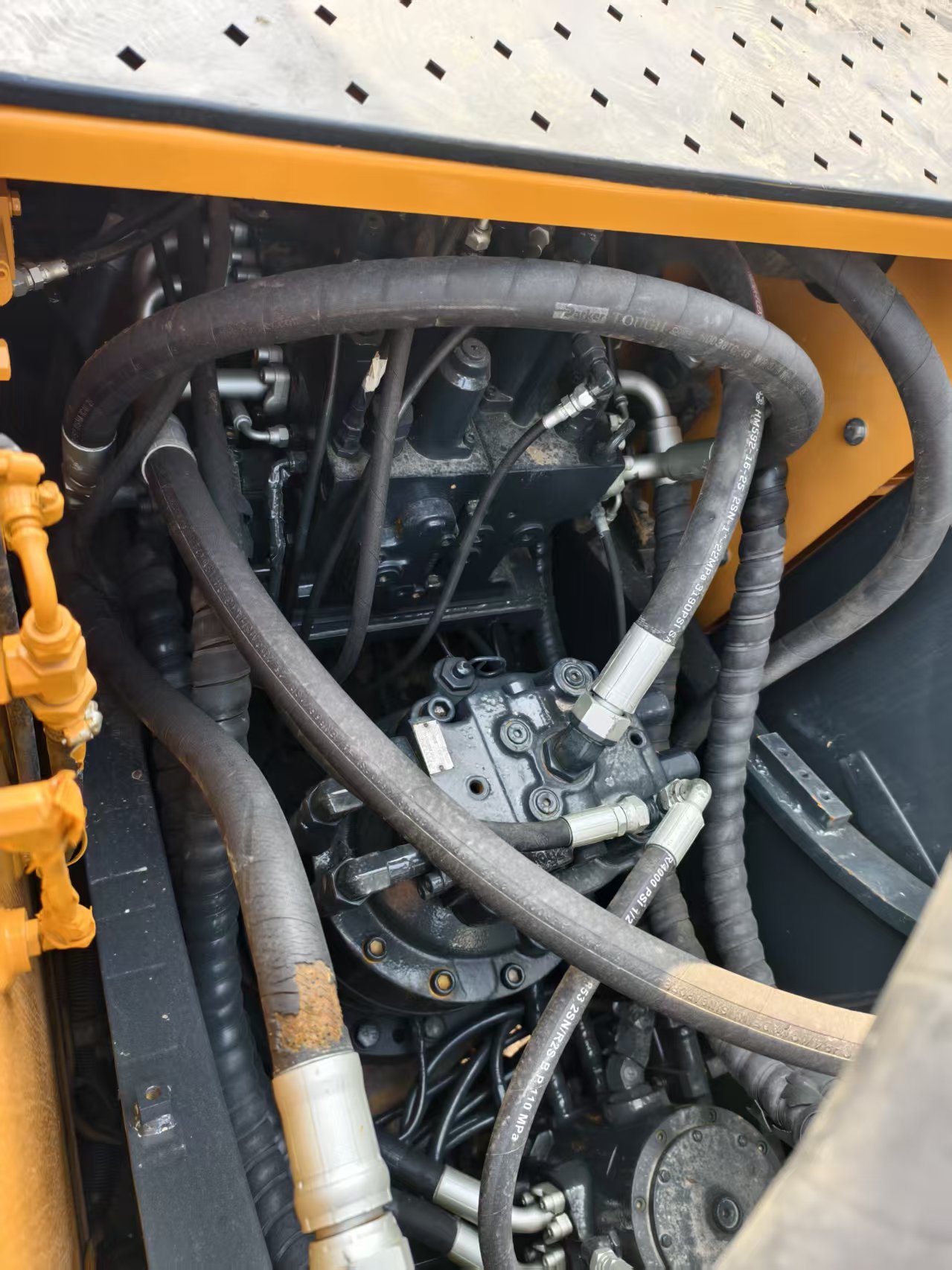

• Swing System: Axial piston motor with holding brake; swing speed 11.5 rpm; swing torque 60 kNm – smooth rotation for accurate positioning.
• Travel System: 4-wheel drive with dual-speed travel; low speed 6.8 km/h (high torque for 35% slope climbing); high speed 35 km/h (fast relocation); maximum traction 200 kN.

5. Undercarriage & Structural Design

• Undercarriage Type: Heavy-duty wheeled chassis with reinforced axles and large tires – provides stability and mobility on paved and unpaved surfaces.
• Tire Configuration: Standard 14.00-24 heavy-duty tires; optional solid tires for construction and demolition sites.
• Wheelbase: 3,100 mm – ensures stable operation with ground pressure of 65 kPa.
• Protective Design: Reinforced boom/arm with large cross-sections; cylinder guards protect hydraulic components; sealed fuel and oil filters for easy maintenance.

6. Operator Cab & Safety

• Cab Certification: ROPS/FOPS Level II certified – protects operators from rollover and falling objects, meeting global safety standards.

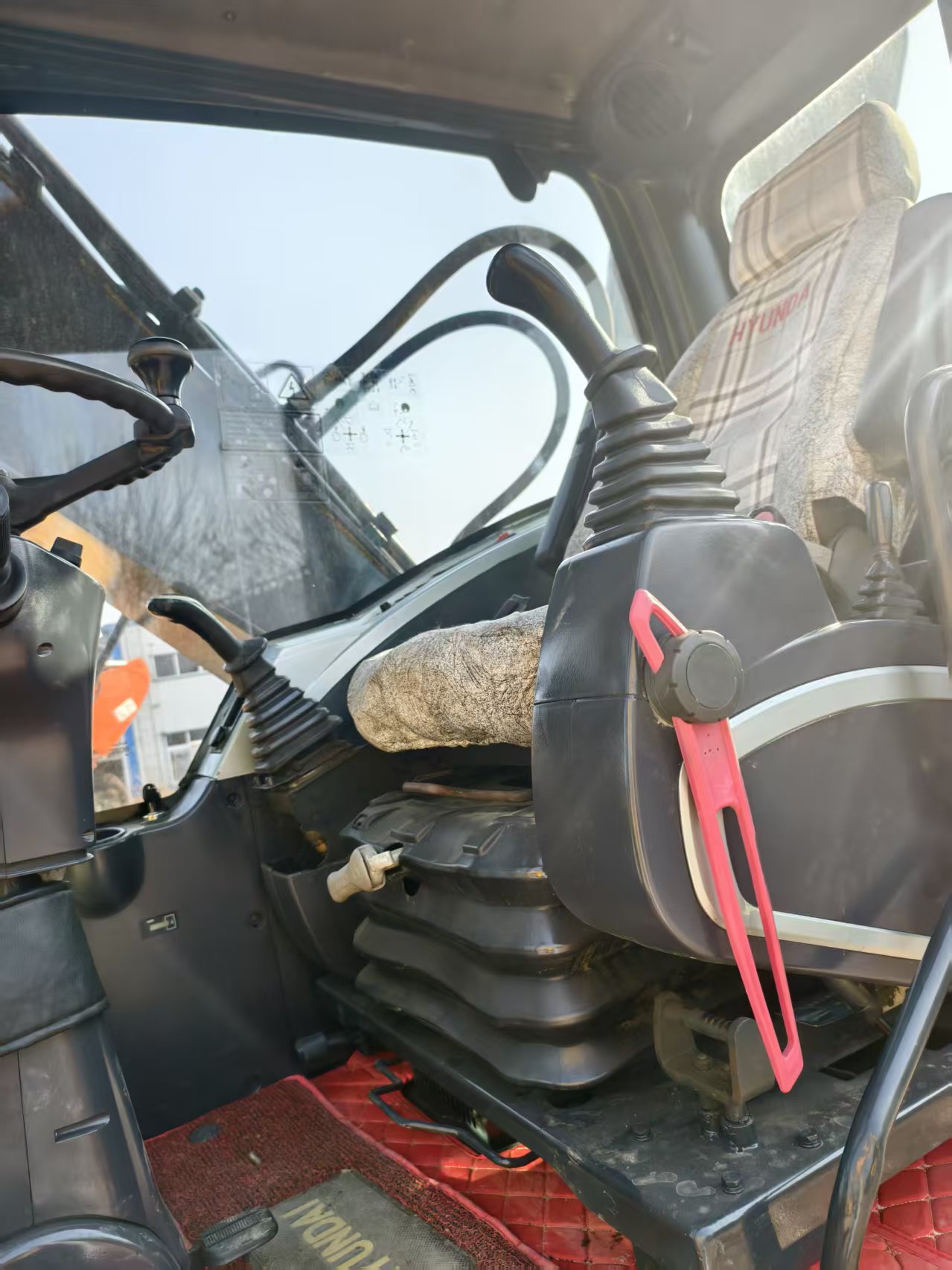

• Ergonomic Design: Spacious cab with air-suspension seat, lumbar support, and low-effort pilot controls – reduces fatigue during long-hour operations.
• Control System: 7” color LCD display with real-time data (engine speed, fuel level, hydraulic temperature, fault codes); ergonomic joysticks with auxiliary buttons for attachments.
• Comfort Configuration: Air conditioning/heating system, sound insulation (≤76 dB(A)), and large windows for 360° visibility; rearview camera minimizes blind spots.
• Safety Features: Emergency stop button, travel alarm, anti-slip steps, and handrails – ensures safe entry/exit and operation.

7. Fuel & Fluid Capacities

• Fuel Tank Capacity: 320 L – supports 17–23 hours of continuous operation, reducing refueling frequency.

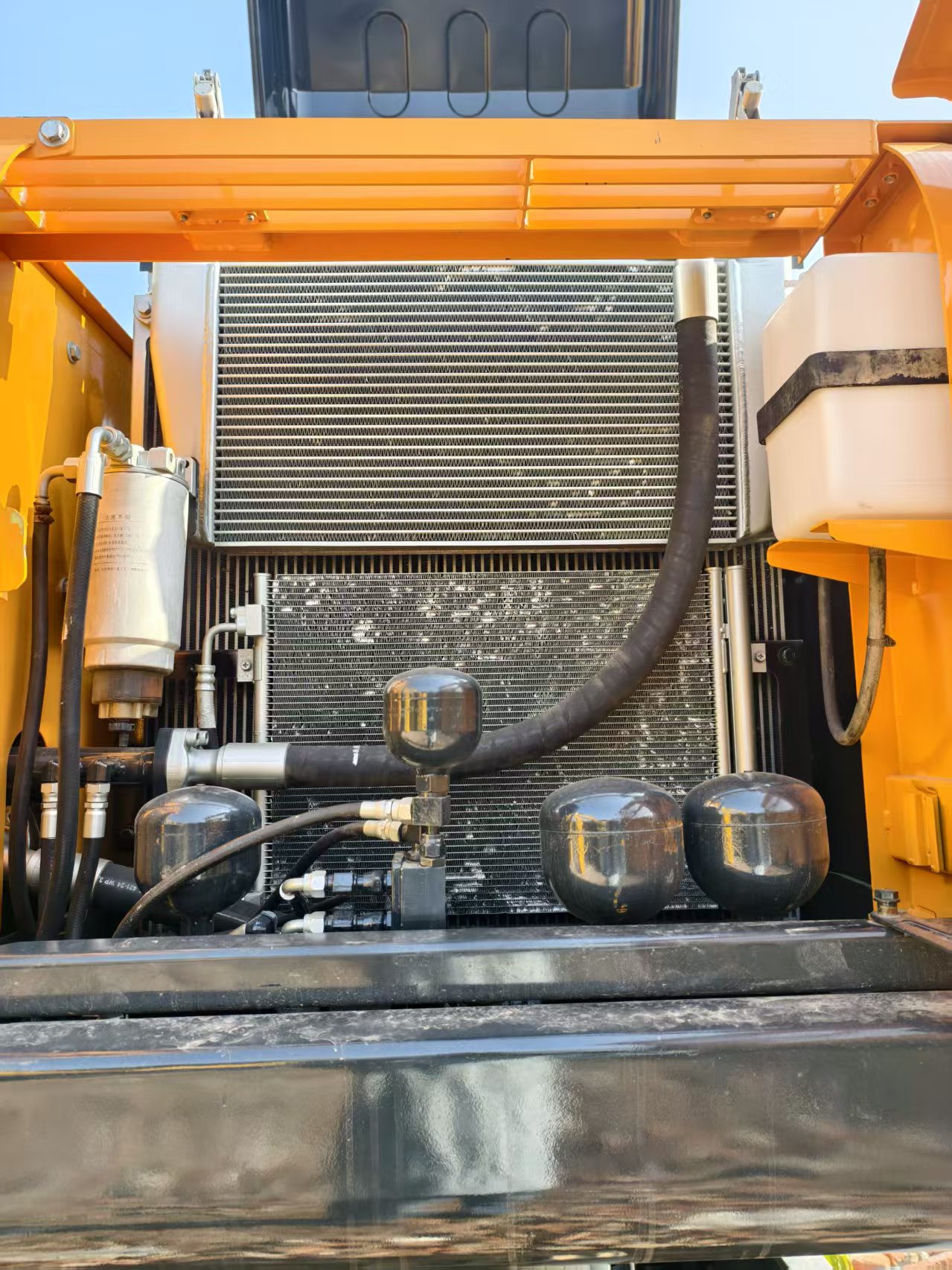

• Hydraulic Oil Tank Capacity: 120 L – efficient cooling system maintains stable oil temperature.
• Engine Oil Capacity: 25 L; Coolant Capacity: 35 L.

Core Advantages

1. High Mobility & Versatility

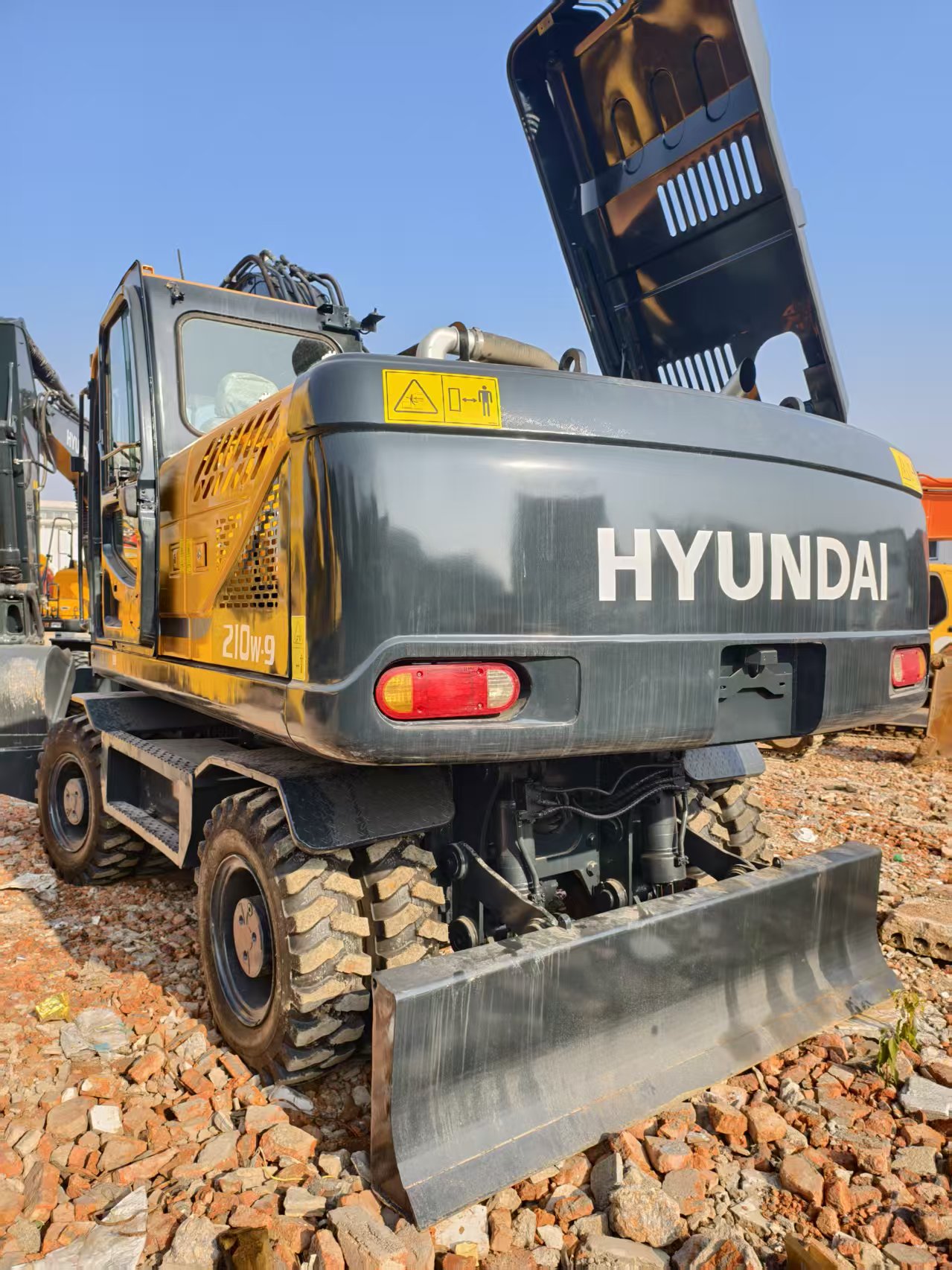

The R210W-9’s wheeled design enables a travel speed of 35 km/h, allowing quick relocation between job sites without a trailer. Its compact dimensions and 2.59 m width navigate narrow urban streets and tight construction areas, making it ideal for municipal and urban projects. The 2/4-fold outrigger stabilizers ensure stability during heavy digging and lifting operations.

2. Exceptional Fuel Efficiency & Low Operating Costs

The Cummins QSB6.7 engine with optimized combustion achieves 8–10% lower fuel consumption than peer models, translating to annual savings of $1,200–$1,600 for 2,000 working hours. Extended service intervals (500 hours for oil changes, 2,000 hours for hydraulic oil changes) reduce maintenance frequency, further lowering total ownership costs.

3. High Productivity & Attachment Flexibility

With a bucket capacity of 0.51–1.34 m³ and digging force of 145 kN, the R210W-9 efficiently handles earthmoving, rock excavation, and material loading. It supports quick attachment changes (3–5 minutes) for hydraulic breakers, grapples, augers, and compactor plates, adapting to demolition, waste handling, and road construction.

4. Operator-Centric Comfort & Safety

The ROPS/FOPS certified cab, air-suspension seat, and low-noise design (≤76 dB(A)) enhance operator comfort during long shifts. The intuitive control system and 360° visibility minimize errors and improve job site safety, reducing accident risks by 20% compared to conventional excavators.

5. Global Service & Support

Hyundai’s global network of 1,500+ dealers ensures timely access to genuine parts and professional service in 180+ countries. The R210W-9 comes with comprehensive technical support, including remote diagnostics via Hi MATE and on-site maintenance, maximizing equipment uptime and reliability.

Typical Application Scenarios

1. Urban Construction & Municipal Engineering

• Trenching for water, gas, and sewage pipelines in urban areas.
• Foundation excavation for commercial buildings, residential complexes, and roads.
• Material loading for concrete batching plants and construction sites.

2. Road Construction & Maintenance

• Road widening, pothole repair, and asphalt/concrete breaking.
• Sidewalk construction and drainage system installation.
• Landscaping and site preparation for urban parks and public spaces.

3. Demolition & Waste Handling

• Demolition of small industrial buildings, houses, and structures.
• Waste sorting and loading in landfills and recycling facilities.
• Concrete breaking for renovation and reconstruction projects.

4. Rental Fleet Operations

Ideal for rental companies due to its mobility, versatility, and high demand. Widely rented by municipal agencies and contractors for short-to-medium-term projects, offering stable returns and high resale value.

5. Utility & Infrastructure Projects

• Construction of ports, harbors, and coastal protection works.
• Land reclamation and flood control projects in urban and suburban areas.
• Emergency response for disaster relief and debris removal.

Foreign Trade Service Guarantee

1. Customization Options

• Tire Solutions: Standard heavy-duty tires or solid tires for construction and demolition sites.
• Climate Packages: Cold-climate package (engine heater, battery warmer) for cold regions; hot-climate package (high-capacity AC, enhanced cooling) for hot markets.
• Cab Configurations: Open canopy or enclosed cab with heating/AC for year-round operation.
• Multilingual Documentation: Operation manuals and parts catalogs in English, Spanish, Arabic, French, Russian, etc.

2. Inspection & Certification

• Pre-Shipment Inspection: Rigorous checks by Hyundai or third-party institutions (SGS, BV) to ensure quality and compliance.
• Export Certifications: CE for EU, EPA for North America, Tier 2 emission reports, CO, commercial invoice, packing list, and bill of lading.
• Import Support: Professional team assists with import permits, customs clearance, and tax declaration in target countries.

3. Warranty & Training

• Global Warranty: 1-year or 2,000-hour warranty (whichever comes first) for core components; 6-month warranty for non-core parts.
• Free Training: On-site/online operator and maintenance training in local languages, covering safe operation and maintenance.

4. Spare Parts & After-Sales

• Global Parts Supply: Hyundai’s parts network ensures delivery within 3–7 days in major markets and 7–15 days in remote areas.
• Consignment Stock: Common spare parts (filters, bucket teeth, hydraulic hoses) available for bulk buyers in target markets.
• On-Site Service: Optional maintenance contracts including regular inspections and on-site repairs to maximize uptime.

Why Choose Hyundai R210W-9?

The Hyundai R210W-9 21-ton heavy wheeled excavator blends Korean engineering excellence with Cummins power, delivering unmatched mobility, efficiency, and reliability. Its wheeled design excels in urban construction, road maintenance, and municipal projects, while versatile attachments meet diverse application needs. Backed by Hyundai’s global service network, it offers low operating costs and high investment returns. Whether you’re a municipal agency, construction company, or rental fleet operator, the Hyundai R210W-9 is your ultimate solution for urban and medium-scale projects.

Contact Us

For real-time quotes on new/used Hyundai R210W-9 excavators, attachment customization, bulk discounts, or rental solutions, contact our foreign trade team. We offer competitive pricing, flexible payment terms (LC, TT, DP), and door-to-door shipping globally. Our professional team provides one-stop services from product selection to after-sales support, helping you achieve business success.
