Brand: HELI – A leading Chinese material handling equipment manufacturer with 60+ years of expertise, ranking among the world’s top 5 forklift brands. Renowned for robust build quality, cost-effective total ownership, and a global service network, HELI dominates the heavy-duty forklift segment in the Middle East, Southeast Asia, Africa, and Latin America, trusted by ports, steel mills, and logistics hubs for reliable heavy-load operations.

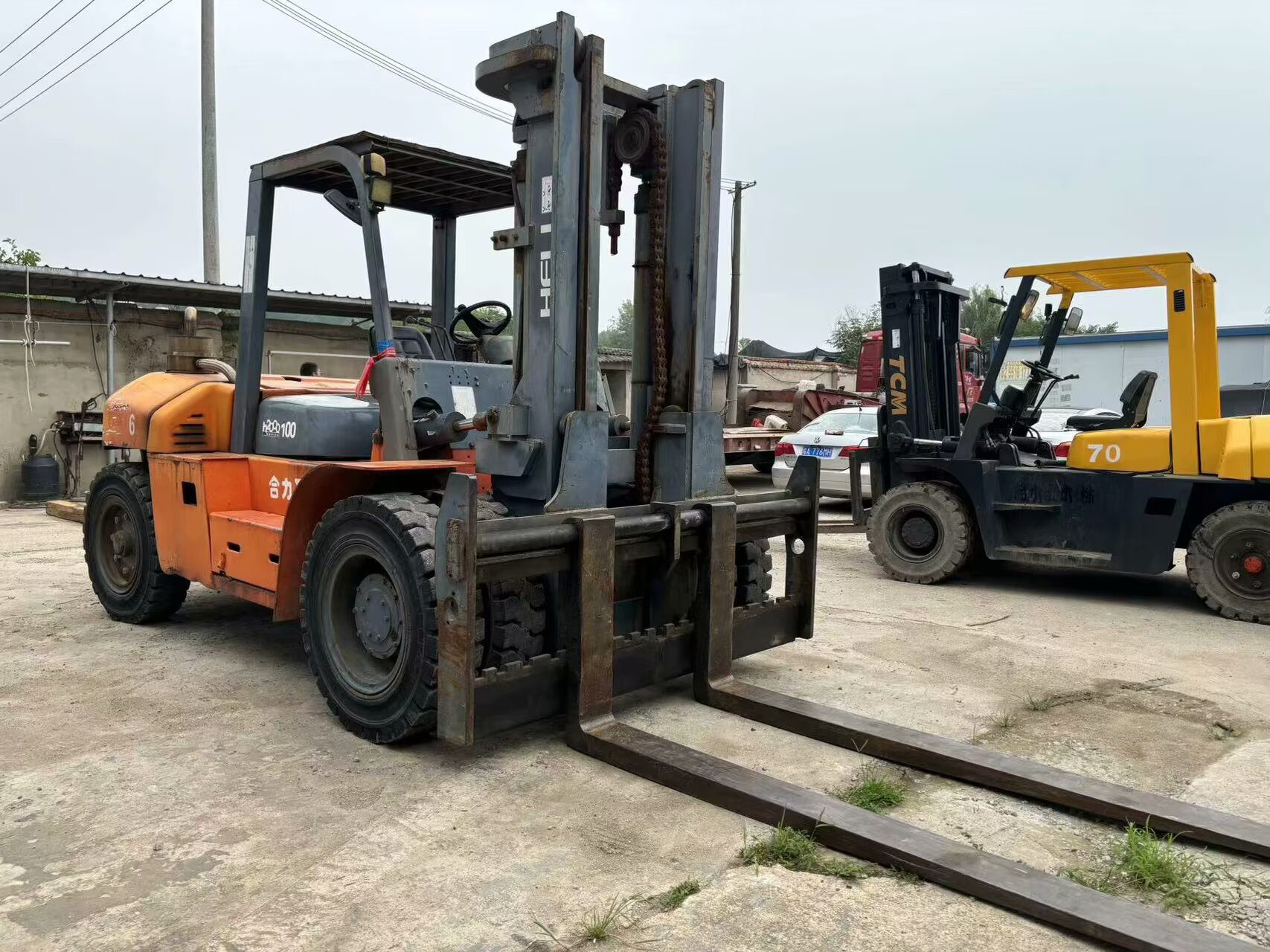

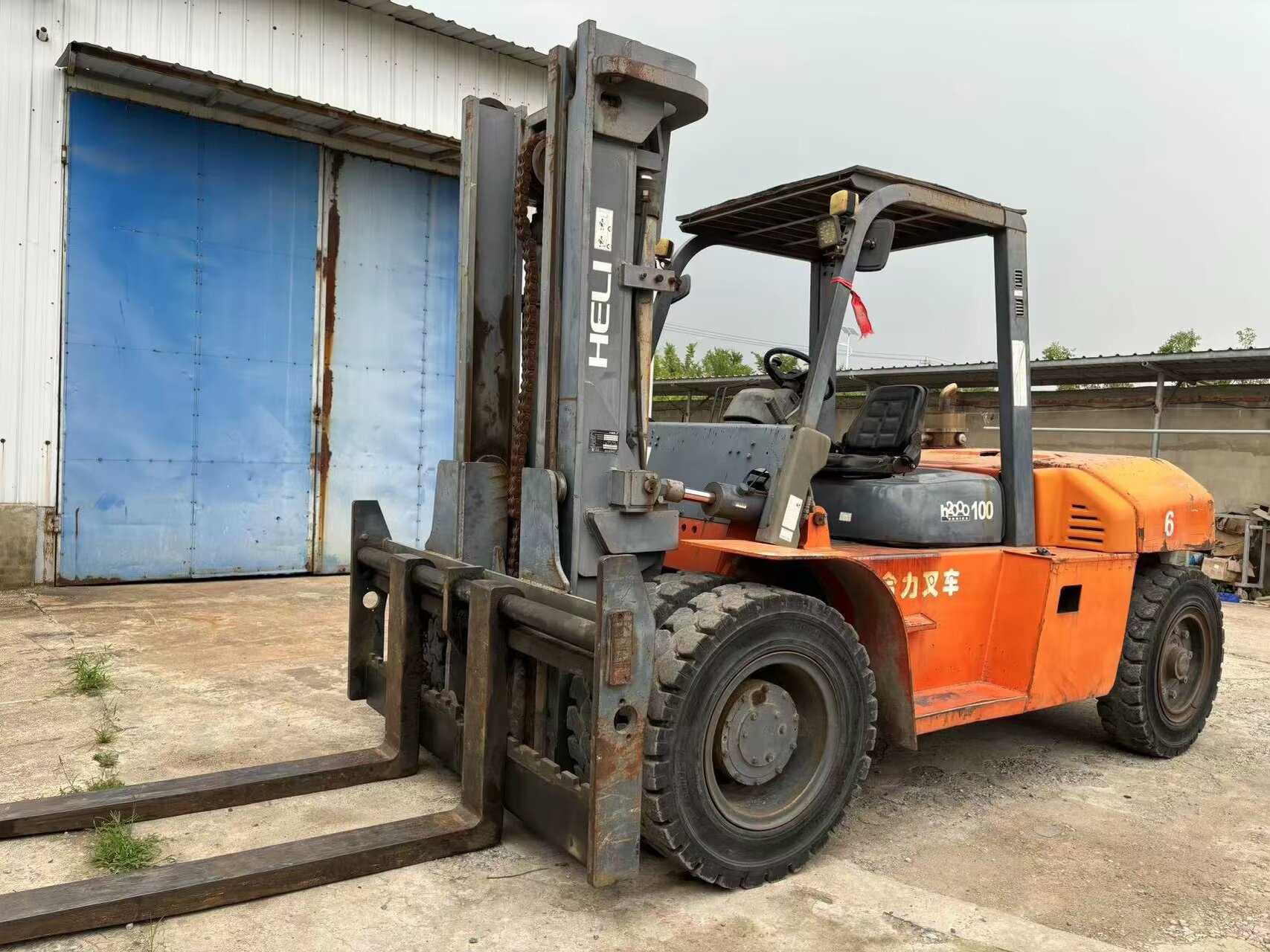

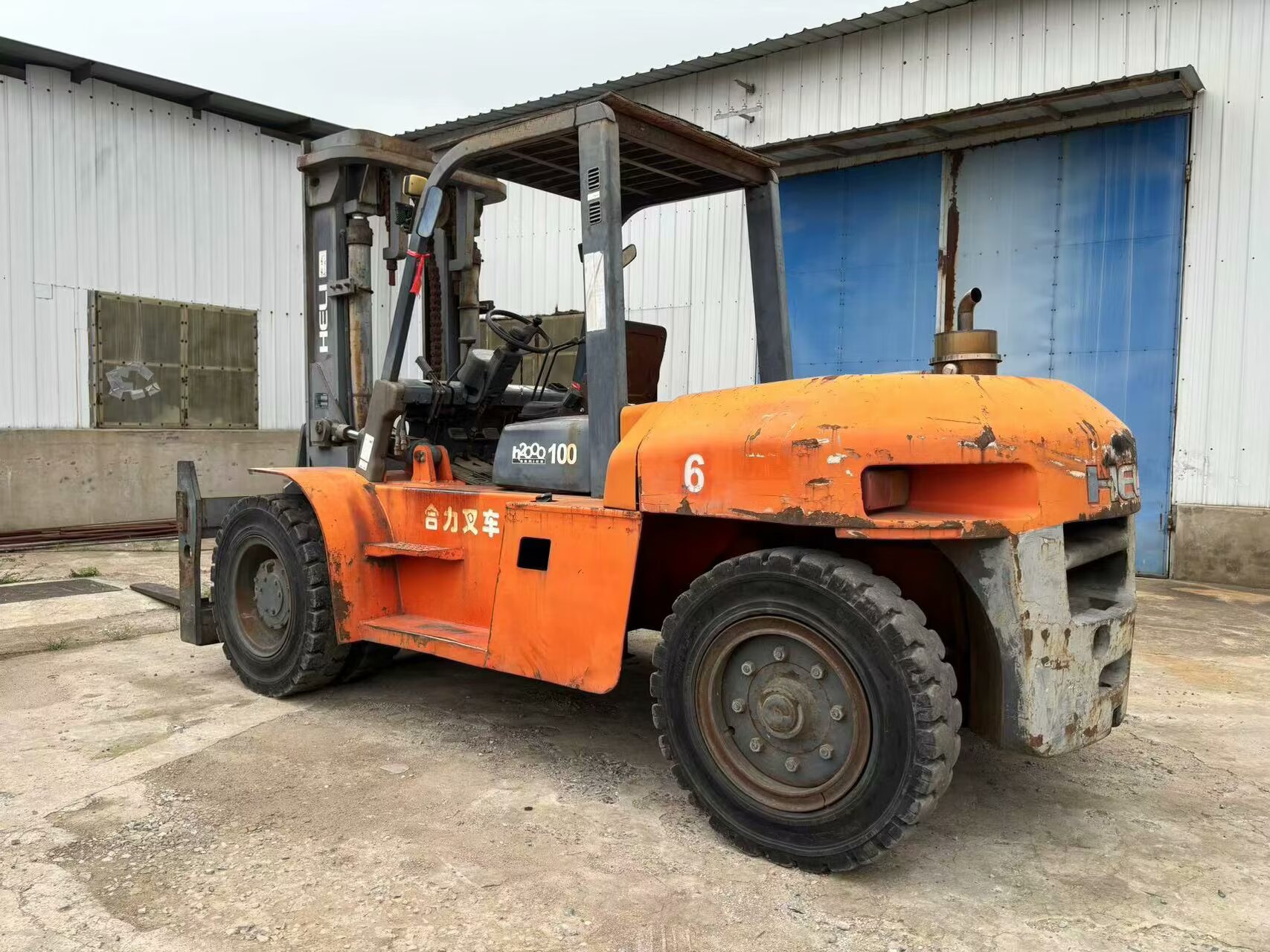

Model: HELI CPCD100 – A flagship 10-ton diesel forklift in HELI’s G/K2 heavy-duty series, engineered for high-intensity heavy-load handling. Equipped with a powerful compliant diesel engine and advanced hydraulic system, it delivers exceptional stability, load capacity, and operational efficiency, ideal for outdoor yards, ports, manufacturing plants, and construction sites requiring frequent movement of 10-ton cargoes.
- Rated Lifting Capacity: 10,000kg (600mm load center)
- Mast Configuration: 2-stage full-free wide-view mast; standard lift height 3,000mm (upgradable to 4.5m/6m 3-stage mast); mast tilt angle: forward 6°/backward 12°; high-strength steel construction for heavy-load stability

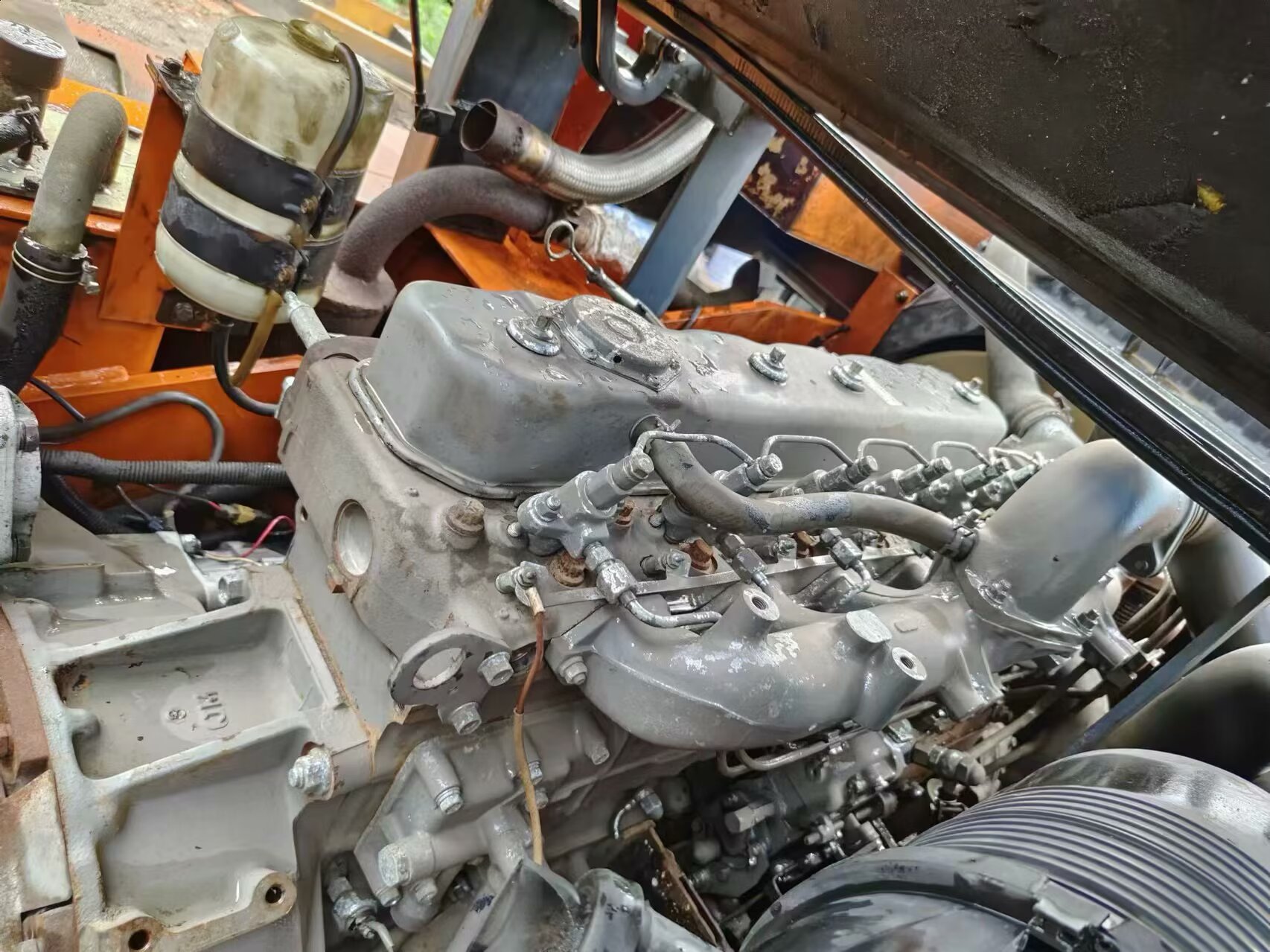

- Engine: Optional Weichai/Quanchai/Cummins diesel engine (85kW+ power output); low emission (Tier 3/Tier 4 optional), reliable cold-start performance, and fuel-efficient operation for long working hours
- Transmission: 2-speed automatic transmission; hydraulic power steering; forward/reverse max speed: 25-29km/h (empty/full load)
- Maneuverability: Minimum turning radius (outer) 4,000mm; gradeability ≥20% for sloped terrain; suitable for open yards and wide-aisle warehouses
- Overall Dimensions: Length (to fork face) 5,530mm; width 1,945mm; overhead guard height 2,230mm
- Weight & Tires: Operating weight ≈16,000kg; standard heavy-duty pneumatic tires (optional solid tires for indoor smooth floors); fork specs: 1,220mm length × 200mm width
- Hydraulic System: Load-sensing & dual-pump confluence hydraulic system; fast, stable lifting/lowering for precise heavy-load handling

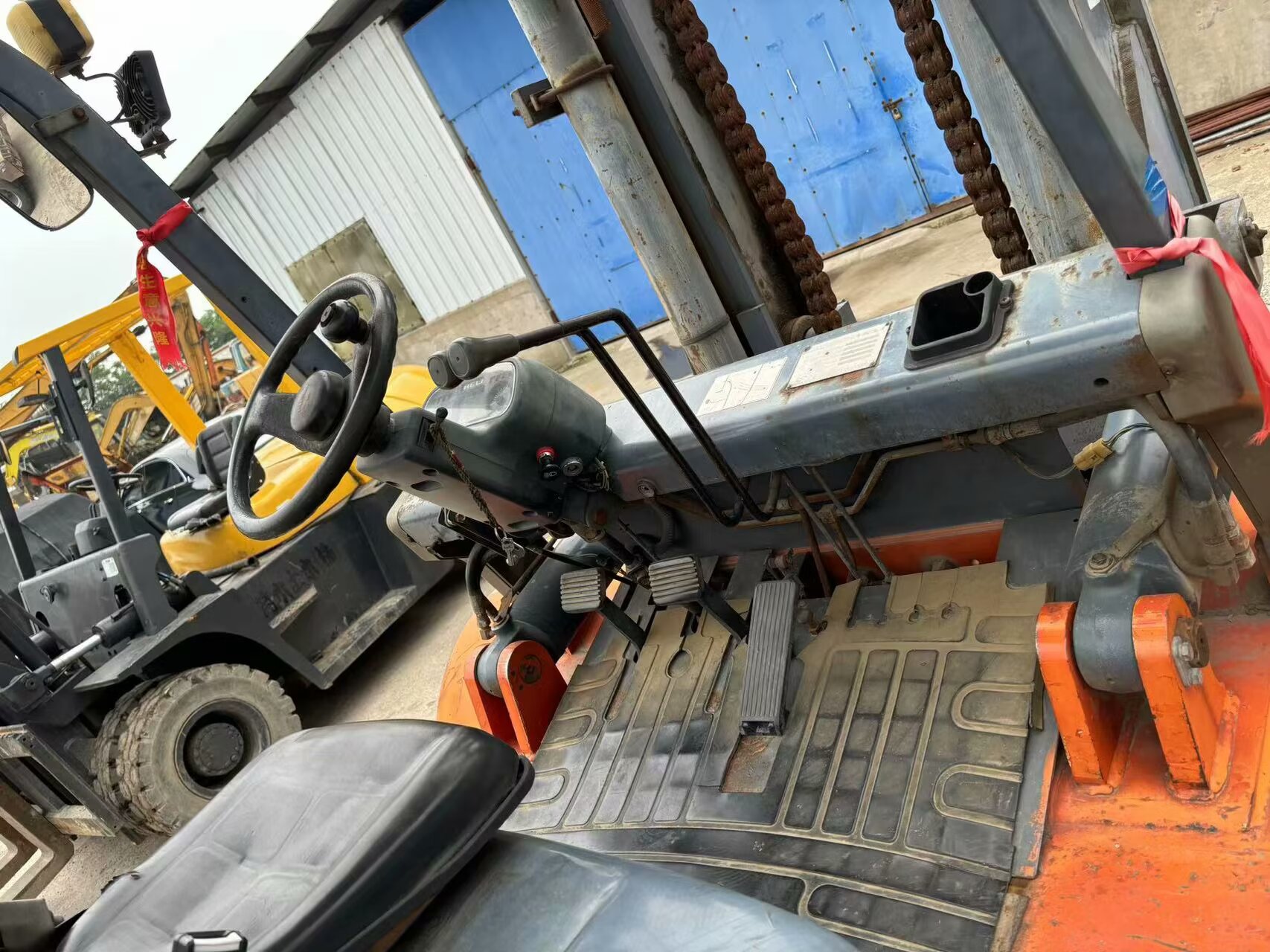

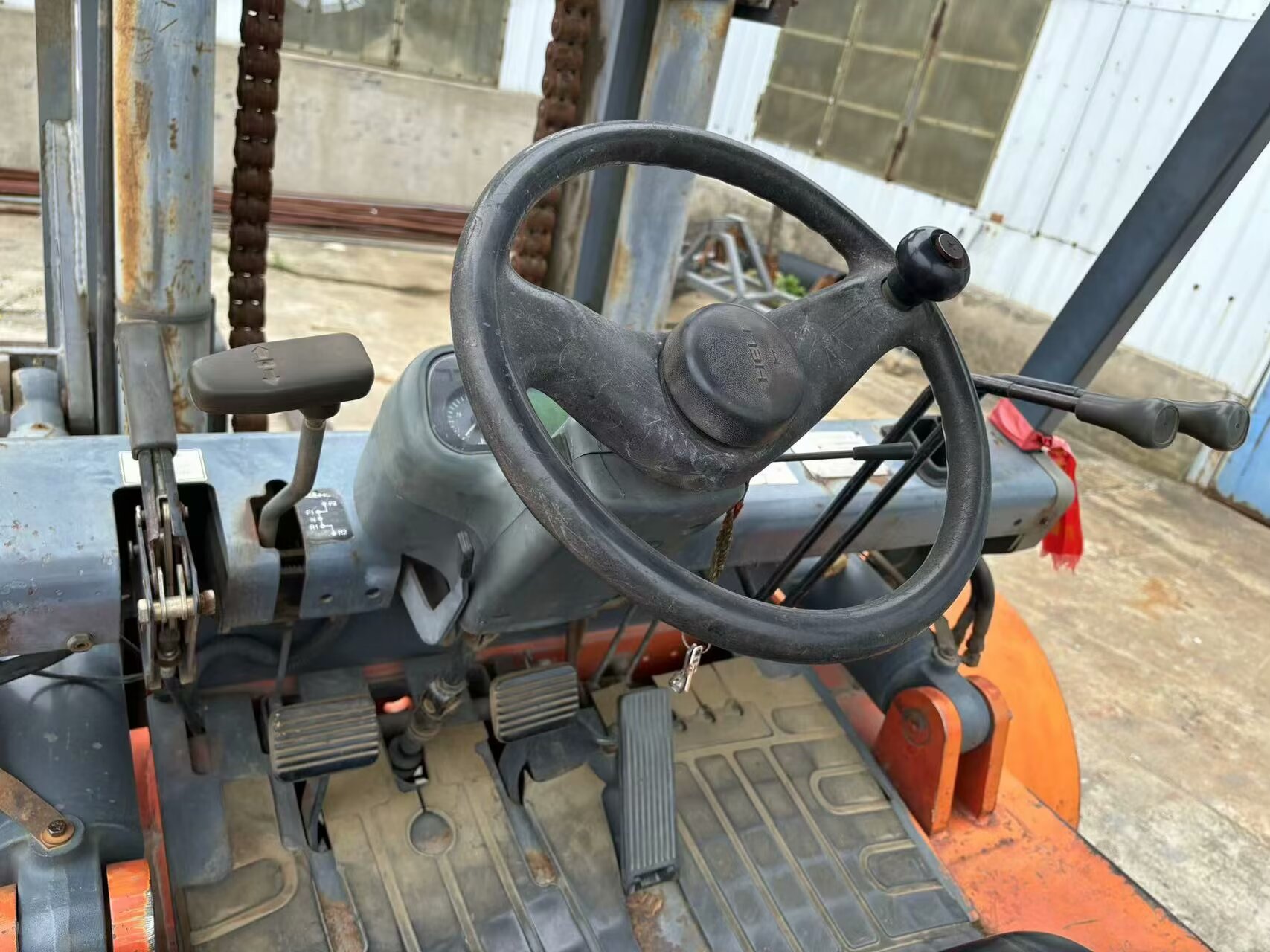

- Operator Cab: ROPS/FOPS certified; ergonomic design with adjustable seat, tilt steering wheel, and large-view overhead guard for reduced fatigue
- High-Strength Structure: Reinforced frame and mast use high-tensile steel to withstand heavy loads and harsh conditions, minimizing deformation risks during full-capacity lifts.
- Reliable Braking: Hydraulic power-assisted braking with oil cooling ensures consistent stopping performance even during continuous high-intensity operations, protecting personnel and cargo.
- Wide-View Design: Optimized mast and overhead guard layout eliminate blind spots, critical for safe high-lift and heavy-load stacking.
- Proven Engine Options: Weichai/Quanchai/Cummins engines deliver steady power for non-stop heavy-load cycles, with low vibration and noise for operator comfort.
- Efficient Hydraulics: Load-sensing & dual-pump confluence technology reduces energy loss, boosting work efficiency by 15% vs. conventional systems while cutting fuel consumption.
- Spacious Cab: Expanded legroom, adjustable sliding seat, and tilt steering wheel accommodate operators of all statures, reducing fatigue during long shifts.
- Simplified Servicing: Engine hood opens to 75° for easy access to filters and components; externalized hydraulic/transmission filters; extended service intervals for lower maintenance costs and downtime.
- Dual-Scenario Adaptability: Pneumatic tires handle outdoor uneven ground; optional solid tires suit indoor warehouses. Compatible with side shifters, clamps, and specialized forks for steel coils, containers, and heavy machinery parts.
- Global After-Sales Network: 150+ authorized service centers worldwide; common spare parts delivered within 5-10 days; 24/7 online support for troubleshooting.
- Port & Shipping Yards: Loading/unloading 10-ton containers and heavy cargoes between ships, trucks, and storage areas.
- Heavy Manufacturing: Handling steel plates, concrete blocks, and machinery components in steel mills, foundries, and construction material plants.
- Logistics Hubs: Moving heavy pallets (chemicals, auto parts, industrial equipment) in large outdoor warehouses and distribution centers.
- Construction Sites: Transporting precast concrete, steel beams, and construction machinery for infrastructure projects.
- Customization Options: Mast height upgrade (3m→6m); engine emission customization (Tier 3/Tier 4); air-conditioned cab for hot climates (UAE, Saudi Arabia); multilingual manuals (English/Arabic/Spanish).
- Inspection & Certification: Pre-shipment SGS/BV third-party inspection; Certificate of Origin (CO), CE certification, emission compliance reports, and customized customs clearance documents for target markets.
- Warranty & Training: 2-year warranty for core components (engine, transmission, mast); free on-site training in local languages covering safe operation, daily maintenance, and fault diagnosis.
- After-Sales Support: 24/7 online technical support via WhatsApp/email; consignment stock service for bulk buyers to ensure immediate access to spare parts.
The HELI CPCD100 combines HELI’s heavy-duty engineering heritage with cost-effective performance, delivering uncompromised stability for 10-ton loads, powerful engine options, and simplified maintenance. It solves heavy-load handling challenges in outdoor and industrial settings while keeping total ownership costs low. Backed by global after-sales support, it is the ideal choice for enterprises seeking a reliable, high-efficiency 10-ton diesel forklift, delivering consistent value and maximum return on investment.
For real-time quotes for new/used HELI CPCD100 forklifts, engine/mast customization, or multilingual operator training programs, contact our dedicated sales team. We offer bulk order discounts and long-term maintenance contracts for logistics companies, manufacturing enterprises, and port authorities.
