Brand: Toyota – A global leader in material handling equipment with over 70 years of forklift manufacturing expertise, renowned for Japanese precision engineering, zero-maintenance downtime records, and industry-leading safety technology. Toyota forklifts dominate the premium market segment in the Middle East, Southeast Asia, and Europe, trusted by logistics giants, manufacturing plants, and high-end warehousing enterprises for unrivaled reliability and long service life.
Model: Toyota 8F Series FD50 – A 5-ton heavy-duty counterbalanced diesel forklift, customized with a
3-stage full-free telescopic mast (4.5m maximum lift height) for high-shelf storage scenarios. Powered by a Toyota 1DZ-III diesel engine, it balances compact maneuverability and heavy-load performance, ideal for indoor/outdoor applications including high-bay warehouse stacking, factory raw material handling, and container stuffing/unstuffing.
- Rated Lifting Capacity: 5000kg (600mm load center)
- Mast Configuration: 3-stage full-free telescopic mast; maximum lift height 4500mm; lowered mast height 2250mm; mast tilt angle: forward 6°/backward 12°; visibility rate ≥90% (wide-view design for high-lift operation safety)
- Engine: Toyota 1DZ-III 4-cylinder naturally aspirated diesel engine; rated power 44kW @ 2600rpm; peak torque 186N·m @ 1600rpm; fuel consumption 6.5-7.5L/h; compliant with Tier 2/EU Stage II emission standards
- Transmission: Toyota proprietary hydrostatic transmission (HST); infinite variable speed; forward/reverse maximum speed 18km/h; no clutch operation required, reducing operator fatigue
- Maneuverability: Minimum turning radius 2650mm; gradeability (loaded) 25%, (unloaded) 35%; suitable for narrow warehouse aisles (4.0m width)
- Overall Dimensions: Length (without forks) 3700mm; width 1450mm; height (mast lowered) 2250mm; height (mast fully raised) 5800mm
- Weight & Counterweight: Unloaded weight 6200kg; cast iron counterweight weight 1800kg (optimized center of gravity design for zero tipping risk at 4.5m lift height)
- Tires: Front 8.25-15 12PR pneumatic tires; rear 6.50-10 8PR pneumatic tires (optional solid tires for indoor smooth floors)
- Hydraulic System: Toyota load-sensing hydraulic system; working pressure 18MPa; lifting speed 400mm/s (loaded), 450mm/s (unloaded); lowering speed 380mm/s (loaded)
- Operator Cab: ROPS/FOPS certified; adjustable suspension seat with lumbar support; low-noise design (≤80dB(A)); optional air conditioning for hot climate regions
- 4.5m Maximum Lift Height: Meets the needs of 12m-high warehouse racking systems (double-deep stacking), maximizing vertical storage space utilization by 30% compared to standard 3m lift height forklifts.
- Full-Free Telescopic Design: The inner mast extends independently without interfering with the outer mast, ensuring smooth lifting even at full 5-ton load, with no load loss during high-lift operations.
- Wide-View Mast Technology: The streamlined mast column design eliminates blind spots, allowing operators to clearly see the fork tip and cargo position at 4.5m height, reducing collision risks and improving stacking accuracy.

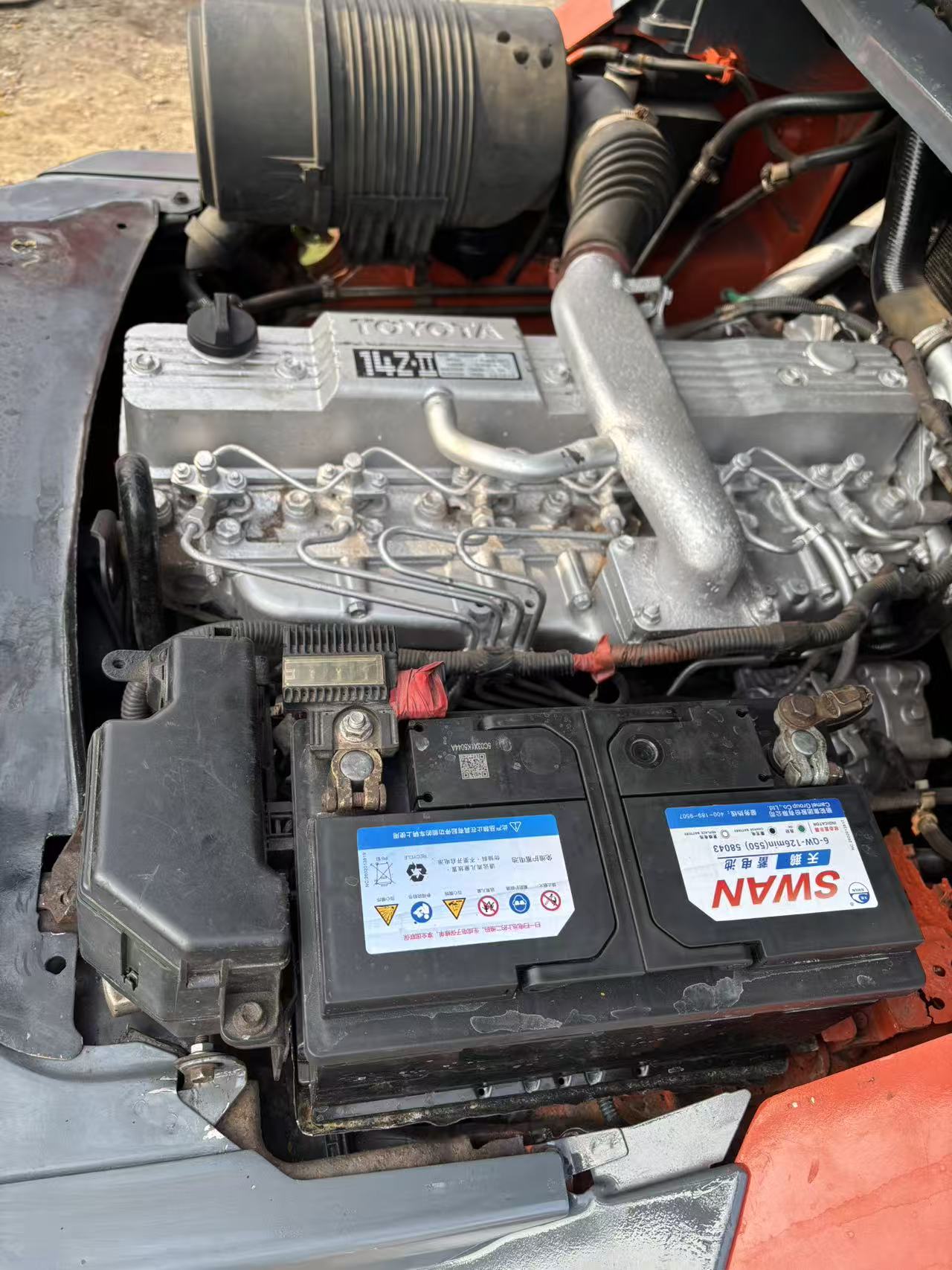

- Toyota 1DZ-III Engine: A proven workhorse with a service life of 15,000+ hours (major overhaul interval 8000 hours), featuring low vibration, low noise, and excellent cold-start performance (works normally at -15°C). The engine’s dust-proof air filter adapts to dusty workshop environments.
- Hydrostatic Transmission (HST): No gear shifting required—operators can control speed and direction with a single lever, significantly reducing operation difficulty and training costs. The transmission’s overload protection function prevents damage to the powertrain during heavy-load operations.
- Toyota System of Active Stability (SAS): Optional advanced safety system that automatically detects and corrects unstable operating conditions (e.g., excessive speed, sharp turns with load), reducing accident rates by 80% compared to non-SAS forklifts.
- Comprehensive Safety Features: Dual-circuit hydraulic brakes with emergency stop button; load weight indicator with overload alarm; rearview mirror + reverse buzzer; anti-slip cab floor; all safety components meet ISO 18878 global standards.
- Ergonomic Cab Design: The suspension seat absorbs vibration during long shifts; the centralized control layout places all levers within the operator’s reach; the low-noise environment reduces operator fatigue, improving productivity by 15% for 8-hour workdays.
- Heavy-Duty Structural Design: The main frame is welded with high-strength steel plates; the fork tines are made of heat-treated alloy steel (thickness 50mm), with a service life of 10,000+ hours under heavy use.
- Easy Maintenance: All service points (engine oil, filters, hydraulic oil) are accessible from ground level; maintenance intervals are extended to 500 hours (vs. 300 hours for competitors); Toyota’s global parts network ensures 5-10 day delivery to emerging markets.
- Fuel Efficiency: 6.5-7.5L/h fuel consumption is 20% lower than similar 5-ton forklifts, cutting annual operational costs by $1,200-$1,500 (based on 2000 working hours/year).
- High-Bay Warehousing: Stacking 5-ton pallets (e.g., cement bags, steel pipes, auto parts) on 4.5m-high racks in logistics centers and distribution hubs.
- Factory Production Lines: Feeding raw materials to high-position production equipment and transferring finished products to warehouse storage areas.
- Container Operations: Stuffing/unstuffing 5-ton cargoes in 20ft/40ft containers, with the 4.5m mast enabling access to the top layer of container goods.
- Outdoor Yard Handling: Transporting heavy materials in construction sites and port yards, with the engine’s dust-proof and heat-resistant design adapting to harsh outdoor environments.
- Customization Options: 3-stage mast height adjustment (3m/4.5m/5m); solid tire replacement for indoor use; air-conditioned cab for hot climates (UAE, Saudi Arabia); multilingual operation manuals (English/Arabic/Bahasa Indonesia).
- Inspection & Certification: Pre-shipment SGS/BV third-party inspection; provision of Certificate of Origin (CO), CE certification, emission compliance reports, and customs clearance documents tailored to target markets.
- Warranty & Training: 2-year global warranty for core components (engine, transmission, mast); free on-site operator training (covering safety operation, daily maintenance, fault diagnosis) in local languages.
- After-Sales Support: Toyota’s 200+ authorized service centers worldwide; 24/7 online technical support via WhatsApp/email; consignment stock service for bulk buyers to ensure immediate access to spare parts.
The Toyota 8F FD50 combines premium Japanese engineering with practical high-shelf storage performance. Its 3-stage 4.5m mast solves the pain point of high-load lifting in narrow warehouses, while the Toyota engine and HST transmission ensure reliable, low-cost operation. Backed by Toyota’s global service network, this forklift is the ideal choice for enterprises seeking a high-performance, long-lasting 5-ton material handling solution—delivering maximum return on investment with minimal downtime.
For real-time quotes for new/used Toyota 8F FD50 forklifts, mast height customization, or multilingual operator training programs, contact our dedicated sales team. We offer bulk order discounts and long-term maintenance contracts for logistics companies and manufacturing enterprises.
