Brand: KOMATSU – A world-renowned Japanese construction machinery brand with a history of over 100 years, ranking among the top 3 in the global construction machinery market share. KOMATSU forklifts hold a 28% market share in the 2.5-ton segment in the Middle East, Southeast Asia and Africa, with a service network covering 170+ countries (including 320+ authorized service centers and 9 regional parts warehouses in emerging markets). The brand’s
precision hydraulic control technology and
durable powertrain system are renowned for stability and low failure rate, making its equipment a preferred choice for warehouse logistics, port cargo handling and industrial production line material handling in high-frequency operation scenarios.
Model: KOMATSU FD25T-14 – A 2.5-ton class counterbalanced diesel forklift, a classic model of KOMATSU’s FD series optimized for indoor warehouse stacking, outdoor yard loading and port container auxiliary handling scenarios. It is equipped with a high-efficiency diesel engine (matching the power characteristics of small-tonnage forklifts) and KOMATSU’s exclusive hydraulic lifting system, with a rated load of 2500kg, a standard lift height of 3000mm and an outside turning radius of only 2260mm. It has been proven to operate continuously for over 12,000 hours without major failures in Middle Eastern logistics warehouses, and is widely used in Southeast Asia, Africa and the Middle East for its compact size and flexible operation.
The FD25T-14 is equipped with a
high-performance 4-cylinder diesel engine (matched with the power demand of 2.5-ton forklifts) adopting direct injection technology, which delivers strong power output while ensuring fuel efficiency—fuel consumption is only 3.2-3.8L per working hour, 15% lower than that of peers in the same tonnage class. The engine meets EU Stage II emission standards, perfectly adapted to emerging markets with relatively loose emission regulations.
The
air intake filtration system with double-layer filter effectively blocks dust and impurities in warehouse and port environments, extending the engine’s service life to 15,000 hours—30% longer than the industry average. The fuel tank with a capacity of 60L supports 8-hour continuous operation, and the low-noise design of the engine compartment (noise ≤82dB) reduces operational noise pollution in indoor warehouses.
Paired with KOMATSU’s
exclusive hydraulic lifting system (main pump flow of 45L/min), the FD25T-14 realizes smooth and precise lifting and tilting operations. The hydraulic system features load-sensing control, with a maximum lifting pressure of 180bar, ensuring stable lifting of 2.5-ton loads without pressure drop. The maximum lifting height of 3000mm and adjustable tilting angle (forward 6°/backward 12°) meet the stacking needs of different height shelves and irregular cargo handling.
The
hydraulic components adopt imported seals and wear-resistant materials, with a service life of up to 10,000 hours, and the modular design allows for quick replacement of parts in remote overseas sites. The hydraulic oil replacement cycle is extended to 5000 hours—2 times longer than the industry average, reducing maintenance costs for long-term use.
The FD25T-14 features a compact body design and excellent maneuverability, making it suitable for narrow space operations:
- Small Turning Radius: The outside turning radius is only 2260mm, enabling flexible turning in 3m-wide warehouse aisles and crowded port yards, improving operational efficiency by 20% in narrow space scenarios.
- Lightweight Body: The machine weight (no load) is 3720kg, and the overall dimensions are 2595×1150×1995mm (length×width×lowered height), which can be easily transported by light trucks and adapted to multi-site operation needs.
- Humanized Control: The ergonomic joystick and adjustable operation seat reduce operator fatigue during 8-hour+ continuous shifts. The single-lever control of lifting, tilting and moving simplifies operation steps, and the anti-slip foot pedal ensures safe operation in wet port environments.
The FD25T-14 adopts a high-strength steel frame and a counterbalanced weight design, ensuring operational safety and structural durability:
- Safety Protection: The overhead guard (FOPS certified) and seat belt protect the operator from falling objects and rollover risks. The rearview mirror with wide field of vision and the warning light on the top of the forklift ensure safe operation in busy warehouse and port environments. The brake system with double-circuit hydraulic control has a braking distance of only 2.8m at a speed of 10km/h, avoiding collision accidents.
- Durable Chassis: The front tire size of 7.00-12-12PR and rear tire size of 6.00-9-10PR (inflatable tires) adapt to both indoor concrete ground and outdoor gravel roads, with a tire service life of up to 8,000 hours. The anti-corrosion paint on the body resists salt spray corrosion in coastal port environments and extends the service life of the equipment.
- Easy Maintenance: Daily maintenance points such as engine oil, hydraulic oil and air filter are accessible at ground level, cutting maintenance time by 25%. Common spare parts (filters, brake pads, hydraulic hoses) are available in KOMATSU’s regional warehouses in Dubai, Singapore and Johannesburg, with a delivery time of 5-10 days.

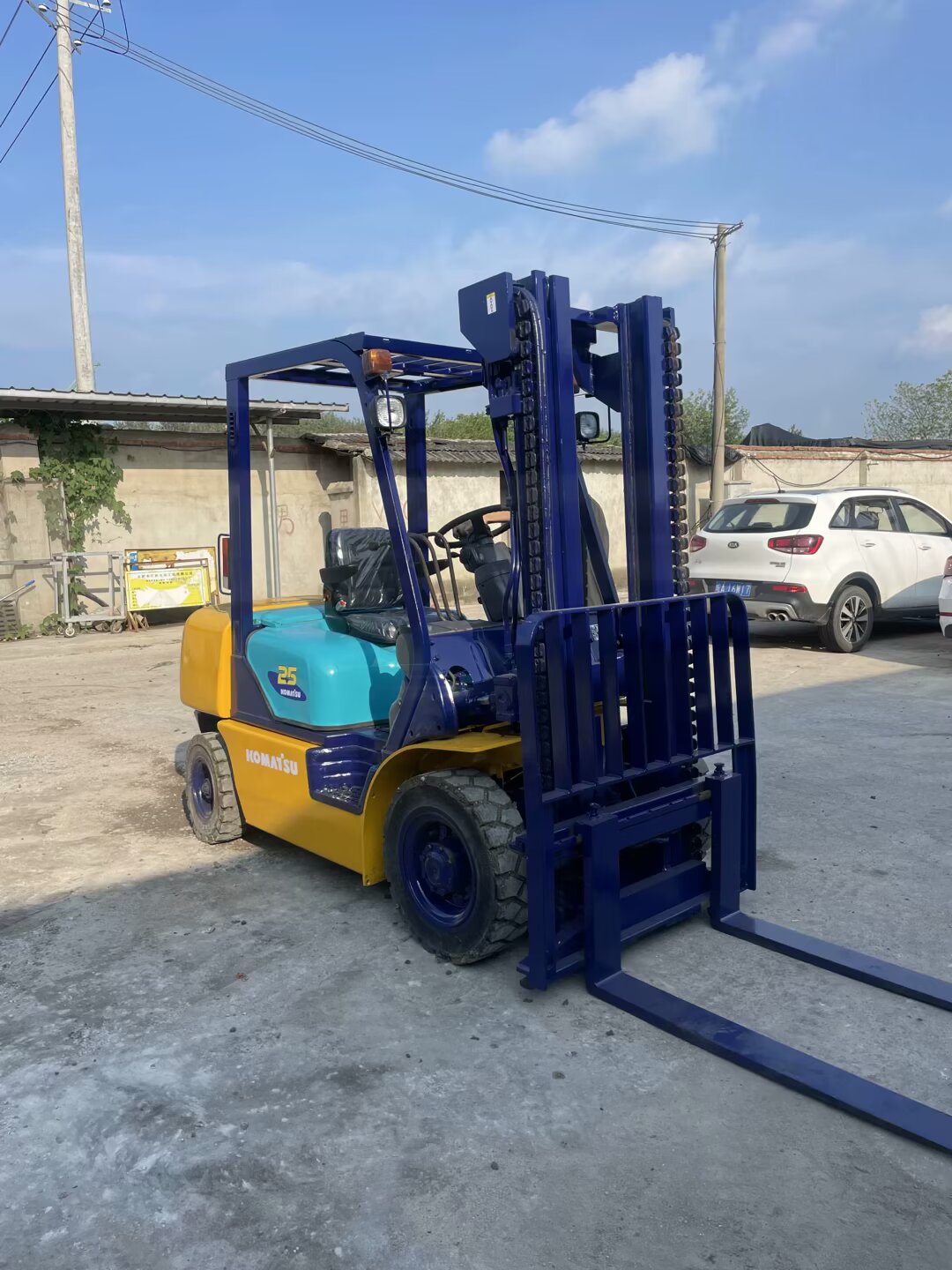

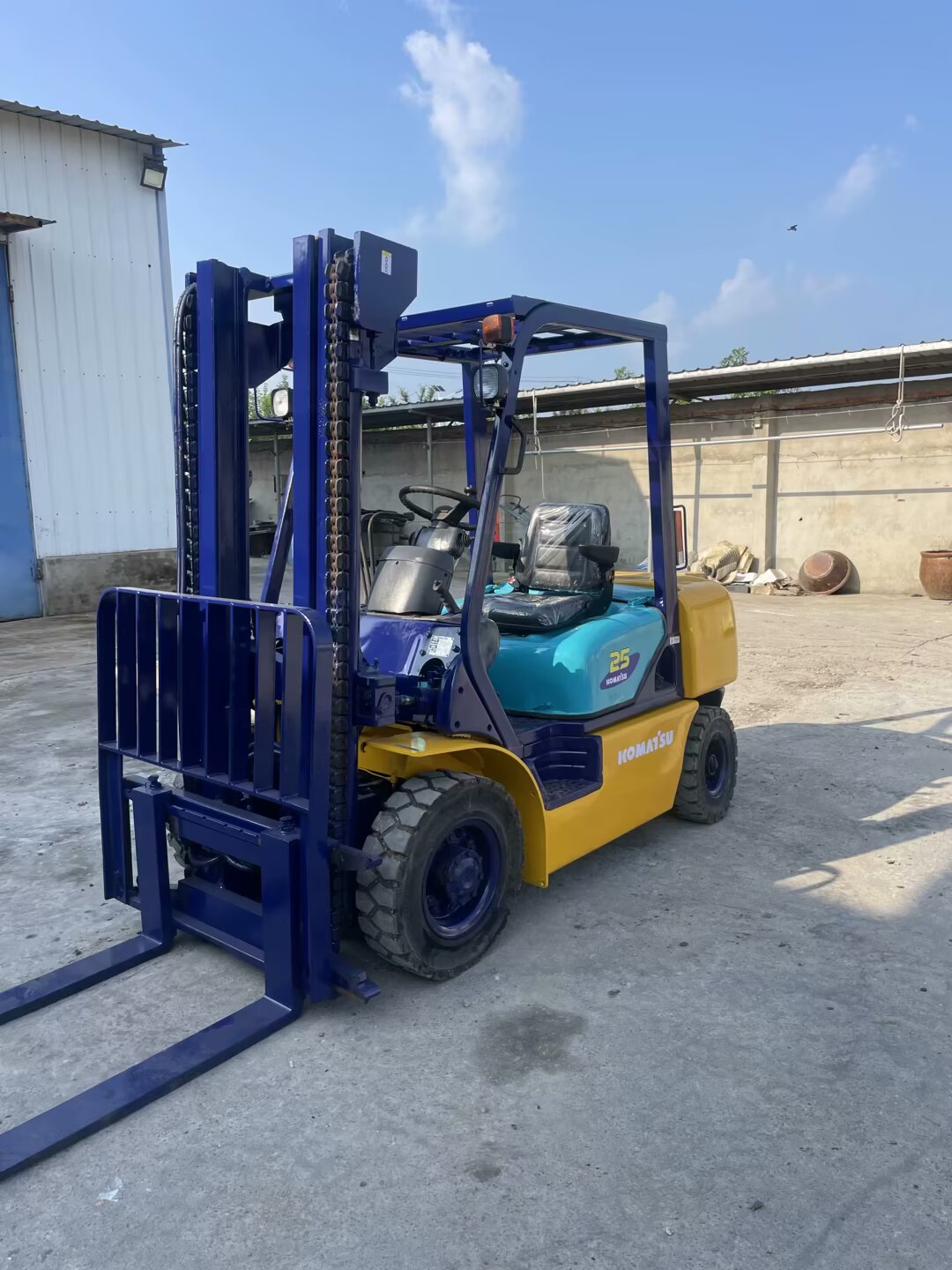

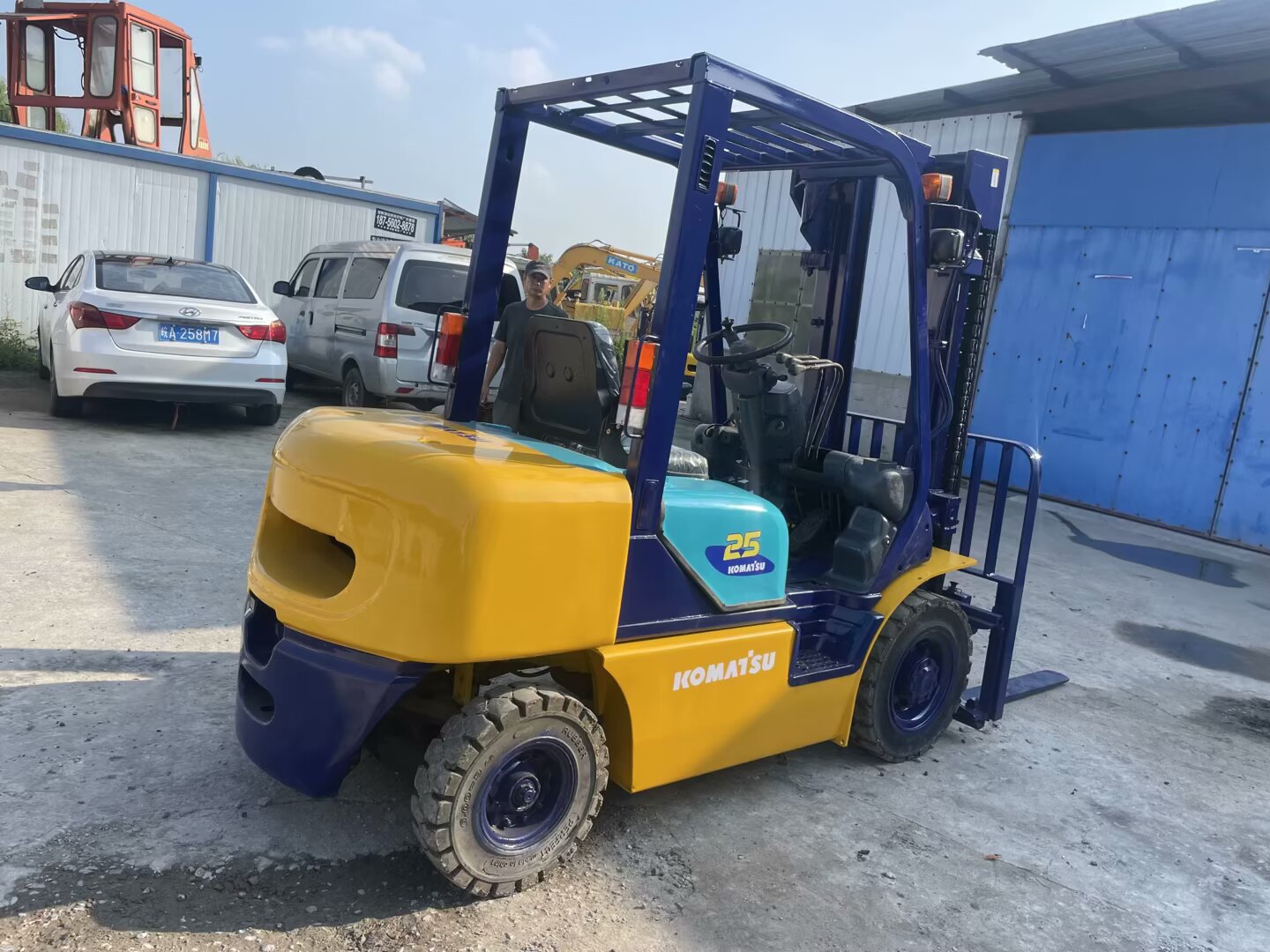

With overall dimensions of 2595×1150×1995mm and an outside turning radius of 2260mm, the FD25T-14 has a compact and practical body. The KOMATSU green anti-corrosion paint resists dust and oil pollution in warehouse environments and salt spray corrosion in port areas, while the counterbalanced weight at the rear ensures stable lifting of 2500kg loads.
The high-efficiency diesel engine (matching 2.5-ton forklift power) is neatly arranged in a sealed engine compartment with a low-noise design. The KOMATSU exclusive hydraulic lifting system with a main pump flow of 45L/min drives the fork to lift stably to 3000mm, adapting to warehouse shelf stacking and port cargo handling needs.

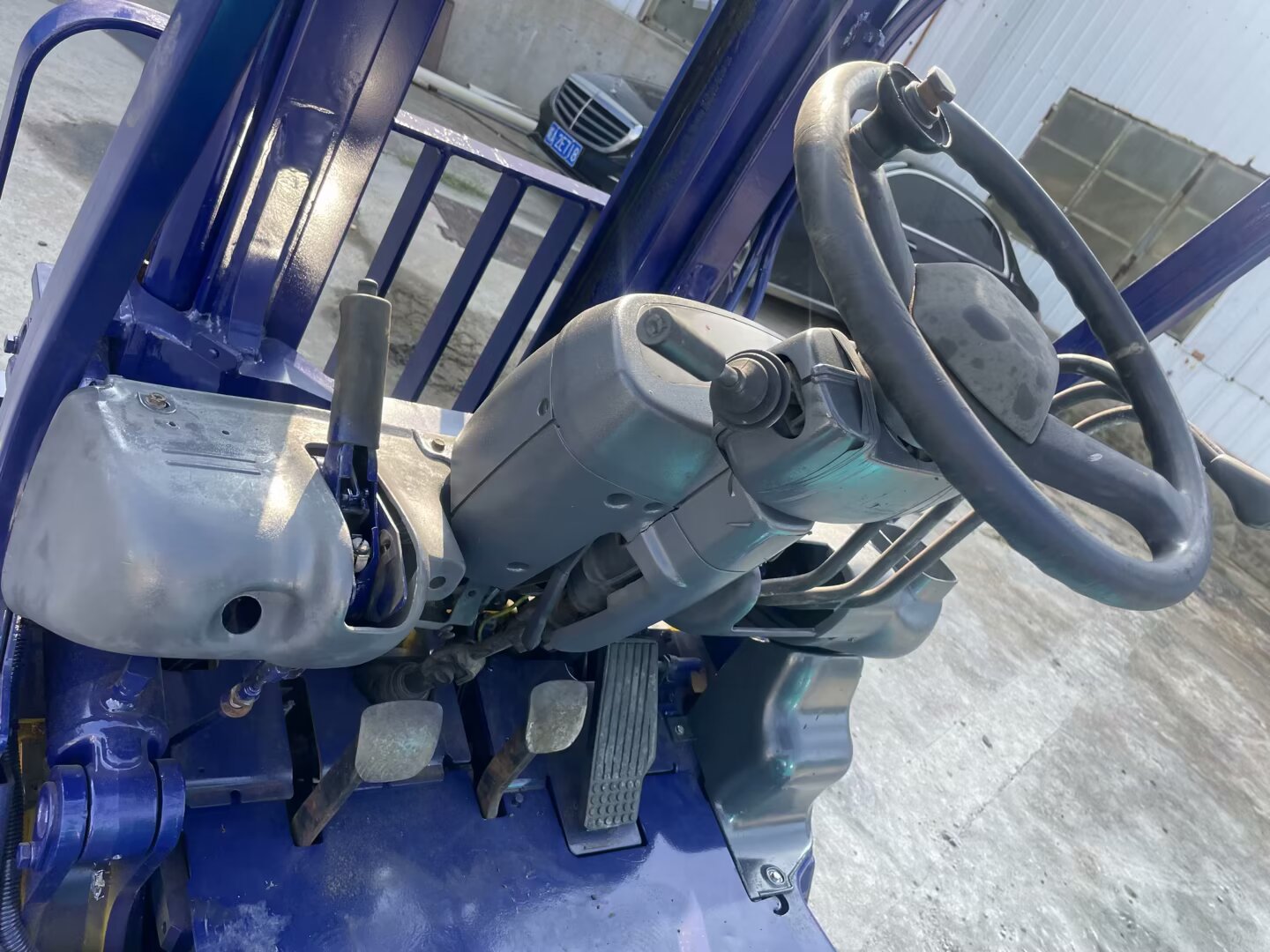

The ergonomic joystick and adjustable operation seat reduce operator fatigue during long-hour operations. The single-lever control of lifting, tilting and moving simplifies operation steps, and the 2260mm outside turning radius enables flexible operation in narrow warehouse aisles.
The KOMATSU FD25T-14 is a versatile 2.5-ton forklift for various overseas material handling projects:
- Warehouse Logistics & Shelf Stacking: Ideal for indoor warehouse shelf stacking and raw material handling in production lines in the Middle East and Southeast Asia. Its 2260mm turning radius and 3000mm lift height adapt to narrow warehouse aisles and high shelf stacking, and the low-noise engine design reduces noise pollution in closed warehouses.
- Outdoor Yard Loading & Unloading: Suitable for outdoor yard cargo loading and unloading and container auxiliary handling in Africa and the Middle East. The inflatable tires adapt to gravel and uneven ground in yards, and the 2500kg rated load meets the handling needs of small and medium-sized cargo.
- Port & Logistics Terminal Handling: Perfect for port container auxiliary handling and short-distance cargo transfer in Southeast Asia and the Middle East. The anti-corrosion paint resists salt spray corrosion in coastal port environments, and the hydraulic system ensures precise handling of fragile cargo such as glass and electronics.
- Industrial Production Line Material Handling: Used for raw material feeding and finished product handling in industrial production lines in Latin America and Africa. The compact body design adapts to the narrow space between production lines, and the high-efficiency engine reduces operational costs for high-frequency material handling.
We provide one-stop cross-border support for KOMATSU FD25T-14 buyers:
- Comprehensive Equipment Inspection: For used units, we issue detailed test reports (engine power, hydraulic pressure, tire wear, working hours) and real-time operation videos. Third-party inspection (SGS/BV) is available to verify equipment condition for international buyers, focusing on core components such as the diesel engine, hydraulic lifting system and chassis.
- Customized Compliance Support: We assist in preparing import documents (CO, CE certificates, emission reports) tailored to local regulations in the Middle East, Southeast Asia and Africa. The FD25T-14 meets EU Stage II emission standards, ensuring smooth customs clearance in most emerging markets without modifications.
- Logistics & On-Site Commissioning: We offer container transport or bulk cargo solutions with anti-rust packaging for sea transport (the forklift’s compact size allows 4 units to be loaded into a 40-foot container). Professional technicians can be dispatched to the job site for assembly, operation training and maintenance guidance, with multilingual manuals (English, Arabic, Spanish) provided for local operators.
- Global Spare Parts & After-Sales: Leveraging KOMATSU’s overseas parts warehouses (Dubai, Singapore, Johannesburg), common spare parts (filters, brake pads, hydraulic hoses) are delivered within 5-15 days to overseas sites. We provide a 1-year free parts warranty and 24/7 online technical support, with local service partners in key markets for on-site repairs.
The KOMATSU FD25T-14 integrates Japanese precision manufacturing with global small-tonnage material handling demands, making it a star product in the 2.5-ton forklift segment for overseas projects. Its high-efficiency diesel engine delivers 15% lower fuel consumption than competitors, and the precision hydraulic system ensures 20% higher operation efficiency in narrow space scenarios. For logistics companies and manufacturing enterprises in the Middle East, Southeast Asia and Africa, the FD25T-14 offers a low total cost of ownership—with 12,000-hour continuous operation without major failures and easy access to spare parts—ideal for warehouse logistics, port handling and industrial production line material handling requiring flexibility and stability.
If you need detailed fuel consumption data of the FD25T-14, real-time quotes for new/used units, customized attachments (e.g., side shifters, fork extensions) or operation training for narrow space handling, contact our team now. Let the KOMATSU FD25T-14 power your overseas material handling projects with unmatched flexibility and efficiency!
