Brand: VOLVO (Volvo) – A world-renowned heavy machinery brand celebrated for its rigorous quality control, advanced environmental technology, and global after-sales service system. Its construction equipment is trusted in more than 180 countries and regions, especially excelling in stability and durability in harsh working conditions such as mines and construction sites. It has a strong market presence in Europe, Southeast Asia, Africa, and South America, providing efficient and reliable equipment support and localized service for overseas engineering teams.
Model: VOLVO L105 – A medium-sized wheel loader specially customized for the Chinese market and later popular in the global medium-tonnage market. Positioned in the 5 - 8 - ton class, it integrates high efficiency, fuel economy, and durability. With its flexible operation and strong adaptability, it has become a preferred choice for overseas users engaged in loading and unloading of bulk materials, mine operations, and municipal engineering, delivering excellent operational benefits for various medium-scale projects.
It is equipped with Volvo's self-developed D7D 6-cylinder turbocharged diesel engine with a displacement of 7.15L, which meets the Tier II emission standards. The engine outputs a rated power of 165kW at 1500r/min and a maximum torque of 1023Nm at the same speed, enabling the loader to generate a strong digging force of 173kN, easily handling heavy materials such as coal, gravel, and ore. It adopts multiple fuel-saving technologies: the automatically activated cooling fan only works when cooling is needed; the unique eco-throttle pedal generates reverse thrust when overused to remind the operator to reduce the throttle; and the E-ECU electronic control unit precisely controls fuel injection according to working conditions. These technologies together achieve remarkable fuel efficiency, which is much lower than that of similar models in the market. In addition, the three-stage air filter can filter 70% of impurities in the first stage, effectively protecting the engine and extending its service life.
The loader is matched with Volvo's HTE203 gearbox and unique Automatic Power Shift (APS) system. It can automatically select the appropriate gear according to the operation load, simplifying the operation process and allowing the operator to focus on the work at hand. It has four forward and reverse gears, with the maximum forward and reverse speed reaching 38.4km/h, enabling rapid transfer between different work areas. The ±13° rear axle swing angle and 430mm minimum ground clearance allow the equipment to flexibly pass through uneven terrain such as hillsides and construction waste piles. The large - spacing hinge bearings at the articulated center can withstand large lateral and longitudinal pressures, and the heavy - duty LF701/LR701 front and rear axles are specially designed to cope with the impact of harsh working conditions, greatly reducing the failure risk.
The loader is equipped with a high - performance dual - pump hydraulic system. The maximum flow rate of the working hydraulic system can reach 220L/min, and the maximum working pressure of the hydraulic circuit is 21MPa, ensuring the smooth and fast operation of the boom and bucket. The Z - shaped connecting rod made of high - strength steel provides high digging torque, and the ORFS O - ring flat seal hydraulic joints effectively prevent oil leakage under high pressure and vibration conditions. It also has intelligent operation functions: after activation, the automatic bucket leveling and boom spreading functions can accurately stop the working device at a preset position, shortening the operation cycle. The overall operation cycle is only 10.4 seconds, which significantly improves the efficiency of continuous loading operations.
The cab of the loader meets ROPS/FOPS safety standards, and the damping device between the cab and the frame reduces vibration during operation. The 78dB(A) low-noise environment, 9m³/min ventilation system, and optional 4.8kW air - conditioning system create a comfortable operating experience for long - time work. The large I - ECU monitor in the cab can display the equipment operation status in real time, and the Contronic system can monitor the equipment performance continuously. When a fault occurs, it can send a diagnostic prompt in time. The service points are centrally arranged, and the engine compartment is easy to access. The wires are neatly arranged in the pipeline and marked with colors and numbers, which facilitates overseas operators to carry out daily inspection and maintenance work efficiently.

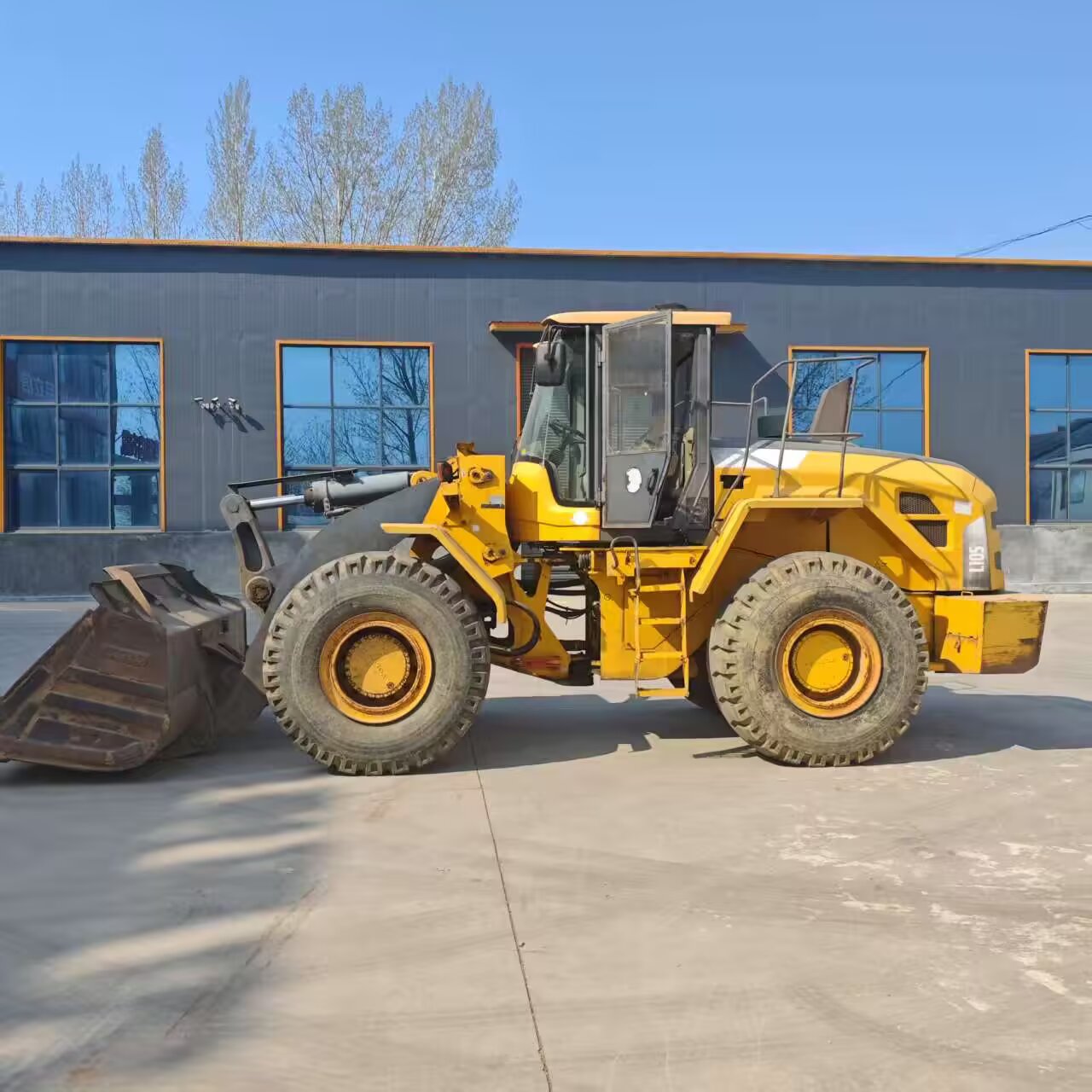

The loader has an overall dimension of 8510×2680×3380mm and an operating weight of 16800 - 18100kg. The classic Volvo orange exterior is painted with anti - corrosion and anti - rust coatings, which can resist the erosion of dust and rain in outdoor operations. The compact body design and the reasonable layout of the working device not only ensure the operation flexibility but also highlight the tough industrial style of heavy machinery.

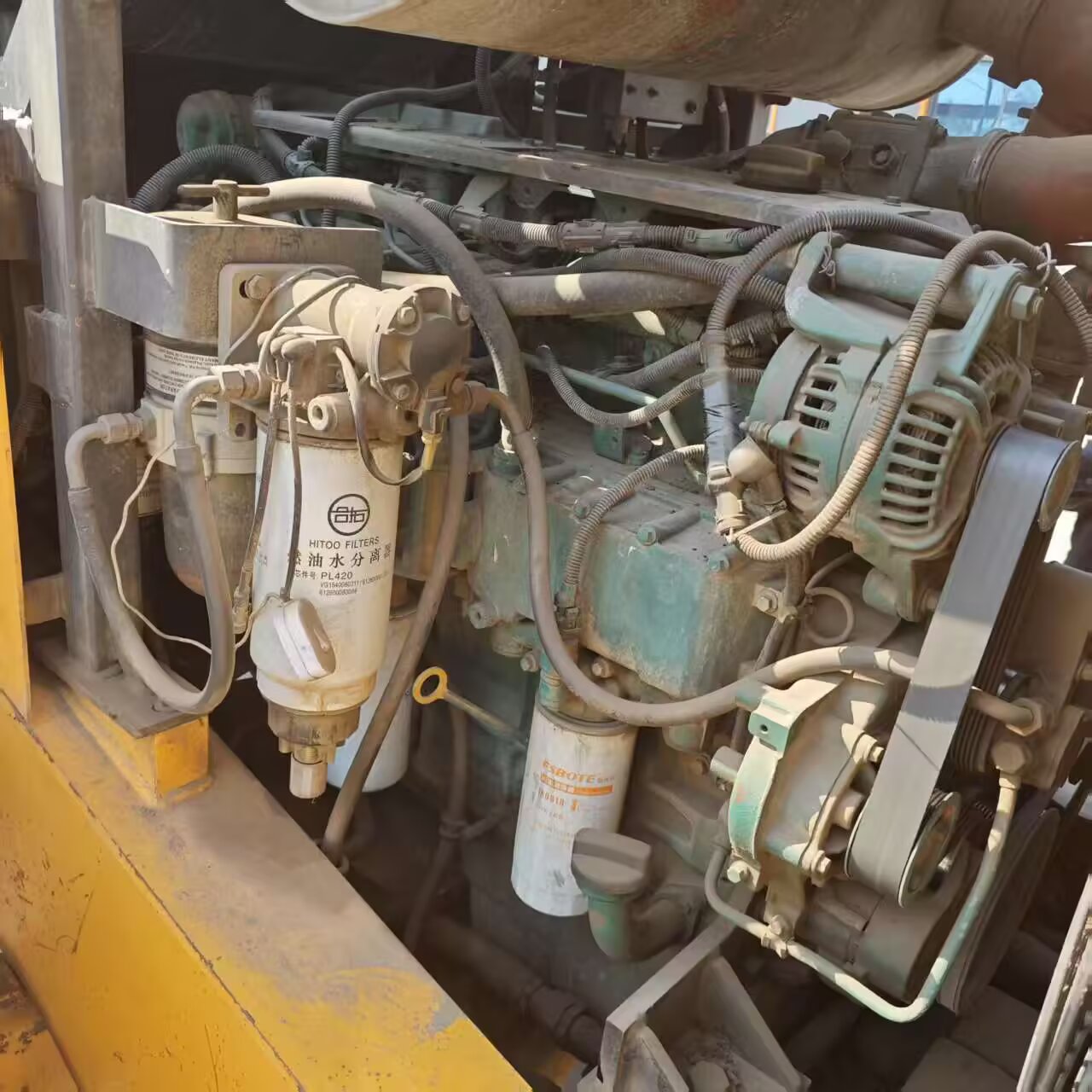

The D7D engine and HTE203 gearbox are perfectly matched. The engine compartment has a scientific heat dissipation layout, and the three - stage air filter is installed in an easy - to - replace position. The 270L large - capacity fuel tank reduces the frequency of refueling during continuous operations. The automatic power shift system realizes intelligent gear shifting, which reduces the operation difficulty and improves the operation efficiency.

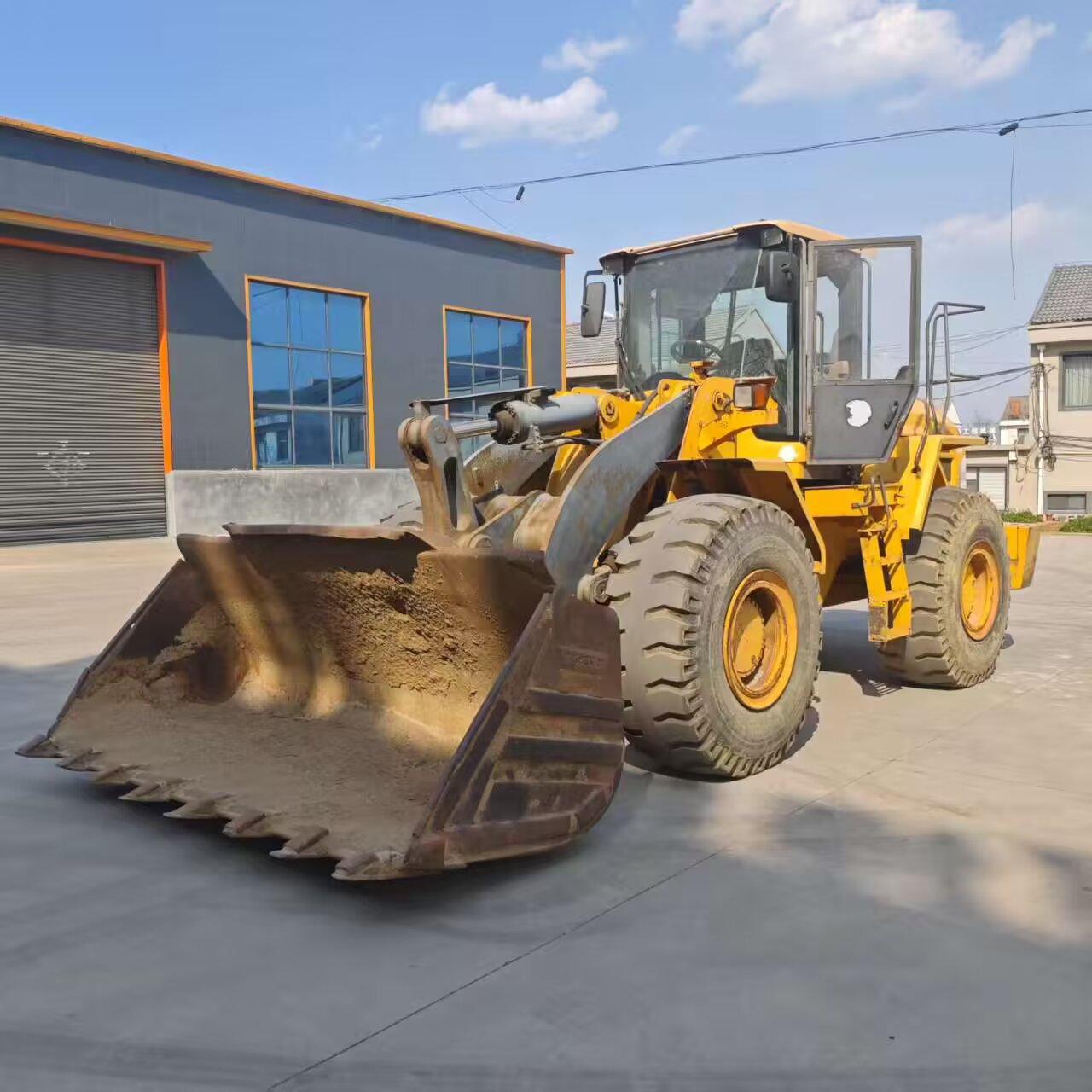

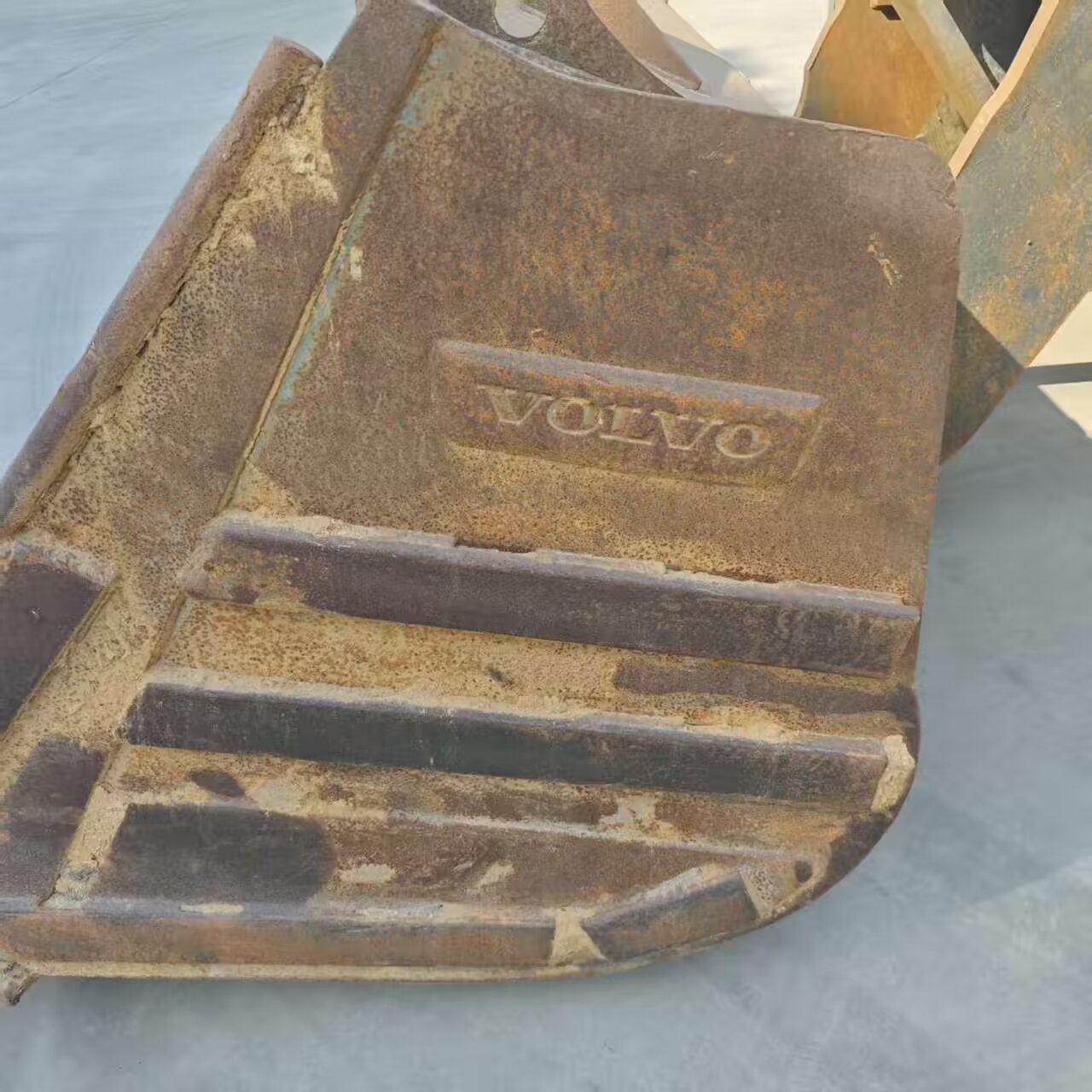

The bucket capacity ranges from 2.3m³ to 4.5m³, and it can be equipped with different types of buckets according to different working conditions. The boom is equipped with two 160mm diameter oil cylinders, and the bucket is driven by a 190mm diameter oil cylinder, which provides sufficient lifting and digging power. The hydraulic pipelines are neatly arranged and have good sealing performance, which can adapt to the harsh working environment such as mines and construction sites.

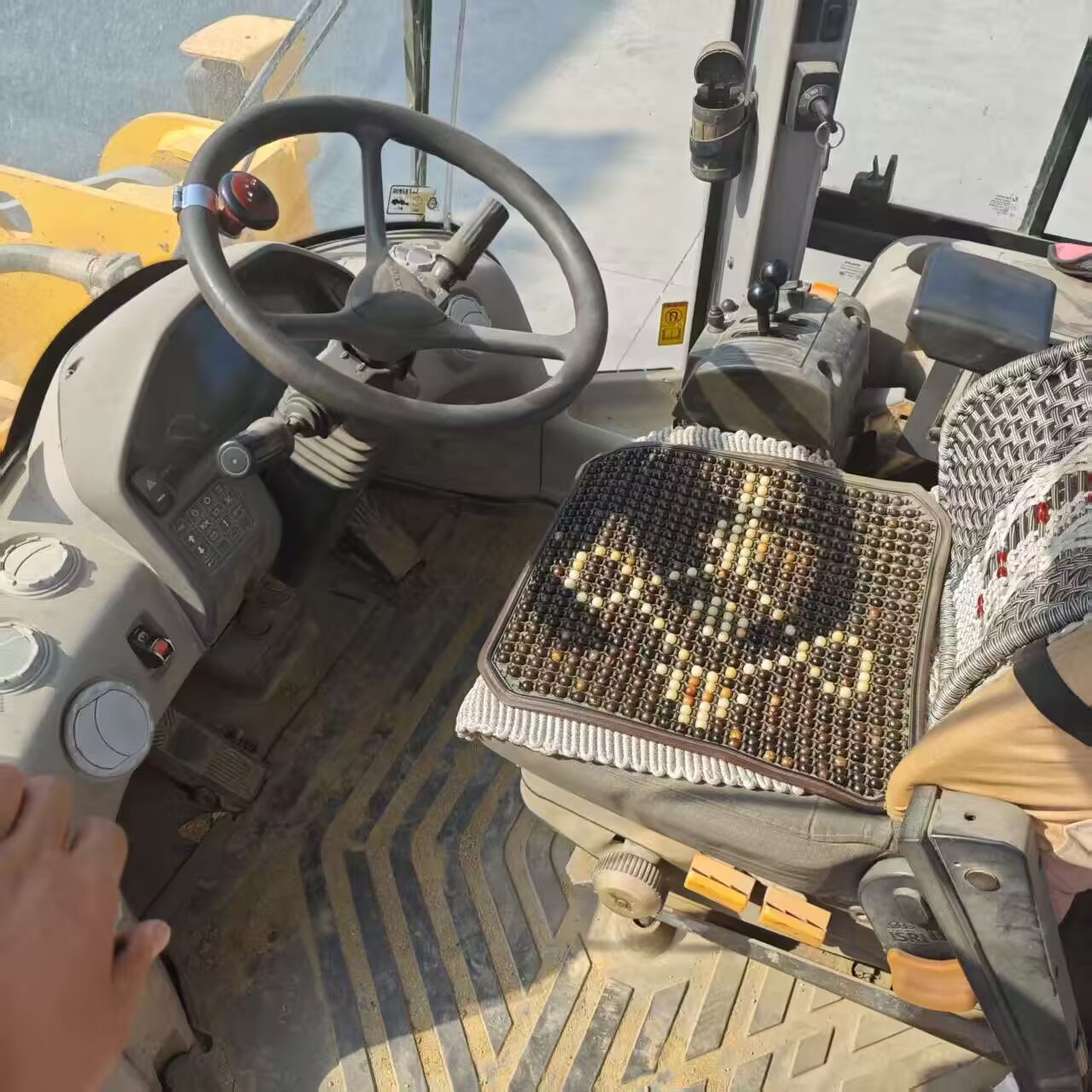

The cab is equipped with an ergonomic seat and easy - to - reach hydraulic joysticks. The large I - ECU display screen can clearly show the engine status, hydraulic pressure, and other data. The large - area glass windows and reasonably arranged rearview mirrors provide a wide field of vision, reducing operational blind spots. The 24V electrical system and 850A cold - start capacity ensure that the equipment can start normally in low - temperature environments.
The VOLVO L105, with its balanced performance, is suitable for a variety of overseas medium - scale engineering scenarios:
- Mine & Quarry Operations: It is competent for surface soil stripping in small and medium - sized mines, loading of ore and crushed stone, and auxiliary transportation of mining waste. Its strong digging force and wear - resistant working device can cope with the impact of hard materials, and the stable power system can adapt to long - time continuous operations.
- Construction Site Material Handling: In residential and commercial building construction sites, it is used for loading and unloading construction materials such as cement, sand, and steel bars, as well as leveling the foundation and backfilling the foundation pit. Its fast driving speed can improve the transfer efficiency between multiple construction areas.
- Port & Warehouse Loading and Unloading: It is suitable for loading and unloading bulk goods such as grain, coal, and chemical raw materials in ports, freight yards, and large warehouses. The efficient operation cycle and adjustable bucket can match the loading needs of different transport vehicles.
- Municipal & Road Engineering: It is used for cleaning road construction waste, mixing and paving asphalt materials, and loading and unloading road maintenance materials. The low ground pressure and flexible turning performance can reduce the damage to the existing road surface and adapt to the narrow operation space in urban areas.
We provide comprehensive one - stop services for overseas users to solve the worries of cross - border procurement:
- Comprehensive Equipment Inspection Reports: Provide detailed test reports covering engine power, digging force, hydraulic system pressure, and gearbox operation status. For used equipment, we also attach complete maintenance records and component replacement records. At the same time, we provide real - time operation videos and multi - angle pictures to let you fully know the equipment condition.
- Customized Customs Clearance Solutions: Our professional team is familiar with the import policies of various countries and regions. We can assist in preparing certificates of origin, emission compliance reports, and commercial invoices, and provide targeted guidance for tariff calculation and compliance certification to ensure the smooth customs clearance of equipment in the target market.
- Reliable Logistics & Commissioning Services: According to the user's needs, we provide container shipping or bulk shipping options, and use anti - rust and anti - collision packaging to protect the equipment during transportation. After the equipment arrives, we can arrange professional technicians to carry out on - site assembly, commissioning, and operator training to ensure that the equipment can be put into use quickly.
- Global Spare Parts & After - Sales Support: Relying on Volvo's global parts supply network, common spare parts such as air filters, bucket teeth, and hydraulic hoses can be delivered to overseas sites quickly. We provide 24 - hour online technical support, and cooperate with local service providers in key markets to provide on - site maintenance services, minimizing equipment downtime.
The VOLVO L105 is a high - quality model that combines Volvo's decades of engineering machinery manufacturing experience. It solves the core pain points of overseas users such as high operation cost, harsh working conditions, and difficult maintenance. Its fuel - saving engine reduces long - term operation expenditure; the sturdy structure and reliable components adapt to various complex environments; and the humanized design improves operation efficiency and operator comfort. Backed by Volvo's global brand reputation and perfect after - sales network, it is a low - risk investment for overseas users in the medium - tonnage loader market.
If you want to obtain detailed parameters such as unloading height and minimum turning radius, real - time equipment operation videos, customized quotes for new and used machines, or spare parts procurement channels, please contact our team immediately. Let the VOLVO L105 empower your overseas mine operations, construction projects, and material handling tasks!
