TCM FD50 Diesel Counterbalance Forklift

Brand & Model Positioning

Brand: TCMTCM is a world‑renowned Japanese material‑handling equipment manufacturer with decades‑long professional experience in forklift development and production. It gains wide acceptance across Asia, Africa, Middle East and Latin‑American markets for solid build quality, stable hydraulic performance and outstanding durability. Global spare‑parts supply channels guarantee convenient component replacement and local technical service. TCM forklifts are highly favored by factories, ports, warehouses and rental companies for heavy‑load cargo stacking, loading‑unloading and short‑distance transportation tasksAlibaba.co...。

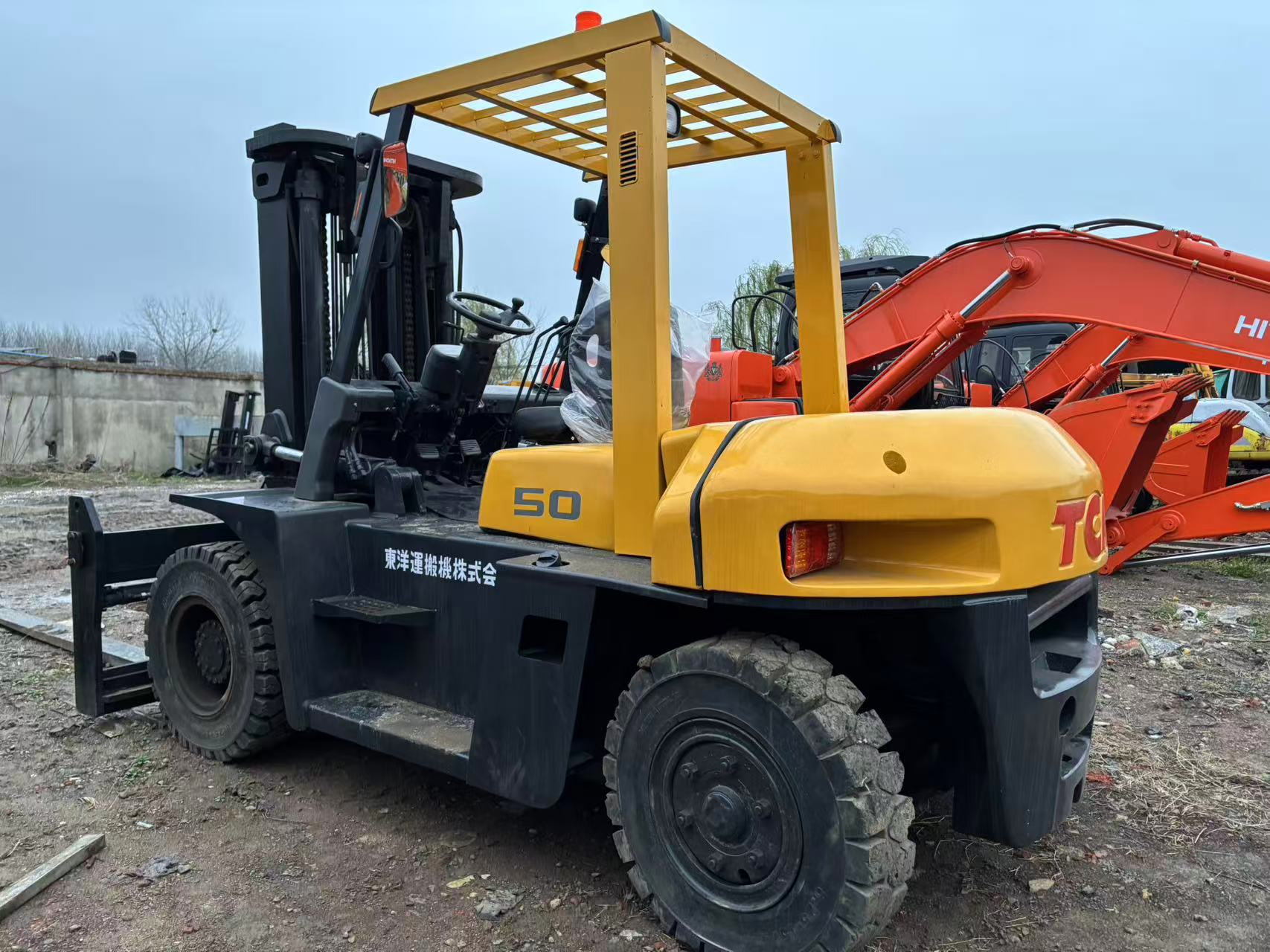

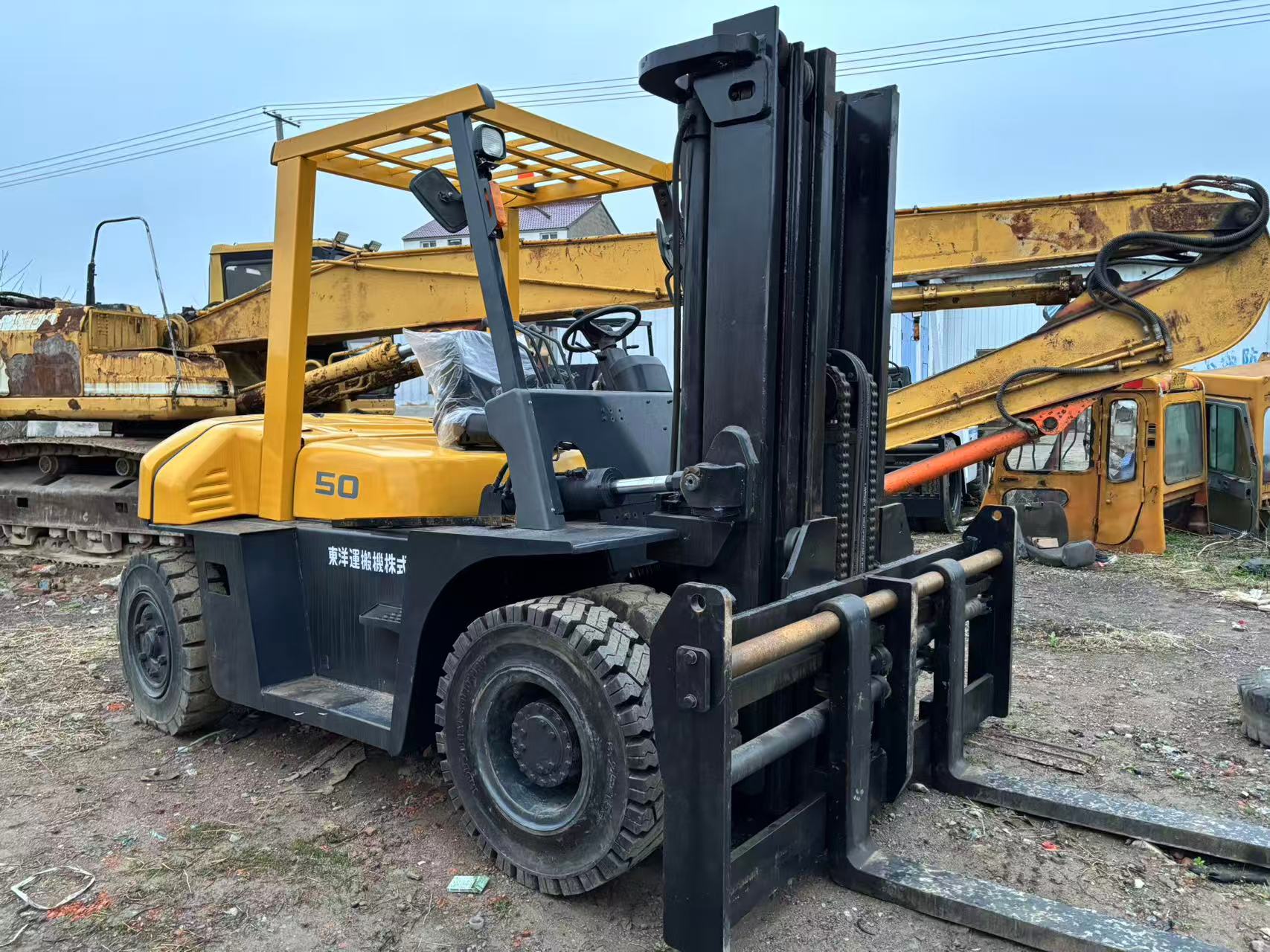

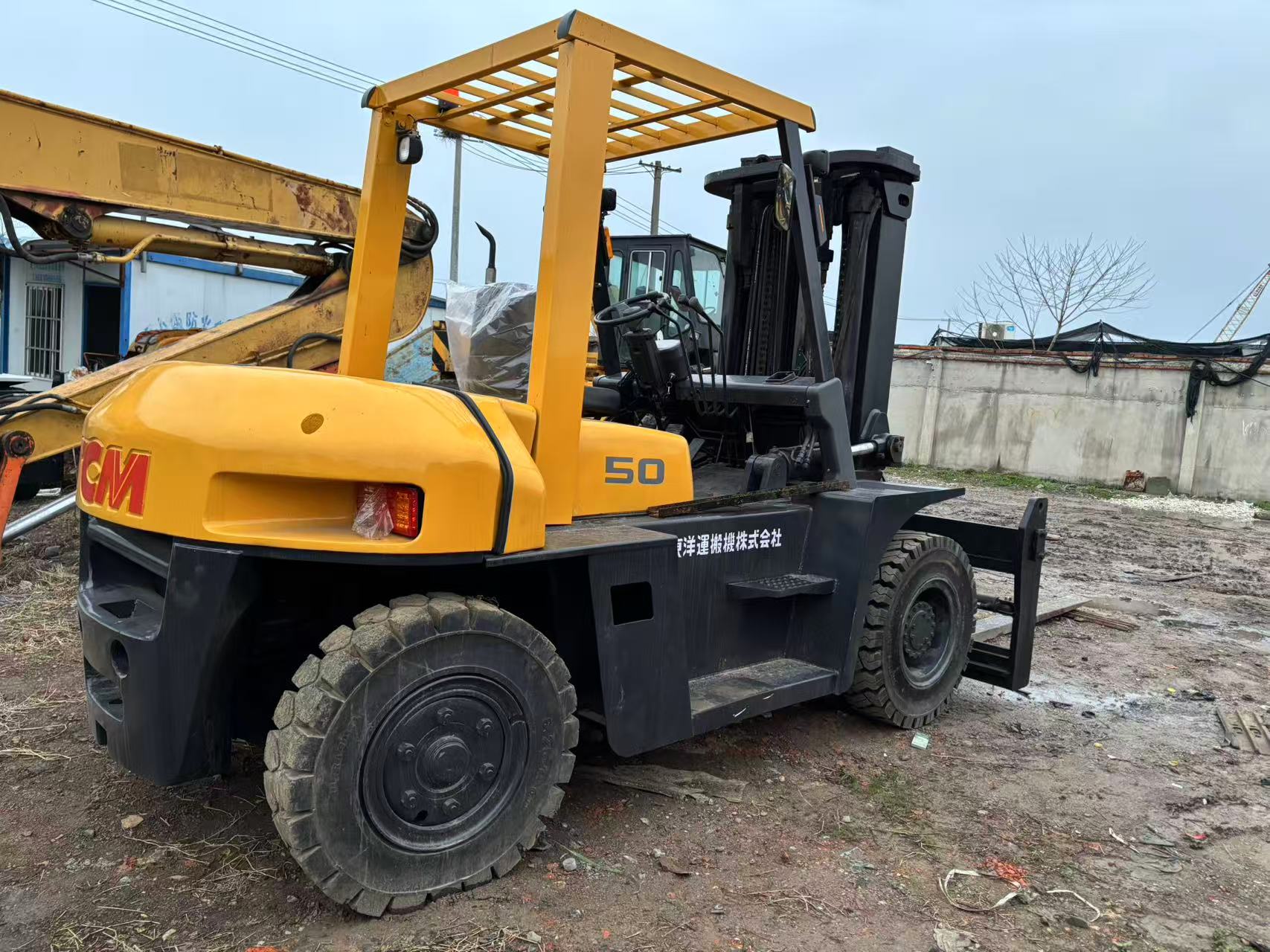

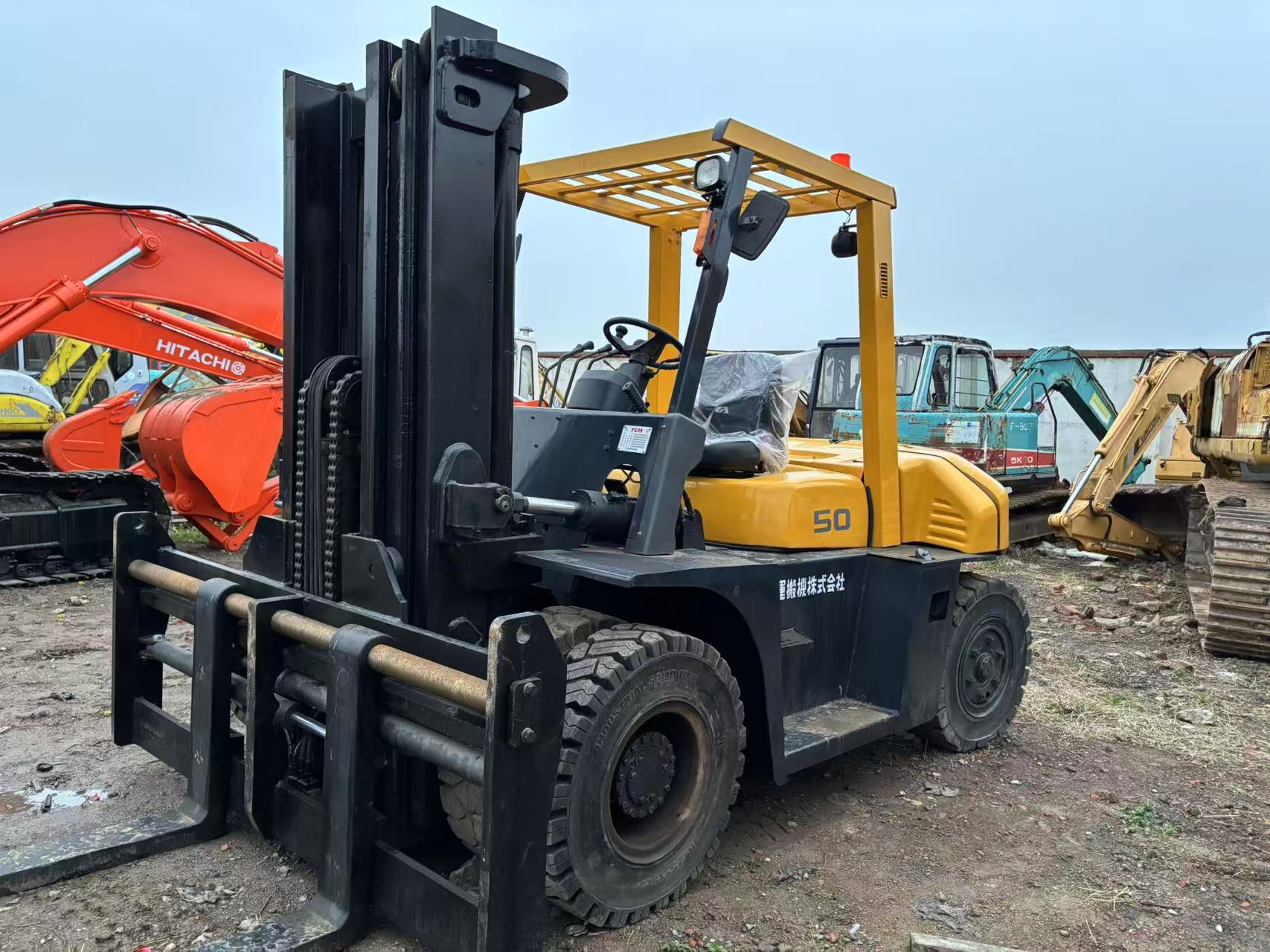

Model: TCM FD50 Diesel Counterbalance ForkliftThe TCM FD50 is a classic 5‑ton heavy‑duty diesel counterbalance forklift. Equipped with proven industrial diesel engine and mature hydraulic system, it focuses on strong lifting power, reliable operation and low maintenance cost. It performs excellently for heavy cargo stacking, container loading‑unloading, warehouse turnover and yard material handling. Widely applied in manufacturing plants, logistics yards, ports and construction sites. As a mainstream cost‑effective heavy‑duty forklift popular in second‑hand market, it adapts to continuous medium‑heavy‑duty material‑handling working conditionsAlibaba.co...。

Core Advantages

1. Reliable Power Output & Good Fuel Compatibility

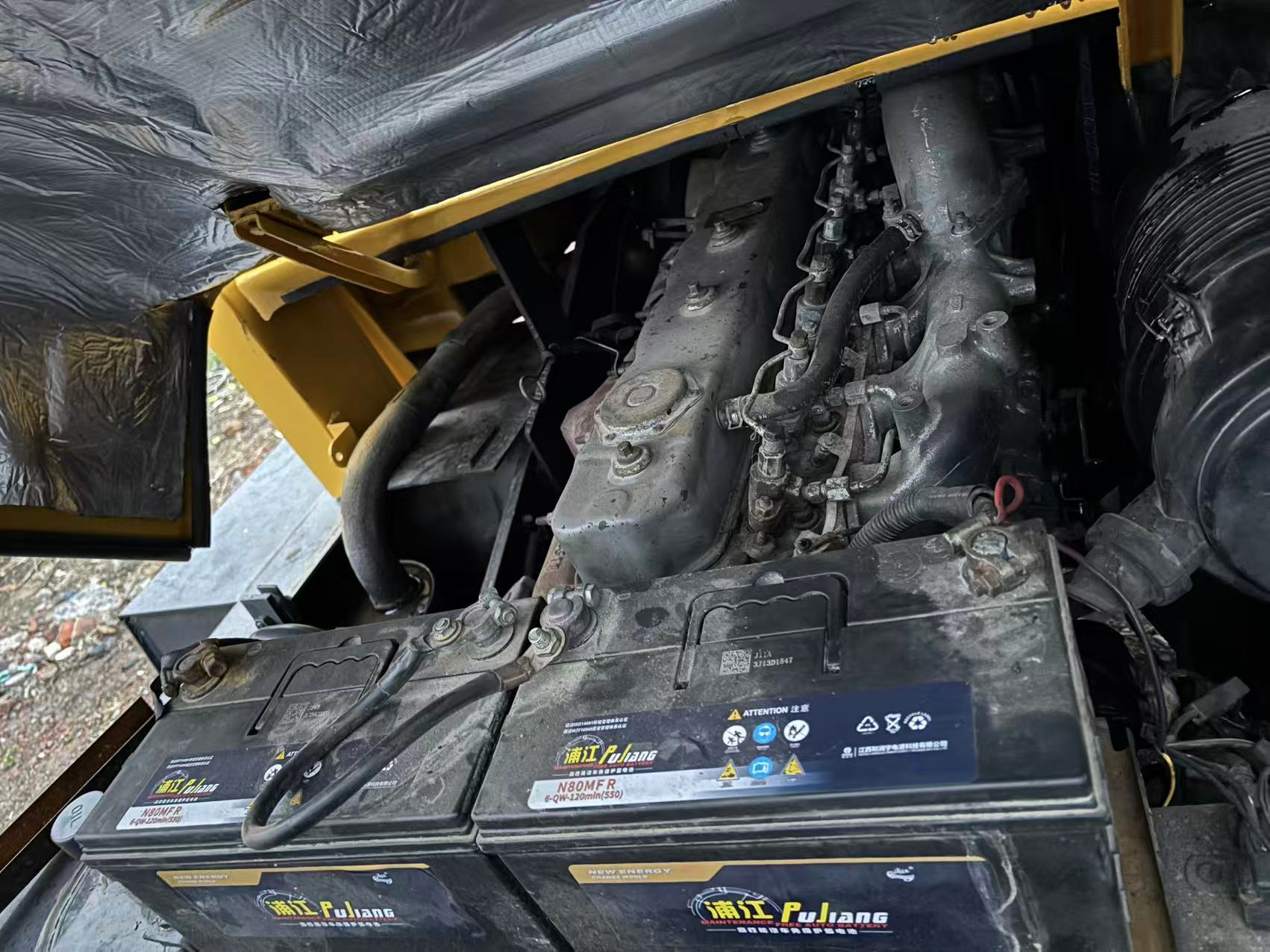

Powered by proven Mitsubishi S6S six‑cylinder diesel engine, rated power 64 kW (86 hp). Robust power output ensures stable lifting under full‑load condition, good adaptability to different fuel quality. Multiple working modes balance lifting performance and fuel consumption.

• Operating weight: 7280 kg
• Fuel tank capacity: 120 L
• Rated lifting capacity: 5000 kg @600 mm load center
• Gradeability: 25% Strong low‑speed torque supports long‑hour continuous heavy‑duty handling work, runs steadily in complex outdoor yards and port environmentsAlibaba.co...。

2. Stable Hydraulic System & Practical Working Parameters

Adopts mature load‑sensing hydraulic system, realizing smooth lifting, lowering and tilting actions with precise control. Optimized oil circuit layout reduces energy loss and heat generation. Reinforced heavy‑duty mast improves bending resistance under full‑load working condition.

Key working parameters:

• Standard lifting height: 3000 mm
• Mast tilt angle: Forward 6° / Backward 12°
• Fork dimension: 1220 × 150 × 60 mm
• Minimum turning radius: 3040 mm
• Max travel speed (full load): 20 km/h
• Ground clearance: 185 mm Optional 4‑meter / 4.5‑meter high mast and side shifter for flexible high‑level stacking operation。

3. Human‑Oriented Operating Space & Safety Design

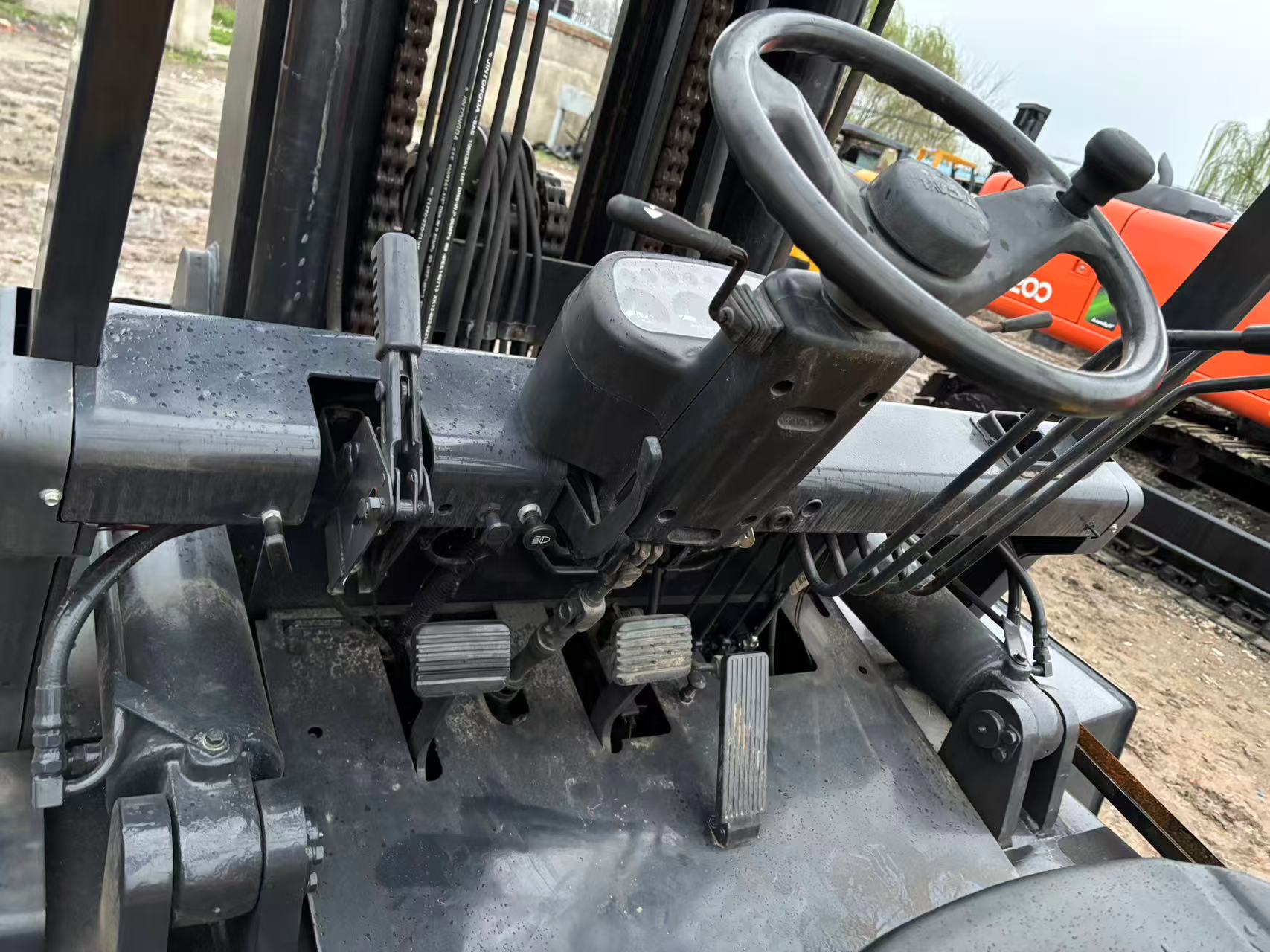

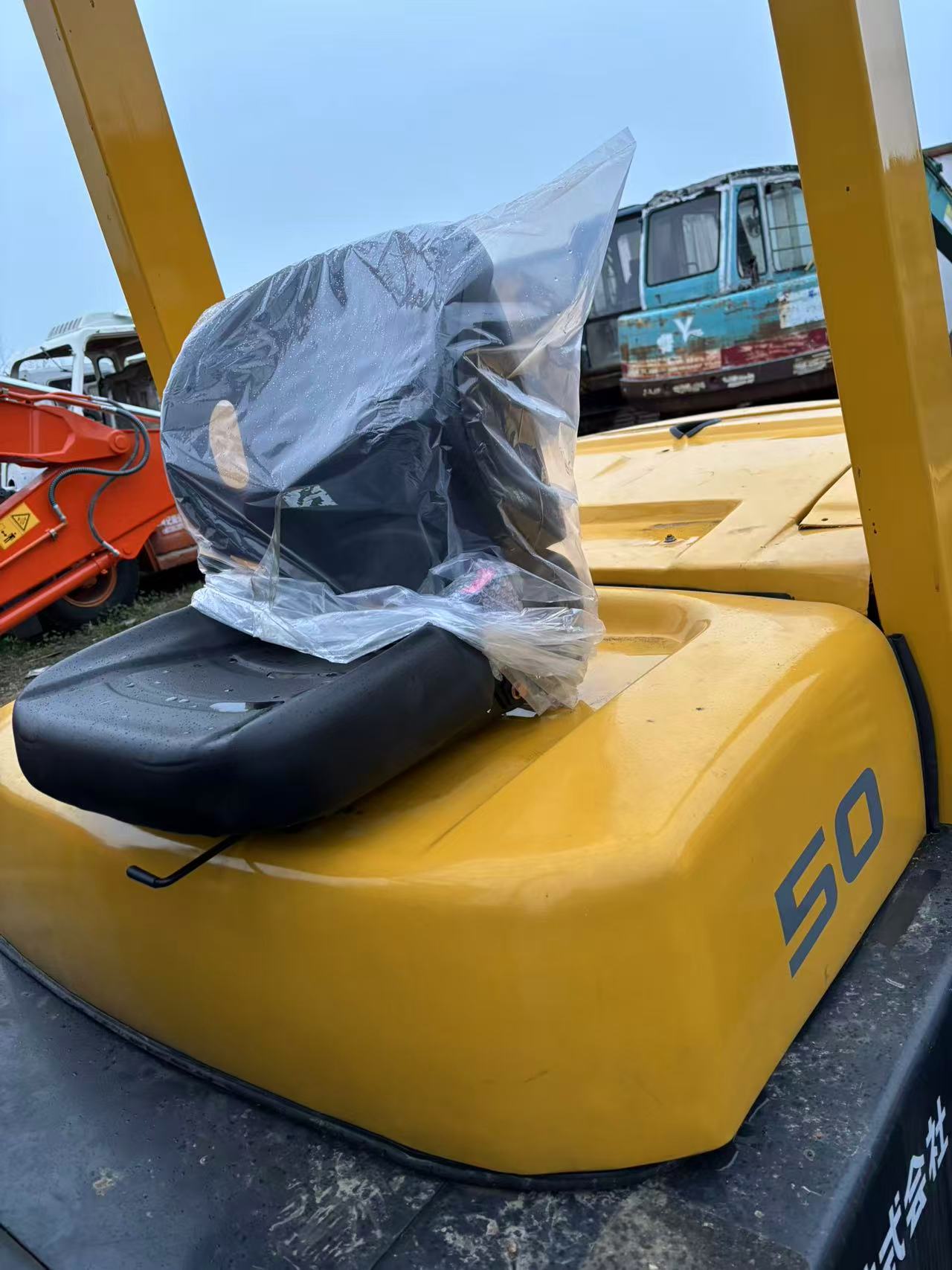

Spacious operating compartment with wide‑view overhead guard. Adjustable heavy‑duty suspension seat reduces operator fatigue during long shifts. Simple and clear instrument panel displays real‑time engine speed, fuel level and fault warning codes. Standard safety configurations include seat safety switch, reverse alarm and overhead falling‑object protection structure. Optional enclosed cab with air‑conditioning adapts to high‑temperature outdoor working environmentAlibaba.co...。

4. Convenient Maintenance & Low Comprehensive Running Cost

Mature mechanical engine and hydraulic components are easy for inspection and overhaul. Main service access points are reasonably arranged for quick daily check. High‑quality sealing for pipelines reduces oil‑leak risk. Spare parts are widely available in global market with competitive prices. Simple whole‑machine structure shortens repair time, very suitable for high‑intensity rental‑oriented business.

5. Rich Attachment Compatibility & Multi‑scene Operation

Supports multiple optional attachments to expand working capacity:

• Standard forks, lengthened forks
• Side shifter for convenient cargo alignment
• Fork positioner for variable pallet width
• Paper roll clamp, bale clamp for special cargo handling
• Container mast for container internal operation

Different attachments realize stacking, loading‑unloading and special‑material handling, improving equipment utilization rate.

Typical Application Scenarios

1. Factory & Warehouse LogisticsHeavy pallet cargo stacking, goods inbound‑outbound turnover, raw‑material handling inside manufacturing workshops. Stable lifting performance guarantees high‑efficiency daily logistics work.
2. Port & Container Yard OperationContainer loading‑unloading, yard heavy‑goods transfer. Strong power adapts to high‑intensity outdoor continuous operation.
3. Freight Station & Logistics ParkTruck loading‑unloading, large‑volume cargo turnover. Compact turning radius realizes flexible operation in limited‑space yards.
4. Construction Material Yard & Steel MarketSteel coil, building‑material stacking and short‑distance transportation. Heavy‑duty structure copes with rough site environment.
5. Equipment Rental BusinessPopular rental model for heavy‑load material‑handling tasks. Durable frame and easy‑maintenance design bring stable investment return.

Foreign Trade Service Guarantee

1. Flexible Customization Options

Provide personalized configuration according to local working‑condition requirements:

• Multiple mast options: 3m / 4m / 4.5m lifting height
• Attachments: side shifter, fork positioner, special clamps
• Tire selection: pneumatic tire or solid tire
• Open overhead guard or enclosed air‑conditioned cab Multilingual operation manuals and complete technical documents are supplied for global markets.

2. Strict Quality Inspection & Export Certifications

Each machine undergoes complete pre‑shipment inspection and performance test. Full set of export documents support customs clearance:

• CE certification, ISO quality documents
• Target‑region relevant certification papers
• SGS / BV third‑party inspection reports
• Complete factory specification and qualification documents

3. Warranty & Technical Training

Core components enjoy comprehensive warranty coverage. Global after‑sales team provides timely response. Free online training includes safe operation, daily maintenance, common‑fault diagnosis and attachment installation guidance.

4. Global Spare‑parts & Service Network

Relying on global spare‑parts supply channels, widely‑used genuine replacement parts can be delivered rapidly. Authorized service support reduces machine downtime and guarantees continuous project operation.

Why Choose TCM FD50?

TCM FD50 is a proven Japanese‑origin 5‑ton diesel forklift. It combines powerful lifting performance, solid mechanical structure and mature hydraulic system. Easy maintenance and accessible spare‑parts make it highly cost‑competitive for heavy‑duty material‑handling tasks. It is widely trusted by factories, ports and rental operators across emerging‑market countries, serving as preferred heavy‑duty forklift for various medium‑heavy‑load logistics scenarios.

Contact Us

Please contact our foreign‑trade team for personalized quotation, customized configuration scheme and global door‑to‑door shipping service. Flexible international payment terms such as LC, TT, DP are acceptable. We provide one‑stop service covering equipment consultation, order customization, export declaration and after‑sales guarantee to create greater value for your projects.
