TCM FD80Z8 Diesel Counterbalance Forklift

Brand & Model Positioning Brand: TCM As a world‑renowned material‑handling equipment manufacturer, TCM has decades‑long technical accumulation in forklift R&D and manufacturing. It is celebrated for solid build quality, stable performance and proven durability across manufacturing plants, logistics hubs and port terminals. Its global service and spare‑parts network covers major regions worldwide, ensuring quick access to genuine components, professional technical support and customized after‑sales solutions to keep equipment running throughout daily shifts. Whether for factory internal turnover, yard stacking or port auxiliary handling, TCM’s consistent focus on reliability, fuel economy and low lifecycle cost makes it the trusted option for global enterprise buyers and contractors.

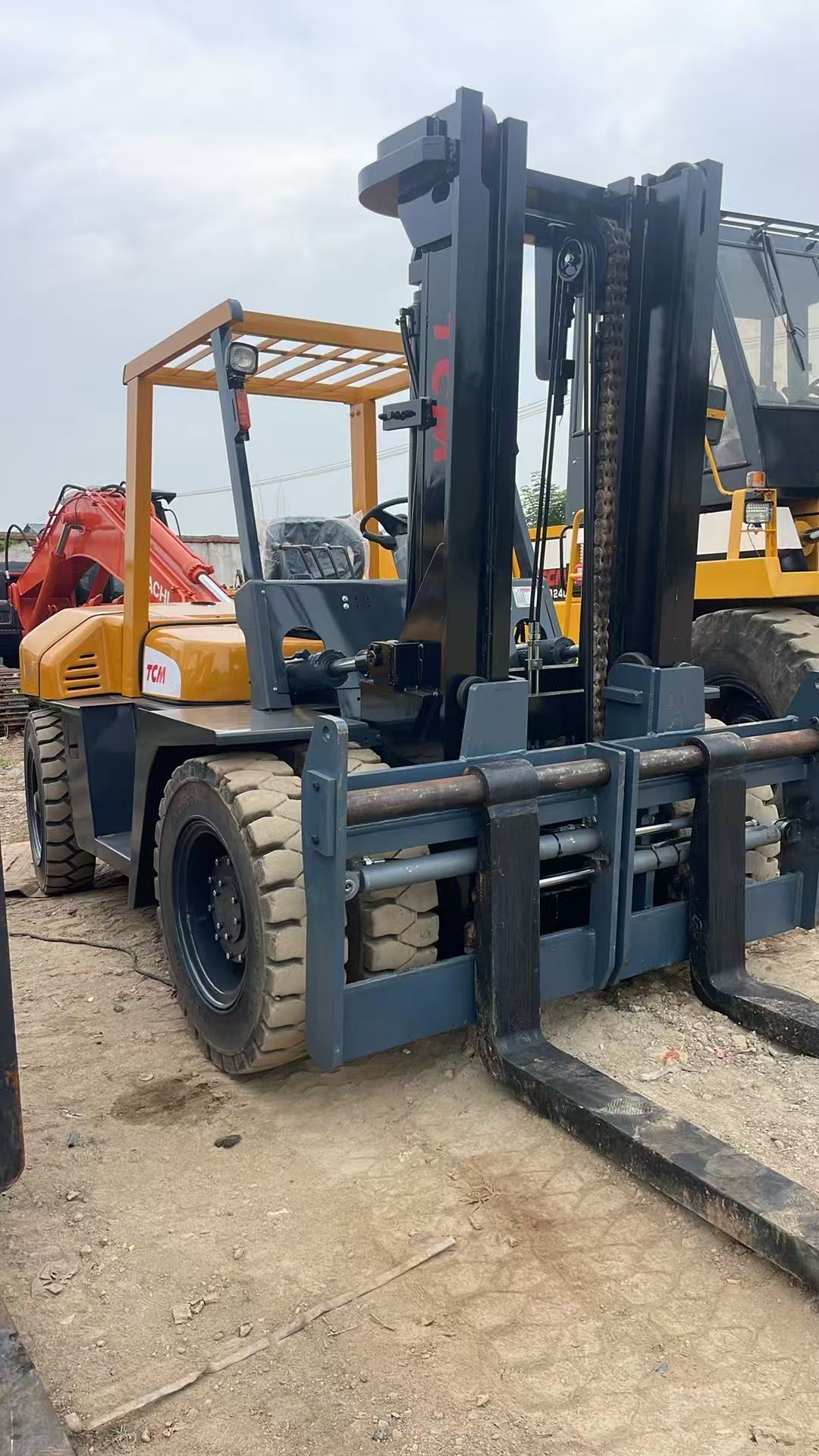

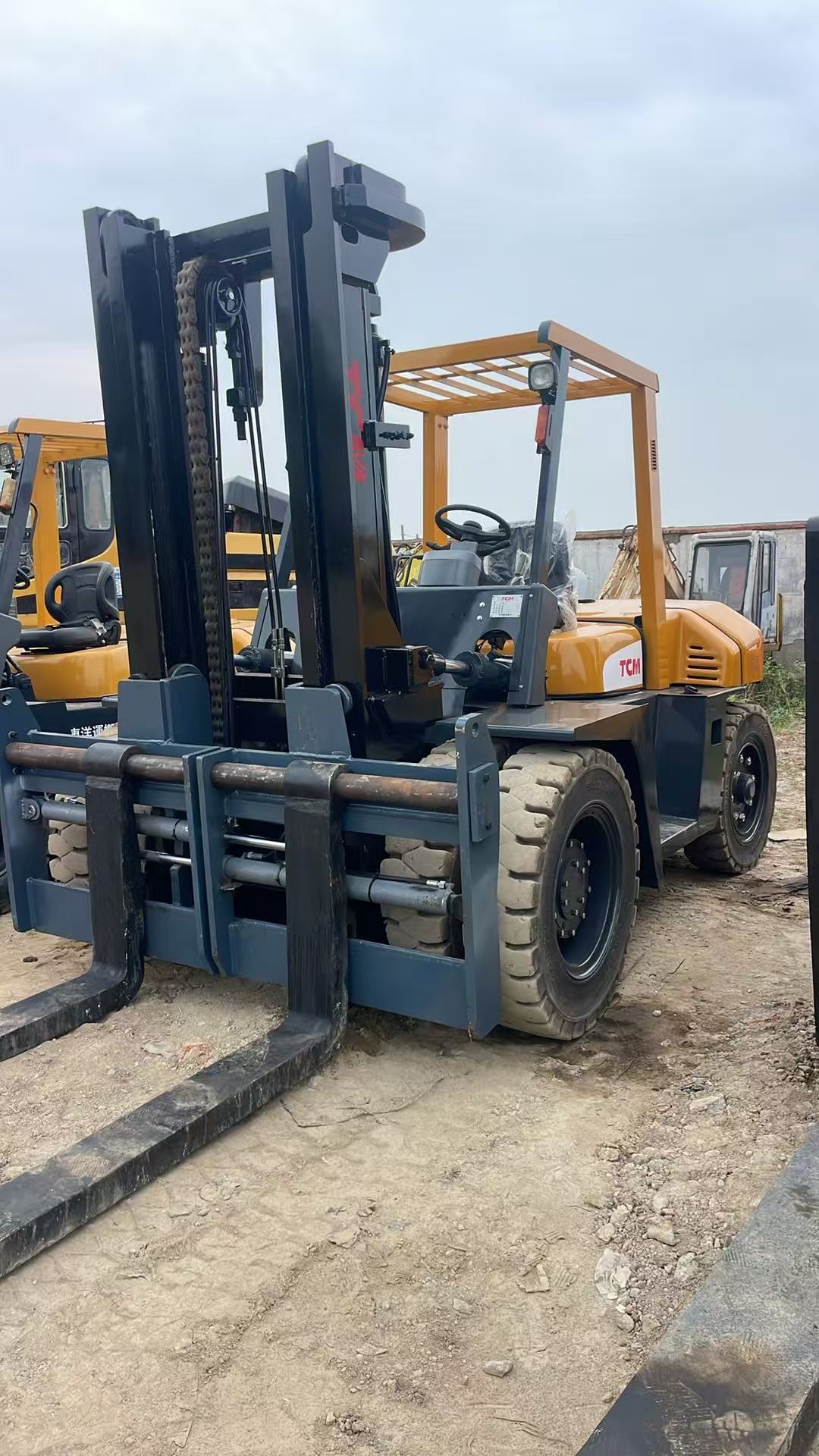

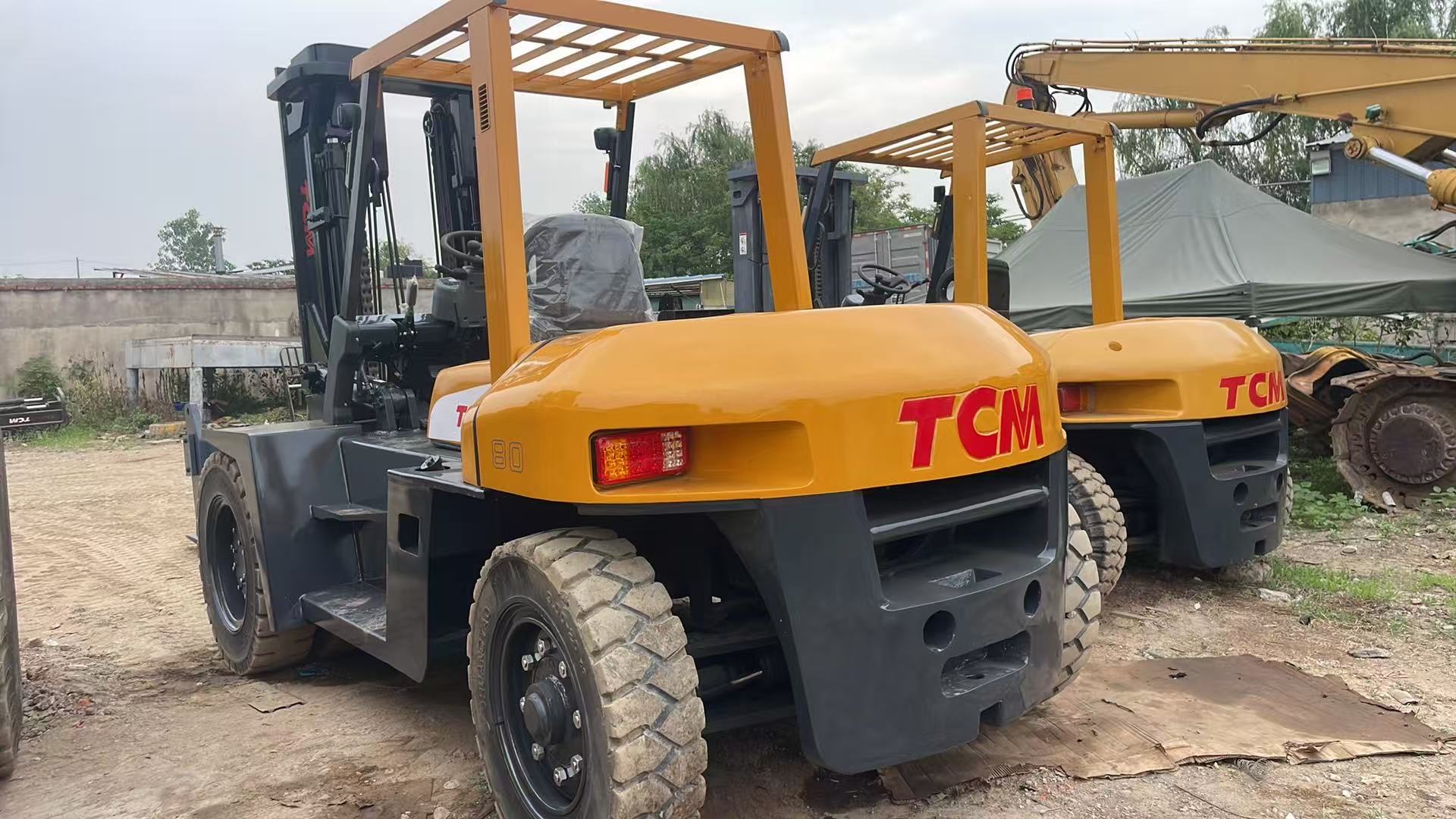

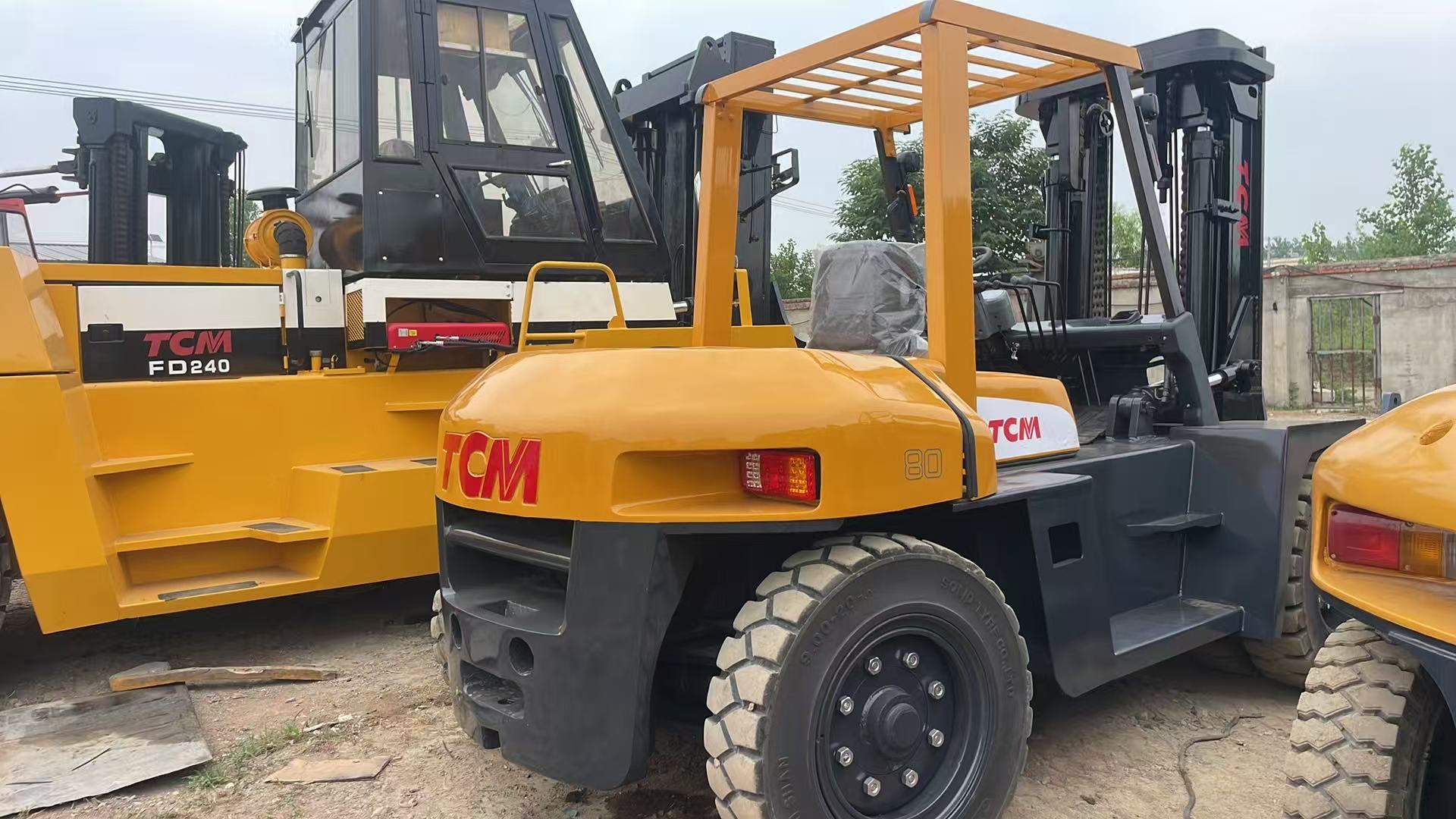

Model: TCM FD80Z8 Diesel Counterbalance Forklift The TCM FD80Z8 is an 8‑ton medium‑heavy‑duty diesel counterbalance forklift, belonging to TCM mature Z8 series optimized for high frequency operation, reliable performance and low operating expenses. Built for continuous heavy‑load material handling, this model balances strong lifting capacity, smooth hydraulic control and proven powertrain technology. It adapts to heavy cargo stacking, loading‑unloading and short‑distance transfer tasks, widely applicable to manufacturing workshops, logistics yards, steel‑material warehouses and port auxiliary operations. As a cost‑effective mainstream core model in TCM medium‑heavy forklift lineup, the FD80Z8 delivers stable output, easy maintenance and low failure rate for medium‑heavy material‑handling projects.

Core Advantages

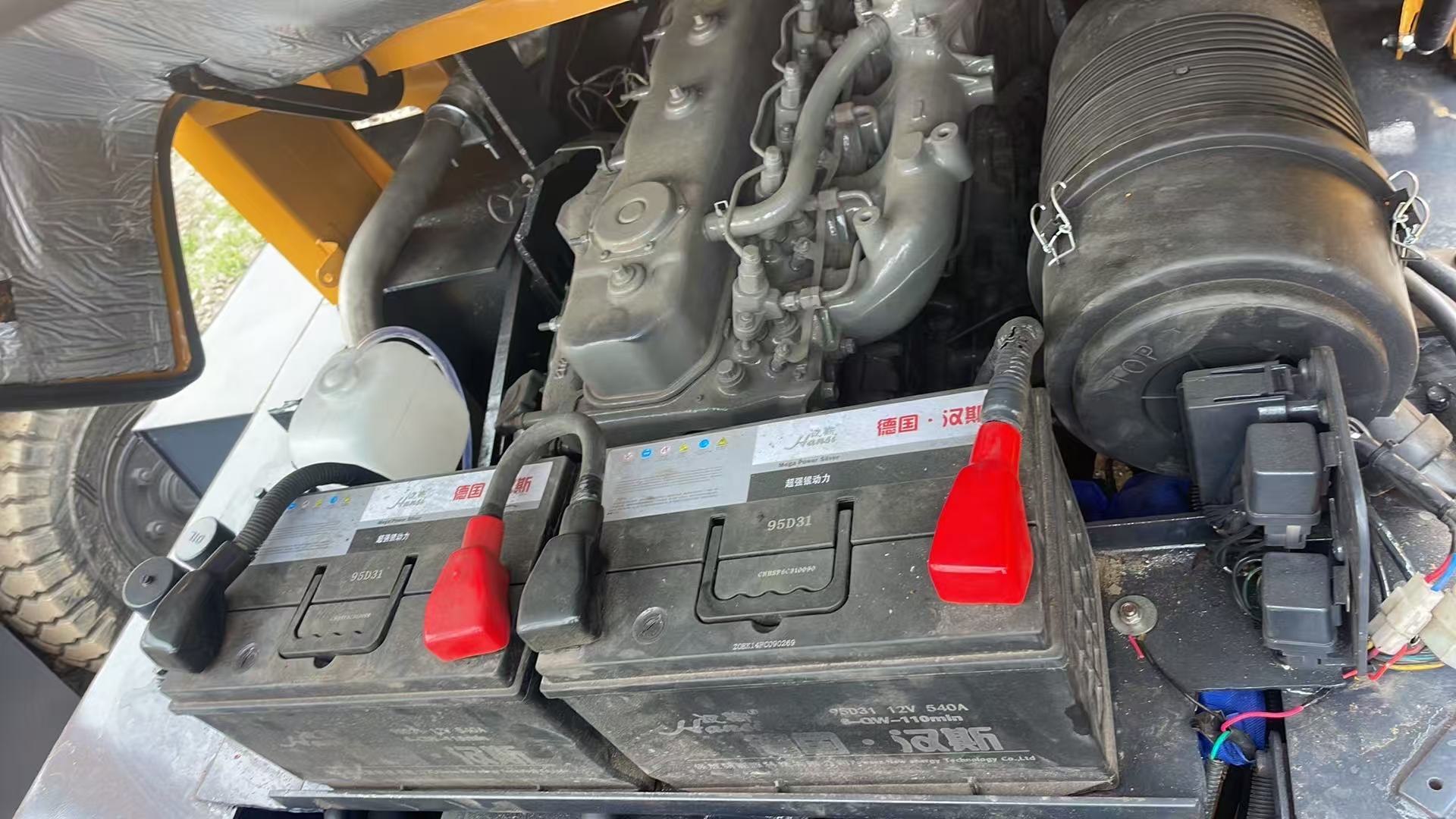

1. Reliable Powertrain & Good Fuel Economy Powered by proven Isuzu 6BG1 diesel engine, the TCM FD80Z8 delivers rated power of 84.6 kW (115 PS) /2100 rpm with optimized fuel injection technology, achieving steady power output while controlling fuel consumption effectively. Matched with 2‑forward & 2‑reverse automatic power‑shift transmission, it ensures smooth gear shifting and strong gradeability under full‑load condition. The large 160 L high‑capacity fuel tank supports long‑hour continuous operation, reducing frequent refueling downtime and improving overall yard efficiency. With an operating weight of 10 960 kg, the machine features solid lifting and transporting capacity, meeting high‑intensity handling demands for 8‑ton‑level heavy goods.
2. Efficient Hydraulic System & Excellent Working Performance The TCM FD80Z8 adopts mature load‑sensing hydraulic system with precise flow‑pressure matching, achieving quick response, smooth lifting/lowering and tilting actions, reducing invalid energy loss and improving handling efficiency. Its core working parameters stand competitive within the same tonnage class: ‑ Rated lifting capacity: 8 000 kg ‑ Load center distance: 600 mm ‑ Standard lifting height: 3 000 mm ‑ Fork dimensions: 1220 × 170 × 75 mm ‑ Main hydraulic system pressure: 21.0 MPa

Equipped with high‑performance hydraulic steering system, the machine realizes light steering even under heavy‑load status. Heavy‑duty pneumatic tires (9.00‑20‑12PR) deliver good grip performance for gravel yards, asphalt ground and uneven factory sites. The robust chassis frame resists torsion and impact under frequent heavy‑load cycles.

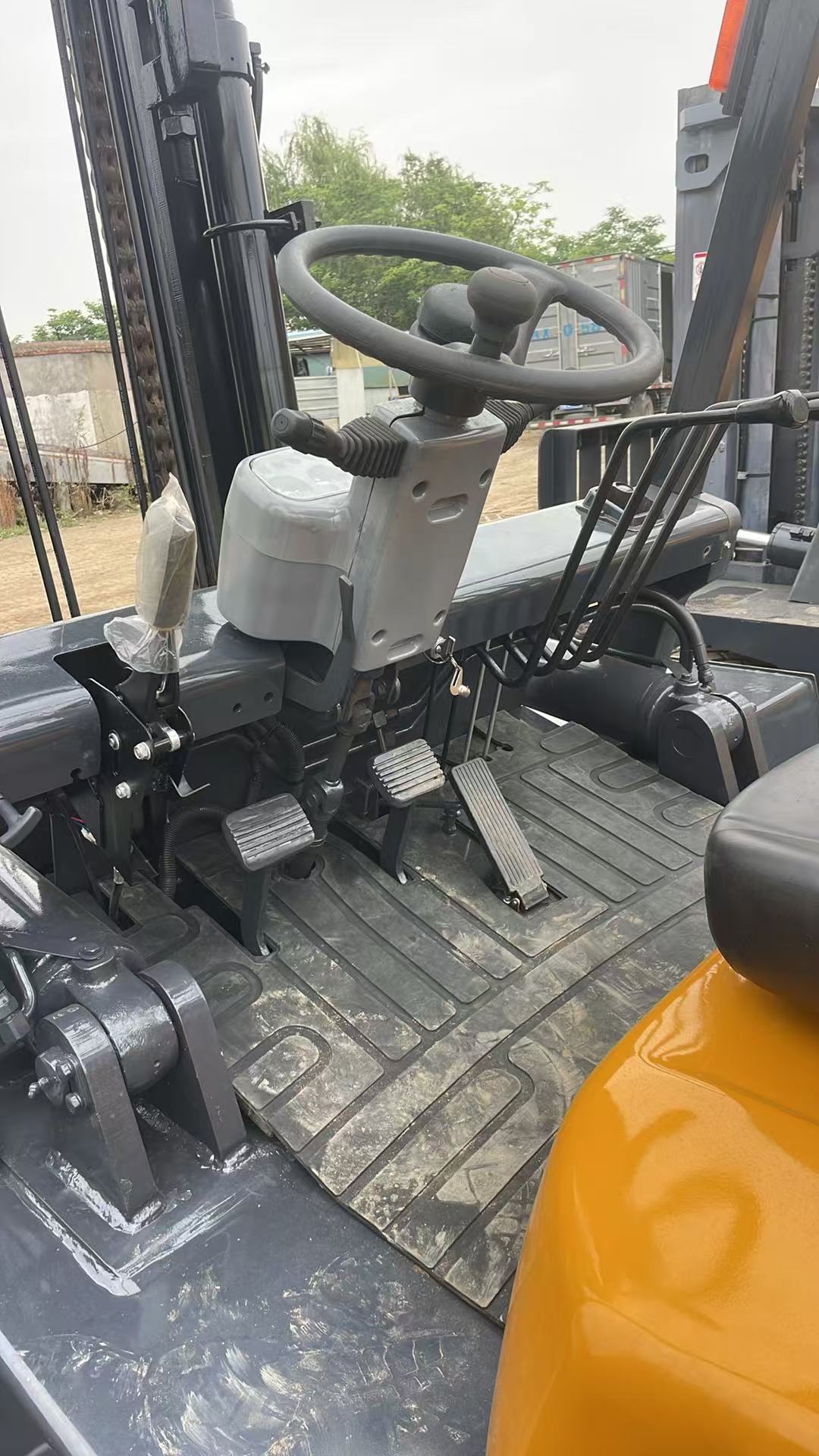

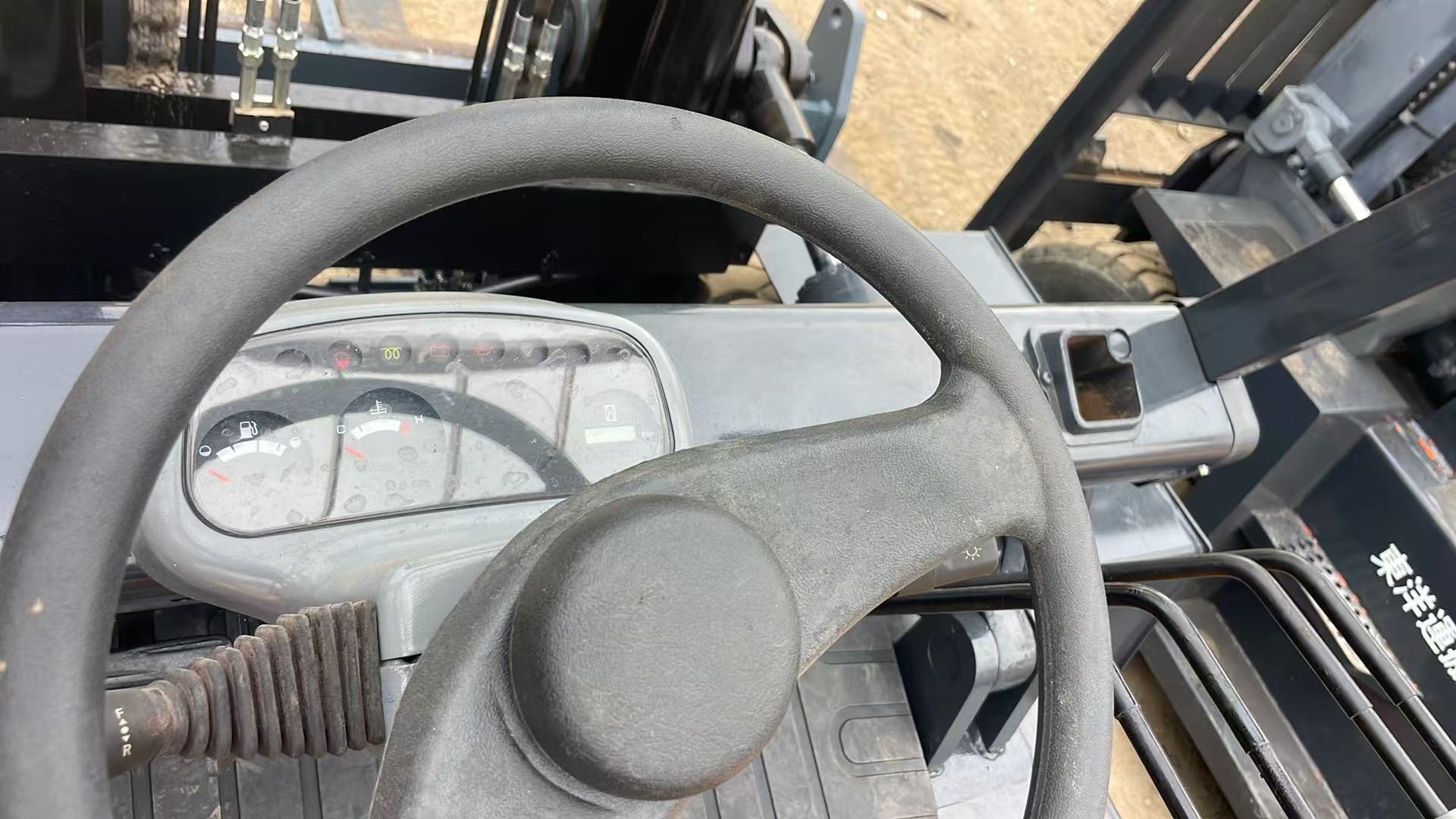

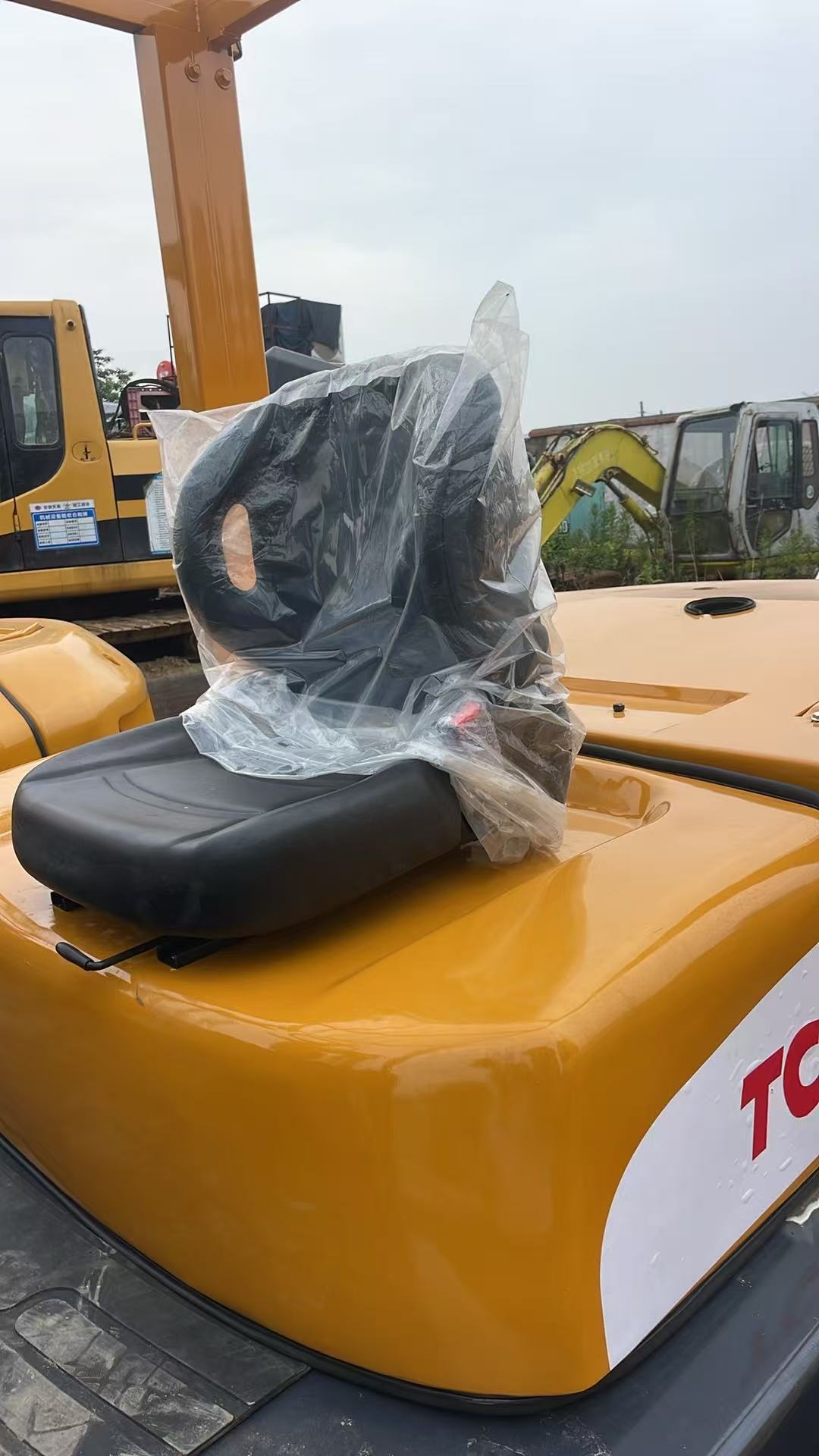

3. Practical Operator‑Oriented Compartment & Complete Safety Design The TCM FD80Z8 is equipped with standard ROPS‑certified overhead guard complying with international safety requirements. The interior adopts human‑friendly layout, with easy‑to‑reach control levers and clear instrument panel, effectively relieving operator fatigue during long‑time shifts. Good forward and rear visibility helps safe cargo operation. Built‑in shock‑absorbing structure lowers vibration transferred to operator. Adjustable suspension seat brings comfortable driving experience; fully enclosed cab with air‑conditioning is optional for high‑temperature or cold harsh working conditions. It is also fitted with real‑time monitoring instruments for engine status and basic fault warning functions.
4. Reinforced Structure & Low Maintenance Cost Whole key structural parts adopt high‑strength steel plate. Mast, carriage and chassis stress‑bearing sections are reinforced for anti‑impact and anti‑torsion performance, fully adapting to heavy cargo, steel goods and harsh yard working conditions. All hydraulic pipelines and joints apply reliable sealing structure to prevent oil leakage and dust intrusion, lowering component wear and failure possibility. The machine is designed with centralized maintenance access for filters, oil filling ports and inspection points, convenient for daily inspection and part replacement, saving maintenance time and labor cost. Benefiting from TCM well‑proven industrial design, FD80Z8 owns low failure rate and high attendance rate, cutting total equipment ownership cost.
5. Flexible Attachment Compatibility & Wide Working‑Condition Adaptability The TCM FD80Z8 supports quick replacement of multiple working attachments for multi‑scene operation requirements: ‑ Standard heavy‑duty forks, extended forks, fork positioner ‑ Coil ram for steel‑coil transportation ‑ Paper roll clamps for paper‑goods handling ‑ Bale clamps for bulk packaged cargo ‑ Special platforms for oversized goods turnover Diversified attachments allow free switching among general cargo handling, steel‑material transport, special‑goods turnover and stacking work, maximizing equipment utilization rate.

Typical Application Scenarios

1. Manufacturing Factory Workshop Operation Widely used inside heavy‑industry plants for finished‑goods stacking, mould handling, raw‑material turnover and truck loading‑unloading. Stable heavy‑load performance satisfies frequent multi‑shift workshop production requirements.
2. Logistics & Freight Yard Operation Suitable for large logistics parks and freight terminals for heavy‑cargo stacking, container‑auxiliary handling and bulk goods short‑distance transfer. High operating efficiency speeds up goods circulation.
3. Steel‑Material Warehouse & Metallurgical Auxiliary Work Applied for steel coil, steel plate and profile goods receiving, stacking and outward shipment. Robust structure adapts to heavy‑weight steel‑goods handling scenarios.
4. Port & Terminal Auxiliary Handling Used at port yards for auxiliary cargo turnover, container accessory loading‑unloading and heavy‑cargo preparation work, adapting to complex open‑air site environment.
5. Construction Material & Large‑Commodity Distribution Sites Applicable for building‑material yard stacking, bulk commodity warehouse turnover and other heavy‑goods distribution businesses, meeting long‑term high‑frequency handling requirements.

Foreign Trade Service Guarantee

1. Flexible Customization Options We provide personalized configuration solutions according to customer project needs and regional working conditions: ‑ Multiple fork options: standard forks, long forks, fork positioner ‑ Attachment configuration: coil ram, various clamps and special working platforms ‑ Compartment upgrade: fully enclosed cab, air‑conditioning and heating system ‑ Terrain adaptation: reinforced tires and enhanced wear‑resistant spare parts Equipped with multilingual operation manuals and professional technical documents to support global regional use.
2. Strict Quality Assurance & Complete Certifications All TCM FD80Z8 forklifts undergo full‑process pre‑shipment inspection and performance testing to meet international industrial standards. We provide complete export certification documents to support global customs clearance: ‑ CE, ISO international quality system certification ‑ Global regional emission compliance certificates ‑ Authorized third‑party inspection reports (SGS, BV) ‑ Complete factory qualification and equipment parameter documents
3. Comprehensive Warranty & Professional Training Support We provide a 12‑month/2000‑hour comprehensive warranty for core components of the whole machine, with a 24/7 global professional after‑sales team to respond to demands quickly. Free online and on‑site professional training is provided for operators and maintenance personnel, covering: ‑ Standard safe operation specifications and efficient handling skills ‑ Daily equipment inspection and maintenance methods ‑ Common fault diagnosis, troubleshooting and emergency treatment ‑ Installation and maintenance of various supporting attachments
4. Global Spare Parts & Service Network Relying on TCM global parts distribution system and our overseas service centers, we realize rapid delivery of genuine original parts worldwide. Authorized professional service teams provide on‑site maintenance, equipment debugging, fault diagnosis and overhaul services to minimize equipment downtime and ensure long‑term stable operation of the machine.

Why Choose TCM FD80Z8? The TCM FD80Z8 integrates TCM decades‑proven forklift‑manufacturing technology and mature power‑hydraulic matching solution, featuring reliable performance, convenient maintenance and outstanding durability. Compared with peer products in the same tonnage, it delivers stable lifting performance, competitive long‑term operating costs and strong site adaptability. Human‑centered operation layout, solid structural quality and complete global after‑sales support enable it to maintain high attendance and economic returns under various medium‑heavy‑duty handling scenarios. It is the cost‑effective preferred medium‑heavy‑duty forklift for global contractors to undertake heavy‑goods handling projects.

Contact Us For personalized TCM FD80Z8 quotation, customized configuration scheme and global door‑to‑door shipping service, please contact our professional foreign trade team at any time. We support flexible international payment terms (LC, TT, DP), cooperate with reliable global logistics providers, and provide one‑stop services from equipment consultation, order customization, export declaration to after‑sales guarantee, to help your project operate efficiently and create greater value.
