TCM FD240 Heavy‑Duty Diesel Counterbalance Forklift

Brand & Model Positioning

Brand: TCMAs a world‑renowned Japanese material‑handling equipment manufacturer, TCM has decades‑long technical accumulation in forklift R&D and manufacturing. It is well‑known for solid structure, stable performance and outstanding durability, widely adopted in ports, steel mills, logistics yards, heavy‑industry factories and bulk‑cargo terminals. With mature global service and spare‑parts networks, TCM delivers genuine replacement components and timely technical support, minimizing equipment downtime. For heavy‑load material‑handling scenarios, TCM is a trusted choice for enterprise clients across the globe, balancing reliable quality and competitive whole‑life operating costs.

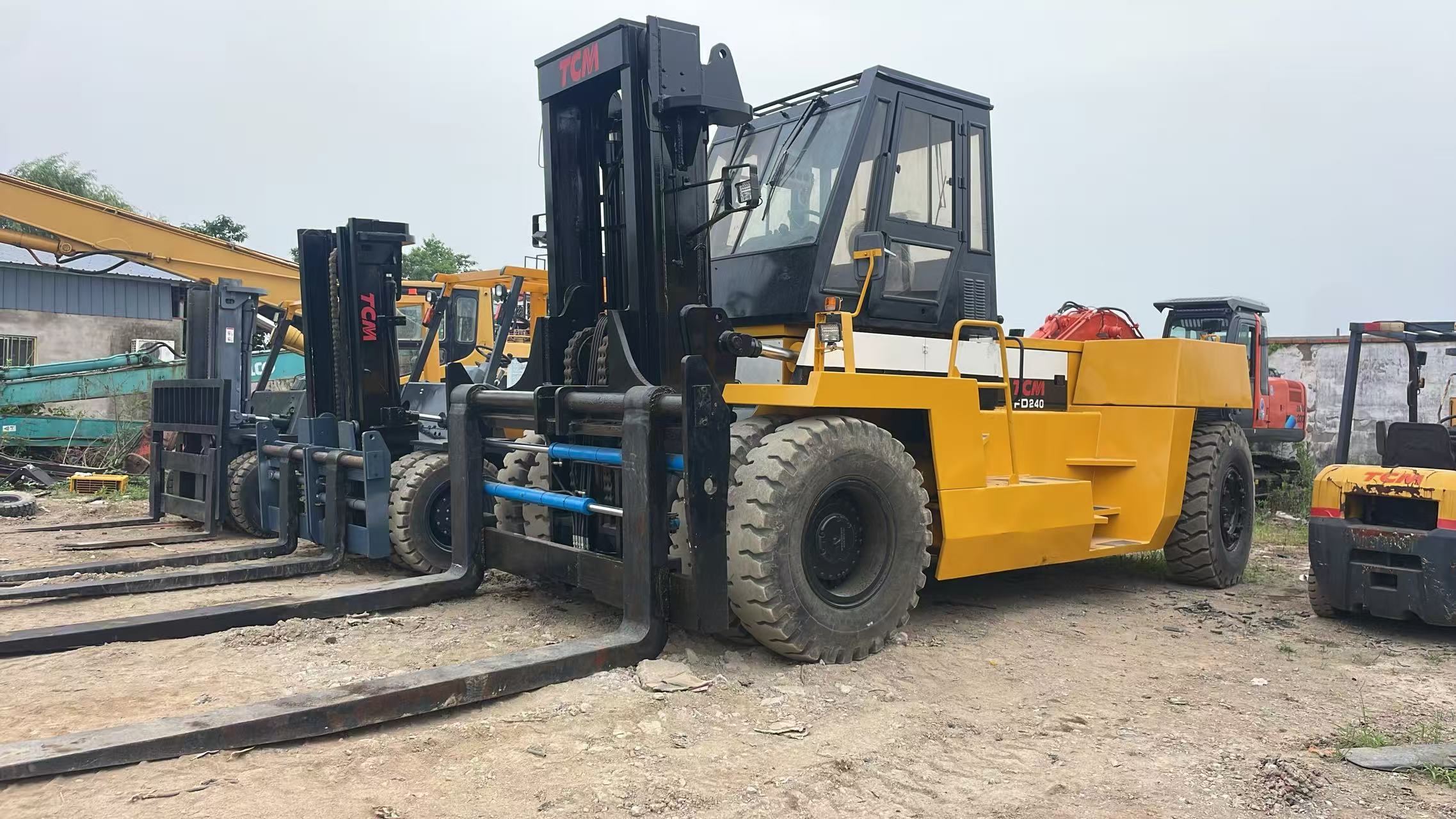

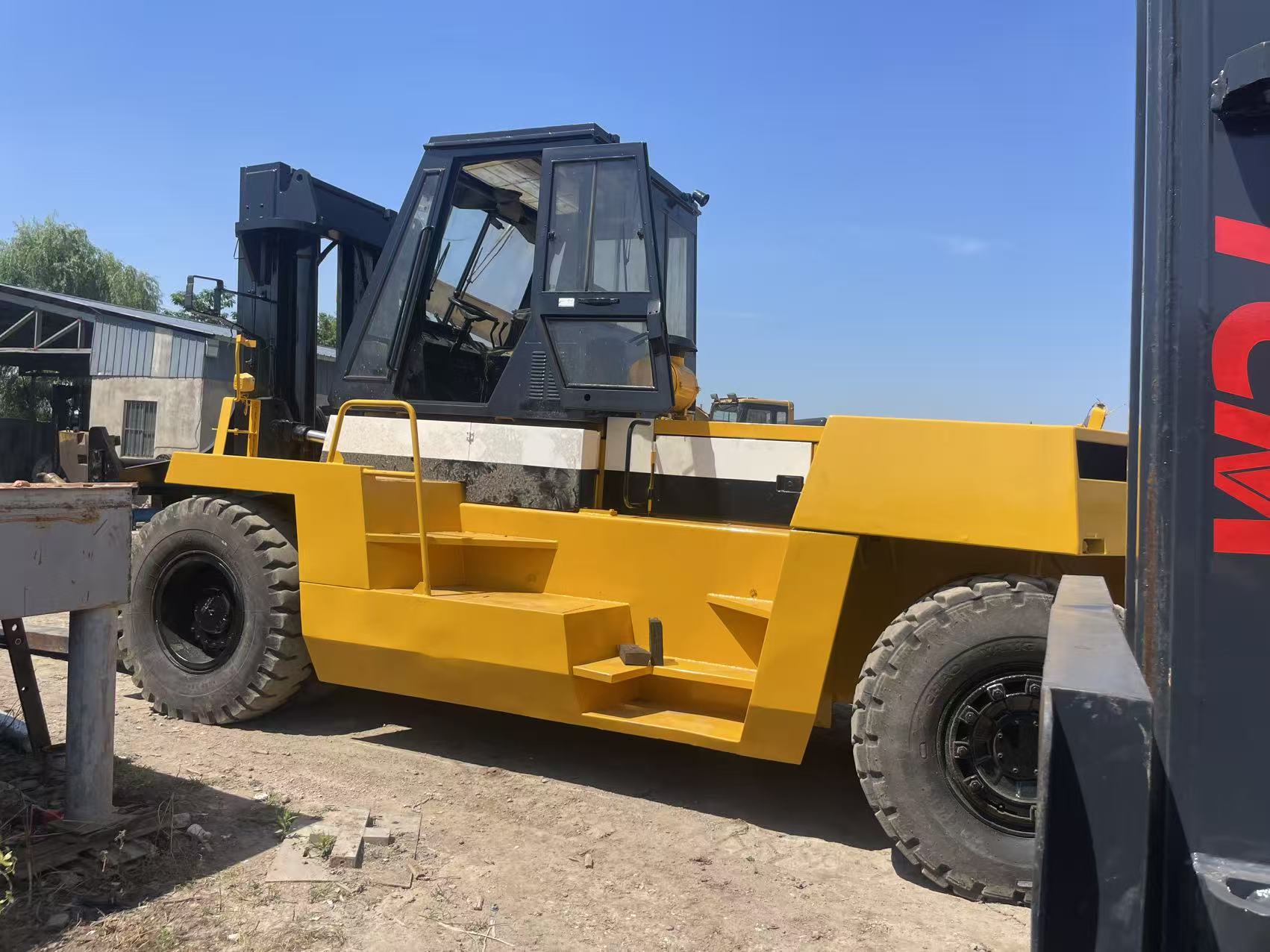

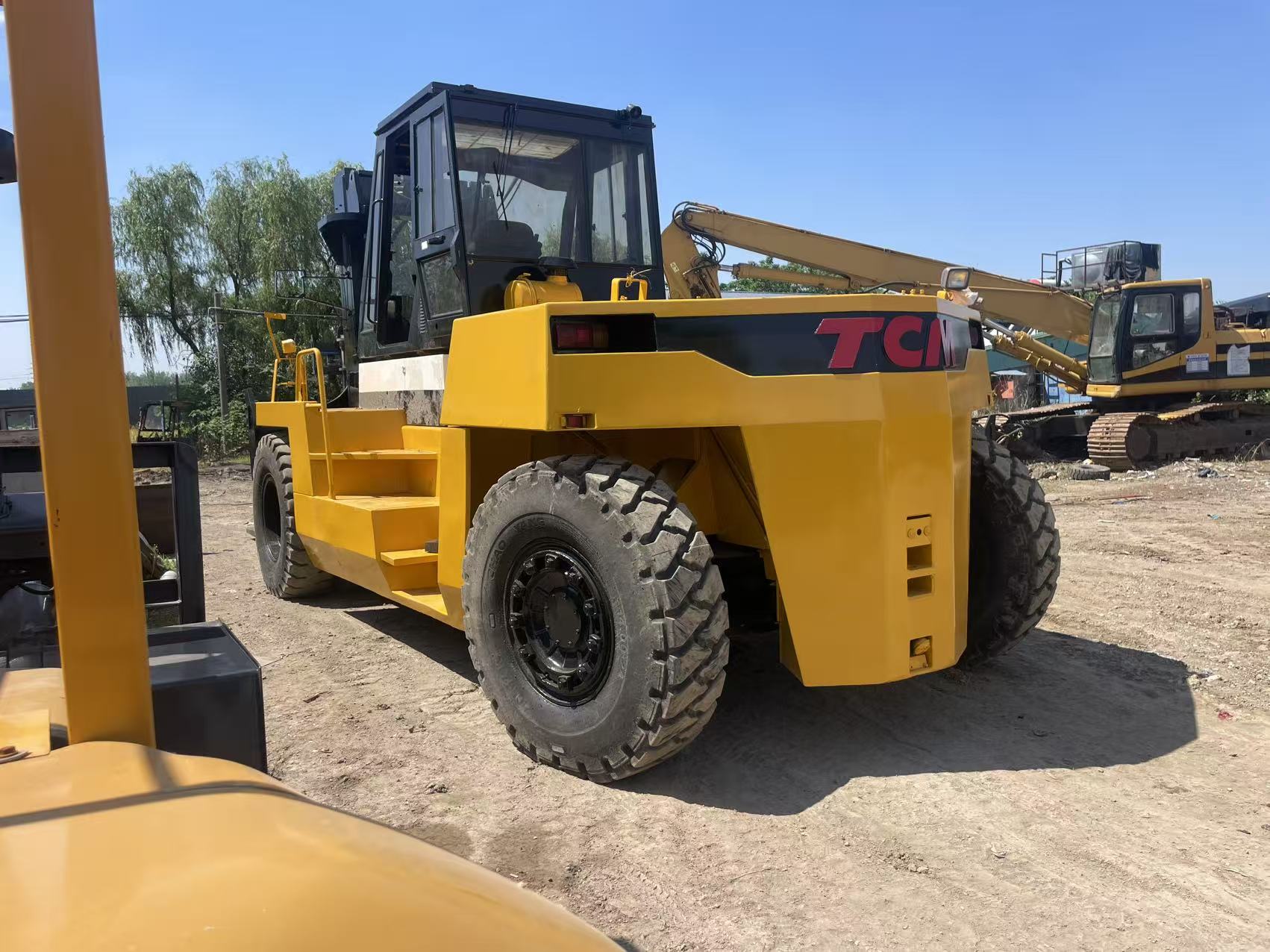

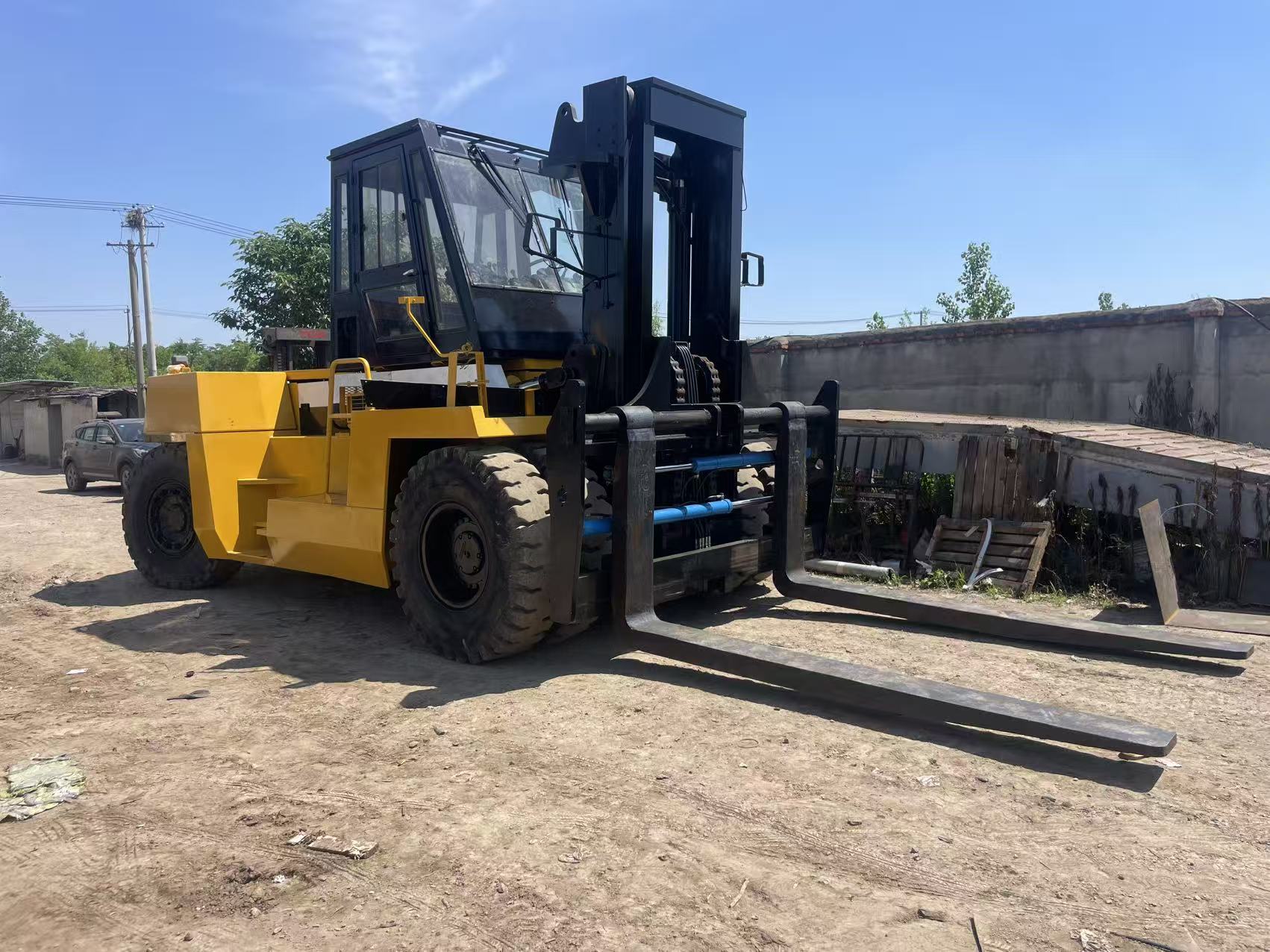

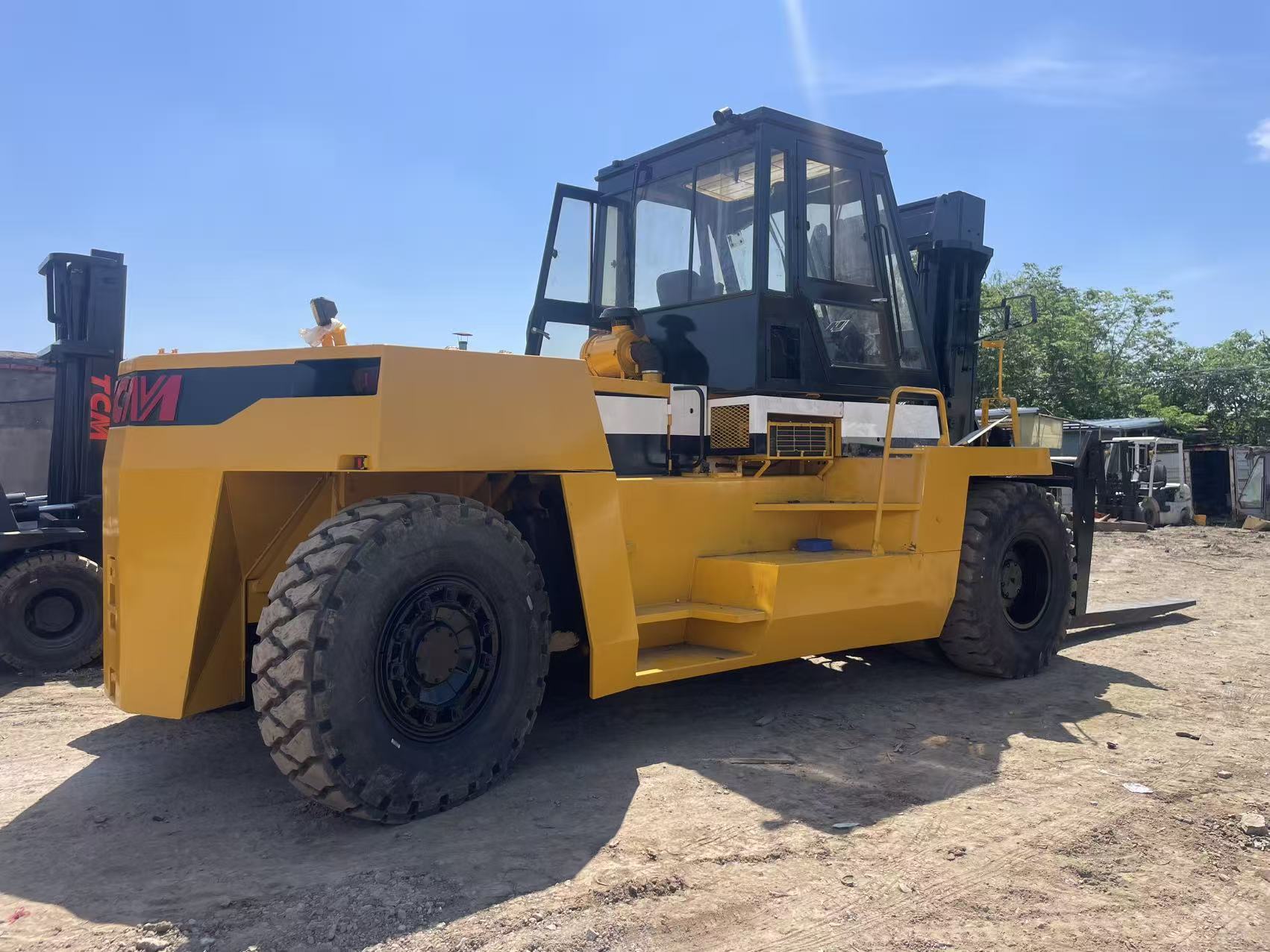

Model: TCM FD240 Heavy‑Duty Diesel ForkliftThe TCM FD240 is a heavy‑duty 24‑ton diesel counterbalance forklift, flagship model of TCM large‑tonnage FD series. Designed for continuous high‑intensity heavy‑cargo stacking, loading and short‑distance hauling. It features strong power output, reinforced chassis and mast assembly, reliable hydraulic system and excellent site adaptability. Suited for container handling, steel coil transport, heavy machinery turnover, port‑terminal cargo operation and heavy‑industry yard work. As a classic heavy‑duty forklift, FD240 provides stable lifting capacity, robust anti‑overturn performance and low failure rate for 24‑ton‑level heavy‑material‑handling projects.

Core Advantages

1. Robust Power Output & Reliable Powertrain

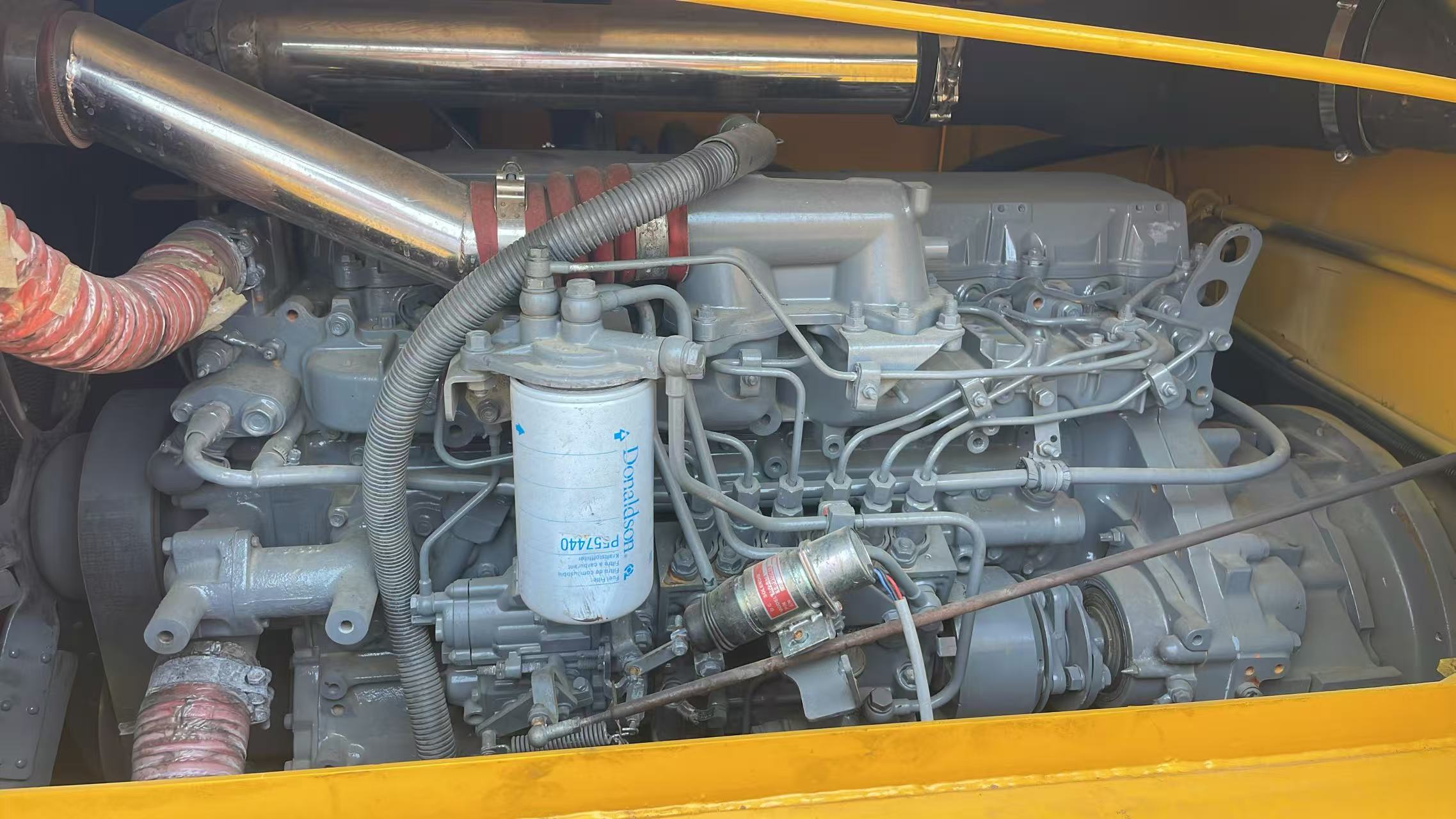

Equipped with high‑torque industrial diesel engine, rated power 165 kW (224 HP) /2100 rpm, peak torque 980 N·m /1400 rpm. Matched with 4‑forward & 4‑reverse automatic transmission and torque‑converter system, delivering strong climbing ability and stable power output under full‑load condition. Large‑capacity 600 L fuel tank supports long‑hour non‑stop operation, cutting frequent refueling downtime and improving yard throughput.

Main technical parameters:

• Rated lifting capacity: 24 000 kg, load‑center distance: 1 250 mm
• Standard lifting height: 3 000 mm
• Overall dimension (L×W×H): 8 750 mm × 3 070 mm × 3 750 mm
• Minimum turning radius: 5 900 mm
• Travel speed (forward max): 34 km/h
• Total service weight: 34 450 kg

2. Reinforced Structure & Superior Lifting‑Hydraulic Performance

Heavy‑duty high‑strength mast and thickened fork carriage, forks size 2440×310×105 mm, fork spacing adjustable 950‑2750 mm. Whole chassis, counterweight and stress‑bearing components adopt high‑strength cast‑steel & wear‑resistant steel plate, optimized for anti‑impact and anti‑torsion performance, coping with heavy steel, oversized cargo and harsh yard conditions. High‑efficiency load‑sensing hydraulic system achieves smooth lifting, lowering and tilting actions with precise flow‑pressure matching, reducing invalid energy loss. Full‑hydraulic steering brings light‑weight manipulation even under heavy‑load status. Heavy‑duty solid large‑size tires (14.00‑24‑24PR) provide excellent ground‑gripping performance for uneven, muddy or gravel‑covered yards京叶运搬机....

3. Human‑Centered Cab & Comprehensive Safety Configuration

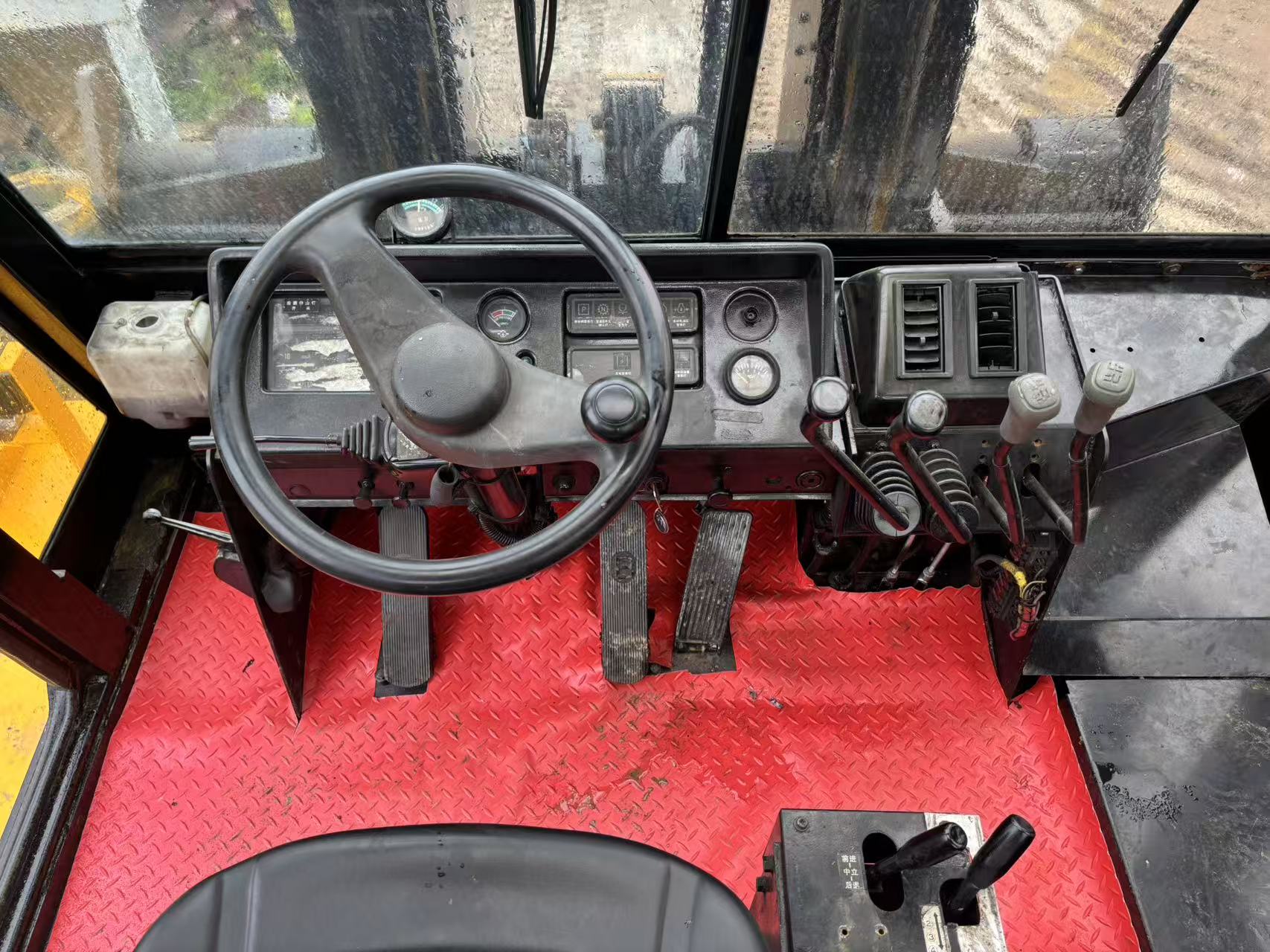

Fully enclosed heavy‑duty cab with wide‑view mast design, greatly expanding forward sightline for fork‑tip observation. Ergonomic adjustable suspension seat reduces long‑shift operator fatigue. Intuitive centralized control layout, easy‑to‑operate joysticks and instrument panel clearly display engine status, oil pressure, temperature and fault codes. Standard safety functions: operator‑presence safety system, overload protection, anti‑roll‑over counterweight design, travel alarm, rear‑view mirror and warning beacon optionsTCM Forkli.... Wet‑disc service brake plus mechanical parking brake deliver stable, reliable braking performance under full‑load heavy‑duty working conditions. Optional air‑conditioning system adapts to high‑temperature / low‑temperature outdoor environments.

4. Low‑Maintenance Design & High Attendance Rate

Centralized maintenance points for filters, oil‑filling ports and inspection ports, facilitating daily inspection, oil‑change and component replacement. Upgraded sealing for all hydraulic pipelines and joints effectively prevents oil leakage, dust and sediment intrusion, lowering component wear and failure probability. Mature, verified powertrain and hydraulic assemblies greatly cut breakdown risk. FD240 earns market recognition for long service life and low total‑ownership‑cost in continuous multi‑shift heavy‑duty yards.

5. Rich Attachment Compatibility & Wide‑range Working‑Condition Adaptability

Supports quick replacement of multiple working attachments to expand application scope:

• Standard heavy‑duty forks, extended‑length forks, fork positioner
• Coil rams for steel‑coil handling
• Container spreader for empty‑container stacking
• Bale clamps, special platforms for oversized heavy‑goods turnover Flexible attachments enable switching between heavy‑cargo transport, container operation, steel‑material handling and heavy‑equipment relocation, maximizing machine utilization rate.

Typical Application Scenarios

1. Port & Terminal OperationHandling heavy cargo, empty‑container stacking, steel‑goods loading/unloading in port yards, wharf and freight‑transfer stations. Reliable full‑load performance adapts to high‑frequency multi‑shift outdoor work.
2. Steel Mill & Metallurgical IndustryTransport and stacking of steel coils, steel ingots, heavy steel‑structure components, heavy‑material turnover inside steel‑plant yards, coping with dust‑filled, high‑load working environment.
3. Large‑Scale Logistics & Freight YardHeavy‑container goods, oversized equipment, bulk heavy‑cargo loading‑unloading, stacking and short‑distance transfer for large logistics parks and freight hubs.
4. Heavy‑Industry Manufacturing PlantWorkshop‑to‑yard turnover of large‑scale machinery castings, heavy moulds, large finished‑product components; factory‑outbound loading for overweight industrial goods.
5. Construction & Project SiteHandling heavy construction equipment, steel‑structure modules, pre‑cast concrete components for large infrastructure projects.

Foreign Trade Service Guarantee

1. Flexible Customization OptionsProvide personalized configuration solutions based on client working‑site conditions:

• Fork options: standard forks, long forks, fork positioner
• Attachments: coil ram, container spreader, special clamps
• Cab upgrade: air‑conditioning, heating, enhanced dust‑proof treatment
• Chassis & tire options: heavy‑duty reinforced tires, extra‑wear‑resistant parts Multilingual operation manuals and technical documents are supplied for global deployment.

2. Strict Quality Assurance & Complete CertificationsEvery TCM FD240 undergoes full pre‑shipment inspection and performance testing to satisfy international industrial standards. Complete export‑oriented certification documents support worldwide customs clearance:

• CE, ISO quality‑system certifications
• Regional emission‑compliance certificates
• Authorized third‑party inspection reports (SGS, BV)
• Full set of factory qualification and equipment‑parameter paperwork

3. Comprehensive Warranty & Professional Training SupportWhole‑machine core‑components comprehensive warranty of 12‑month / 2000 working hours. Global after‑sales team offers fast response 24/7. Free online & on‑site professional training for operators and maintenance technicians, covering:

• Standard safe‑operation specifications and high‑efficiency handling skills
• Daily equipment inspection and maintenance routines
• Common‑fault diagnosis, troubleshooting and emergency disposal
• Installation & servicing of various supporting attachments

4. Global Spare‑Parts & Service NetworkRelying on TCM global spare‑parts distribution channel and our overseas service centers, genuine spare parts can be delivered rapidly worldwide. Authorized professional service teams supply on‑site maintenance, equipment commissioning, fault diagnosis and overhaul service, minimizing machine downtime and securing long‑term stable operation.

Why Choose TCM FD240?

The TCM FD240 inherits TCM decades‑proven heavy‑forklift manufacturing technology. It delivers strong lifting capacity, solid mechanical structure, stable hydraulic performance and outstanding site adaptability. Compared with peer 24‑ton heavy forklifts, FD240 features lower failure rate, convenient maintenance and competitive whole‑life‑cycle cost. With mature safety design and rich‑attachment compatibility, it maintains high attendance rate under multi‑shift heavy‑duty yard scenarios. It is a preferred cost‑effective heavy‑duty forklift for global enterprises undertaking heavy‑cargo material‑handling business.

Contact Us

For personalized TCM FD240 quotation, customized configuration plan and global door‑to‑door shipping service, please feel free to contact our professional foreign‑trade team. Flexible international payment terms (LC, TT, DP) are available. We cooperate with reliable global logistics providers, offering one‑stop services from equipment consultation, order customization, export declaration to after‑sales guarantee, helping your projects run efficiently and create greater value.
