CAT D6R LGP 23-Ton Low-Ground-Pressure Crawler Dozer – Foreign Trade Sales Copy

Brand & Model Positioning

Brand: CAT (Caterpillar)

Caterpillar (CAT), a globally acclaimed American manufacturer with over 90 years of expertise in construction and mining machinery, leads the industry in innovation, durability, and performance. Renowned for its rugged, high-quality equipment, CAT serves 190+ countries via 2100+ authorized dealers, trusted by contractors, mining firms, and infrastructure developers for reliable, fuel-efficient, and low-maintenance machines. The brand’s commitment to cutting-edge tech, sustainability, and customer-centric service solidifies its status as a top choice for long-term productivity and value in heavy-duty operations.

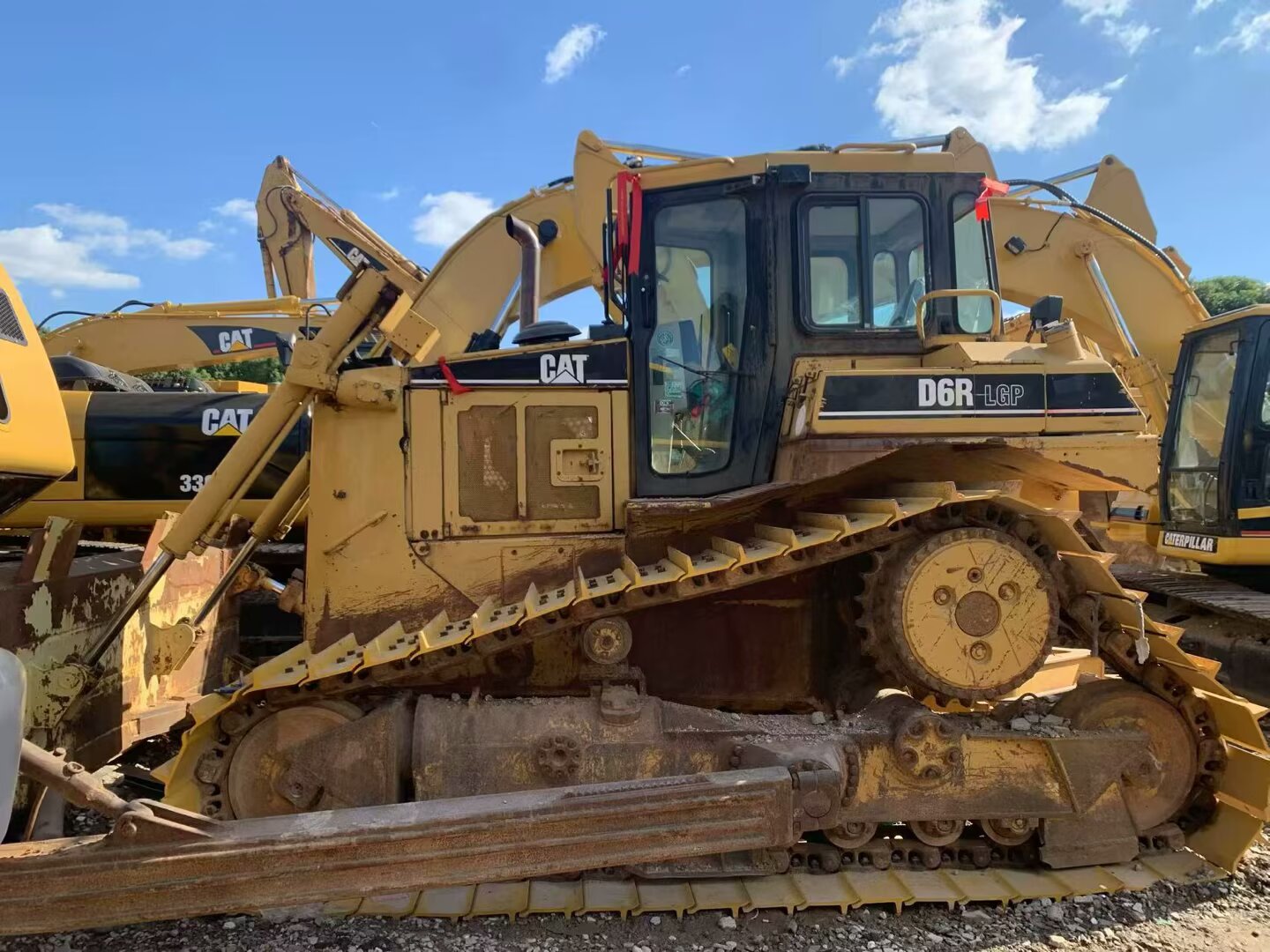

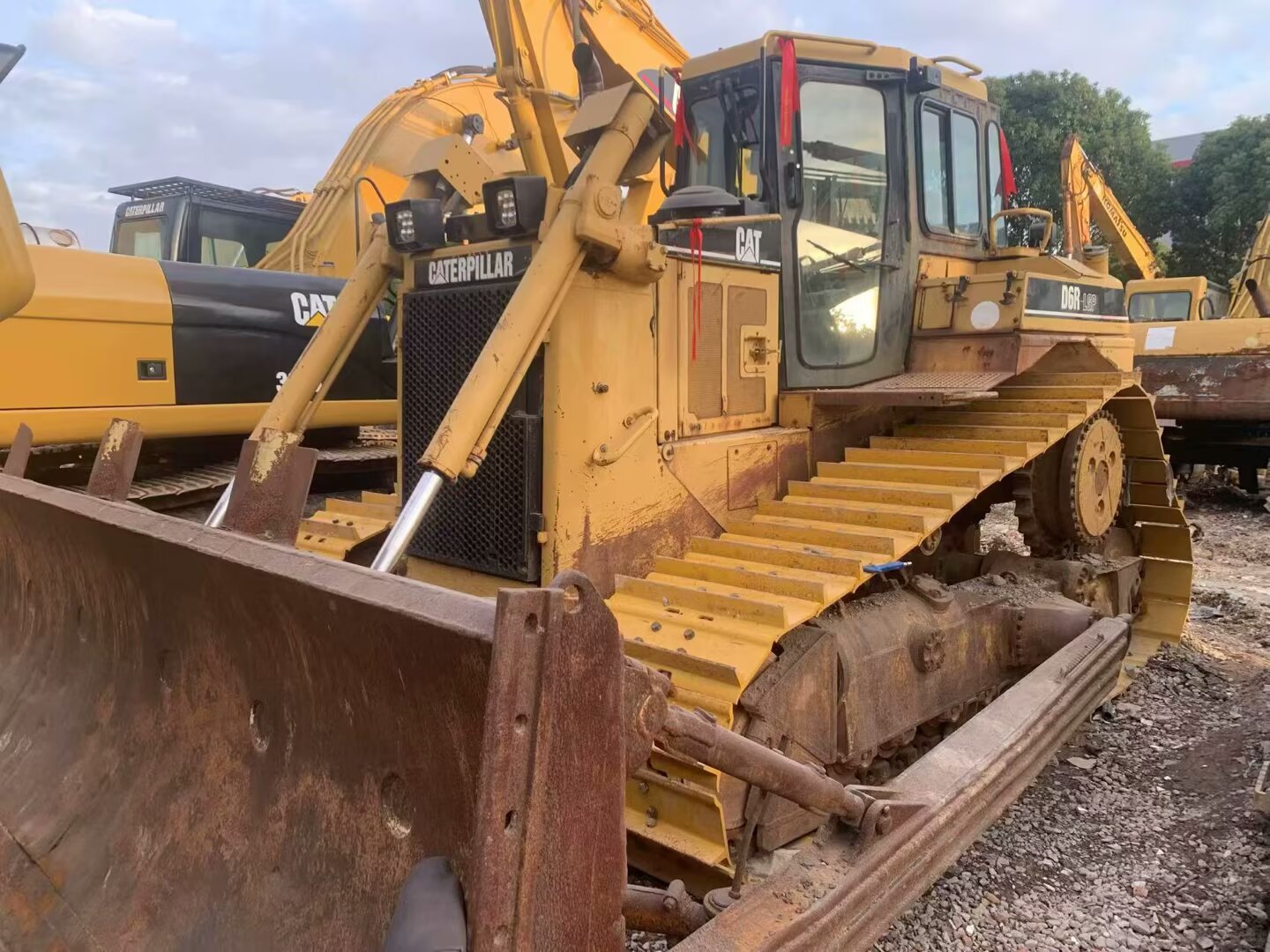

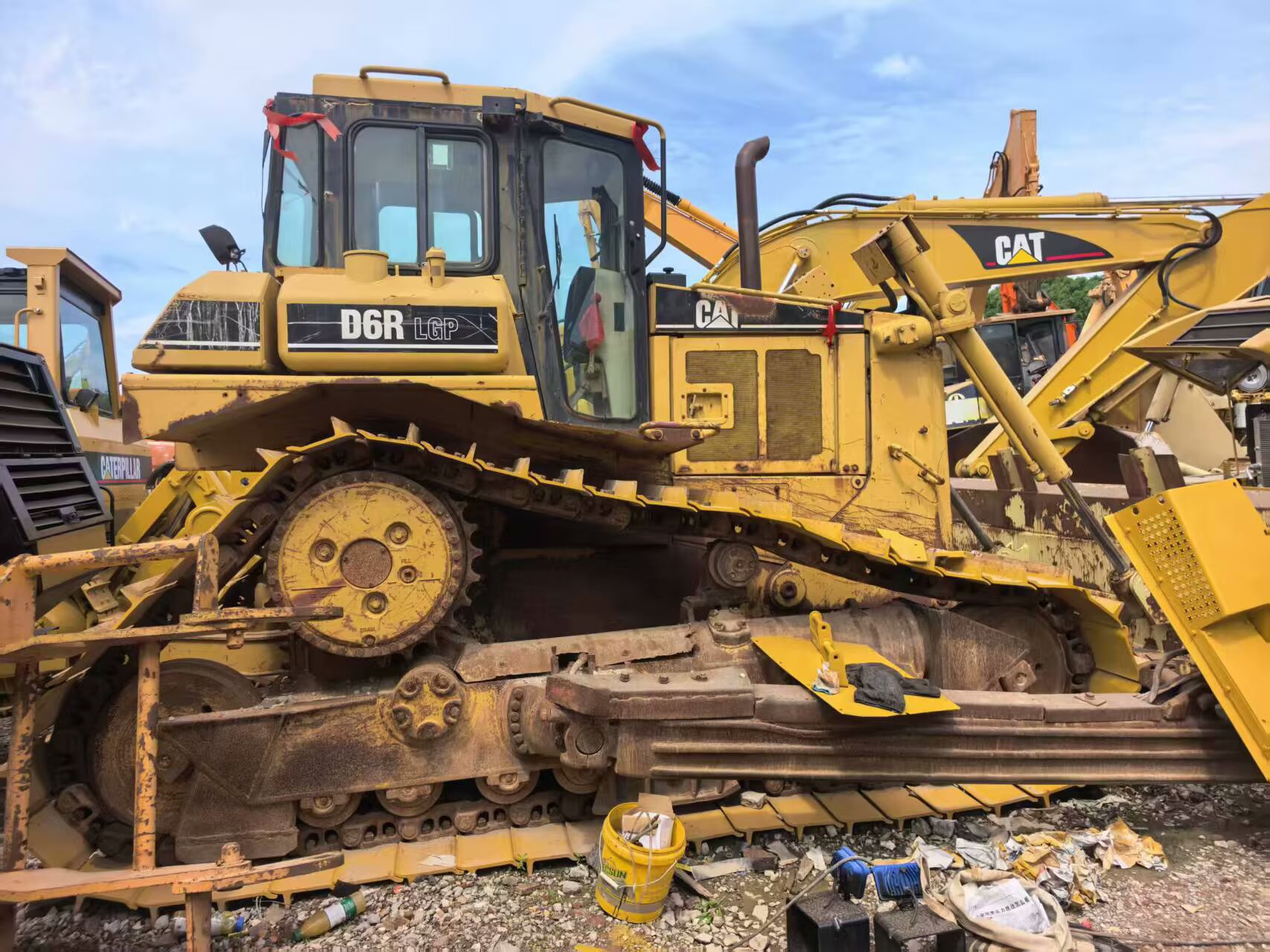

Model: CAT D6R LGP

The CAT D6R LGP is a 23-ton class low-ground-pressure crawler dozer tailored for soft terrain—wetland, marsh, sand, or muddy job sites—where minimizing ground disturbance and maximizing flotation are critical. It integrates a robust Cat C9 ACERT engine, advanced power-shift transmission, and extra-wide 915 mm track shoes, delivering strong traction, precise grading, and exceptional flotation. Its durable undercarriage, ergonomic cab, and versatile blade options (S-Blade, VPAT) make it ideal for land reclamation, wetland construction, coastal development, and large-scale grading projects. Balancing power, flotation, and maneuverability, the D6R LGP is the go-to machine for customers needing reliable performance on challenging soft surfaces.

Core Technical Specifications

1. Basic Parameters

• Operating Weight (VPAT): 23,051 kg (50,818 lb)
• Blade Capacity (S-Blade): 3.75 m³ (4.91 yd³); (VPAT): 4.32 m³ (5.65 yd³)
• Rated Power (ISO 9249): 149 kW (200 HP) @ 2000 rpm
• Overall Dimensions (L×W×H): 6820 mm × 4070 mm (S-Blade) / 4170 mm (VPAT) × 3300 mm
• Fuel Tank Capacity: 425 L (112.3 US gal)

2. Engine Performance

• Engine Model: Cat C9 ACERT (6-cylinder, 4-cycle, turbocharged, aftercooled)
• Emission Compliance: US EPA Tier 3 / EU Stage 3A
• Displacement: 8.8 L
• Maximum Torque: 940 Nm @ 1400 rpm
• Cold-Start Performance: Reliable starting in low temps with optional pre-heater

3. Travel & Traction Systems

• Travel Speed: Forward 3.8/6.6/11.5 km/h; Reverse 4.8/8.4/13.6 km/h
• Drawbar Pull: 255 kN (26,000 kgf)
• Track Shoes: 915 mm wide, 46 shoes per side, low ground pressure (33.2 kPa)
• Undercarriage: Heavy-duty elevated sprocket design, 8 track rollers per side, reinforced frame

4. Hydraulic & Control Systems

• Hydraulic System: Load-sensing, variable displacement piston pump, 280 L/min max flow
• Working Hydraulics: Pilot-controlled, 4-spool valve, 34,500 kPa relief pressure
• Blade Cycle Time (Lift + Tilt + Lower + Return): 10.8 seconds
• Blade Force (VPAT): 220 kN (22,440 kgf)

5. Working Range (VPAT Blade)

• Maximum Blade Height: 3100 mm
• Maximum Blade Digging Depth: 780 mm
• Maximum Blade Tilt Angle: ±25°
• Maximum Blade Pitch Angle: 55°
• Grading Precision: ±25 mm (with optional AccuGrade system)

6. Operator Cab

• ROPS/FOPS certified (ISO 3471/ISO 3449)
• Spacious, low-noise (74 dB) design with full sealing and insulation
• Adjustable suspension seat, telescopic/tilt steering, and low-effort controls
• ISO-compliant air conditioning with filtration system

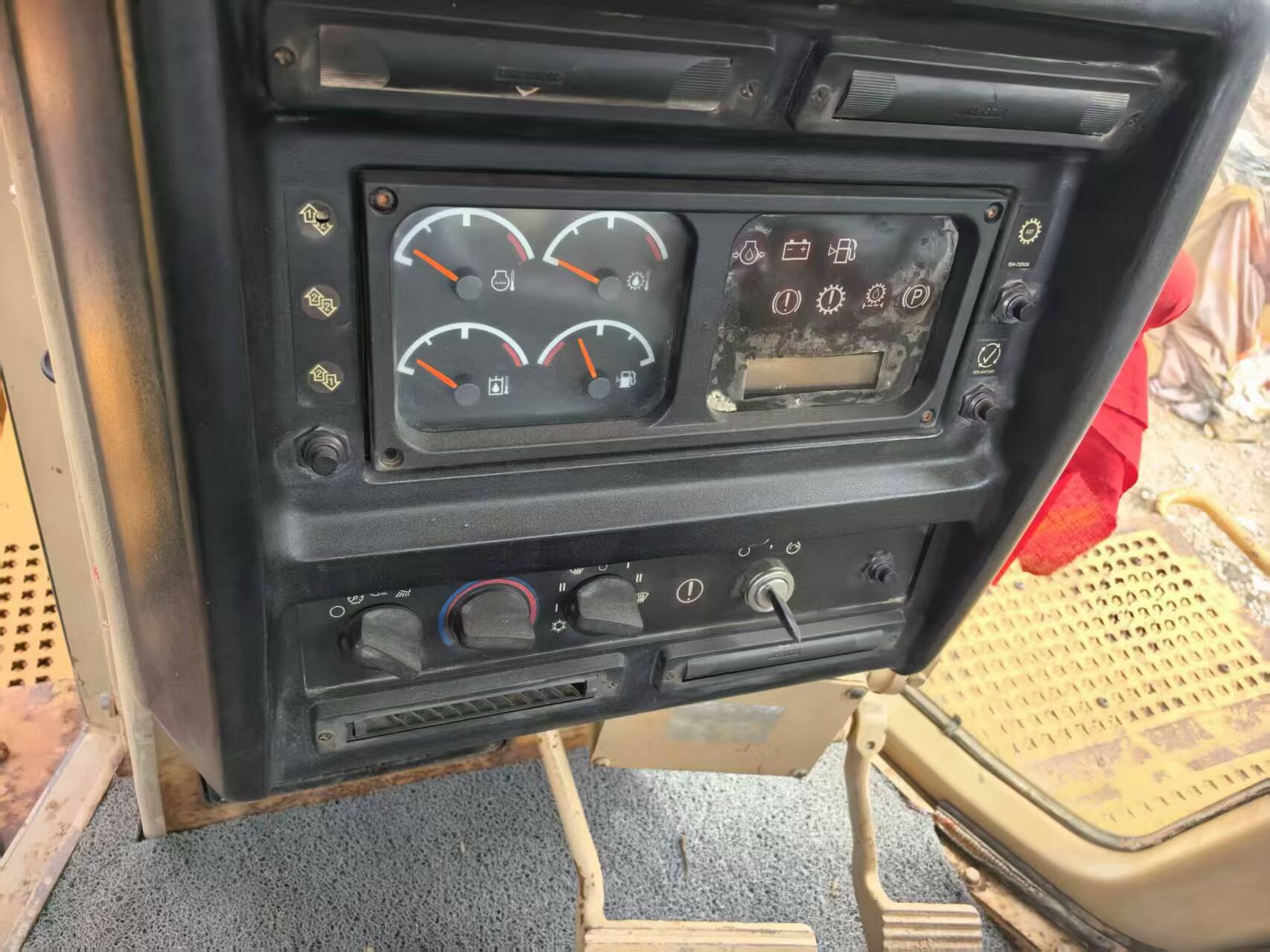

• Multi-information display for real-time machine status monitoring

7. Structural Durability

• Reinforced blade with thickened wear plates
• Heavy-duty track frame and undercarriage for long service life
• Extended service intervals (500-hour oil change)
• Rebuildable components for enhanced longevity

Core Advantages

1. Low Ground Pressure & Flotation

• 915 mm extra-wide track shoes reduce ground pressure to 33.2 kPa, ideal for soft terrain
• Excellent traction on wet, muddy, or sandy surfaces without sinking or damaging ground
• Perfect for land reclamation, wetland construction, and coastal development projects

2. High Power & Productivity

• 149 kW (200 HP) Cat C9 ACERT engine delivers strong drawbar pull and blade force
• Versatile blade options (S-Blade for grading, VPAT for multi-angle dozing) adapt to diverse tasks
• Fast cycle times and precise controls boost efficiency with fewer passes

3. Exceptional Reliability

• Robust engine and transmission with long service intervals (500-hour oil change)
• Elevated sprocket design reduces undercarriage wear and simplifies maintenance
• Advanced cooling system prevents overheating in extreme temperatures

4. Operator Comfort & Safety

• ROPS/FOPS certified cab with steel tube construction for enhanced protection
• Tapered hood and notched fuel tank ensure excellent front/rear visibility
• Low noise/vibration with full insulation and suspension seat to reduce fatigue
• Optional AccuGrade system for precise grading without stakes, improving safety

5. Low Operating Costs

• Fuel-efficient Cat C9 ACERT engine cuts daily operating expenses
• Long service intervals and rebuildable components extend machine life
• Easy access to service points for quick maintenance
• High resale value due to CAT’s reputation for durability

6. Global Service & Support

• CAT’s global network of 2100+ authorized dealers for parts and service
• Product Link remote monitoring for real-time diagnostics
• 24/7 technical support via phone, email, or on-site

Typical Application Scenarios

1. Land Reclamation & Wetland Construction

• Marsh, wetland, and coastal area development
• Low-ground-pressure grading and site preparation

2. Agriculture & Irrigation

• Farmland development, pond digging, and irrigation projects
• Soft-soil land preparation and material handling

3. Construction & Infrastructure

• Road building on soft terrain and embankment construction
• Pipeline and utility installation in wet/muddy areas

4. Mining & Quarry Operations

• Overburden removal in soft-soil mines
• Stockpiling and material handling in wet conditions

5. Rental & Municipal Services

• Municipal wetland restoration and flood control
• Rental fleets for diverse soft-terrain job needs

Foreign Trade Service Guarantee

1. Customization Options

• Blade options (S-Blade, VPAT, Angle Blade)
• Engine emission compliance (Tier 3 / Stage 3A)
• Special configurations for extreme environments (cold, hot, humid)
• Multilingual documentation and operator manuals

2. Inspection & Certification

• Pre-shipment inspection by SGS, BV, or other third parties
• Export certifications (CO, Form E, Form F, etc.)
• Compliance with international standards (ISO, CE, EPA Tier 3)

3. Warranty & Training

• 1-year or 2000-hour global warranty
• Free operator and maintenance training
• Technical support via phone, email, or on-site

4. Spare Parts & After-Sales

• Fast delivery of genuine CAT parts
• Consignment stock available for key markets
• On-site service and maintenance contracts

Why Choose CAT D6R LGP?

The CAT D6R LGP 23-ton low-ground-pressure crawler dozer merges CAT’s engineering excellence with specialized low-ground-pressure design to excel on soft terrain. Its Cat C9 ACERT engine, extra-wide track shoes, and versatile blade options ensure strong performance, minimal ground disturbance, and low operating costs. The ergonomic cab and robust structure make it perfect for land reclamation, wetland construction, and soft-soil infrastructure projects. Backed by CAT’s global service network and remote monitoring, the D6R LGP offers peace of mind and high ROI. For customers needing power, flotation, and reliability on soft terrain, the CAT D6R LGP is the ultimate choice.

Contact Us

For real-time quotes, customization options, bulk discounts, or shipping details, contact our foreign trade team. We offer competitive pricing, flexible payment terms (LC, TT, DP), and door-to-door shipping worldwide. Our professional team provides one-stop service from product selection to after-sales support, helping you achieve business success.
