Brand: TCM – A leading Japanese material handling brand under Hitachi Group, with a 10%+ market share in the 7-ton diesel forklift segment across the Middle East, Southeast Asia, and Africa. It operates 180+ global authorized service centers and 9 regional parts warehouses (Dubai, Singapore, Johannesburg, etc.), trusted for Isuzu engine durability and high-precision hydraulic systems, widely used in high-intensity heavy-load scenarios like port container handling and industrial logistics.

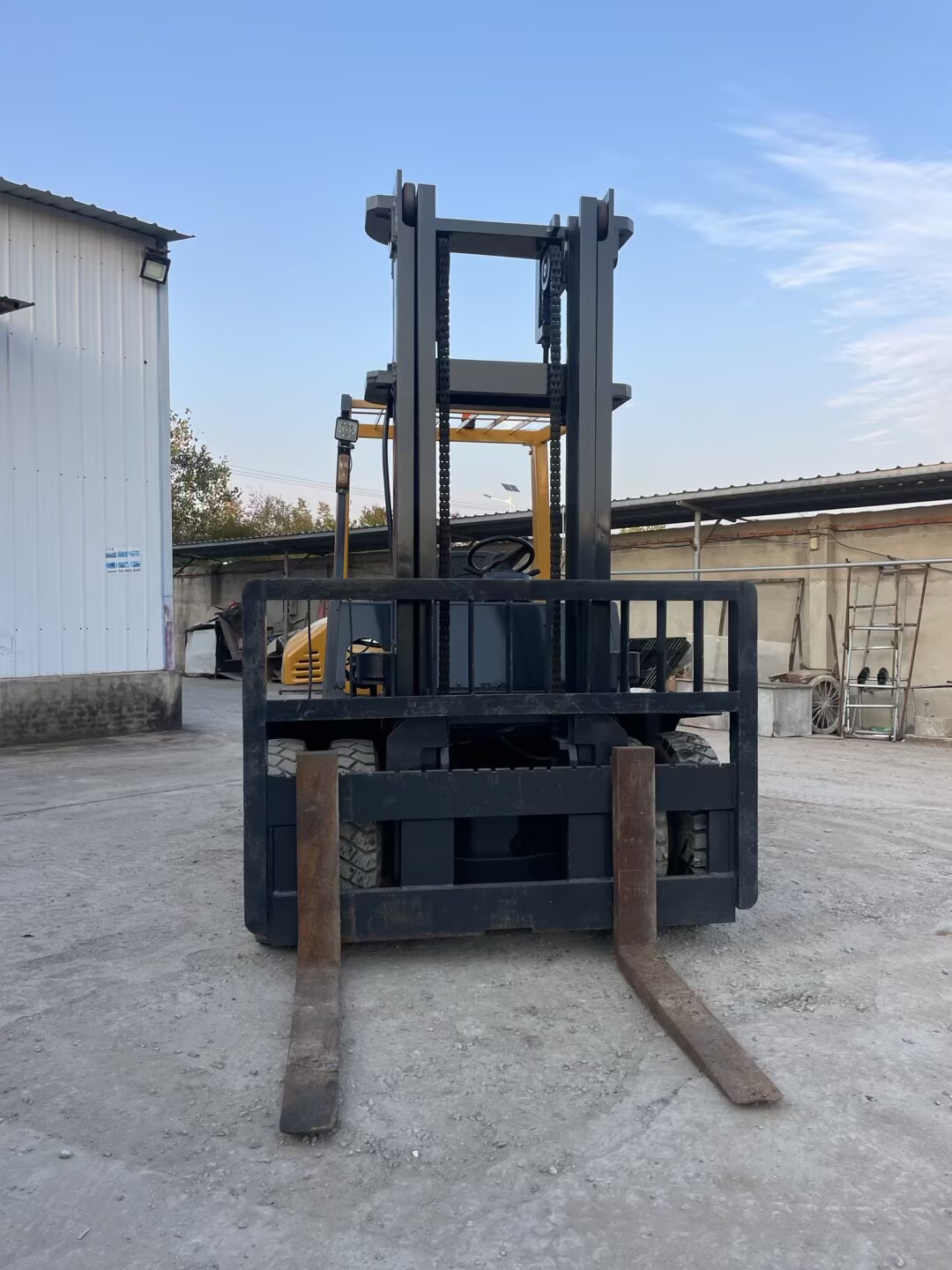

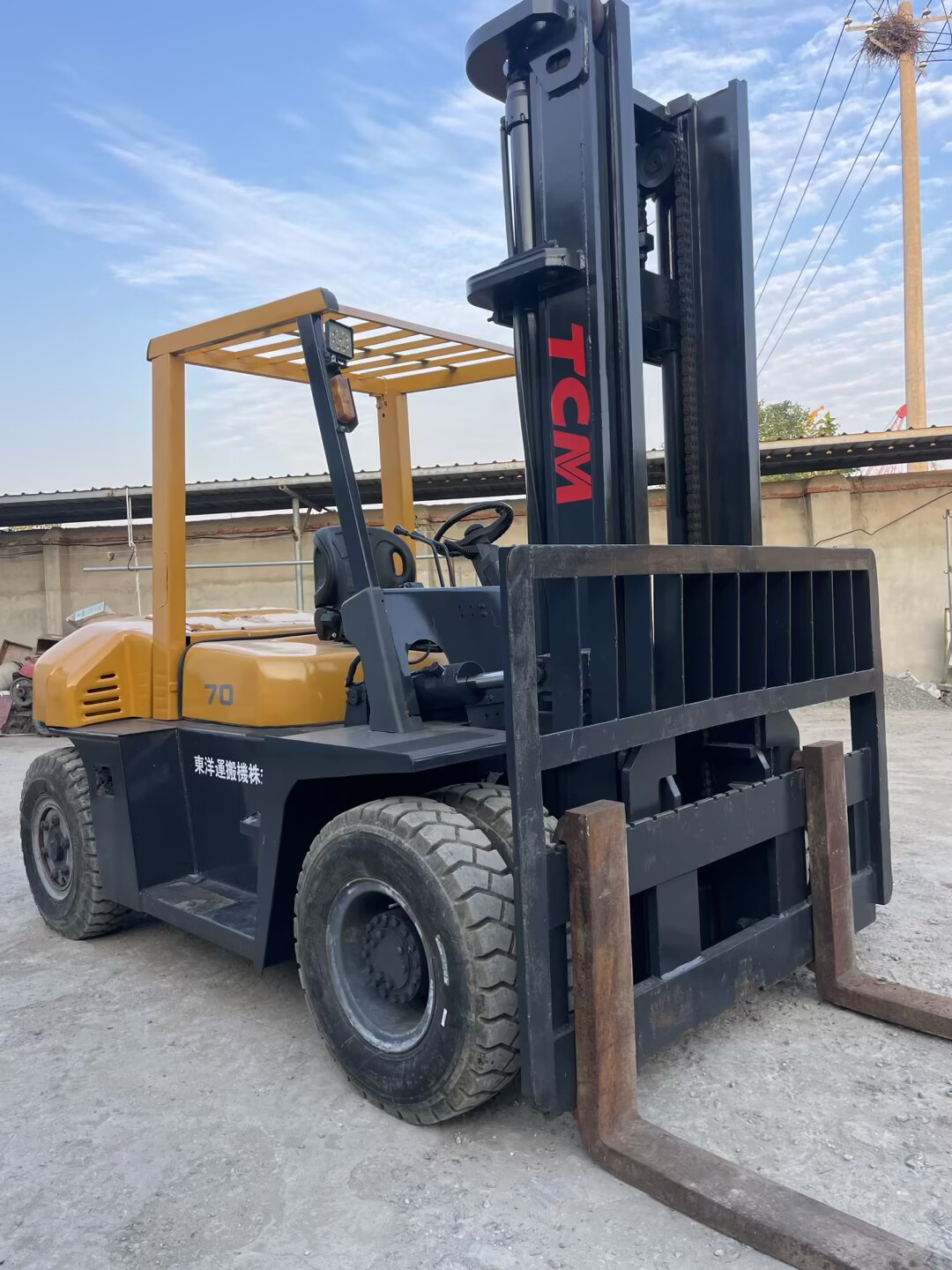

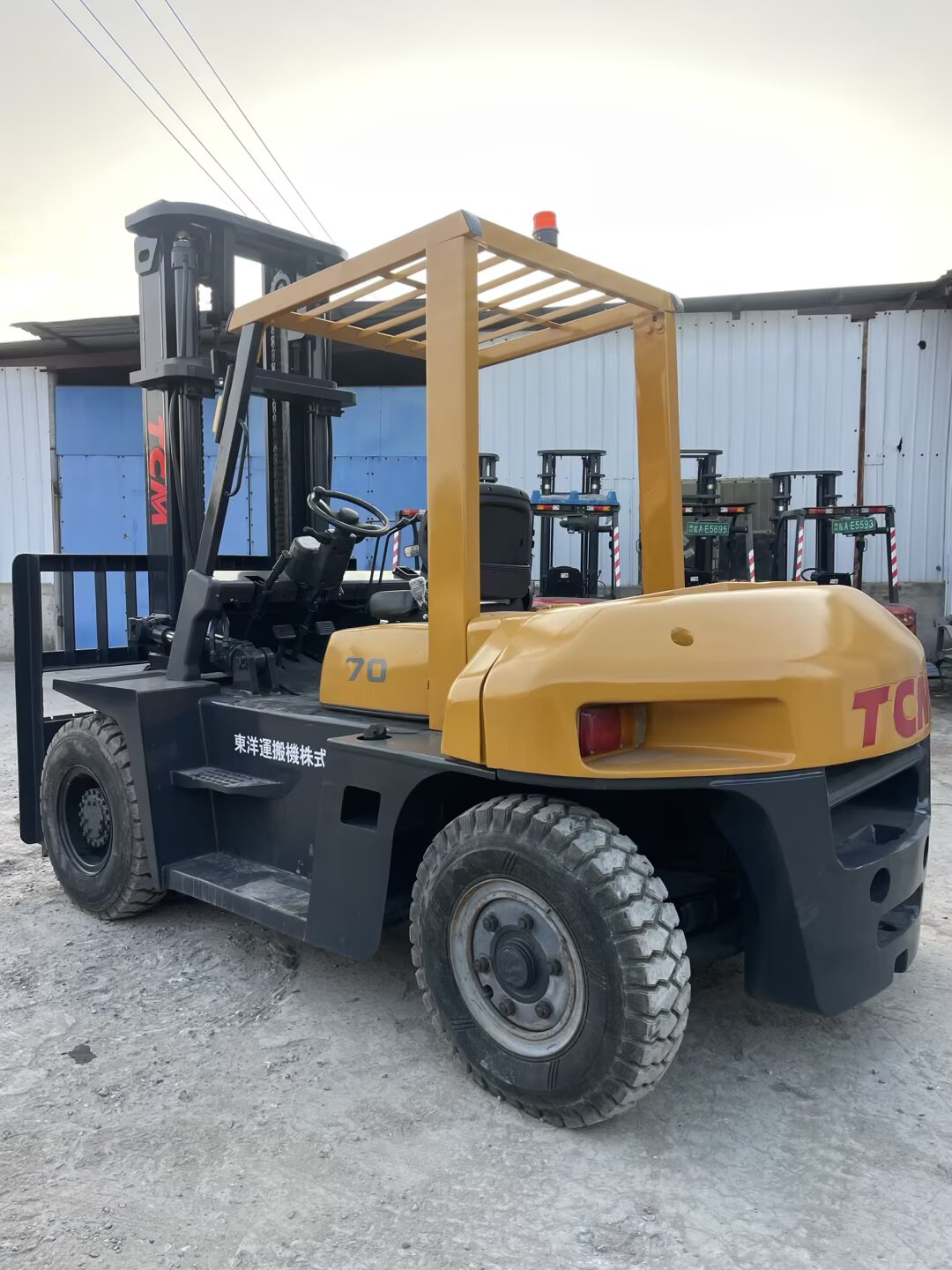

Model: TCM FD70Z8 – A 7-ton diesel counterbalanced forklift (production years 2010-2018). Rated load: 7000kg (600mm load center); standard lift height: 3000mm (upgradable to 8000mm); minimum turning radius: 3500mm; powered by Isuzu 6BG1T 107kW diesel engine with 3F/3R automatic transmission; compliant with Tier 2/EU Stage II emissions. Excels in heavy container handling, large warehouse stacking, and outdoor yard transfer, favored by Middle Eastern port operators and Southeast Asian construction enterprises for robust performance and low total cost of ownership.
Dimensions: 3650×2100×2500mm (L×W×H); turning radius: 3500mm. Heavy-duty counterweight ensures stable 7-ton lifting; anti-corrosion orange paint resists salt spray/dust; 9800kg unloaded weight guarantees operational stability.

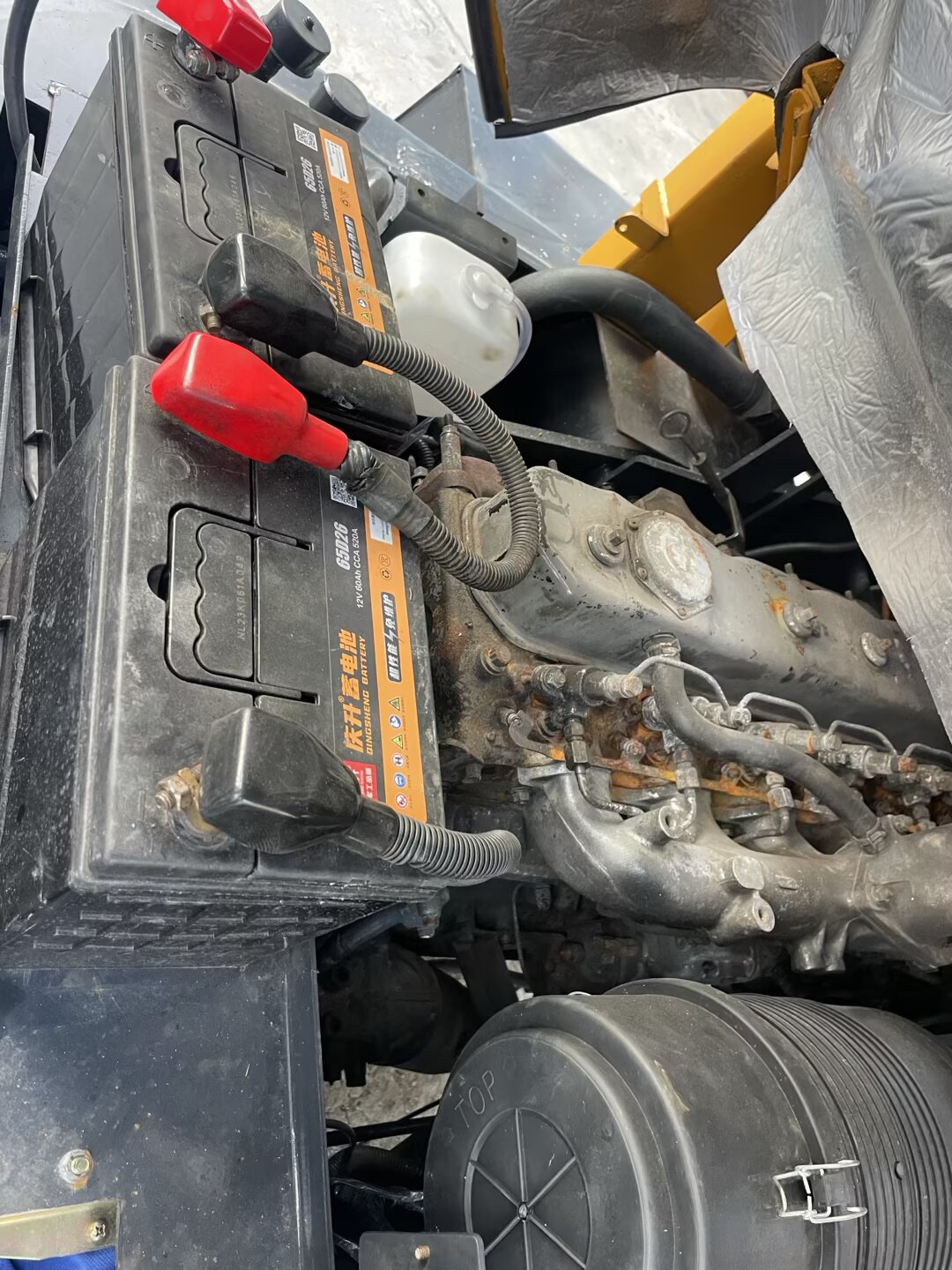

Isuzu 6BG1T 6.5L turbo 6-cylinder engine (107kW/2200rpm) delivers max gradeability 30%. Load-sensing hydraulics: lift speed 450mm/s (loaded)/500mm/s (unloaded), lower speed 400mm/s; smooth handling of steel coils/concrete precast components.

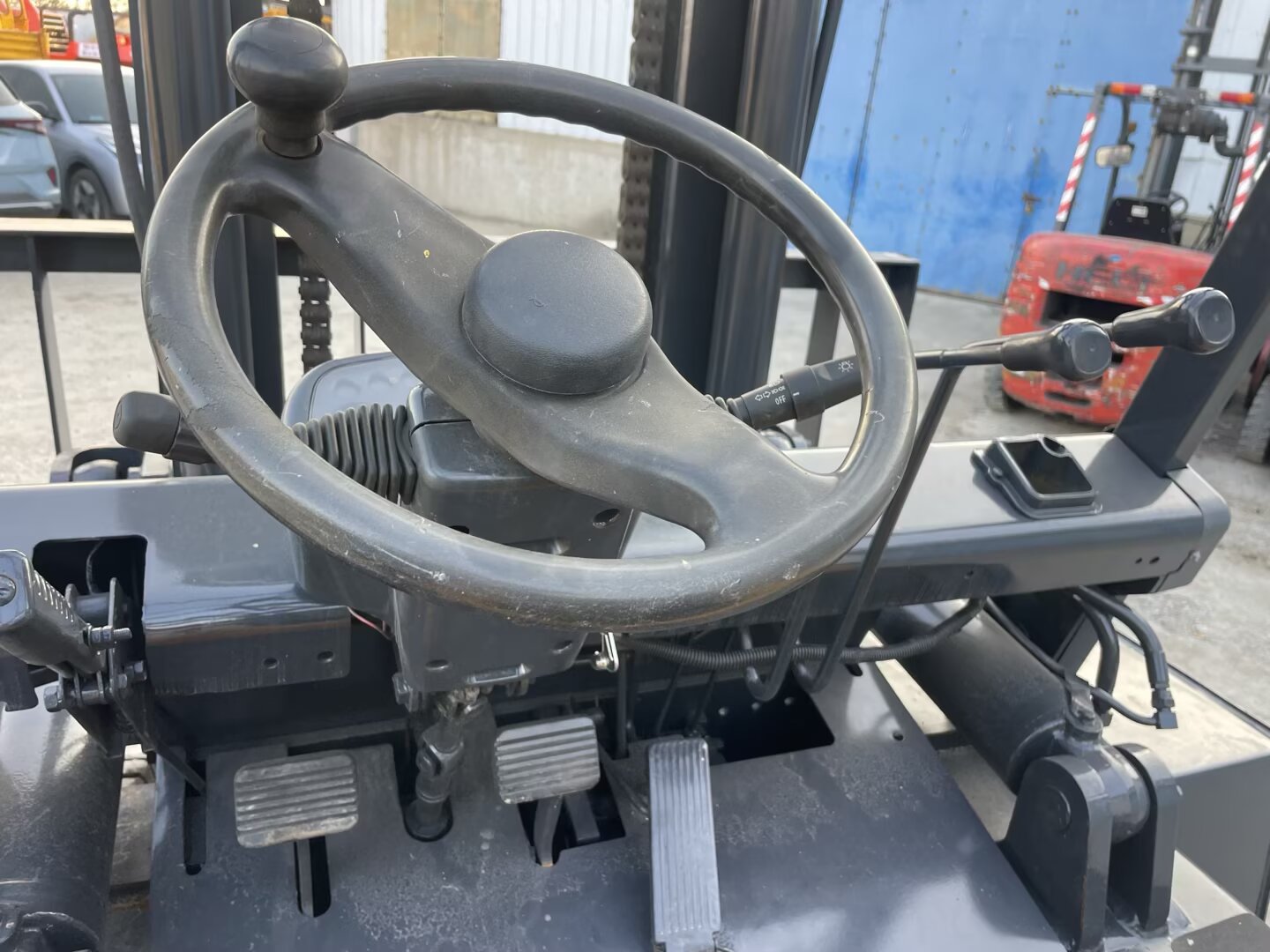

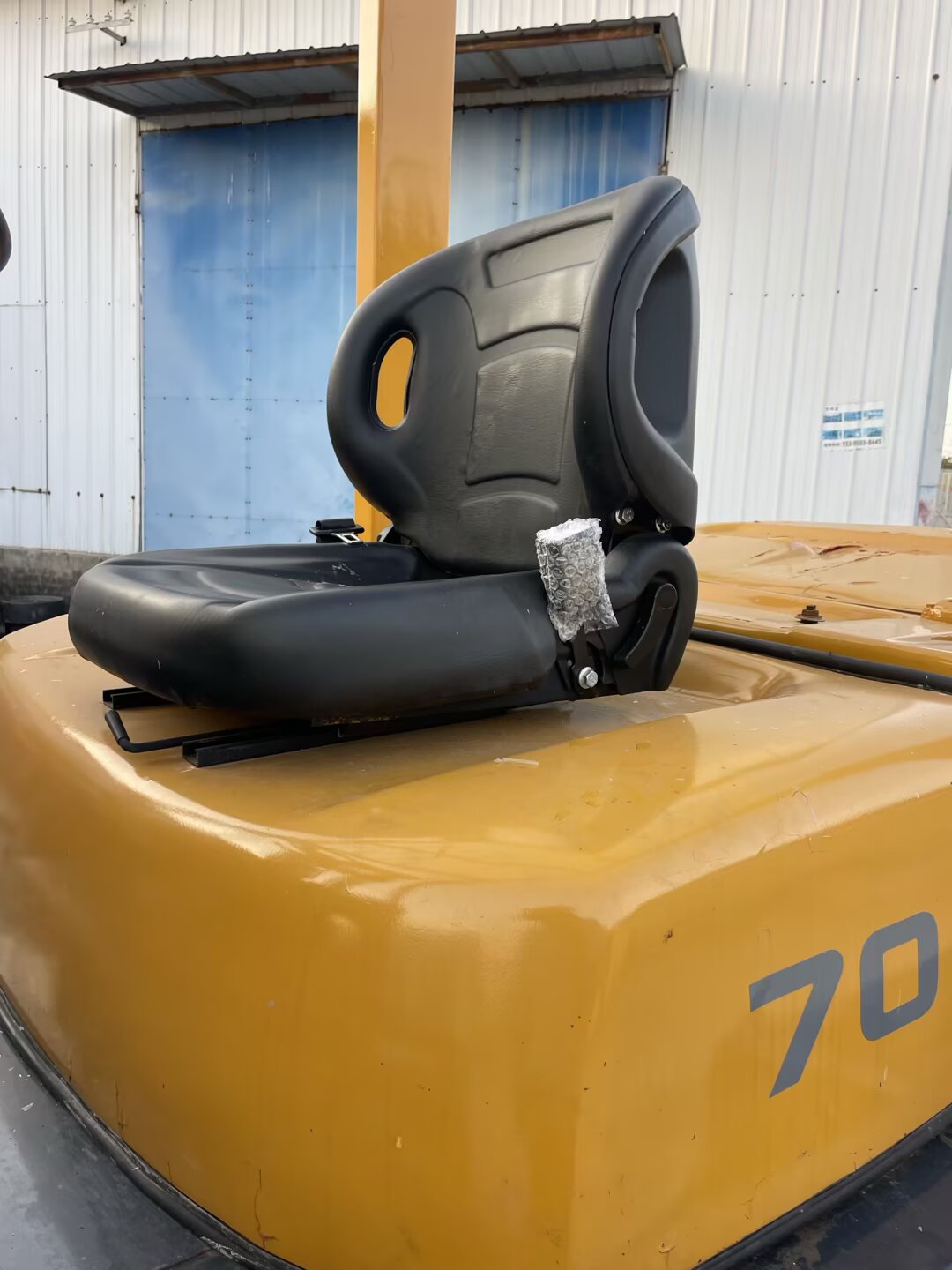

Adjustable suspension seat, low-noise cab (≤83dB), integrated controls reduce fatigue. Automatic transmission simplifies operation; 3500mm turning radius enables movement in 5m-wide aisles/container yards.
- Robust & Efficient Power
- Strong Power: 107kW/480N·m Isuzu turbo engine handles 7-ton loads and 30% gradients for rough terrain.
- Fuel Efficiency: 8.0-8.8L/h (10% lower than peers); Tier 2 compliance for smooth customs clearance.
- Durable Engine: Double air filter + oil-water separator extend service life to 11,000 hours (18% above industry average).
- Precise & Low-Maintenance Hydraulics
- Lifting Performance: 3000mm standard height (upgradable to 8000mm); 12% higher stacking efficiency vs. conventional systems.
- Stable Handling: Load-sensing system prevents load drop; 6°/12° fork tilt fits irregular cargoes.
- Low Upkeep: 4500-hour hydraulic oil cycle; imported seals reduce leakage by 82% (20% lower annual maintenance cost).
- Safe & Comfortable Operation
- Maneuverability: 3500mm turning radius + 3650mm length for narrow spaces; 1 unit per 40ft container for transport.
- Safety Features: FOPS guard, dual-circuit brakes (≤3.8m braking distance at 10km/h), wide-view mirrors.
- Operator Comfort: Spacious cab, low noise (≤83dB), simple controls reduce fatigue and training costs.
- Durable & Easy-To-Maintain Structure
- High-Strength Frame: Impact-resistant steel + anti-corrosion paint (22% longer service life in coastal areas).
- Convenient Maintenance: Ground-level checkpoints (engine oil/hydraulic oil/filters) cut maintenance time by 25%.
- Global Parts Supply: Common parts delivered in 5-12 days via TCM regional warehouses.
- Port Container Handling: 7-ton capacity for container cargo; anti-salt-spray design for coastal environments.
- Heavy-Duty Warehousing: Stacking steel/cement in manufacturing/construction material warehouses.
- Outdoor Yard Operations: 30% gradeability for gravel yards; 14.00-24 tires for rough terrain.
- Industrial Production Lines: Raw material/finished product handling in automotive/chemical/heavy machinery plants.
- Inspection & Certification: SGS/BV test reports for used units; CO/CE/emission certificates for customs clearance.
- Logistics & Commissioning: 40ft container transport (1 unit/container) with anti-rust packaging; on-site assembly/training/guidance; multilingual manuals.
- After-Sales Support: 1-year free parts warranty; 24/7 online technical support; local service partners for on-site repairs.
TCM FD70Z8 integrates Japanese manufacturing precision with 7-ton heavy-load performance. The Isuzu turbo engine ensures reliable power and fuel efficiency, while the 3500mm turning radius enables flexible operation in narrow spaces. With low long-term costs, 11,000 hours of stable operation, and easy parts access, it is ideal for heavy-duty, high-frequency material handling in emerging markets.
For custom mast height upgrades (3m→8m), new/used unit quotes, attachment options (side shifters, fork extensions), or Arabic-language operation training, contact our team now.
