Brand: HITACHI (Hitachi Construction Machinery) – A world-leading heavy machinery brand with a century of manufacturing heritage, renowned for its advanced hydraulic technology and reliable product quality. Its excavators are widely used in global engineering projects, and the EX series, as a classic product line, has won high recognition from overseas users for its stable performance and strong adaptability to harsh working conditions.

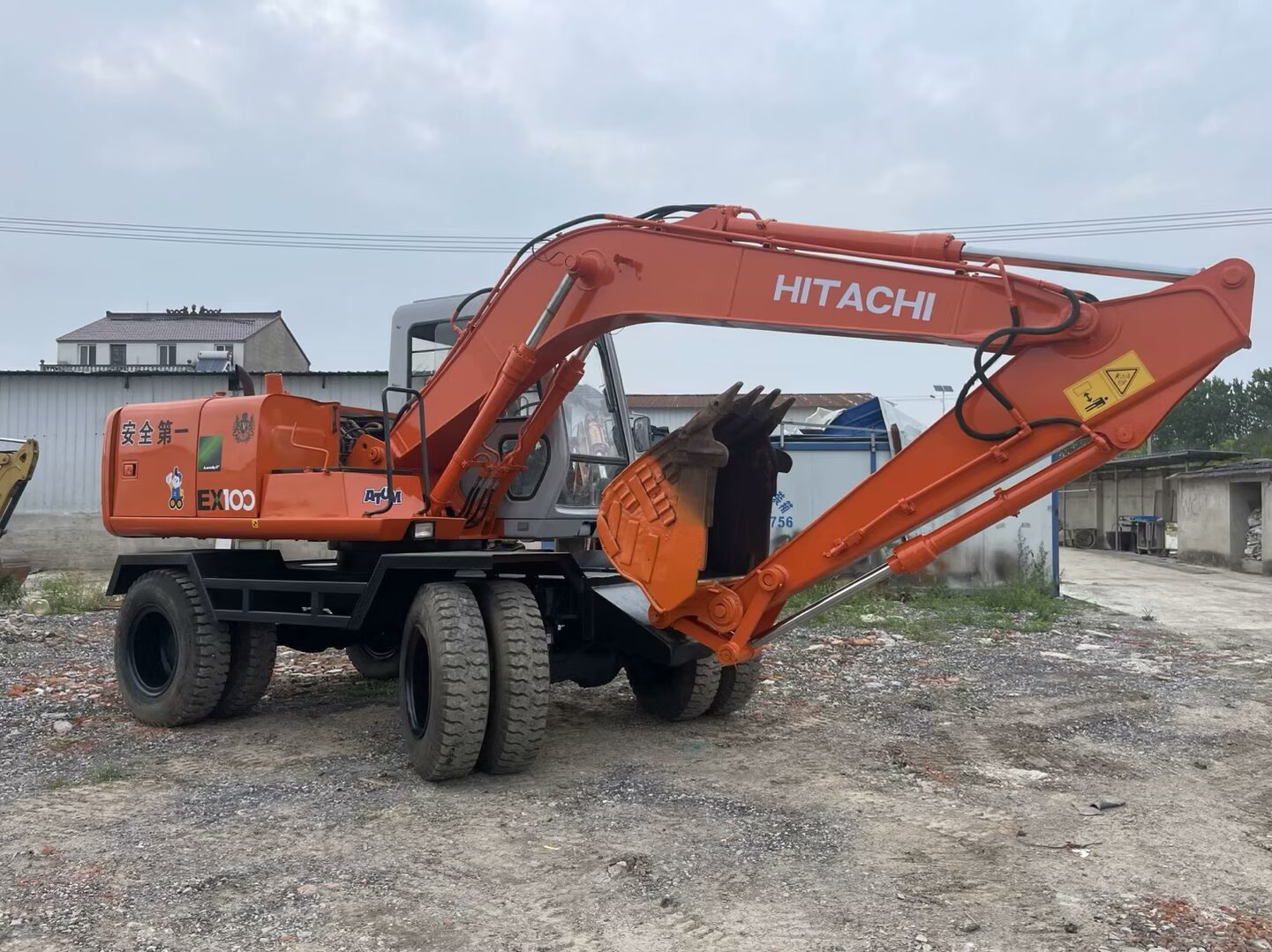

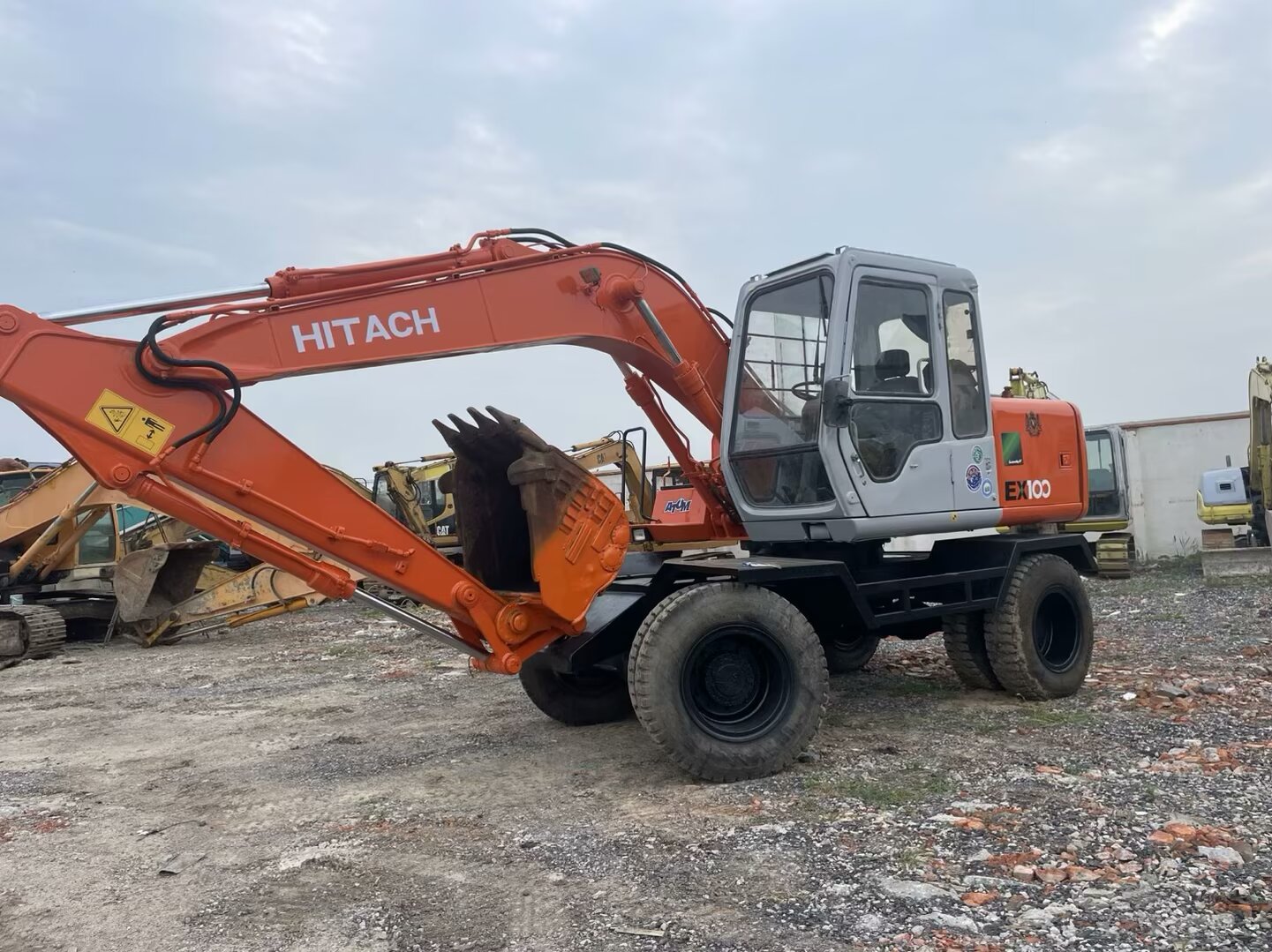

Model: HITACHI EX100-3 – A core model in Hitachi's 10-ton class medium crawler excavator lineup, positioned as a cost-effective equipment for small and medium-sized engineering projects. It is equipped with Isuzu's high-performance engine and Hitachi's self-developed hydraulic system, integrating strong power, high operation efficiency and easy maintenance. With a balanced weight and compact structure, it is suitable for a variety of overseas construction scenarios such as urban construction, small-scale mining and agricultural engineering, and is especially favored by users in Southeast Asia, Africa and other regions.

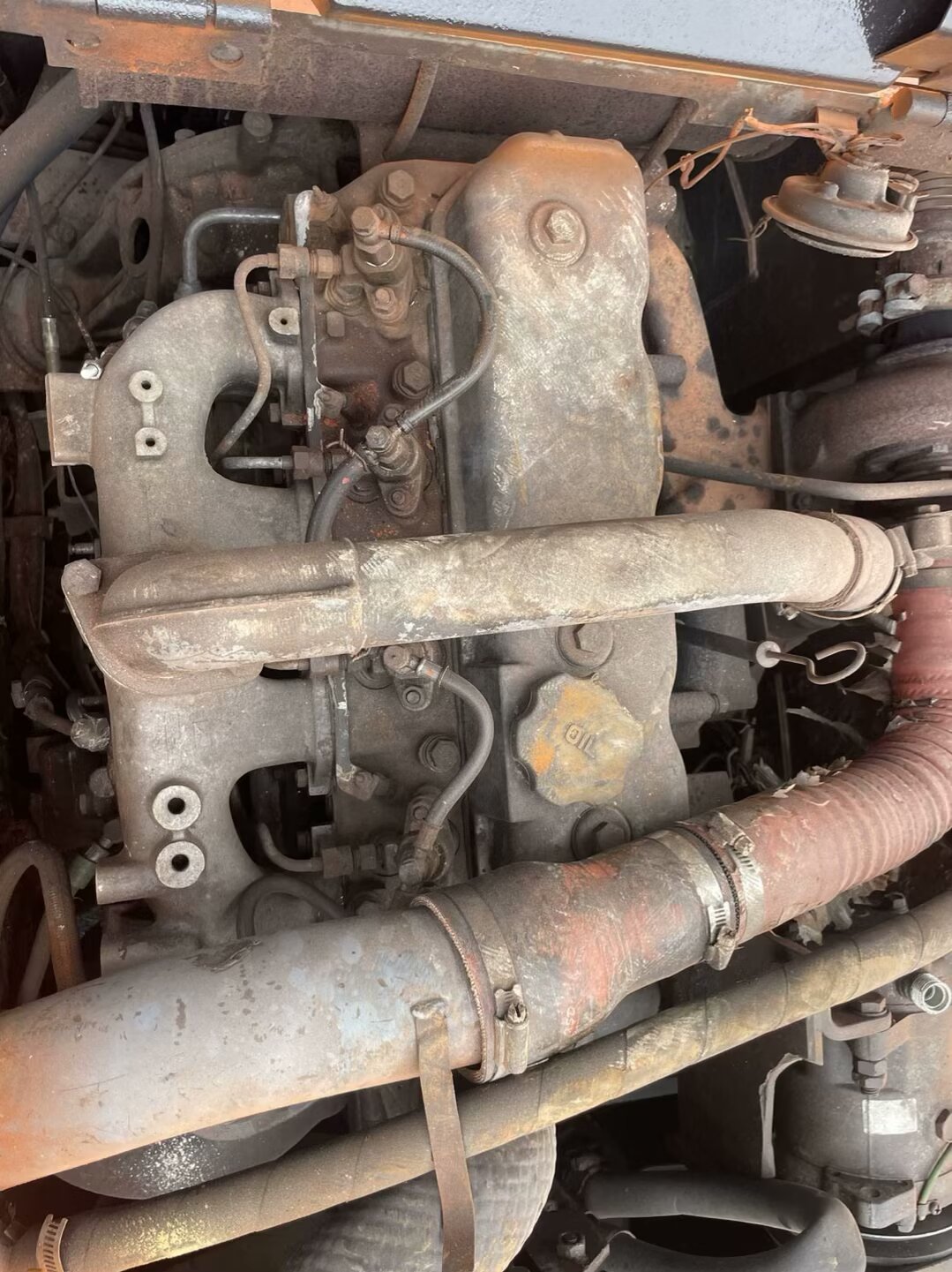

The EX100-3 is equipped with the Isuzu 4BD1-T1 engine, a 4-cylinder water-cooled diesel engine with a rated power of 57kW/rpm and a displacement of 3.0L. This engine adopts advanced fuel injection technology, which not only ensures strong power output but also improves fuel combustion efficiency, achieving the dual advantages of high efficiency and energy saving. It can stably operate in high-temperature, dusty and other harsh overseas working environments, and the cooling system with optimized design effectively avoids the problem of high temperature during long-term operation, ensuring the continuous working capacity of the equipment.
It adopts Hitachi's self-developed three-pump hydraulic system, which realizes independent control of each action and ensures the smoothness and precision of the excavator's operation. The main relief valve setting pressure of the hydraulic system reaches 31.4MPa, and the matching of variable piston pump and quantitative piston motor makes the digging force of the bucket up to 42kN, and the maximum digging depth is 5570mm, the maximum unloading height is 5690mm. The hydraulic pipeline layout is optimized, and the key joints are reinforced to reduce the risk of oil leakage, which is suitable for long-term high-intensity operations such as earthwork excavation and gravel loading.
The overall operating weight of the machine is 10700kg (partial versions are 12100kg), with a heavy-duty X-type chassis and reinforced track structure. The 500mm wide track plate and 2880mm track grounding length reduce the ground contact pressure, enabling stable operation on soft ground such as farmland and mudflat, and the maximum climbing capacity reaches 70%, adapting to complex terrain such as hills and mines. The boom and bucket are made of high-strength wear-resistant steel, and the welding seams are reinforced, which can withstand the impact of hard materials such as gravel and extend the service life of the equipment.
The cab is designed in accordance with ergonomics, with a reasonable layout of the console and flexible control lever, which reduces the operator's fatigue during long-term work. The large-area glass window expands the operating field of vision and reduces the blind area of operation, improving the safety of construction in narrow spaces. In terms of maintenance, the equipment is equipped with an external easy-access maintenance port and a fault self-diagnosis system. Daily maintenance work such as filter replacement and oil inspection can be completed on the ground, and the self-diagnosis system can quickly locate faults, reducing the maintenance cost and downtime of overseas users.
The overall transportation dimensions are 7660mm×2490mm×2740mm, with a rear swing radius of only 2130mm. The classic Hitachi yellow exterior is coated with anti-corrosion and anti-rust paint, which can resist salt spray erosion in coastal areas and sand wear in desert regions. The compact structure makes it flexible in narrow construction sites such as urban alleys and small mines, and the reinforced counterweight at the rear ensures the stability of the equipment during operation.

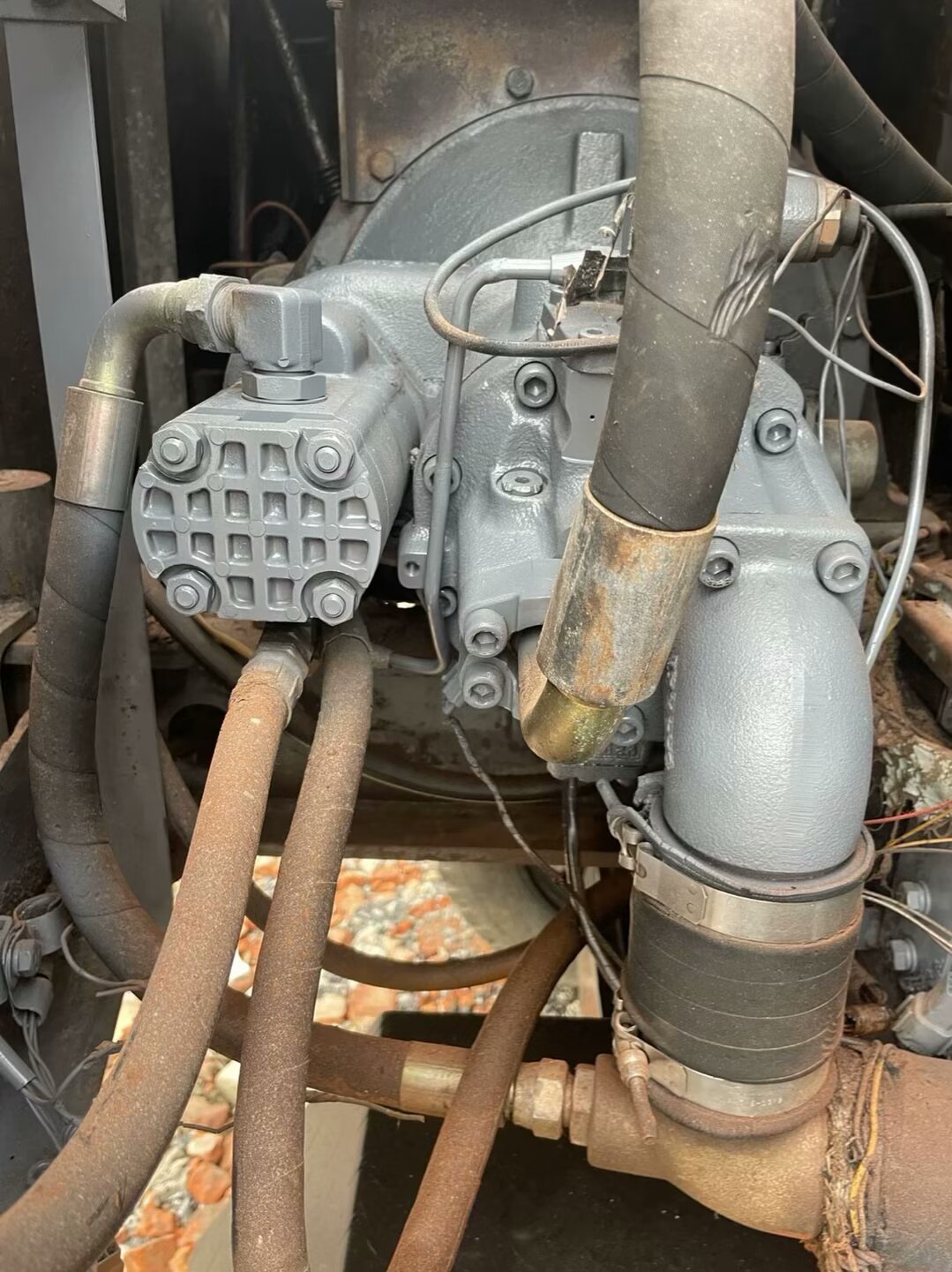

The Isuzu 4BD1-T1 engine and Hitachi three-pump hydraulic system are perfectly matched, with a scientific layout of the engine compartment for convenient maintenance and heat dissipation. The hydraulic pipelines are neatly arranged, and the key joints are equipped with protective sleeves to reduce the risk of damage. The main pump adopts a variable piston pump design, which can adjust the displacement according to the working conditions, effectively saving energy consumption.

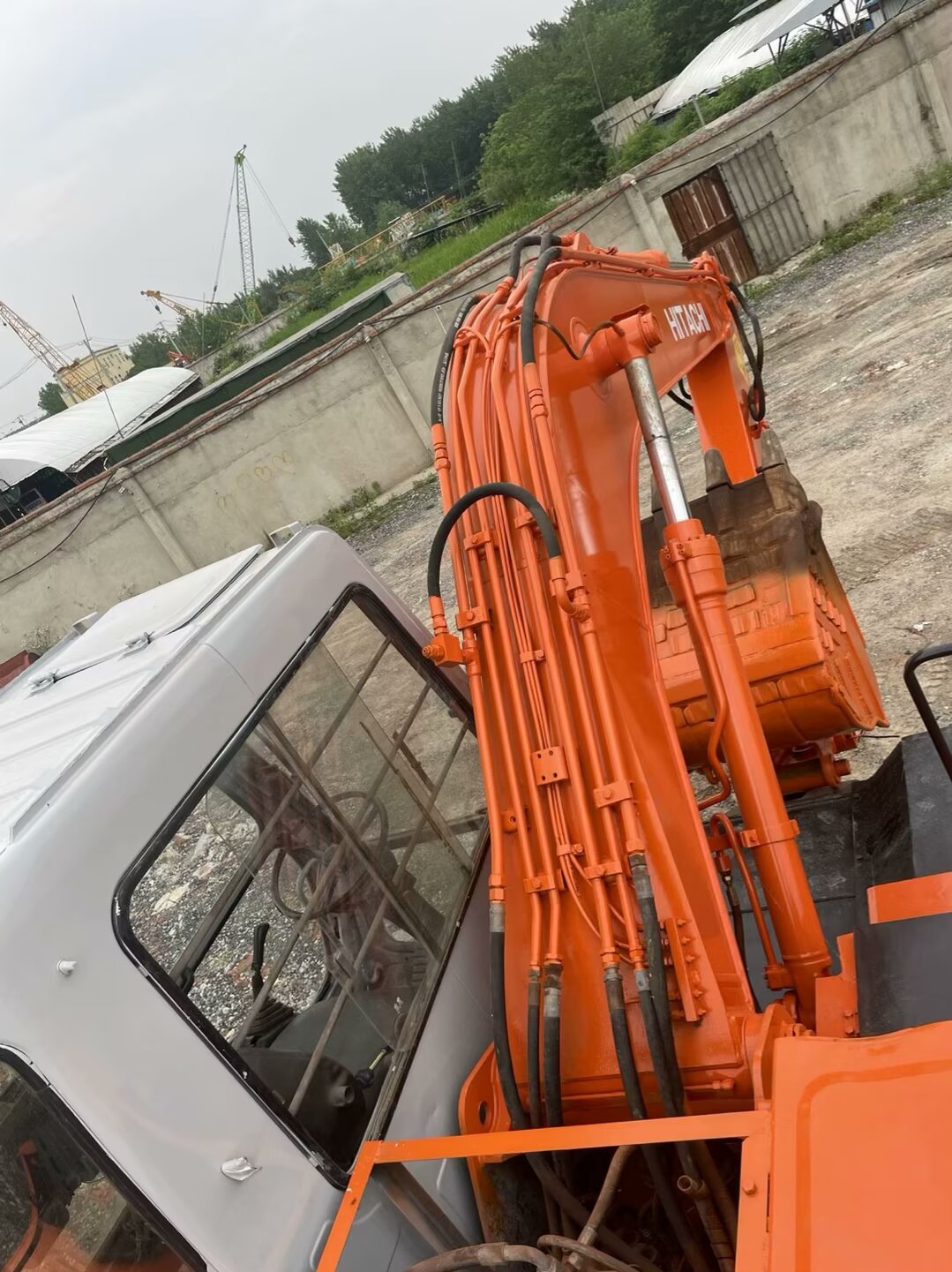

The standard bucket capacity is 0.19-0.59m³, made of high-strength wear-resistant steel, and the bucket teeth are replaceable, which is convenient for overseas users to maintain and replace. The boom is designed with reinforced welding seams, which can withstand the impact of hard materials such as rocks. The maximum digging radius is 7830mm, which can easily meet the needs of earthwork excavation, foundation pit construction and other operations.

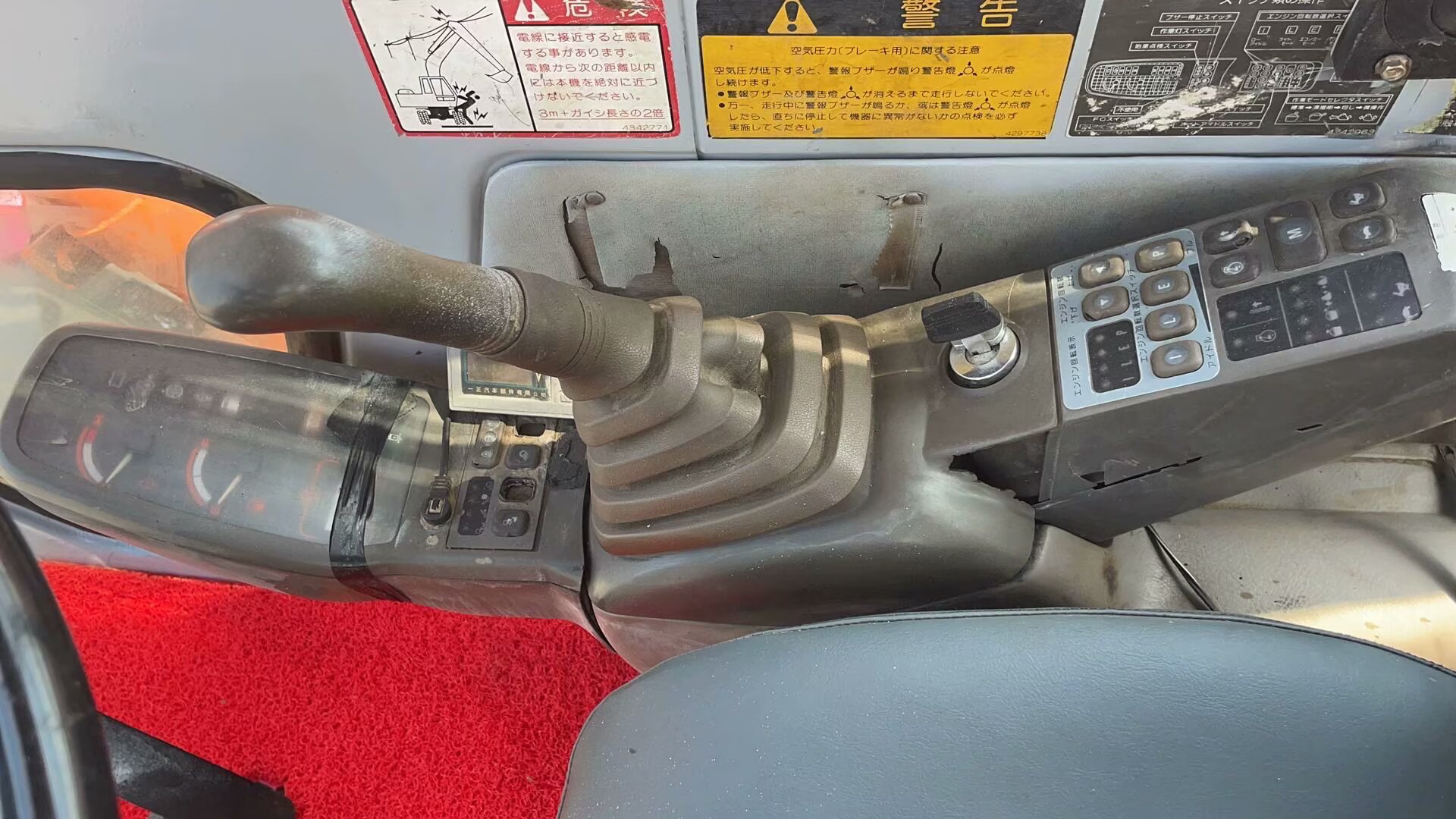

The spacious cab is equipped with a shock-absorbing seat and an efficient air conditioning system, creating a comfortable working environment for operators in high-temperature overseas regions. The instrument panel clearly displays key parameters such as engine speed and hydraulic pressure, and the fault self-diagnosis system can prompt faults in time, which is convenient for operators to handle problems quickly.
The HITACHI EX100-3, with its balanced performance and strong adaptability, is widely used in various overseas small and medium-sized engineering scenarios:
- Urban and Municipal Construction: Suitable for urban pipeline laying, road repair, community greening transformation and small-scale building demolition. Its compact size and small rear swing radius can avoid collision with surrounding buildings and facilities, which is very suitable for narrow urban construction spaces.
- Small-Scale Mining and Quarrying: It is competent for surface soil stripping in small mines, loading of crushed stone materials and cleaning of mining waste. The wear-resistant bucket and strong digging force can cope with the harsh working environment of mines, and the stable chassis ensures the safety of operation on uneven terrain.
- Agriculture and Rural Engineering: It can be used for farmland reconstruction, water conservancy project construction, rural road construction and other operations. The low ground contact pressure will not damage the soil structure, and it can be equipped with special attachments to complete ditching, soil turning and other agricultural operations.
We provide comprehensive cross-border procurement support for overseas users to eliminate worries in the whole procurement process:
- Comprehensive Equipment Inspection: Provide detailed test reports covering engine power, hydraulic system pressure, track wear degree and working hour records. For used equipment, real-time operation videos and complete maintenance records are attached, and third-party inspection is supported to ensure users fully grasp the equipment status.
- Customized Compliance Support: Familiar with the import policies of various countries and regions, we can assist in preparing certificates of origin, environmental protection certificates and other customs clearance documents. The equipment meets the emission standards of most countries in Southeast Asia and Africa, ensuring smooth customs clearance.
- Reliable Logistics and On-Site Commissioning: Customize logistics solutions such as container shipping according to user needs. The equipment is packaged with anti-collision and anti-rust materials to prevent damage during long-distance transportation. After the equipment arrives at the destination, professional technicians can be arranged to carry out on-site commissioning and operation training for operators.
- Global Spare Parts and After-Sales: Relying on Hitachi's global parts supply network, common spare parts such as filters, bucket teeth and hydraulic hoses can be quickly delivered to overseas construction sites. We provide 24-hour online technical support. For equipment failures, local cooperative service providers can be coordinated for on-site maintenance in a timely manner.
The HITACHI EX100-3 inherits Hitachi's consistent advantages of reliable quality and efficient operation. Its Isuzu engine and self-developed hydraulic system achieve an excellent balance between power and fuel economy, and the reinforced structural design ensures the service life of the equipment in harsh working environments. Moreover, the humanized cab design and convenient maintenance characteristics reduce the use threshold and later operation costs for overseas operators. For overseas users engaged in small and medium-sized engineering projects, it is a cost-effective choice with low failure rate and high investment return, especially suitable for users who pursue high performance and low maintenance costs.
If you want to obtain more detailed parameters of HITACHI EX100-3, real-time inspection videos of used equipment, customized quotes for new and used machines, or exclusive channels for accessory procurement, please contact our team immediately. Let the HITACHI EX100-3 provide powerful and stable support for your overseas small and medium-sized engineering projects and help you improve operation efficiency and investment returns!
